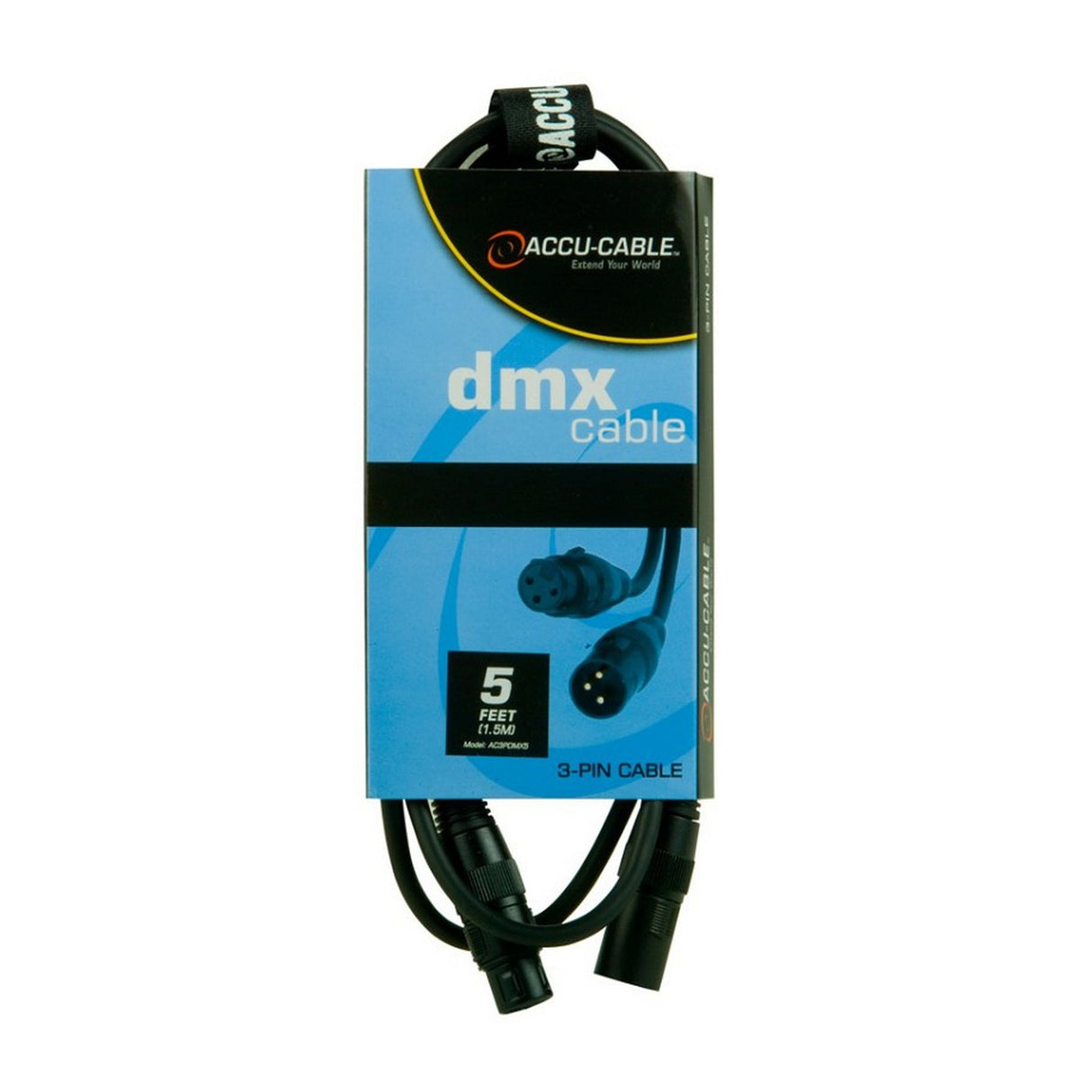

Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

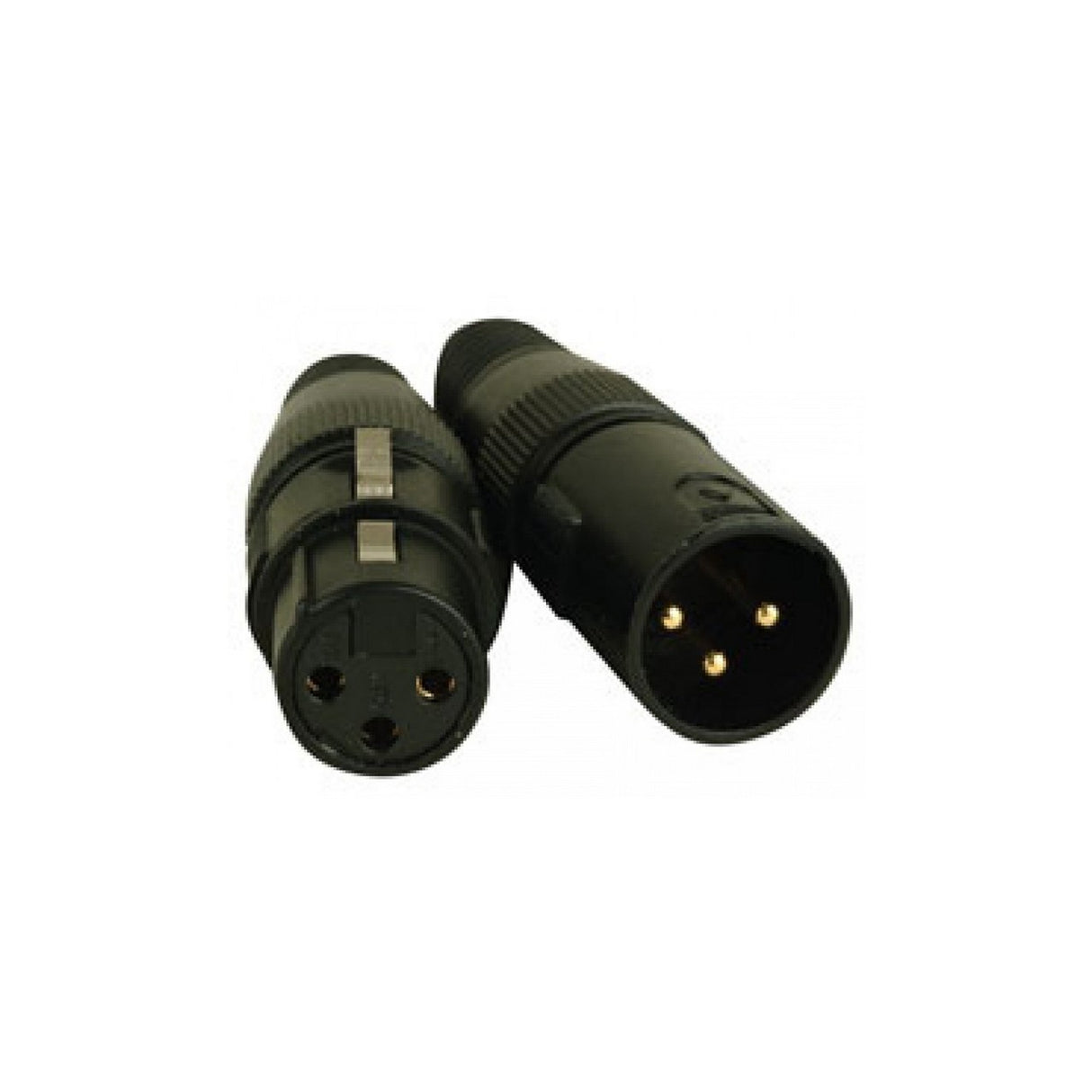

Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable
22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.
Technical Specifications
Length
5 Foot
Conductor
Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354 inch
Conduct or Material: TC-Tinned Copper
Insulation
Insulation Material PE Polyethylene
Lay Length
Lay Length: 2.5 inch
Direction: Left Hand Lay
Twists: 4.8 per foot
Inner Jacket
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055 inch
Pair Color Code: Black/White
Outer Shield
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Outer Shield Material
Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter
Overall Nominal Diameter: .229 inch
Mechanical Characteristics
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2 inch
Maximum Recommended Pull Tension: 72 lbs.
Electrical Characteristics
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
