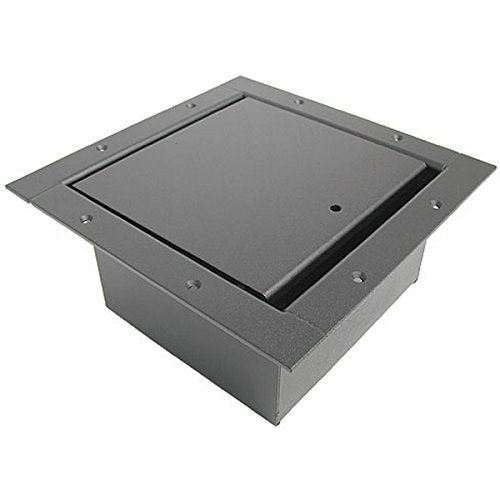

Ace Backstage Co. 122SLBK Full Stage Pocket Standard Lid Textured Black Finish
ACE BACKSTAGE CO., INC. large-sized Stage Pocket, the Full Stage Pocket, is a standard general use vertical slant panel flush stage pocket. The Full Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Full Stage Pocket has a larger capacity inter-changeable panel system which permits easy custom connector/panel configurations.
The Full Stage Pocket has the panel capacity for either:
(2) #PNL-100 Series CONNECTRIX Panels or (2) #PSW-100 Series Switchcraft® Panels or (2) #PE Series Single Gang Electric Duplex Switch Box Panels or (1) #PNL-120 Series CONNECTRIX Panel
The Full Stage Pocket has the connector capacity for either:
(12) CONNECTRIX Connectors or (12) Neutrik® Connectors or (12) Switchcraft® Connectors or (6) CONNECTRIX, Neutrik®, or Switchcraft® Connectors and (1) #PE Electric Duplex Switch Box
Utilizing ACE's CONNECTRIX System will allow mounting of up to 12 CONNECTRIX, Neutrik®, Switchcraft®, and/or Custom Connectors in the Full Stage Pocket. All ACE Full Stage Pockets are welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange and a 16 ga. (.062") thick Pocket Body. The Full Stage Pocket resists bending under even the most severe stage loads.
Key Features
- LARGE CAPACITY: The Full Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. Two (2) optional #PNL-100 Series Panels or one (1) optional #PNL-120 Series Panel will mount up to 12 CONNECTRIX, Neutirk®, and/or Switchcraft® type connectors*. Two (2) optional #PSW-100 Series Panels will mount up to 12 Switchcraft® type connectors.
- DURABLE CONSTRUCTION: Welded steel construction of Full Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid and Mounting Flange is made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel.
-
spring-loaded HINGE PINS: Removable spring-loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
CABLE WAY SLOTS: Generous 3/8" x 8" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use. - EASY INSTALLATION: Easy installation into 8.5" x 8.5" square cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.
- DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange with brushed finishes are also available by special order.
- RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.
- INCLUDES: (1) Stage Pocket Body with Trim Bezel Mounting Flange, (1) Lid, (2) Hinge Pins, (2) Springs, (8) #8 Self Tapping Sheet Metal/Wood Screws, (1) Slot Closure
Technical Specifications
Full Stage Pocket Body Size = 8.000” W x 3.500” H x 7.187” D
Full Stage Pocket Lid & Mounting Flange Size = 10.500” W x 1.000” H x 10.500” D
Full Stage Pocket Connector Capacity = Up to 12 CONNECTRIX, Neutrik®, or Switchcraft®
Full Stage Pocket Cutout Dimensions = 8.500" W x 8.500" H
Full Stage Pocket Material = CRS Steel and/or Solid Half Hard Brass
