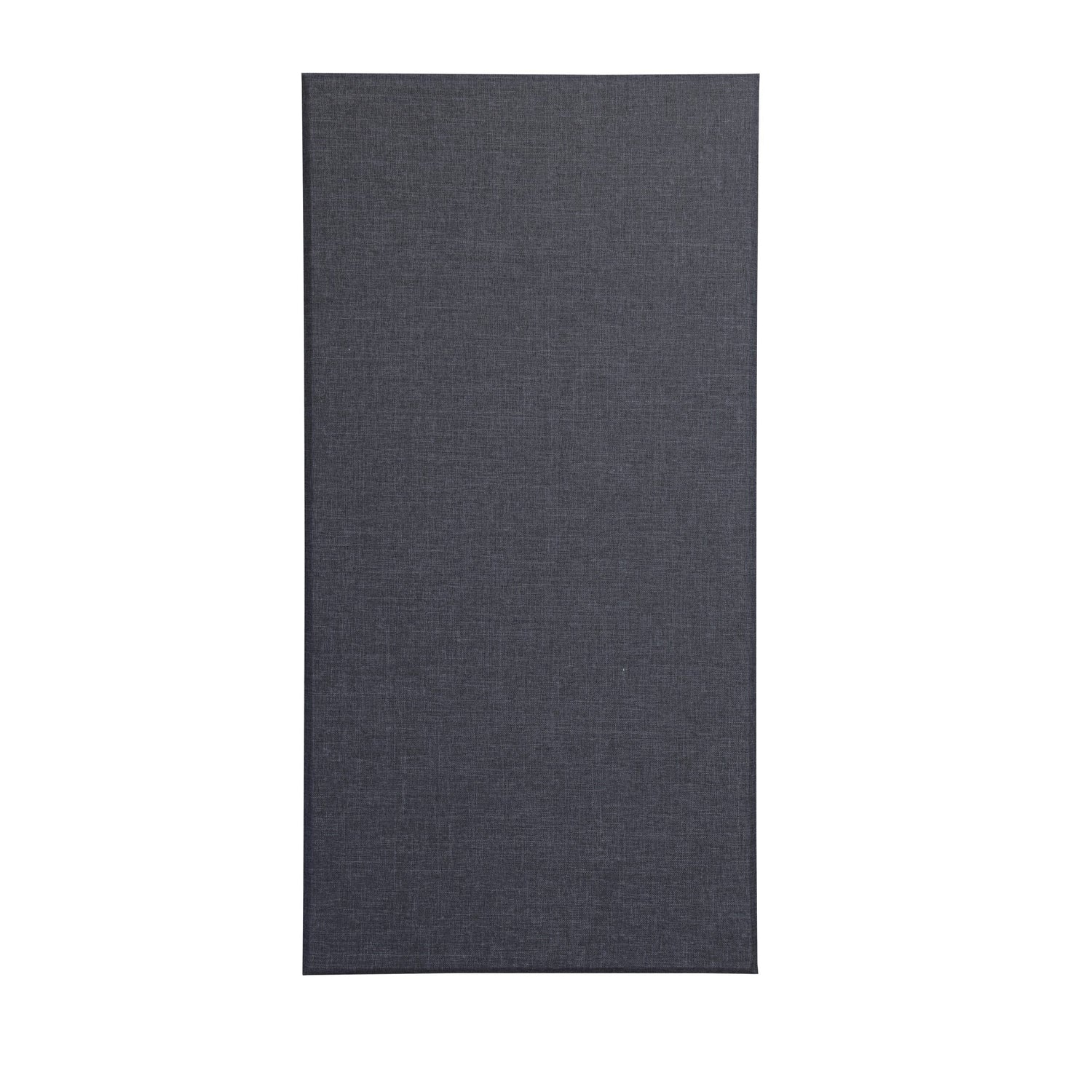

Primacoustic Broadband 24 x 48 x 2-Inch Acoustic Panels, Black 6-Set, Beveled Edge
Primacoustic Broadband 24 x 48 x 2-Inch Acoustic Panels, Black 6-Se...
Primacoustic Broadband 24 x 48 x 2-Inch Acoustic Panels, Black 6-Set, Beveled Edge
Primacoustic Broadway is a range of high-performance fabric covered acoustic panels designed for use in applications where superior acoustic performance is desired and safety is of utmost concern.
Made from high density 6lb per cubic foot (96 kg/m3) glass wool, Broadway panels have up to six times greater density than typical foam panels for balanced absorption throughout the audio listening range. Each panel is fully encapsulated with micromesh and edges are resin hardened to assure safe handling during installation. Panels are then covered in a tough yet acoustically transparent fabric and offered in three āarchitecturally neutralā colors with choice of square or bevelled edges. Panels may alternately be re-covered with any breathable fabric to suit those with greater artistic flare.
Installation is easy! Broadway panels hang as easy as pictures using a choice of impalers. Should you decide to relocate the panels, clean up is simply a matter of filling a screw hole and touching up the paint. Four standard panel sizes are offered with choice of 1ā (25mm), 2ā (51mm) or 3ā (76mm) thicknesses. This allows the designer to attenuate voice or flutter echo using thinner, more affordable 1ā panels for installations such as offices or call centers, or opt for thicker 2ā or 3ā panels for music related installations such as theater, studio and broadcast where broadband absorption may be required.
All Broadway panels are laboratory tested for acoustic performance and Class-A/1 fire safety by meeting stringent ASTM-E84 and Can-UL S102 requirements for flame spread and smoke development. This makes Broadway panels safe for use in commercial, government and institutional installations.
Broadway high-performance acoustic panels that look great, are easy to install and safe to use anywhere!
Technical Specifications
Dimensions
24" x 48" (60.96 x 121.92 cm)
Surface Area Coverage
1 and 2ā Thickness: 48 sq-ft total (4.46 sq-meters)
3ā Thickness: 32 sq-ft total (2.97 sq-meters)
Core Material
Formed, semi rigid inorganic glass fibers
Density
6.0 lbs. per cubic foot (96 kg/m3)
Fabric Facing
Acoustically transparent polyester tweed
Encapsulation
Micromesh on front and rear surface, resin treated edges
Absorption H2O
< 2% by weight @ 120F (49C), 95% relative humidity
Temperature
-20F ~ 150F (-29C ~ 66C)
Fire Rating
Class-A/1 (ASTM E 84 / CAN/UL-S102)
Mounting
Galvanized steel impalers *not included
