Description

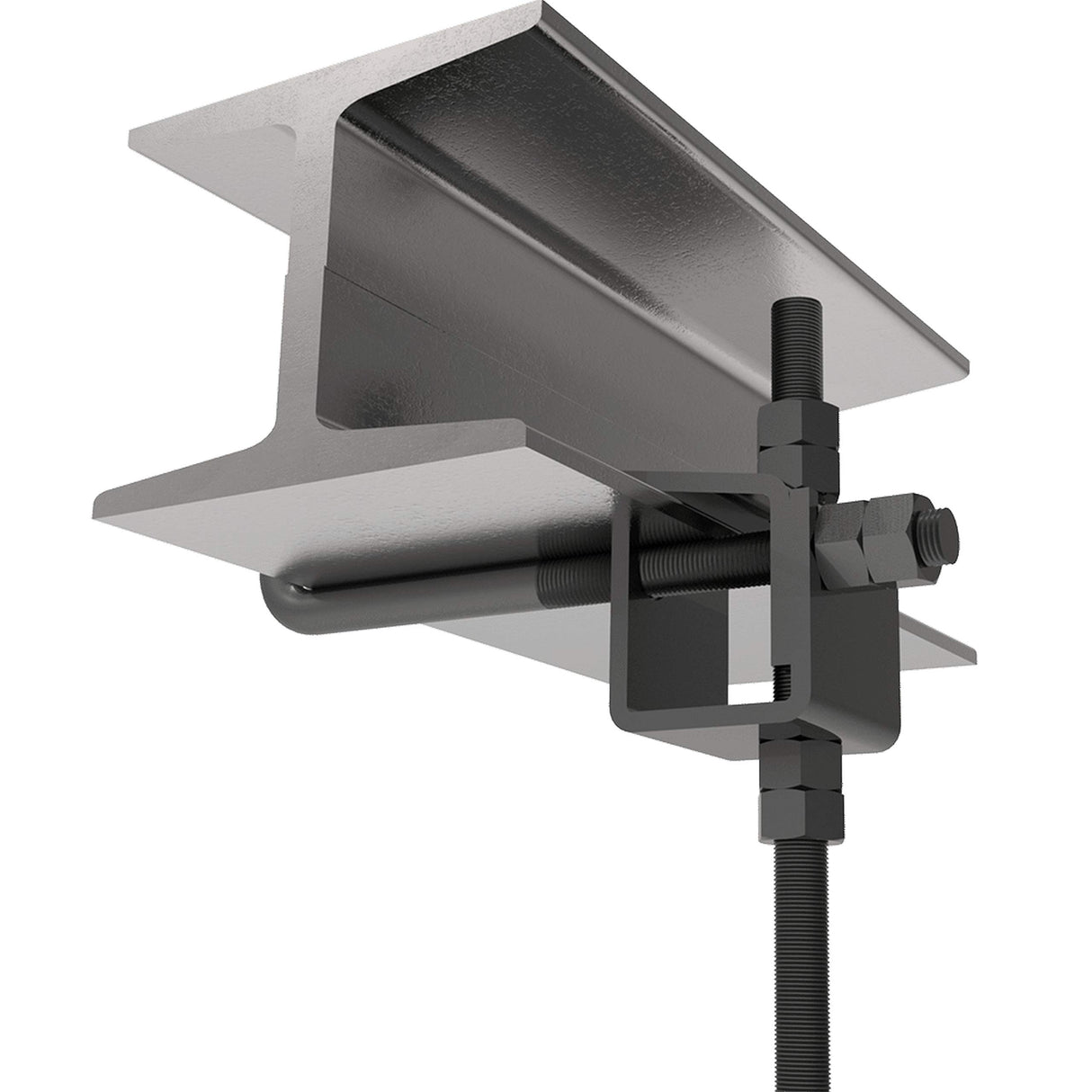

Adaptive Technologies BC-2824-6 Beam Clamp with 1/2 Inch Offset Rod, 6 Inch
This hook style beam clamp is adjustable and mounts flush underneath the building’s I-Beam’s flange. Use the BC-2824-6 hook style beam clamp to provide a load rated overhead rigging point from structural I-Beams with widths ranging between 2” and 6”. This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor.
Key Features
- For beams with width between 2” and 6”
- Accommodates 1/2 - 13 threaded rod
- For overhead vertical suspension applications
Installation / Use Cases
- Use as a hook-style beam clamp for creating a load-rated overhead rigging point from structural I-beams.
- Suitable for beams with widths between 2 inches and 6 inches.
- Use for overhead vertical suspension applications.
- Suitable for rigging direct loads, bridles, and hitches from overhead structural I-beams.
- Use with 1/2-13 threaded rod.
- Suitable for flush mounting underneath a building I-beam flange.
- Use only where beam flanges are parallel to the floor.
Package Contents
- Adaptive Technologies BC-2824-6 Beam Clamp with 1/2 Inch Offset Rod, 6 Inch
Frequently Asked Questions
What is the Adaptive Technologies BC-2824-6 used for?
The BC-2824-6 is a hook-style beam clamp used to create a load-rated overhead rigging point from structural I-beams.
What beam sizes can the BC-2824-6 fit?
It is designed for I-beam widths between 2 inches and 6 inches.
What type of rod does the clamp accommodate?
The clamp accommodates 1/2-13 threaded rod.
What suspension applications is this clamp intended for?
It is intended for overhead vertical suspension applications, including direct loads, bridles, and hitches from overhead beams.
How is the clamp secured?
A hand wrench is required to secure the clamp.
What installation condition is required for the beam flange?
The beam flanges must be parallel to the floor.
What comes with the BC-2824-6?
The package includes the Adaptive Technologies BC-2824-6 Beam Clamp with 1/2 Inch Offset Rod, 6 Inch.
