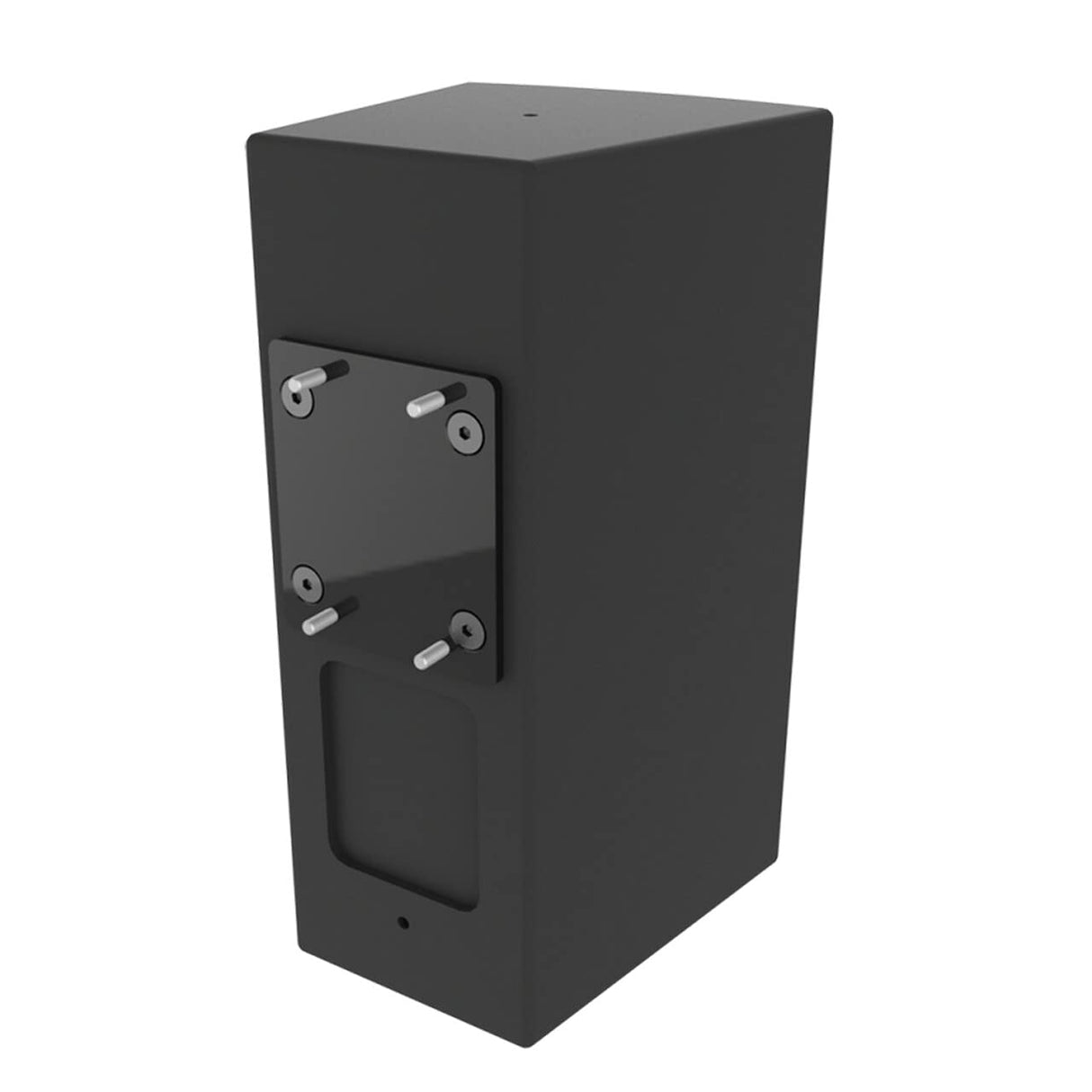

Adaptive Technologies MM-100x100-AP 100mm x 100mm Speaker Adapter Plate, Single Unit
Use this adapter for mounting speakers with the 100X100mm square mounting hole pattern to the rectangular hole pattern of the MultiMount. The adapter first receives the 5/16” screws in the rectangular hole pattern then is attached to the loudspeaker using the included metric screws. That means that the 5/16” screws are protruding out and the last step is to secure the MultiMount over the protruding 5/16” screws using the included flat washers and locking nuts.
Key Features
- Adapts standard speaker mounting
- hole patter to the 100x100mm vesa pattern.
- Adapts to MultiMount product
- Easy 4 screw installation
Technical Specifications
Material
StructuralSteel Alloy
Finish
Powder Coat
Color
Black
WLL
60 lbs. (27.2 Kg) max
Design Factor
10:1
Included
1 pc Adapter Plate
4 pcs 5/16” x 1” Screws
4 pcs M10X40mm Screws
4 pcs 5/16” Flatwasher
4 pcs 5/16” Nyloc Nuts
