Adaptive Technologies PM-24-6UP-G Galvanized Pole Speaker Mount Gray
Adaptive Technologies PM-24-6UP-G Galvanized Pole Speaker Mount Gray
Free Shipping
Adaptive Technologies PM-24-6UP-G Galvanized Pole Speaker Mount Gray

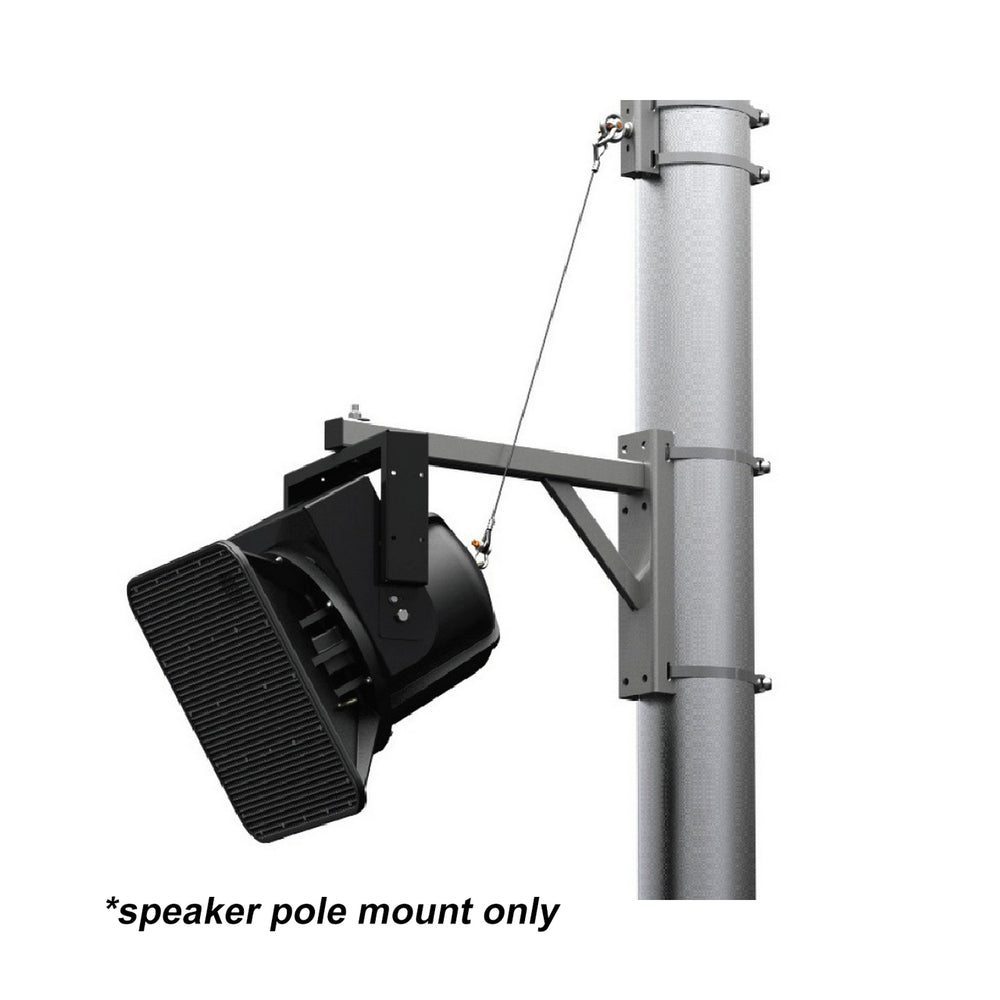

The UniFrame is a complete mounting solution for outdoor loudspeakers. Its design combines the attributes of the PoleStar stainless “a-lacarte” version into just two models produced in steel andthen galvanized to an outdoor weather rating.
The UniFrame reduces the amount of parts required for the job site and saves installation time by combining the support arm and the pole adapter together into one assembly. In addition, two stainless steel band kits are included, which only require a socket set to assemble.
The Support arm is welded together for extra strength and durability. Each arm includes three attach point mounting holes at the end of the arm that allow the installer to select the desired distance between the loudspeaker and the pole.
One design accommodates pole diameters from 2” to 6” and the other from 6” diameter poles and columns and larger.
Key Featres
- Uni-Frame assembly adds strength and reduces installation time.
- Longer pole interface increases structural capacity.
- Rugged outdoor galvanized finish to ASTM A123 and ISO1461 specifications.
- Three arm mounting points to accommodate all speaker models.
- Angled brace increases structural stability during severe weather conditions.
- Support arm may be oriented up or down for installation flexibility.
- Dual adapter amy be secured to the Uni-Frame for a Three-Way installation.
Technical Specifications
WLL
190 lb, single speaker
Design Factor
10:1 ratio
