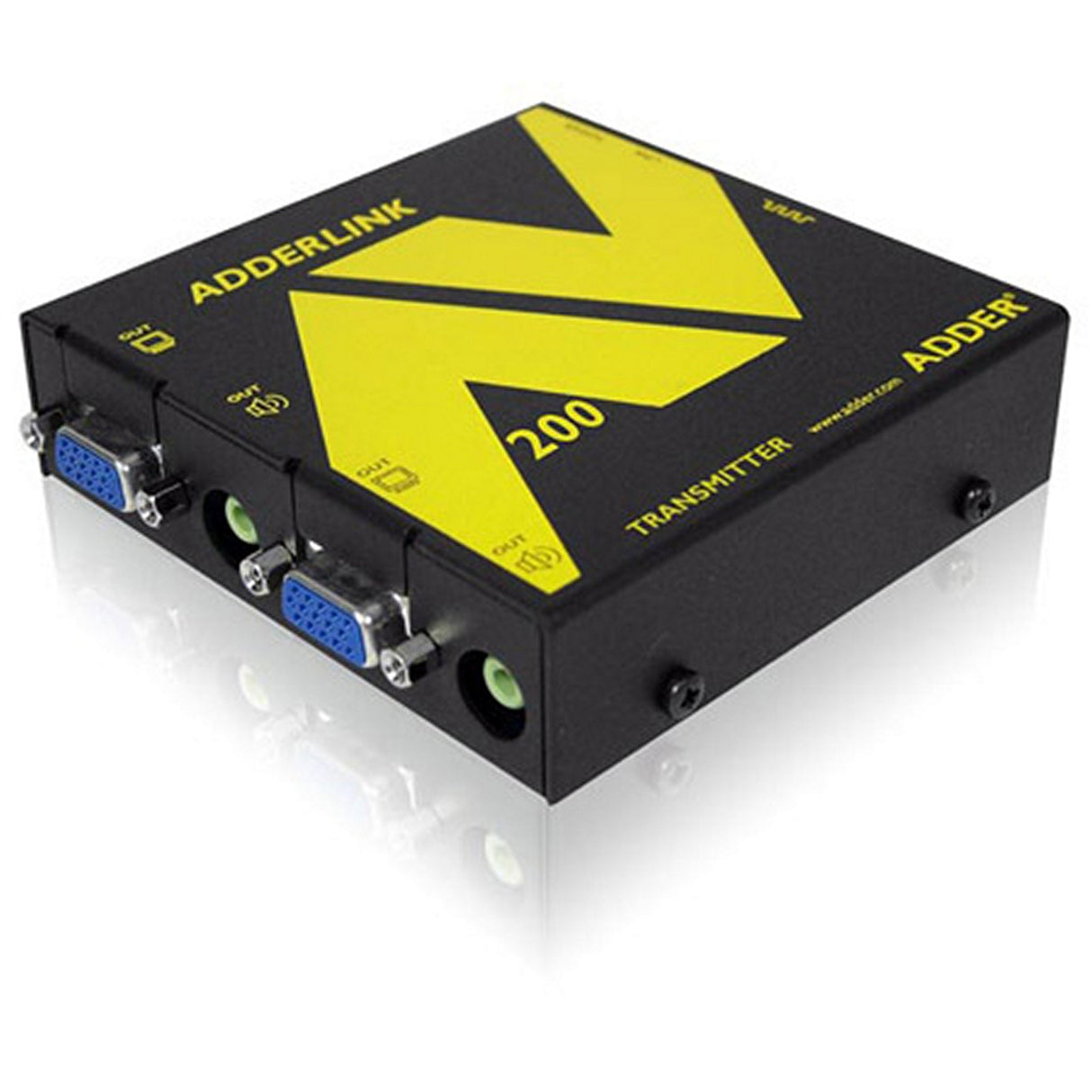

ADDERLink ALAV200T-US VGA AV KVM HD Extender
The ADDERLink ALAV200T is a high-performance KVM audio video point-to-point transmitter designed for digital signage applications. It works seamlessly with the ALAV201R-US receiver (sold separately) to deliver exceptional video and audio quality over long distances, reaching up to 1000 feet. This device is ideal for installations that require high-resolution video and CD-quality audio, making it perfect for professional environments where clarity and reliability are paramount.
Equipped with advanced features such as full RS232 support, the ALAV200T allows for remote control and interrogation of video display panels. The included Adder DM (Display Manager) software enhances user experience by enabling control over VDU power, video, and audio directly from the transmitter. Additionally, the open architecture policy allows integration with third-party signage control systems, providing flexibility in various setups.
Key Features:
- Crystal clear digital audio quality at 44.1kHz Stereo
- Resolution up to 1600x1200@60Hz
- Video quality maintained even at 1000ft
- Compact rack-mountable chassis for large installations
- Supports cascading transmitters for up to 128 VDUs from a single source
- Dual video/audio output on the receiver for back-to-back monitor applications
Technical Specifications:
Video Resolutions: 1920x1080 at distances up to 100 meters/325 feet, 1280 x 1024 at distances up to 300 meters/1000 feet.
Extension Distance: Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).
Extension Technology: Differential analogue signalling for video signals.
Cable Equalization: Adjustable cable equalisation amplifiers for independent video sharpness and brightness adjustment.
Audio: Transmitted as digital signals for high fidelity and low noise levels.
Power Supply: External 5.3V DC, 2A power supply with IEC power cable connection.
Package Contents:
- 1x AV204T VGA AV KVM HD Extender
- 1x Power Adapter with US cord
