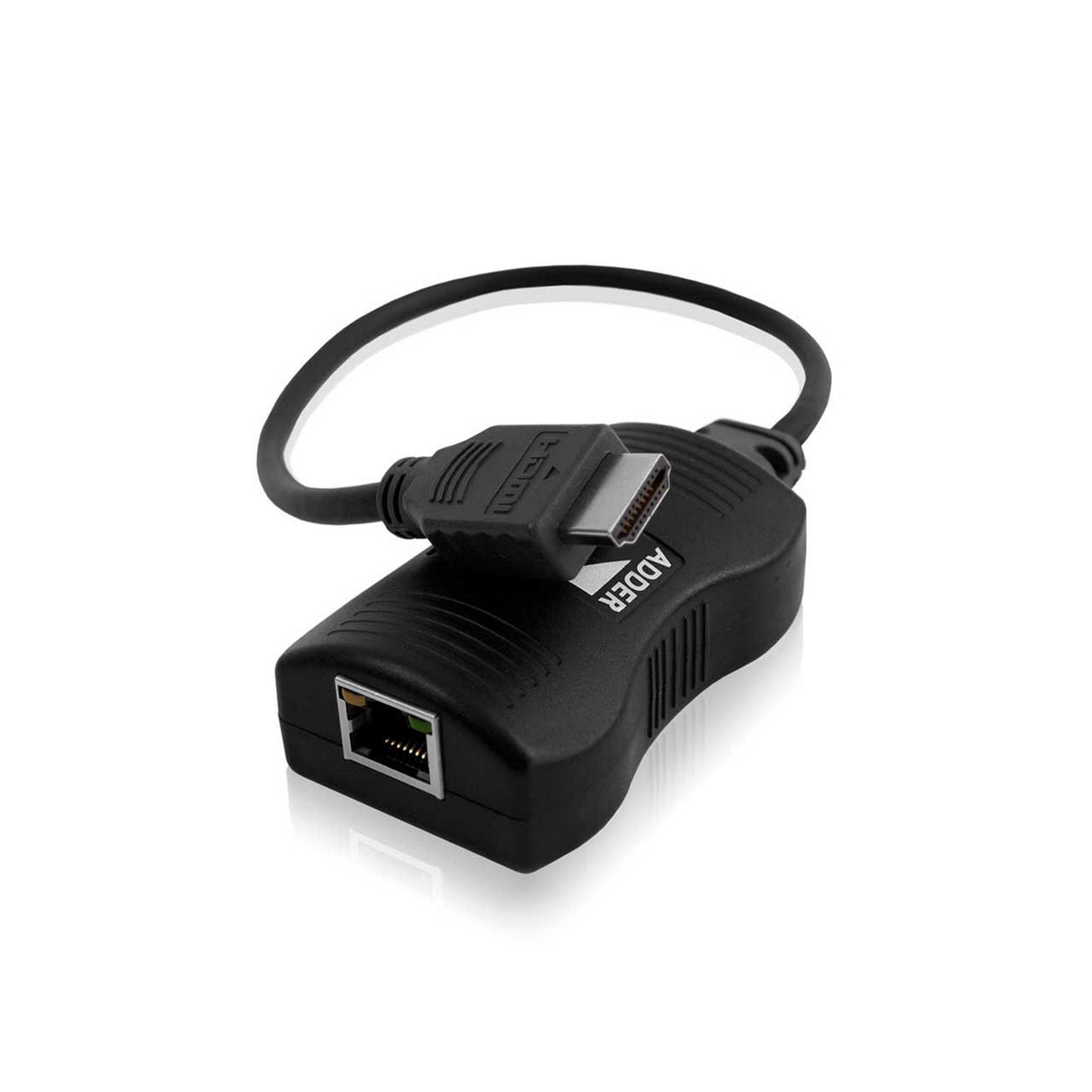

ADDERLink ALDV100R Digital AV HDMI Extender Single Receiver
The ADDERLink ALDV100R is a compact and efficient receiver unit designed for a seamless video extension experience. It allows for the transmission of high-definition video streams over a single CATx cable, ensuring that your media playback hardware can be securely housed in a controlled environment. This receiver is part of a larger system that enhances the user experience by keeping valuable equipment away from unsecure areas while maintaining high-quality video output.
With its ability to support resolutions up to 1920x1200 at 60Hz, the ALDV100R ensures pixel-perfect digital video without loss. It is powered via USB, eliminating the need for external power supplies and making it an energy-efficient solution for video extension. The device is designed for easy installation and operation, making it a reliable choice for both professional and personal use.
Key Features:
- Pixel perfect digital video with uncompressed communication, supporting resolutions up to 1920x1200 @60Hz (WUXGA).
- Extends video, audio, and power up to 50 meters over a single CATx cable.
- Highly energy efficient, powered by USB (5VDC - 2.5W for both RX and TX units combined).
- Supports eight channels of HDMI audio with various bit rates and sample rates.
- Intelligent EDID management for optimal display characteristics.
- Plug and Play functionality with no drivers or software required.
- Durable ABS enclosure designed to withstand everyday use.
Technical Specifications:
Operating Temperature: 0-40Ā°C (32 to 104Ā°F)
Power: USB Powered: 5VDC - 2.5W for both RX and TX units combined
Receiver Unit Connector: HDMI Type A Male
Supported Resolutions: 480p, 720p, 1080p, WUXGA (1920x1200) @60Hz, 24-bit color depth
Audio Support: Eight channels of HDMI audio; 16, 20, or 24 bit; 32kHz to 192kHz
Compatibility: All computers with HDMI and USB connections; all major operating systems
Regulatory Approvals: CE, FCC
Dimensions: Height: 0.8 in. (21 mm), Width: 1.8 in. (45 mm), Depth: 2.5 in. (63 mm)
Weight: Per pair: 0.6 lb (250g)
Package Contents:
- 1 x ADDERLink ALDV100R Receiver Unit
Warranty:
2 Year Limited
