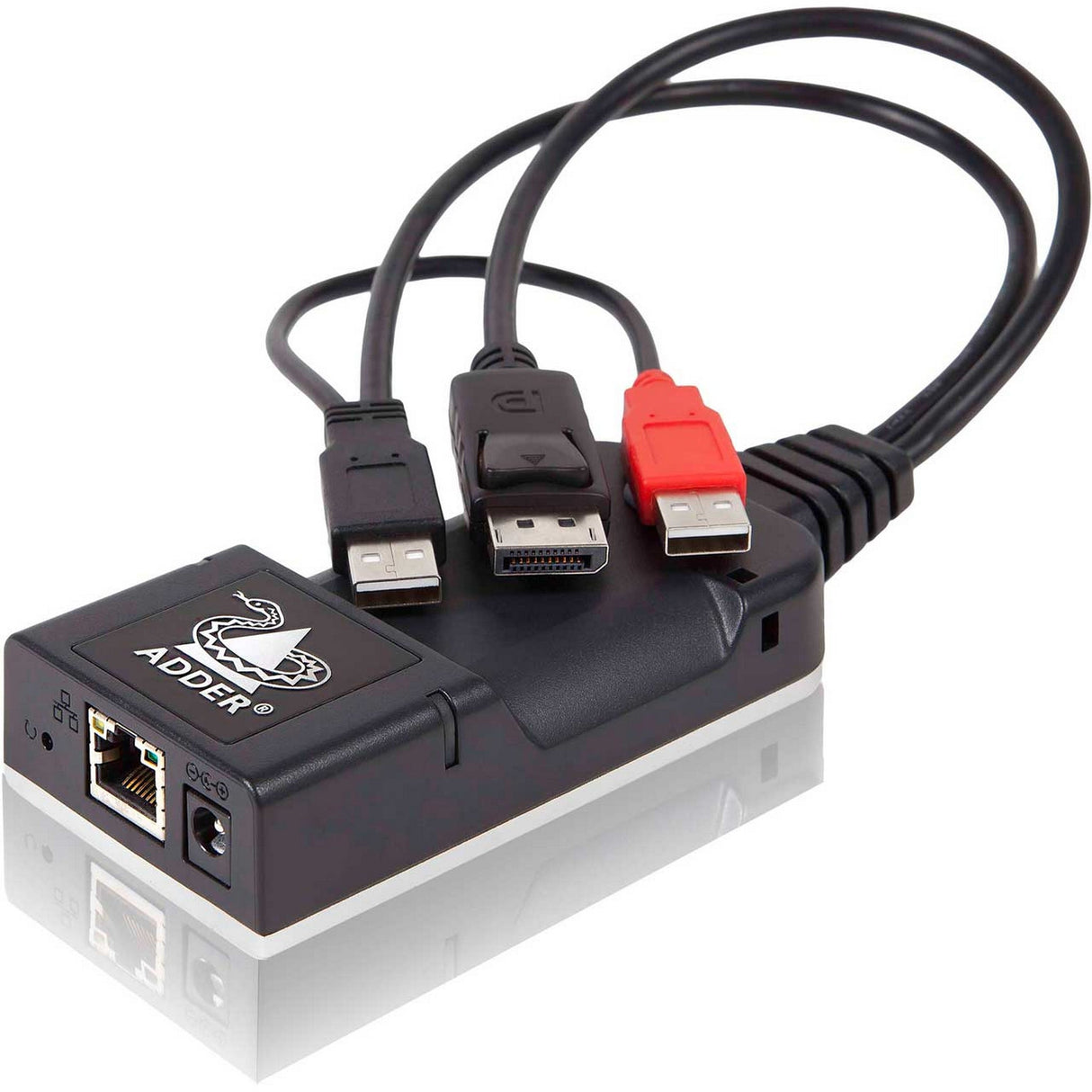

Adder ALIF101T-DP INFINITY High Performance ZeroU IP KVM AV Extender Transmitter
Adder ALIF101T-DP INFINITY High Performance ZeroU IP KVM AV Extende...
Free Shipping

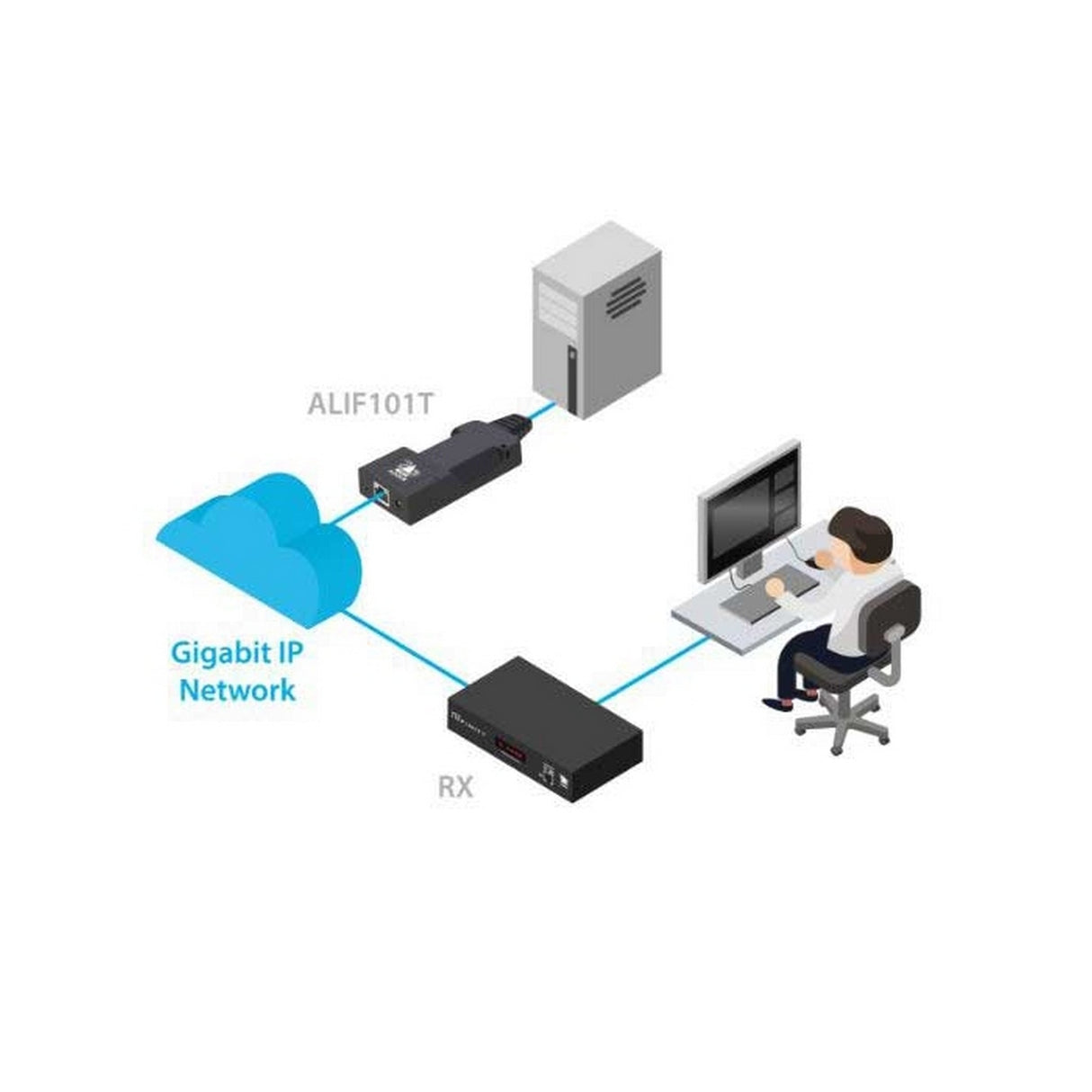

The ADDERLink ALIF101T-DP INFINITY High Performance ZeroU IP KVM AV Extender Transmitter is a Zero-U single-link DisplayPort KVM Transmitter with USB and Audio, offering high performance. As a part of the ADDERLink INFINITY series, the ADDERLink Infinity 100 stands out as the world's smallest high-performance KVM extender transmitter. It allows you to place your essential computing hardware in a secure, temperature-controlled location, separate from the user's workstation. This KVM extender can function as a point-to-point extender or be integrated into a broader matrix system when used with the ADDERLink INFINITY Manager (A.I.M.).
Please Note: The ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.
Key Features
- Configuration of DisplayPort
- Form factor in Zero-U design
- Powered by USB with low power consumption
- Maximum resolution of 1920 x 1200 @ 60Hz with minimal lag
- Extension distance of 330ft (100m) on a single CATx cable
- Unlimited extension capability using an IP network
- Flexible solution for various applications, from point-to-point extension to an infinitely extensible matrix for IT administration or broadcast purposes.
Technical Specifications
Video Resolutions
The system supports resolutions up to 2560x1600 @60Hz
Operating/Storage Conditions
Operating temperature: 0°C to 50°C/122°F
Storage temperature: -10 to 60°C/140°F
Storage and operating relative humidity: 10-90% non-condensing
Altitude: <3000m
MTBF: >500,000 hours
Power
USB power: 2x USB2.0 (2x 500mA @5V) 5W
External power: 5VDC, 1A, (LPS)
Typical power consumption: 3W
BTU: 10.2BTU/hr
Physical Design
Dimensions: (L)110mm/4.3" x (W)55mm/2.17" x (D)25mm/1" with 30cm/11.8" cable length
Weight: 0.2kg/0.4lb
Materials: ABS and aluminium construction
Connectors
Computer: 1x DisplayPort&trade/2x USB Type-A
Ethernet: 1x 8p8c (RJ45)/Power: 2.5mm socket
Connections
USB: USB2.0 Low, full and hi-speed
USB features: Keyboard, mouse, touch and hard drives
USB device seen as: 7 or 13 port hub
Max video resolution: Up to 2560x1600 @60Hz
Audio: Bi-directional USB audio 2 channel 16bit 48KHz
DisplayPortT Audio: 2 channel linear PCM
Ethernet: 1GbE (No 10/100 support)
Requires source to be DisplayPortT Dual-Mode (DP++) compliant
Item Includes
1x Adder ALIF101T-DP High Performance ZeroU IP KVM Dongle - Extension or Matrix of Video - Audio and USB Over Single Cable
Warranty
2 Year Limited
