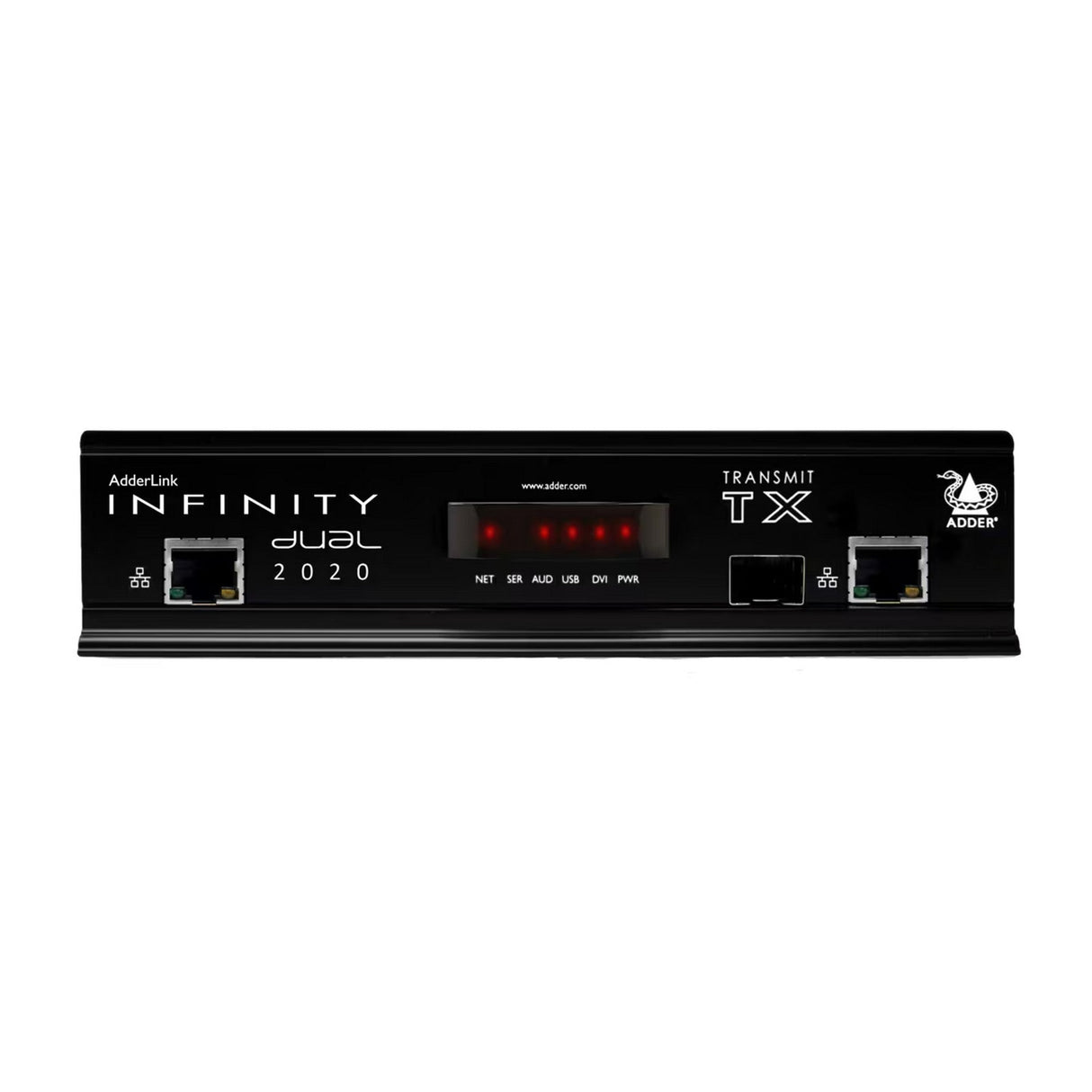

AdderLink Infinity (ALIF) dual 2020 (ALIF2020T-US) is an IP-based high performance KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution. This enables you to locate your critical computing hardware in a secure and temperature-controlled environment away from the user work station, whilst maintaining a pixel perfect desktop experience.

Key Features

• Perfect digital video, real time control: Using a spatially-lossless encoding system, with 1:1 pixel mapping, ADDER Link Infinity provides pixel perfect and color accurate video with no artifacts. The digital video you receive is the same as the digital video leaving the remote computer.
• Single CATx cable or fiber with immunity from interference: Using standard IP technology means you have the choice of a single structured cable (CATx) or fiber connection. The result is that you achieve reliable links without interference. The ADDER Link Infinity dual 2020 also offers the option of up to 10km distances with fiber.
• Unlimited extension distances: Extension distance is not limited to a single 100 meter cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.
• Support for MacPro (Dithered Video): Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.
• USB 2.0 with class control: Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
• EDID management: Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
• Plug and Play: ADDER Link Infinity extender devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
• Redundant network operation: The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.
• ADDER Link Infinity Matrix: With the addition of ADDER Link Infinity Management system (A.I.M.) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network. See the ADDER Link Infinity Matrix data sheet for details.

Technical Specifications

Hardware compatibility
All computers with DVI-D, USB, audio, RS232 - requirement dependent.
DVI-D - Digital Visual Interface (digital only)
The system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz.
USB 2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non-HID devices. Isochronous devices are not supported (e.g., USB audio or video devices).
Digital stereo audio
The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.
RS232
RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology cannot be multi-cast
Software compatibility
All known operating systems

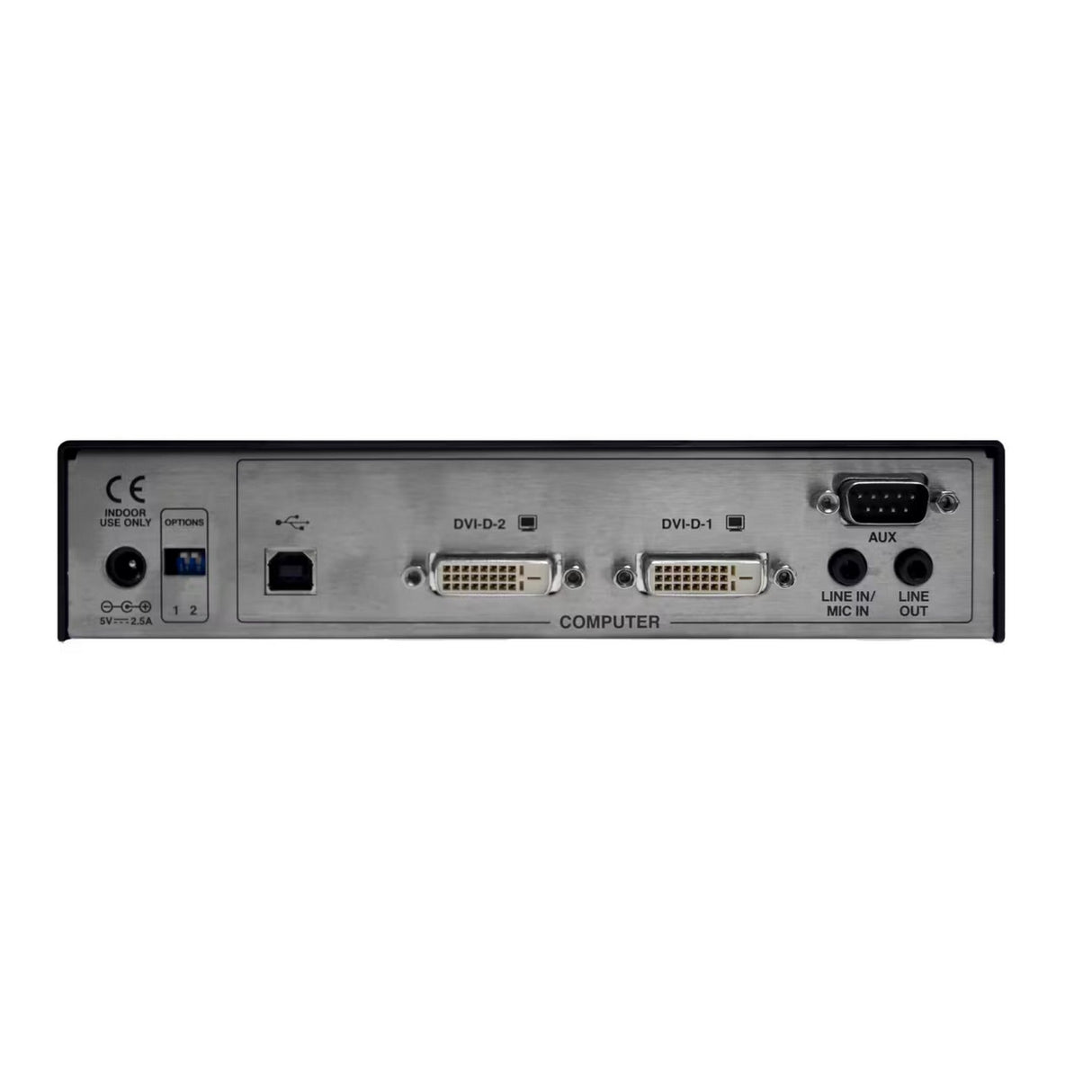

Computer connections transmitter (TX)
2 x DVI-D
Audio 3.5mm in
Audio 3.5mm out
USB type B
RS232 9-pin D-type
1 x 8p8c
1 x SFP for AdderLink
Infinity network connections
Peripheral connections receiver (RX)
2 x DVI-D
4 x USB type A, RS232 9-pin D-type
1 x 8p8c
1 x SFP for AdderLink
Infinity network connections
Audio 3.5mm in
Audio 3.5mm out
Physical design
Dimensions (WxHxD)
7.92 x 1.76 x 6” (198 x 44 x 150mm)
Weight
1.1kg/2.7lbs
Case
1U Case
Material
Robust Metal Construction
Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A
Input to power adapter. 5VDC 20W
Output from power adapter
Operating temperature
0° to 40°C / 32° to 104°F
Approvals
CE, FCC
Item Includes
ALIF2020T unit
Power adapter and power cord
Single Link DVI-D to DVI-D video cable
Combined DVI-D and USB cable (1.8m)
2 x audio cable 2m (3.3mm stereo jacks)
Serial null modem cable 2m
