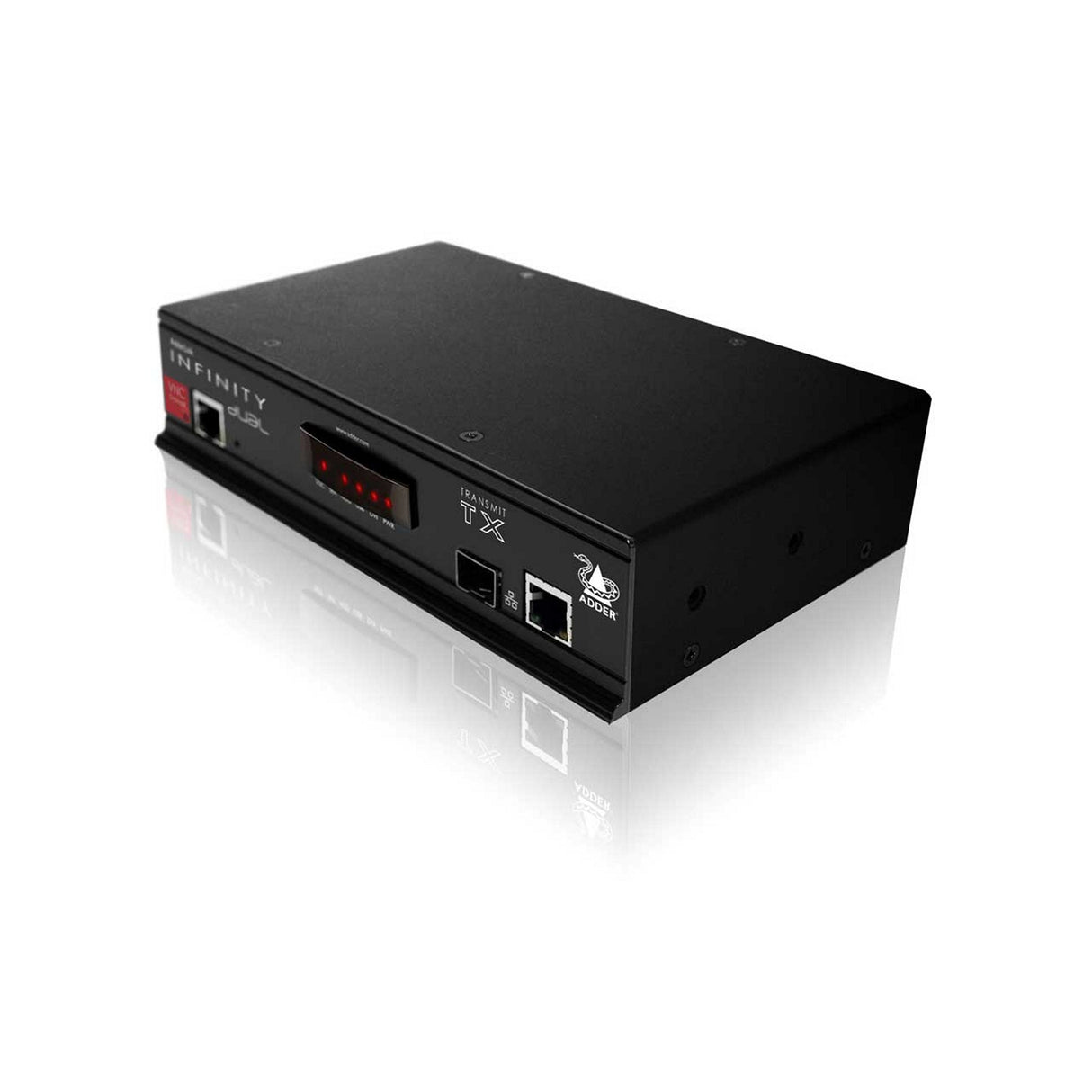

ADDER ALIF2112T Dual Head Digital USB 2.0 IP KVM Transmitter

ADDERLink ALIF2112T-US Infinity Dual Head Digital USB2.0 IP KVM A/V Extender Transmitter

The ADDERLink ALIF2112T-US is a high-performance KVM solution designed to isolate critical computing hardware from users while providing seamless access to remote systems. This dual head extender supports pixel-perfect video transmission over distances of up to 328 feet (10 km) without any loss of compression and minimal lag. With the ability to connect up to 16 users simultaneously via Real VNC, it allows secure remote access to computers outside your network, making it ideal for enterprise environments where security and performance are paramount.

Equipped with advanced security features, including AES 256-bit encryption and RSA 2048-bit public key authentication, the ALIF2112T-US ensures that your data remains protected. The extender supports high-resolution video up to 2560x1600 at 60Hz or dual displays at 1920x1200, along with digital stereo audio, making it a comprehensive solution for high-quality audio-visual applications. Its plug-and-play functionality means it can be set up quickly without the need for additional drivers or software, making it user-friendly and efficient.

Key Features:

• RealVNC server with RFP 3.3 support, allowing up to 16 users to access computers securely.
• AES 256-bit encryption and RSA 2048-bit public key authentication for enhanced security.
• Supports video resolutions up to 2560x1600 @ 60Hz or dual displays at 1920x1200 @ 60Hz.
• Digital stereo audio transmission for crystal clear sound.
• Transmits DVI, USB, audio, and bidirectional RS232 signals over distances up to 328 feet (10 km).
• Power redundancy with dual network ports for reliability.
• Plug and Play setup with no configuration required.
• USB True Emulation for compatibility with various USB devices.

Technical Specifications:

Video Resolutions: Up to 2560x1600 @ 60Hz (dual link) or 1920x1200 @ 60Hz (dual displays)
Audio: Analogue stereo audio (Line in, Line Out)
Approvals / Compliance: CE, FCC
Standards: USB2.0 (supports low, full, and high-speed devices)
Cable Requirements: CATx (up to 100m/330ft) or fiber
Environmental: Operating temperature 0 to 40°C / 32 to 104°F
Connectors - Remote Unit: 2 x DVI-D, Audio 3.5mm in/out, USB type B, RS232 9 pin D-Type, SFP slot
Mechanical: 1U compact case, dimensions 198mm x 44mm x 150mm, weight 1.1kg
Power: 100-240VAC 50/60Hz, 0.8A input; 5VDC 20.0W output
Software: Compatible with all known operating systems.

Package Contents:

• ALIF2112T unit
• Power adapter and power cord
• Single Link DVI-D to DVI-D video cable
• Combined DVI-D and USB cable (1.8m)
• 2 x audio cable (2m, 3.5mm stereo jacks)
• Serial null modem cable (2m)

Warranty: 2 Year Limited
