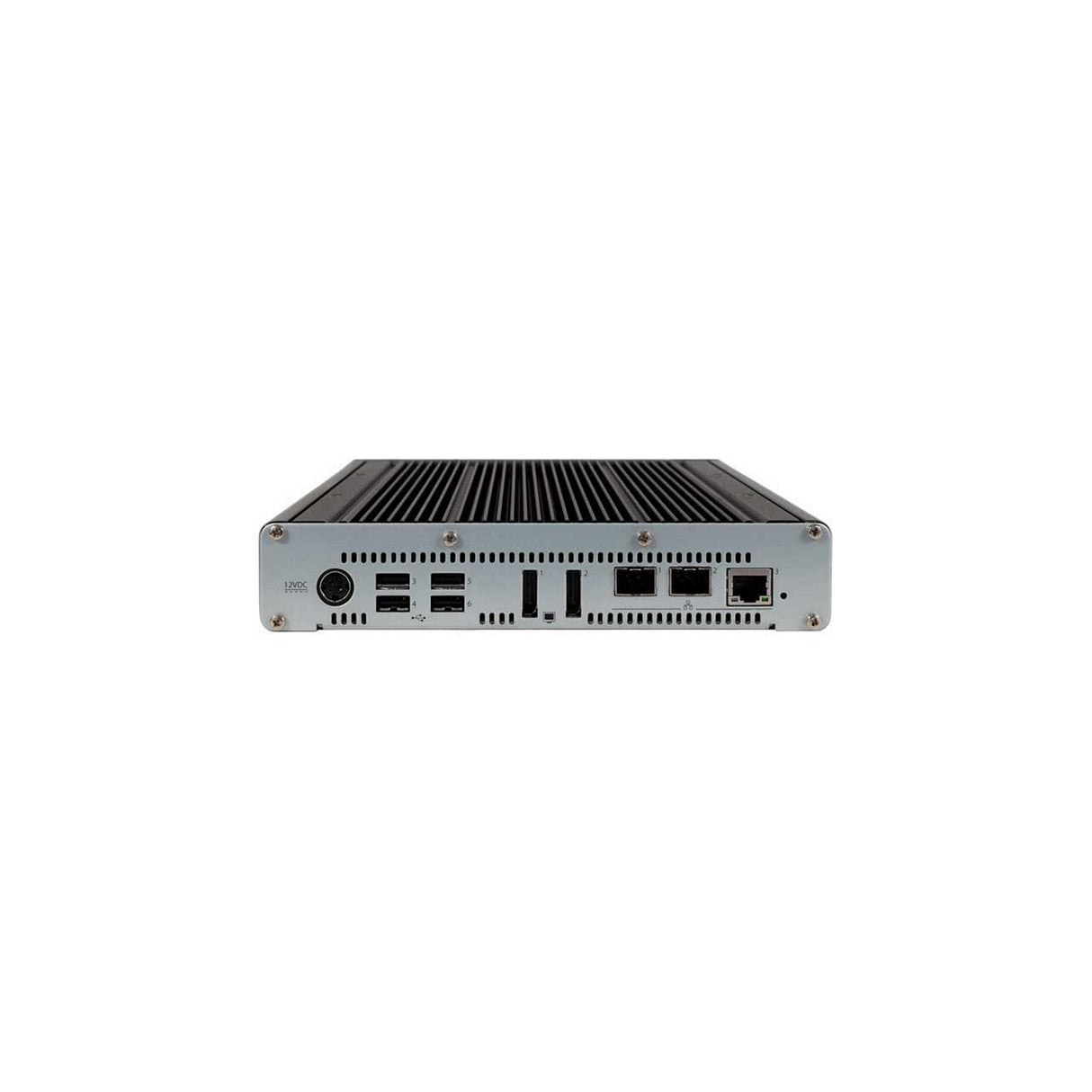

ADDER ALIF4001T Dual Head USB2.0 IP KVM Extender, Receiver
ADDER ALIF4001T Dual Head USB2.0 IP KVM Extender, Receiver
Free Shipping
ADDERLink INFINITY 4001 Series ALIF4001T Transmitter
The ADDERLink INFINITY 4001 Series ALIF4001T transmitter is the world's first dual-head, 5K high performance IP KVM matrix over a single fiber. It is designed to deliver two 5K screens over a single link, making it ideal for high-resolution and ultra-wide video applications. With support for both SDR10 and HDR10, the ALIF4001T ensures that users experience superior color depth and image quality, making it perfect for professional video environments.
This transmitter is fully compatible with the existing ADDERLink INFINITY range and can be easily integrated into a wider matrix system. It features enhanced resiliency with dual-multirate ports that can be teamed together, and supports high-speed USB communication for various devices. The ADDERLink INFINITY 4001T is perfect for users who require high-quality video and audio transmission over long distances, while maintaining a seamless and efficient workflow.
Key Features:
- Dual-head 5K video over a single link
- Supports up to 10-bit per color SDR and HDR10
- Pixel-perfect image quality with spatially lossless encoding
- Multi-channel digital audio via DisplayPortā¢
- Adder's USB True Emulation for fast switching
- Backwards compatibility with all of the ALIF range
- Flexible and scalable system
- Full touch screen control with floating launch icon and on-screen keyboard
Technical Specifications:
Video Resolution: Supports resolutions up to 5120x2880 including UHD or DCI and refresh rates up to 240Hz
Audio: Analog Line in/out 2 channel 16bit @48KHz 1V RMS in/1V RMS out, 2x DP Audio in either 2, 6 or 8 channels linear PCM
USB: 4 ports of USB2.0 with Adder's USB True Emulation, one port of transparent Hi-Speed USB2.0
Ethernet: 2x 10GbE or 2x 1GbE via SFP, 2x 10, 5, 2.5GbE when using SFP-CATX-MR SFP
Connections: 2x DisplayPortā¢, 2x USB type B, 2x 3.5mm audio jack sockets, 1x DB9 socket, 2x SFP+ cages
Power: External power: 12VDC, 5A, typical power consumption: 20W
Physical Dimensions: (L) 8.3" x (W) 8.5" x (D) 1.6", Weight: 4lbs
Materials: Aluminum and steel construction
Operating Temperature: 32 to 104Ā°F, Storage Temperature: 32 to 104Ā°F, Relative Humidity: 10-90% non-condensing, Altitude: < 2000m
Package Contents:
- 1x ALIF4001 Transmitter
- 2x 6.5ft DisplayPort Cable
- 1x 6.5ft USB cable
- 2x 6.5ft audio cables
- 1x PSU & IEC cable
