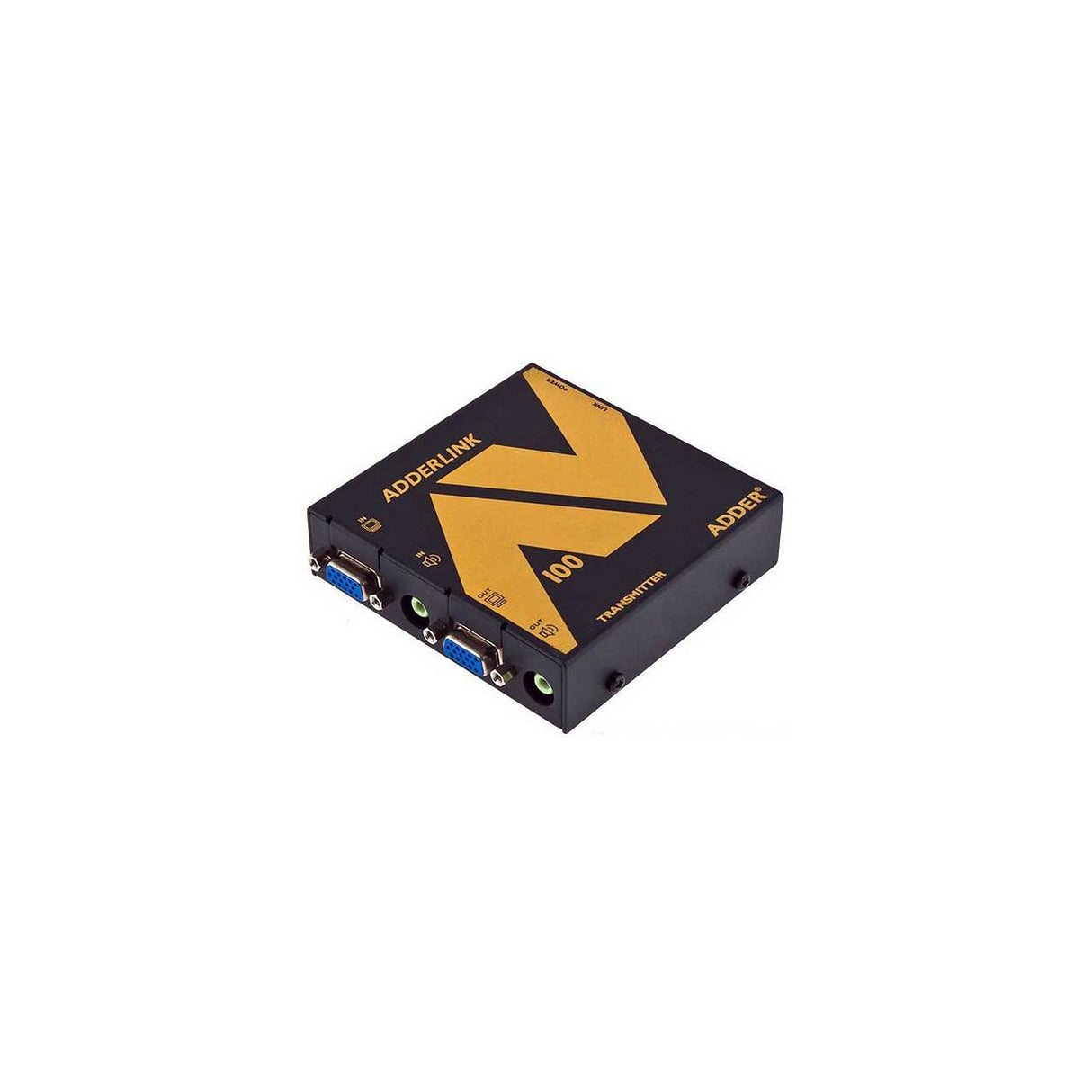

ADDERLink AV100T-US VGA/AV KVM Extender
The ADDERLink AV100T Transmitter is designed to extend a single high-resolution video and high-fidelity audio signal to up to four different receivers, making it an ideal solution for digital signage applications. This innovative device allows for flexible distribution of audiovisual content, ensuring that communication is crystal clear at the point of decision. With the ability to connect a local screen and speakers, or to cascade to additional ADDERLink AV100T units, it provides versatility in various setups while avoiding the high costs associated with fiber optic cabling.
Utilizing standard CAT5, 5e, 6, or 7 cables, the ADDERLink AV100T can transmit signals up to 1000 feet (300 meters) without compromising on quality. The device is engineered to deliver high video resolutions and superb audio quality, making it a reliable choice for any digital signage project. Its user-friendly design and robust performance ensure that it can adapt to the evolving needs of your audiovisual distribution.
Key Features:
- Extends high-resolution video and high-fidelity audio up to 300m
- Local port for connecting local screen and speakers or cascading other ADDERLink AV100T units
- Supports HD 1920x1080 at distances up to 100 meters/325 feet
- 1280 x 1024 at distances up to 300 meters/1000 feet
- Adjustable cable equalization for video sharpness and brightness
- Digital audio transmission for high fidelity and low noise
- Rack mountable in ADDER Link AV Series chassis
Technical Specifications:
Video Resolutions: HD 1920x1080 at 100m, 1280x1024 at 300m
Extension Distance: Up to 300 meters/1000 feet using CATx (x=5,5e,6,7)
Operating Voltage: 100-240VAC
Power Frequency: 50-60Hz
Usage: 5VDC at 500mAh
Temperature Tolerance: 0 - 40 deg C (32 to 104 deg F)
Humidity Tolerance: 5 to 60% non-condensing
Approvals: FCC class A, CE marked
Package Contents:
- 1x ALAV100T-US transmitter
- 1x Power Supply with US cord
Warranty: 2 Year Limited
