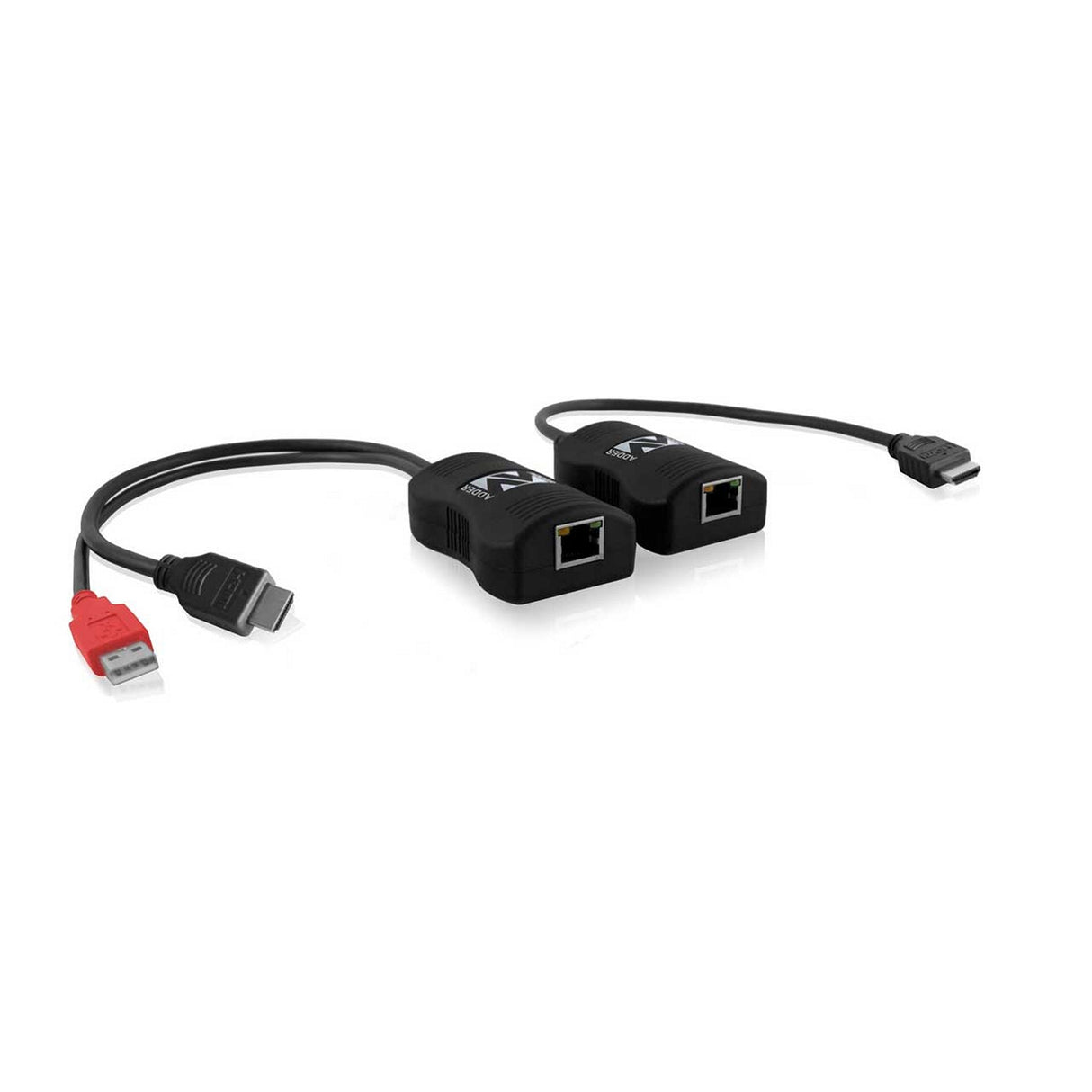

ADDER DV100 Digital AV HDMI HD Video Extender, TX/RX Pair

ADDERLink DV100 - HDMI

The ADDERLink® DV100 - HDMI is a compact and efficient digital video extender system designed to transmit HD video and audio over a single CATx cable. This system allows users to place their media playback hardware in a secure, temperature-controlled environment, ensuring that valuable equipment is protected while still providing an optimal user experience. With the ADDERLink DV100, you can extend HDMI digital video up to 164 feet (50 meters) without the need for complex installations or additional power supplies.

This extender is powered via USB from the transmitter end, making it easy to set up and reducing clutter. The ADDERLink DV100 is perfect for various applications, including digital signage and remote media playback, where maintaining high-quality video and audio is essential. Its energy-efficient design consumes significantly less power than competing systems, making it a smart choice for both performance and sustainability.

Key Features:

• Pixel-Perfect delivery of digital video and simultaneous audio with optimum clarity.
• Extends HDMI digital video up to 164 feet (50m) over a single CATx cable.
• Energy efficient design using less than 2.5W of power.
• Compact form factor for optimal space saving.

Technical Specifications:

Hardware Compatibility: All computers with HDMI and USB connections
HDMI Interface: Supports resolutions up to 1080P or WUXGA (1920 x 1200) @ 60Hz, 24 bit color depth
Software Compatibility: All known operating systems
Computer Connections at Transmitter (TX): HDMI male, USB type A (for power only)
Display Connections at Receiver (RX): HDMI male
Power: USB powered, 5VDC - 2.5W for both RX and TX units combined
Physical Design: Injection moulded ABS cases: 45mm / 1.8'' (w) x 63mm / 2.5''(d) x 21mm / 0.8''(h), Weight 250g / 0.6 lb per pair
Operating Temperature: 0 to 40°C / 32 to 104°F
Approvals: CE, FCC

Package Contents:

• 1 Transmitter unit
• 1 Receiver unit

Warranty: 2 Year Limited
