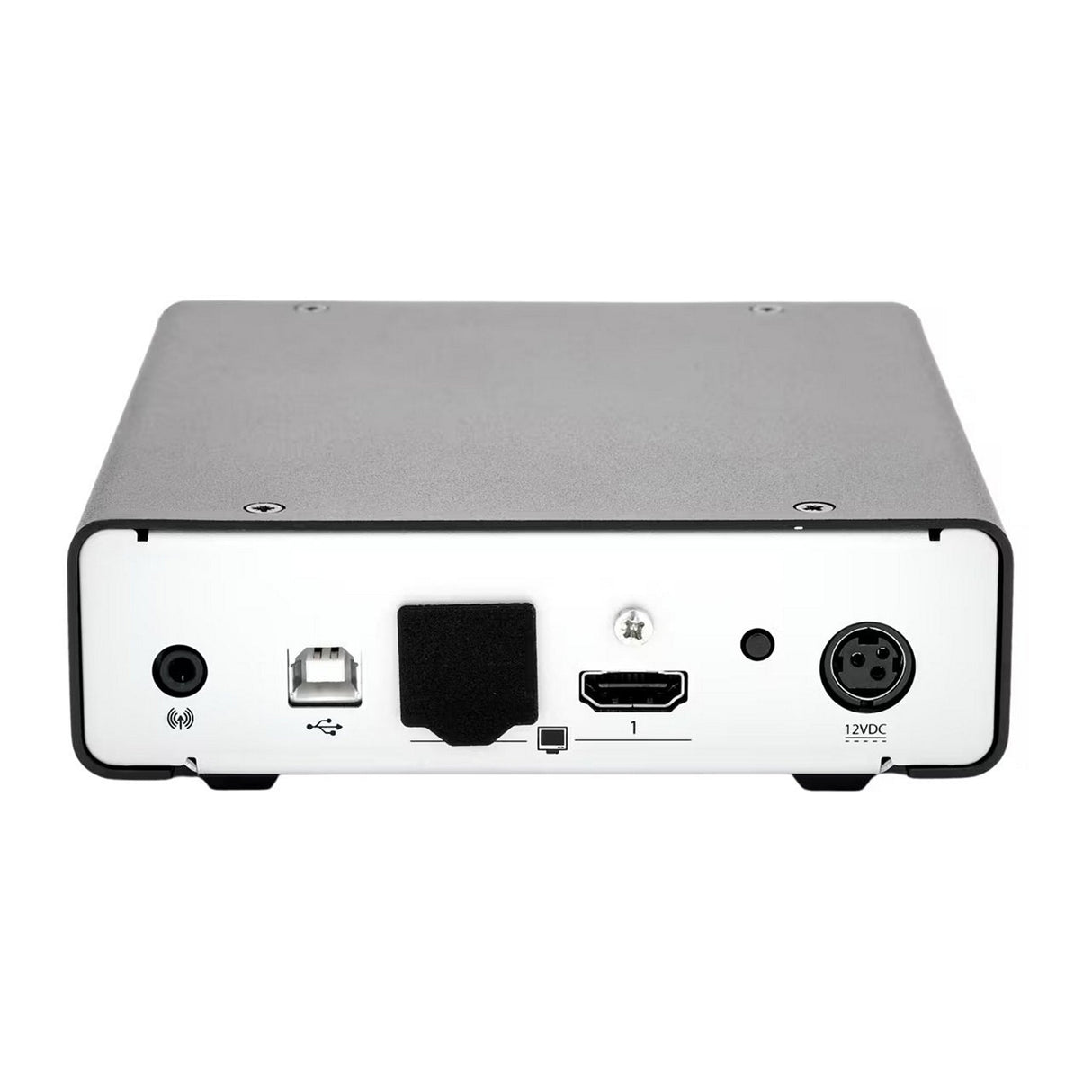

ADDER INFINITY 1104 Single-Head Digital Video/Audio over IP KVM Extender

ADDER INFINITY 1104 Single-Head Digital Video/Audio over IP KVM Extender

The ADDERLink® INFINITY 1104 is a high-performance IP KVM extender designed to relocate critical computing hardware into secure and temperature-controlled environments, away from user workstations. This device ensures a pixel-perfect desktop experience, allowing users to maintain high-quality video and audio while accessing remote computers. With its spatially-lossless encoding system, the ALIF1104 delivers color-accurate video without artifacts, making it ideal for professional applications that require precision and reliability.

Utilizing standard IP technology, the ADDERLink INFINITY 1104 supports both CATx and fiber connections, providing flexibility in installation. It offers unlimited extension distances by simply adding 1GbE network devices, making it scalable for various setups. The device also supports USB 2.0 with class control, allowing for a wide range of USB devices to be connected, while ensuring secure applications can disable non-HID devices. This makes the ALIF1104 a versatile solution for both simple extension and complex KVM switching needs.

Key Features:

• Maximum Resolution: 2560 x 1600
• Frame Rate: 60
• Colour Depth: 8 bpc
• USB B: 1x 2.0 True Emulation, High Speed
• USB A: 1x 2.0 True Emulation
• HDMI: 1x
• Link Ports: 8p8c (RJ45): 1x, SFP: 1x
• Audio In Ports: 1x 3.5mm jack
• Operating Temperature: 32°F - 104°F (0°C - 40°C)
• Power Consumption: Maximum Power (Watts): 18, Typical Power (Watts): 7
• Dimensions: Width: 5.4"" (136mm), Height: 1.5"" (39mm), Depth: 5.90"" (150mm)
• Weight: 1.8lbs (0.8kg)

Technical Specifications:

Video Information: Maximum Resolution: 2560 x 1600
Frame Rate: 60
Colour Depth: 8 bpc
USB Connections: USB B: 1x 2.0 True Emulation, High Speed; USB A: 1x 2.0 True Emulation
HDMI: 1x
Link Ports: 8p8c (RJ45): 1x; SFP: 1x
Audio Type: Analog/Digital; Channels: 2; Audio In Ports: 1x 3.5mm jack; Audio Direction: Bi-directional
Network Support: Bandwidth: 1GbE
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Power Source: 12V 3-pin: 1x; Input Power Supply: External Power Supply Unit
Power Consumption: Maximum Power (Watts): 18; Typical Power (Watts): 7
Physical Design: Construction Material: Robust metal construction; RU Size: 1; Dimensions: Width: 5.4"" (136mm), Height: 1.5"" (39mm), Depth: 5.90"" (150mm); Weight: 1.8lbs (0.8kg)

Package Contents:

• 1x ALIF1104 Transmitter
• 1x PSU-IEC-12VDC-1.5A: Mains power supply
• 1x IEC PSU cable of country code
• 1x VSCD15: 2m/6.5ft HDMI cable
• 1x VSC24: 2m/6.5ft USB cable
• 1x VSC22: 2m/6.5ft Audio cable
