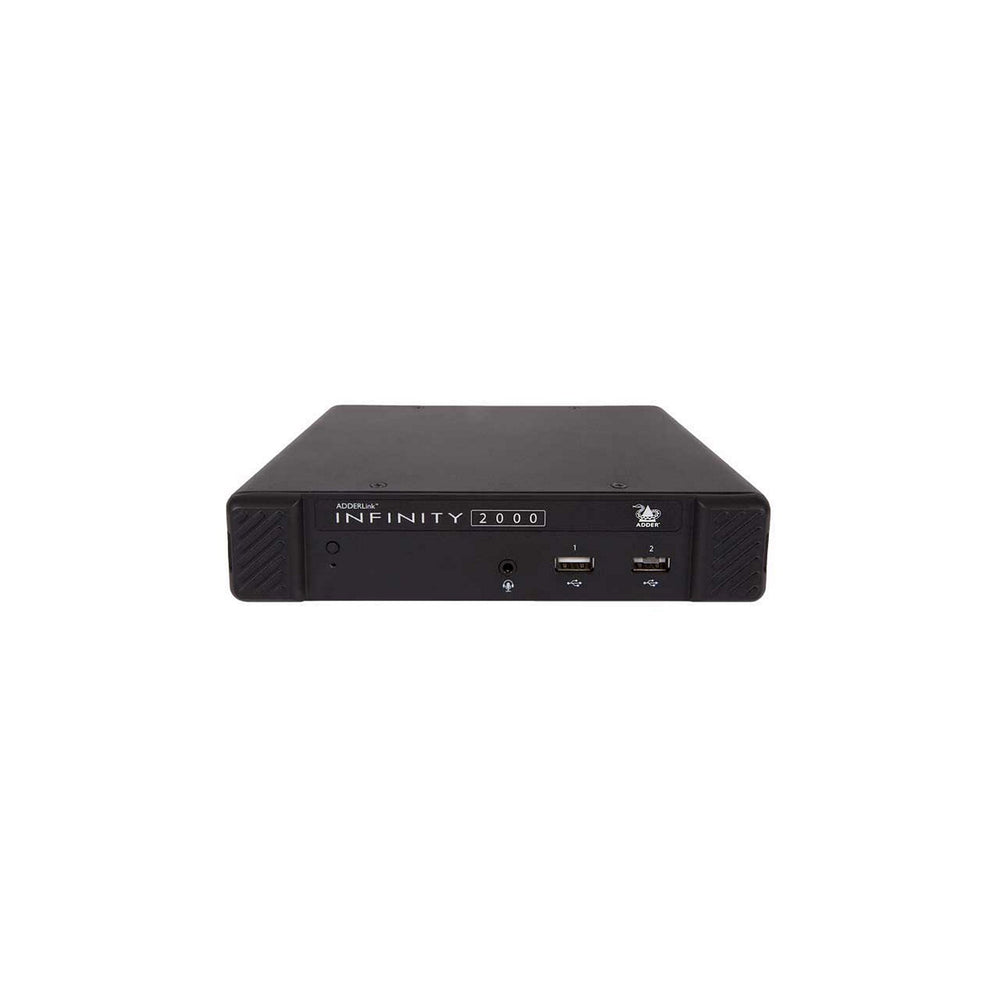

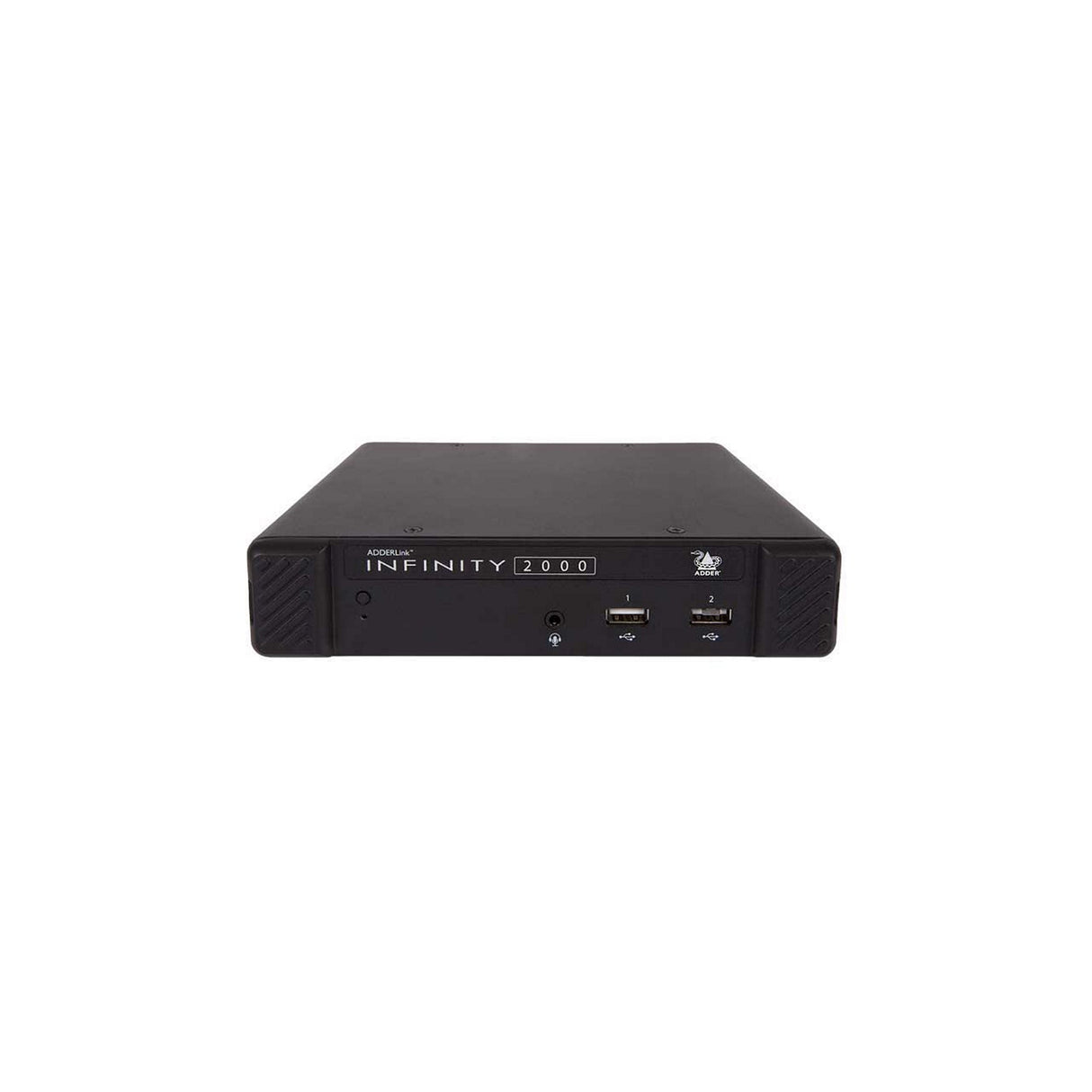

ADDER INFINITY 2122 Dual Head Digital USB 2.0 IP KVM Receiver

ADDER INFINITY 2122 Dual Head Digital USB 2.0 IP KVM Receiver

The Adder ADDERLink INFINITY 2122 Receiver is a high-performance IP KVM (Keyboard, Video, and Mouse) extender that is part of the ALIF matrix solution. It allows for the relocation of critical computing hardware into a secure and temperature-controlled environment, away from the user workstation, while maintaining a pixel-perfect desktop experience. This device ensures perfect digital video and real-time control, utilizing a spatially-lossless encoding system that provides color-accurate video without artifacts.

With the ability to use a single CATx cable or fiber connection, the ADDERLink INFINITY 2122 offers immunity from interference, making it a reliable choice for various setups. It supports extension distances beyond the standard 100m/328ft by adding a 1GbE network device, and it can achieve distances of up to 20km/12mi with fiber optic transceivers. The device also features intelligent EDID management, ensuring optimal video display without additional configuration.

Key Features:

• Plug and play functionality
• 2 x SFP ports for maximum flexibility, supporting distances up to 12.42 Miles/20km
• Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
• USB mass storage devices supported alongside keyboard, mouse, tablet, and touch
• Support for Mac Pro(R) with dithering support
• Redundant network operation
• Dual touch screen support including onscreen keyboard and floating launch button

Technical Specifications:

Operating Systems and Software Compatibility: All commonly known software and operating systems including Windows(R), Linux(R), macOS(R), and Sun OS.
Video Resolutions: Supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz.
USB2.0 with Class Control: Supports USB2.0 devices (low, full, and high speed) with security features to block non-HID devices.
Audio: USB audio 2 channel 16bit @48KHz (Bi-directional).
Serial Comms: RS232 or other serial standards can be passed with a maximum baud rate of 115,200 using serial to USB converters.
Computer Connections (TX): 2x DisplayPort, 1x 3.5mm Audio in, 1x USB Type B, 1x USB Type A, 2x SFP for 1GbE network connections.
Peripheral Connections (RX): 2x DisplayPort, 1x 3.5mm Audio out, 1x 3.5mm headset/microphone, 4x USB Type A, 2x SFP for 1GbE network connections.
Physical Design: 1U compact case, dimensions 39mm/1.5""(H) x 186mm/7.3""(W) x 150mm/5.9""(D), weight 1.1kg/2.4lbs.
Power: External power supply, input 100-240V AC 47/63Hz, output 12V 1.5A (18W), typical power consumption 7W.
Operating Temperature: 0 to 40°C/32 to 104°F, storage temperature 0 to 40°C/32 to 104°F, relative humidity 10-90% non-condensing.

Package Contents:

• 1x ALIF2122 Receiver
• 1x SFP CATx RJ45
• 1x PSU and IEC lead
