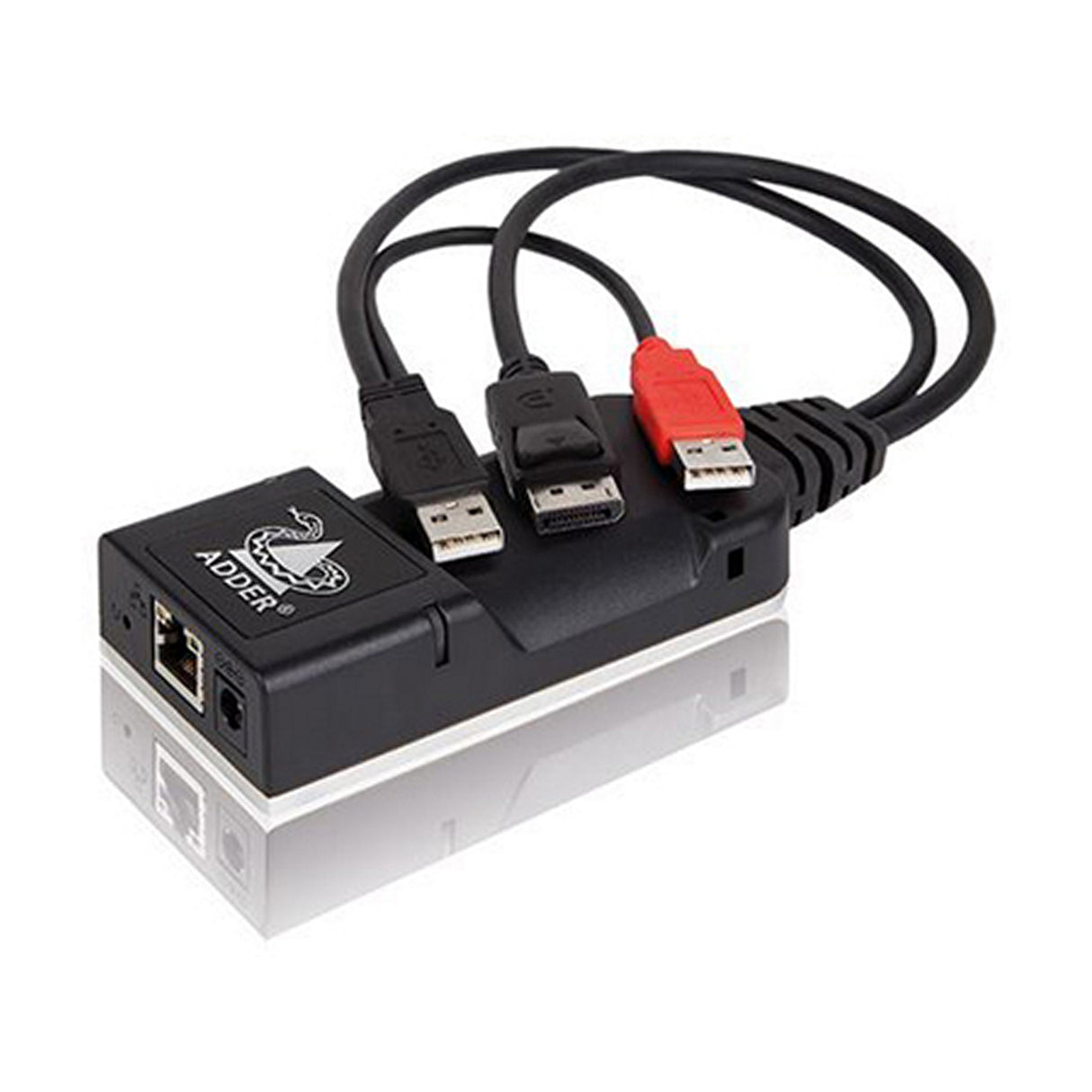

ADDER INFINITY ALIF101T High Performance ZeroU IP KVM Transmitter, DVI

ADDER INFINITY ALIF101T High Performance ZeroU IP KVM Transmitter, DVI

The ADDERLink Infinity ALIF101T-DVI is a Zero-U, high performance single-link DisplayPort KVM Transmitter that supports USB and audio. This innovative device is designed to allow users to position their critical computing hardware in a secure and temperature-controlled environment, away from the user workstation. With the ability to extend signals up to 330ft (100m) over a single CATx cable, it provides a flexible solution for various applications, from point-to-point setups to complex matrix systems when integrated with the ADDERLink INFINITY Manager (A.I.M.).

One of the standout features of the ALIF101T-DVI is its minimal lag and support for resolutions up to 1920 x 1200 at 60Hz, making it ideal for high-performance computing environments. Its compact design and low power consumption further enhance its appeal, allowing for easy installation and operation without the need for extensive power resources.

Key Features:

• Single-link DVI-D configuration
• Zero-U form factor
• USB powered with low power consumption
• Maximum resolution: 1920 x 1200 @ 60Hz
• Extension distance: 330ft (100m) on single CATx
• Unlimited extension using IP network
• Flexible solution for IT administration or broadcast

Technical Specifications:

Video Resolutions: Supports resolutions up to 1920x1200 @60Hz
Operating Temperature: 32° to 122°F (0° to 50°C)
Storage Temperature: 14° to 140°F (-10° to 60°C)
Relative Humidity: 10-90% non-condensing
MTBF: >500,000 hours
USB Power: 2x USB2.0 (2x 500mA @5V) 5W
Typical Power Consumption: 3W
Dimensions: (L)110mm/4.3"" x (W)55mm/2.17"" x (D)25mm/1""
Weight: 0.2kg/0.4lb
Materials: ABS and aluminum construction
Ethernet: 1GbE (No 10/100 support)

Package Contents:

• 1x ALIF100T-VGA
• 1x Quick Start Guide
