ADDER Technology ADDER X2 Silver Dual Access KVM Extender

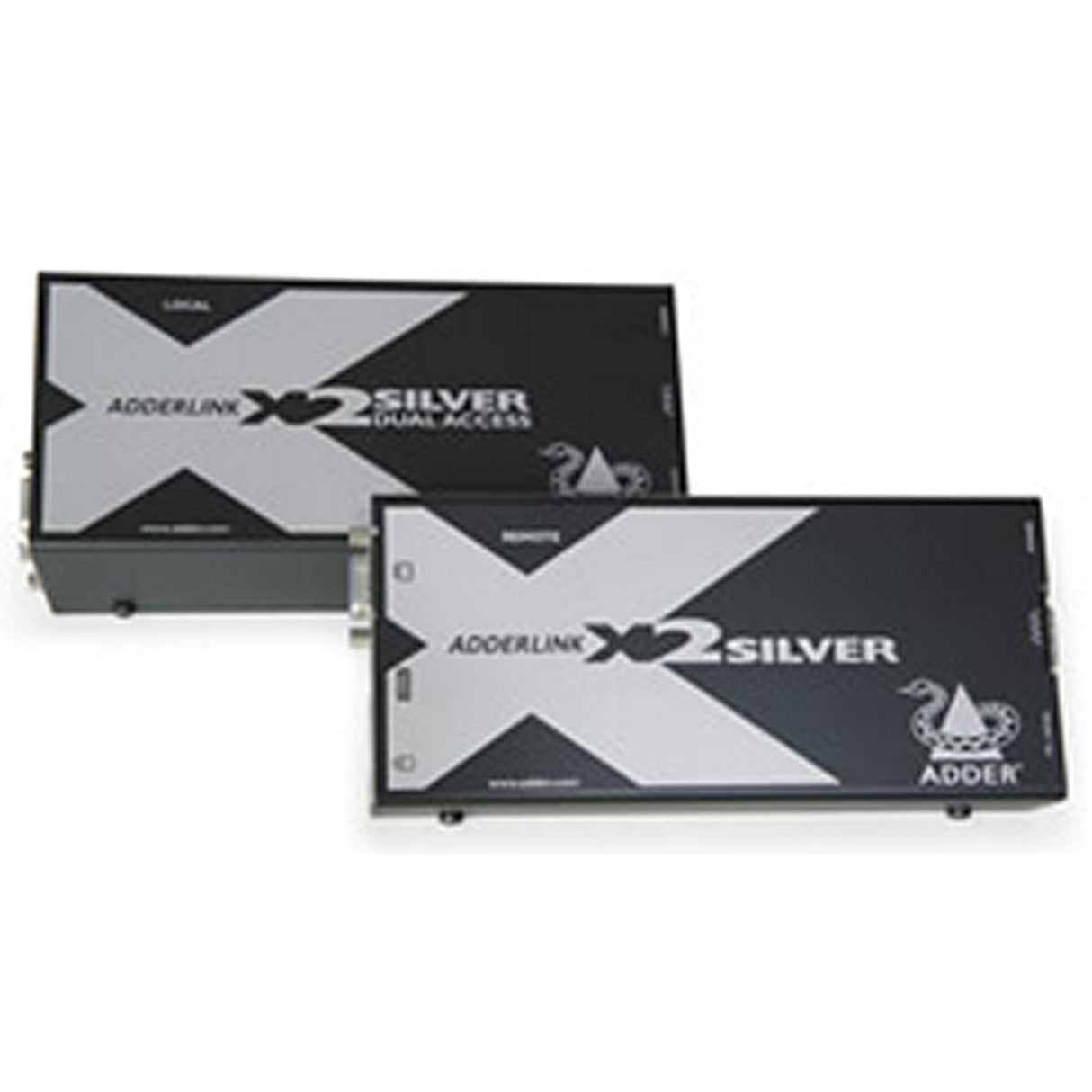

AdderLink X2-Silver Dual Access KVM Extender

The AdderLink X2-Silver Dual Access KVM extender is designed to extend high-quality video, keyboard, mouse, and transparent RS232 signals up to 300 meters (1000 feet) over a single Category 5 or higher cable. This device allows for both local and remote control of computers, making it ideal for various applications where distance is a factor. With the ability to achieve resolutions of 1600 x 1200 at 200 meters and 1280 x 1024 at 300 meters, the X2-DA-Silver ensures that users can maintain high video quality even at extended distances.

One of the standout features of the X2-Silver is its integral electronic DeSkew technology, which compensates for color skew effects that can occur with long CATx cables. This ensures crystal clear video output, and all video adjustments can be conveniently made using the keyboard. The device is also equipped with advanced spike suppression circuits for reliability in noisy environments, making it a robust solution for KVM extension needs.

Key Features:

• Extends KVM and transparent RS232 across a single CATx cable
• Dual access provides local KVM access at the computer end
• Video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
• Fully transparent RS232 interface for connecting a wide range of serial devices
• Integrated 300MHz DeSkew circuit with up to 62ns DeSkew and 2ns granularity
• Can be used standalone or rack-mounted (16 modules fit into 2U)
• Flash upgradeability for future enhancements
• Supports DDC signaling for optimal video card setup

Technical Specifications:

Local Unit Height: 1 in. (26 mm)
Remote Unit Height: 3.1 in. (80 mm)
Width: 6.7 in. (172 mm)
Depth: 2.9 in. (75 mm)
Rack Space: 16 units fit into 2U (local), 5 units fit into 2U (remote)
Temperature Tolerance: 0-40°C (32 to 104°F)
Humidity Tolerance: 5 to 60% non-condensing
Operating Voltage: 100-240VAC
Power Frequency: 50-60Hz
Usage: 5VDC at 500mA

Package Contents:

• AdderLink X2-Silver Dual Access KVM Extender (Local and Remote Units)
• Power adapter (optional for video-only applications)
• User manual
