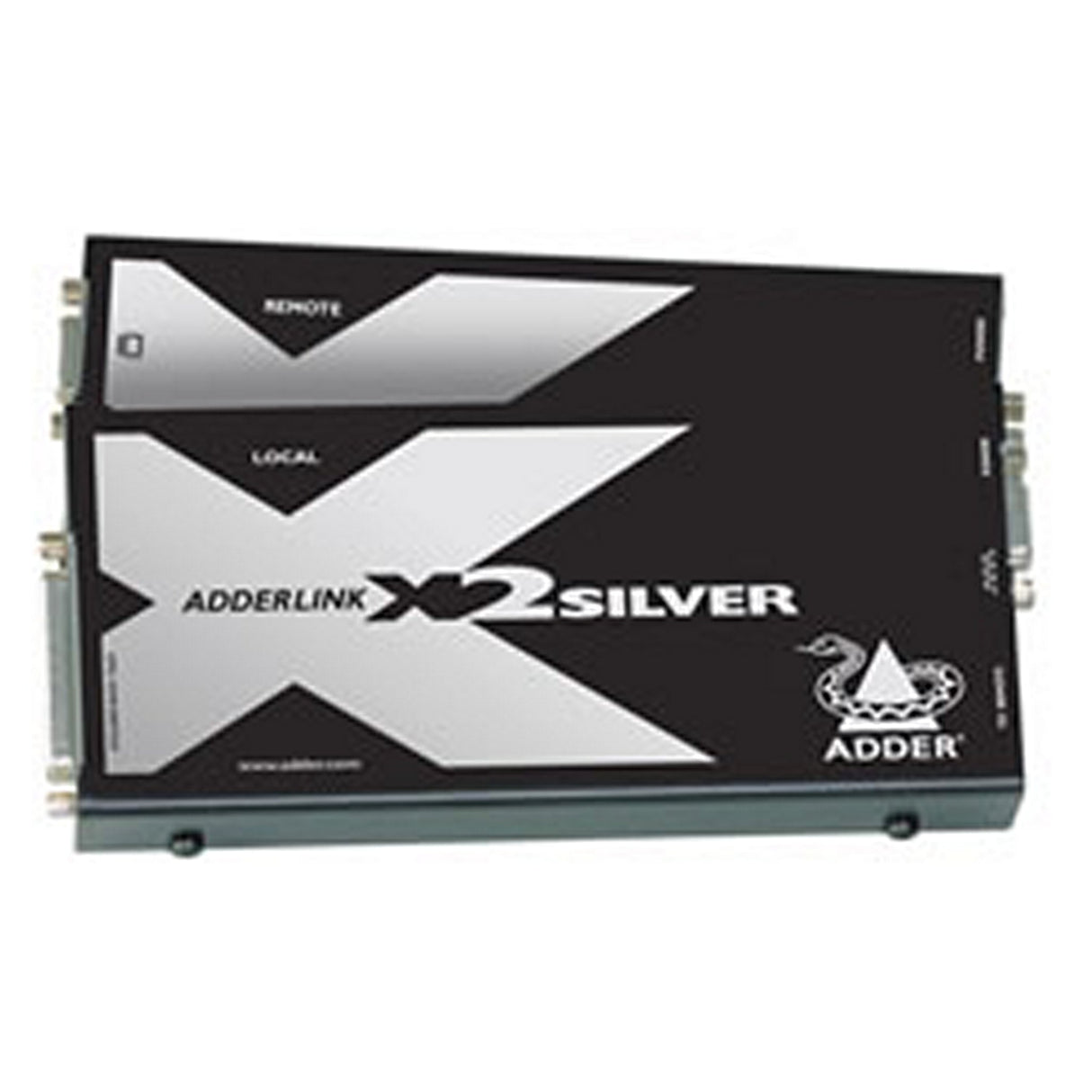

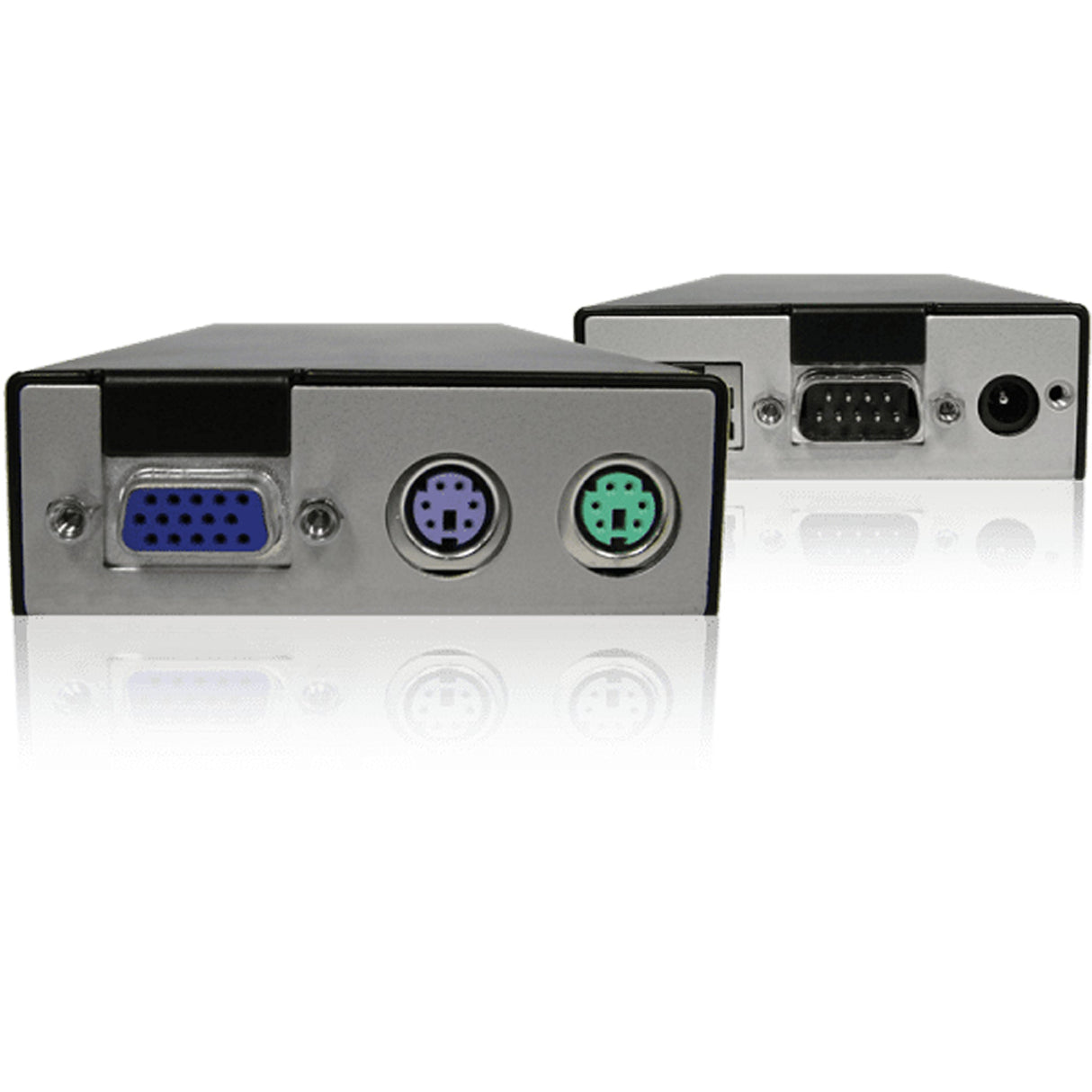

ADDER X2 Silver KVM Extender with CAT5 Support

AdderLink X2-Silver

The AdderLink X2-Silver is a high-performance KVM extender that allows you to extend video, keyboard, mouse, and transparent RS232 signals over a single CAT5 or higher cable up to 300 meters (1000 feet). This device is designed to maintain high video quality, achieving resolutions of 1600 x 1200 at 200 meters and 1280 x 1024 at 300 meters. With its integral electronic DeSkew technology, the X2-Silver compensates for color skew effects that can occur over long cable runs, ensuring crystal clear video output even at extended distances.

In addition to its video capabilities, the X2-Silver features fully transparent RS232 interfaces, allowing a wide range of serial devices to be connected at baud rates up to 57,600. The device is equipped with DDC circuits that enable the computer to optimally configure the video card, making it compatible with high-performance video cards at high resolutions. The AdderLink X2-Silver is perfect for applications requiring reliable and high-quality KVM extension in various environments.

Key Features:

• Extends KVM and transparent RS232 across a single CATx cable
• Video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
• Fully transparent RS232 interface enables a wide range of serial devices to be connected
• Integrated state of the art 300MHz DeSkew circuit (up to 62ns DeSkew with 2ns granularity)
• Use stand alone or rackmount 16 modules across 2U
• Advanced spike suppression circuits for reliability in noisy applications
• Flash upgradeability enables future enhancements
• Supports DDC signaling to ensure optimal video card setup

Technical Specifications:

Local Unit Height: 1 in. (26 mm.)
Remote Unit Height: 1 in. (26 mm.)
Width: 6.7 in. (172 mm.)
Depth: 2.9 in. (75 mm.)
Rack Space: 16 units fit into 2U of rack space
Temperature Tolerance: 0-40°C (32 to 104°F)
Humidity Tolerance: 5 to 60% non condensing
Operating Voltage: 100-240VAC
Power Frequency: 50-60Hz
Usage: 5VDC at 500mA
Video Resolutions: 1600 x 1200 up to 200 meters/650 feet, 1280 x 1024 up to 300 meters/1000 feet
Extension Distance: CATx cable (x=5,5e,6,7) Up to 300 meters / 1000 feet

Package Contents:

• AdderLink X2-Silver unit
• Power adapter (optional for video only applications)
• User manual
