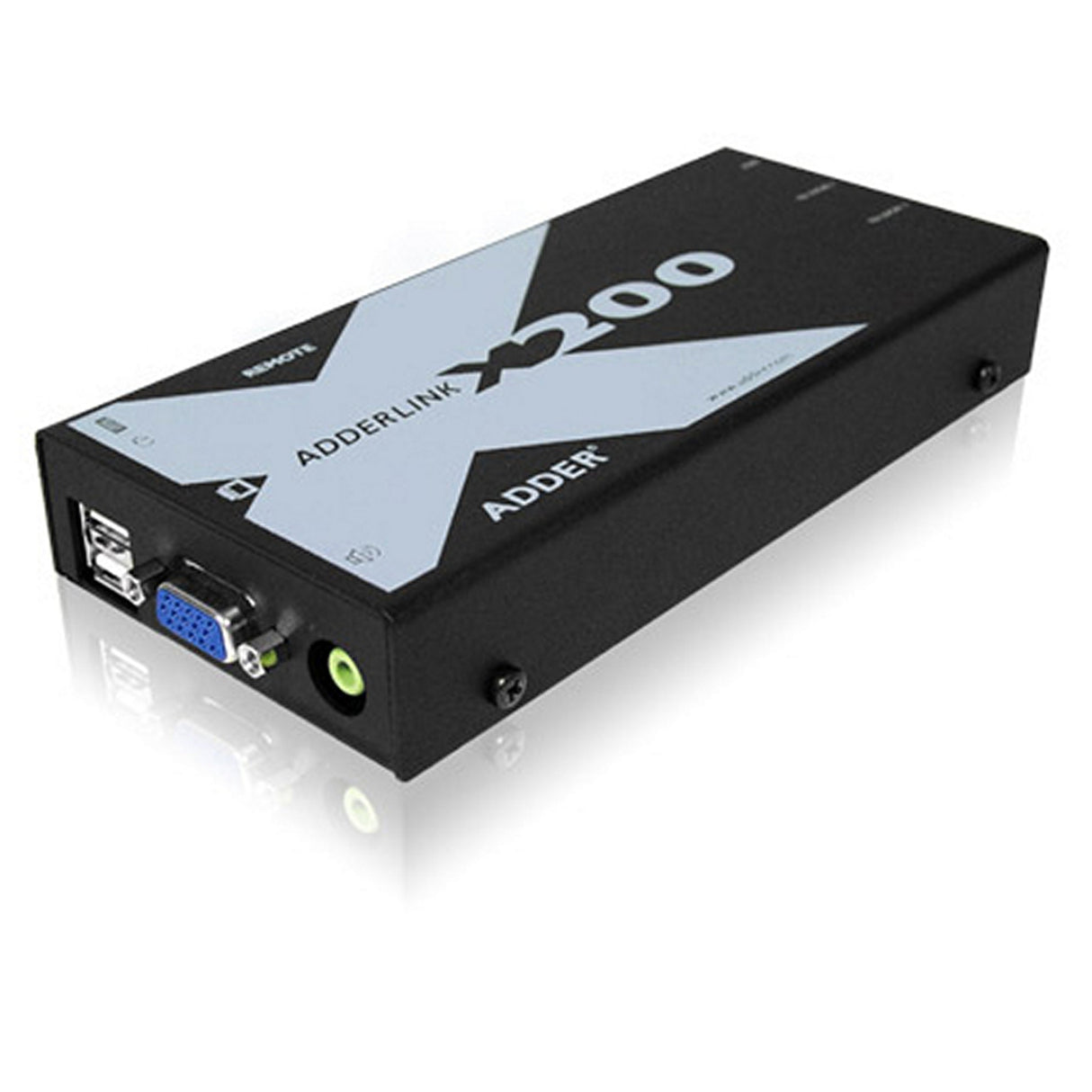

ADDER X200ASR US USB KVM & Audio Remote User Station
ADDERLink X200ASR-US
The ADDERLink X200ASR-US is a USB KVM and Audio Remote User Station designed for extending keyboard, video, audio, and mouse control over long distances. It allows users to connect up to two computer systems and extend their control up to 200 meters (650 feet) using CAT5 or higher UTP cable. This product is ideal for applications requiring high-definition video and real-time keyboard and mouse performance, making it suitable for various professional environments.
With integrated skew compensation and advanced video performance features, the ADDERLink X200 ensures crisp and clear images, even at long distances. It supports resolutions up to 1920 x 1200 at 50 meters and 1600 x 1200 at 200 meters, making it a versatile solution for high-resolution displays. The device also includes a two-port integrated KVM switch, allowing users to easily switch between connected computers using keyboard hotkeys or mouse control.
Key Features:
- Video performance: 1920 x 1200 at 50 m (165 ft.), 1600 x 1200 at 200 m (650 ft.)
- 128 steps of signal compensation for fine picture adjustments
- Brightness correction for crisp and clear images
- Integrated De-Skew with 300MHz bandwidth
- Two port integrated KVM switch for local and remote connections
- Supports USB, PS/2, or Sun style computer access modules
- Emulated DDC support for high performance video cards
- 44.1kHz digital stereo audio output
Technical Specifications:
Video Resolution: 1920 x 1200 at 50 m/165 ft., 1600 x 1200 at 200 m/650 ft.
Extension Distance: Up to 200 m/650 ft. using CATx cable (x=5,5e,6)
Devices Supported: USB keyboard and mice, flat-screen and CRT monitors with HDD-15 connectors, optional audio through 3.5 mm jack.
O/S Compatibility: All known software and operating systems including Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

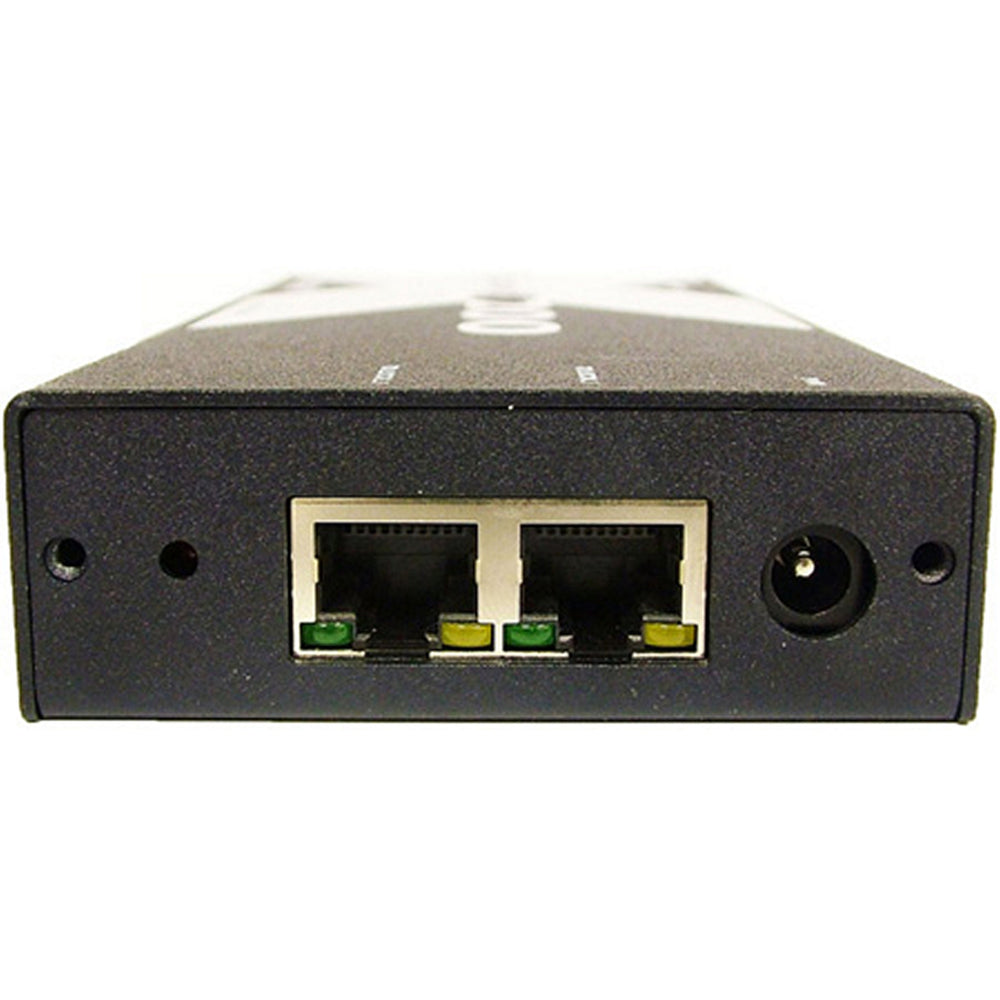

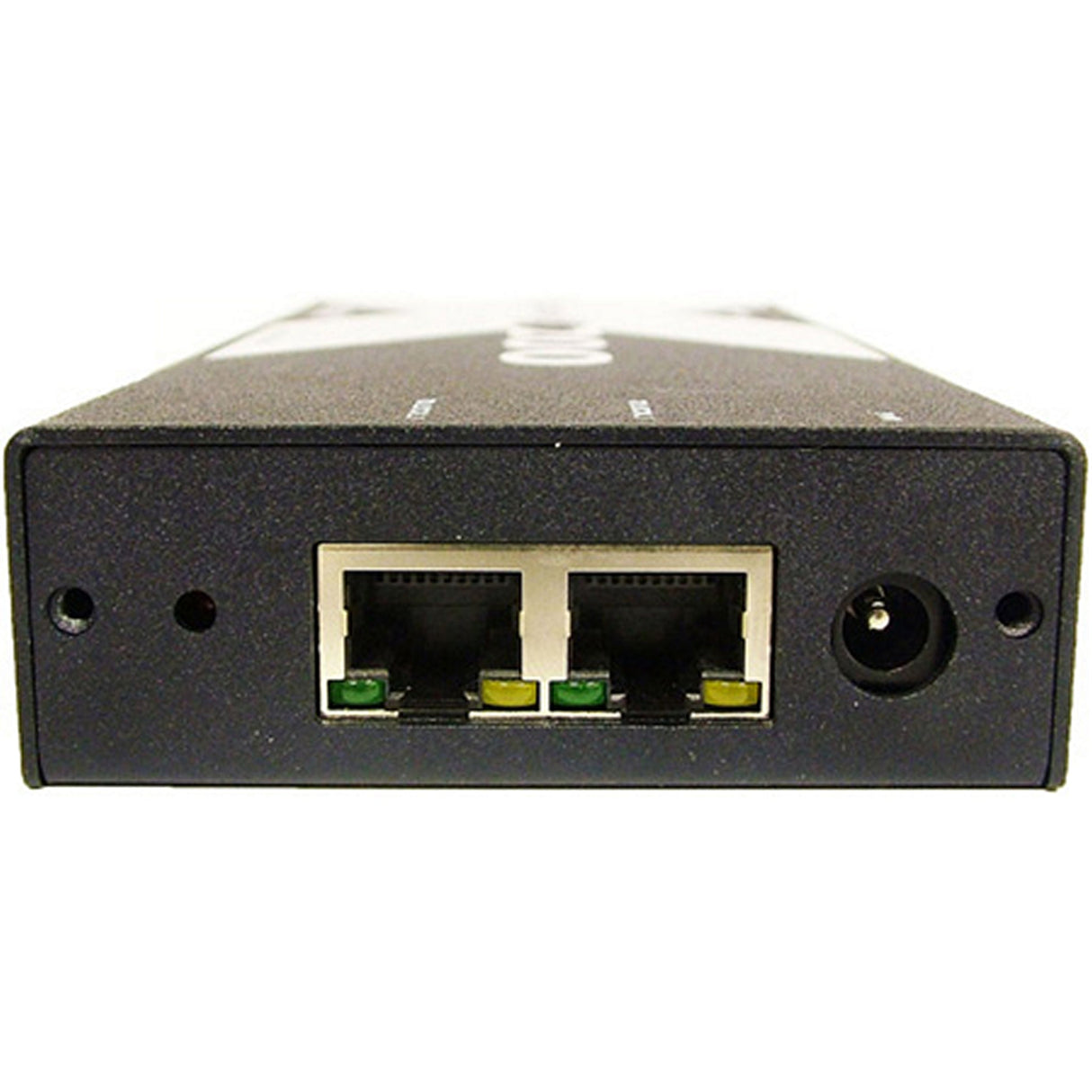

Connectors: Video - HDD-15, Audio - 3.5 mm jack, Keyboard/Mouse - USB Type A, CATx - 2 x RJ45, Power - 2.5 mm DC jack.
Physical Dimensions: 6.8 x 1 x 3" (172 x 26 x 75mm), Weight: 430 g/1 lb.
Power Supply: 100 - 240VAC 50/60Hz.
Package Contents:
- 1x X200AS/R module 100m receiver with audio, de-skew
- 1x Power adapter with US cord
Warranty: 2 Year Limited
