ADDER X200R USB KVM Remote User Station, 200m Range
ADDER X200R USB KVM Remote User Station, 200m Range
Free Shipping
ADDERLink X200R

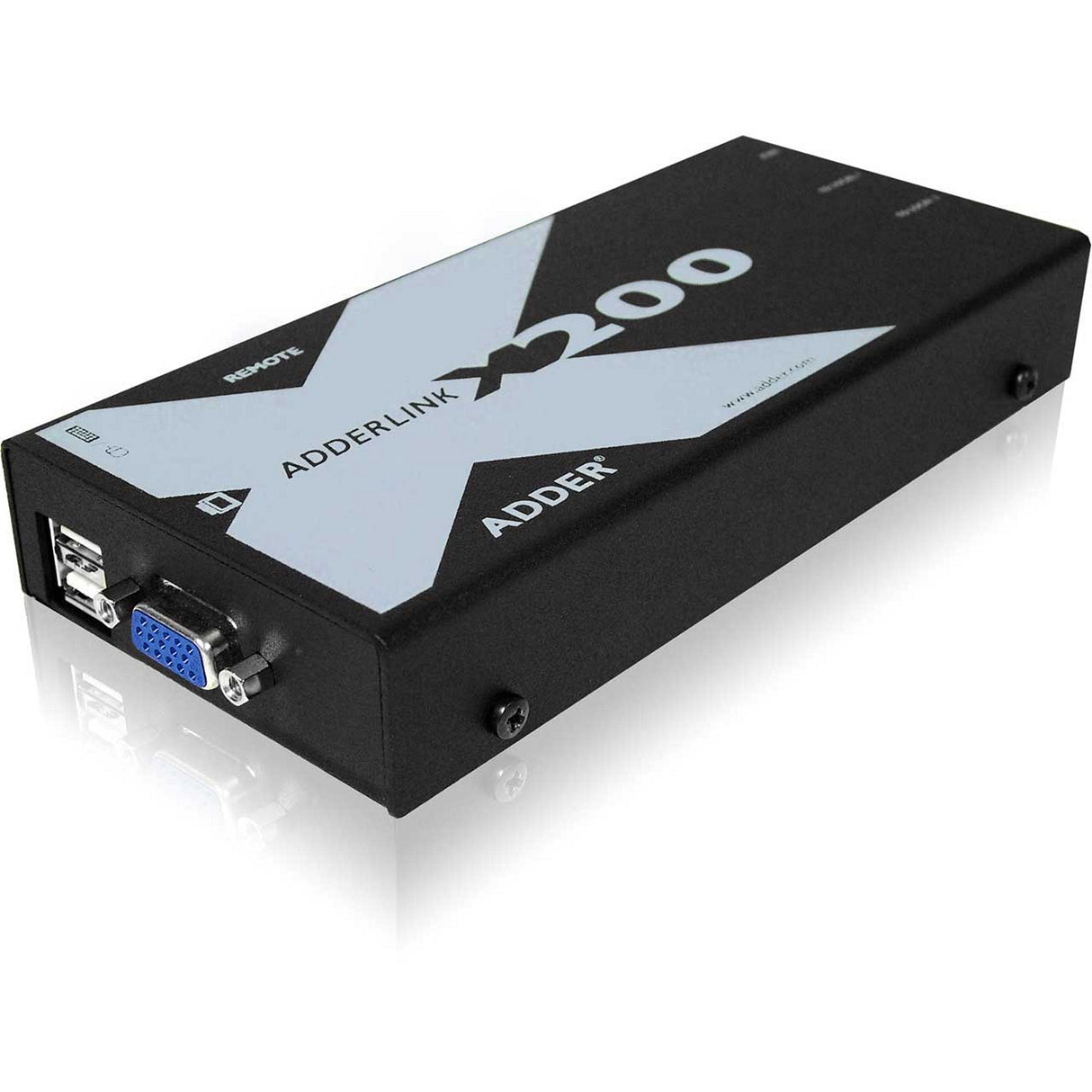

The ADDERLink X200R is a high-performance USB KVM Remote User Station designed for applications requiring control of up to two computers from a distance of up to 200 meters (650 feet) using CAT5 or higher UTP cable. This device ensures real-time keyboard and mouse performance while delivering high-definition video through a VGA interface. It is ideal for environments where remote access to computers is necessary, such as in broadcasting, control rooms, and data centers.
With its advanced features, the ADDERLink X200R provides exceptional video quality with resolutions up to 1600 x 1200, ensuring that users can work with clarity and precision. The integrated KVM switch allows seamless switching between two connected computers, making it a versatile solution for users who need to manage multiple systems efficiently. Additionally, the device supports digital audio, enhancing the overall user experience.
Key Features:
- Video performance: 1600 x 1200 resolution at distances up to 200 m (650 ft.)
- Video compensation: 128 steps of signal compensation for fine picture adjustments
- Brightness control: Individual brightness correction for crisp and clear images
- Two port integrated KVM switch: Connect to a local and remote computer or two remote computers
- Flexible system configuration: Compatible with USB, PS/2, or Sun style computer access modules
- Emulated DDC: Full support for DDC to ensure compatibility with high-performance video cards
- Digital audio: 44.1kHz digital stereo audio output
Technical Specifications:
Video Resolution: 1600 x 1200 at distances up to 200 m/650 ft
Extension Distance: Up to 200 m/650 ft. using CATx cable (x=5,5e,6)
Devices Supported: USB style keyboard and mice, flat-screen and CRT monitors with HDD-15 connectors, optional audio through 3.5 mm jack
O/S Compatibility: All known software and operating systems including Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare

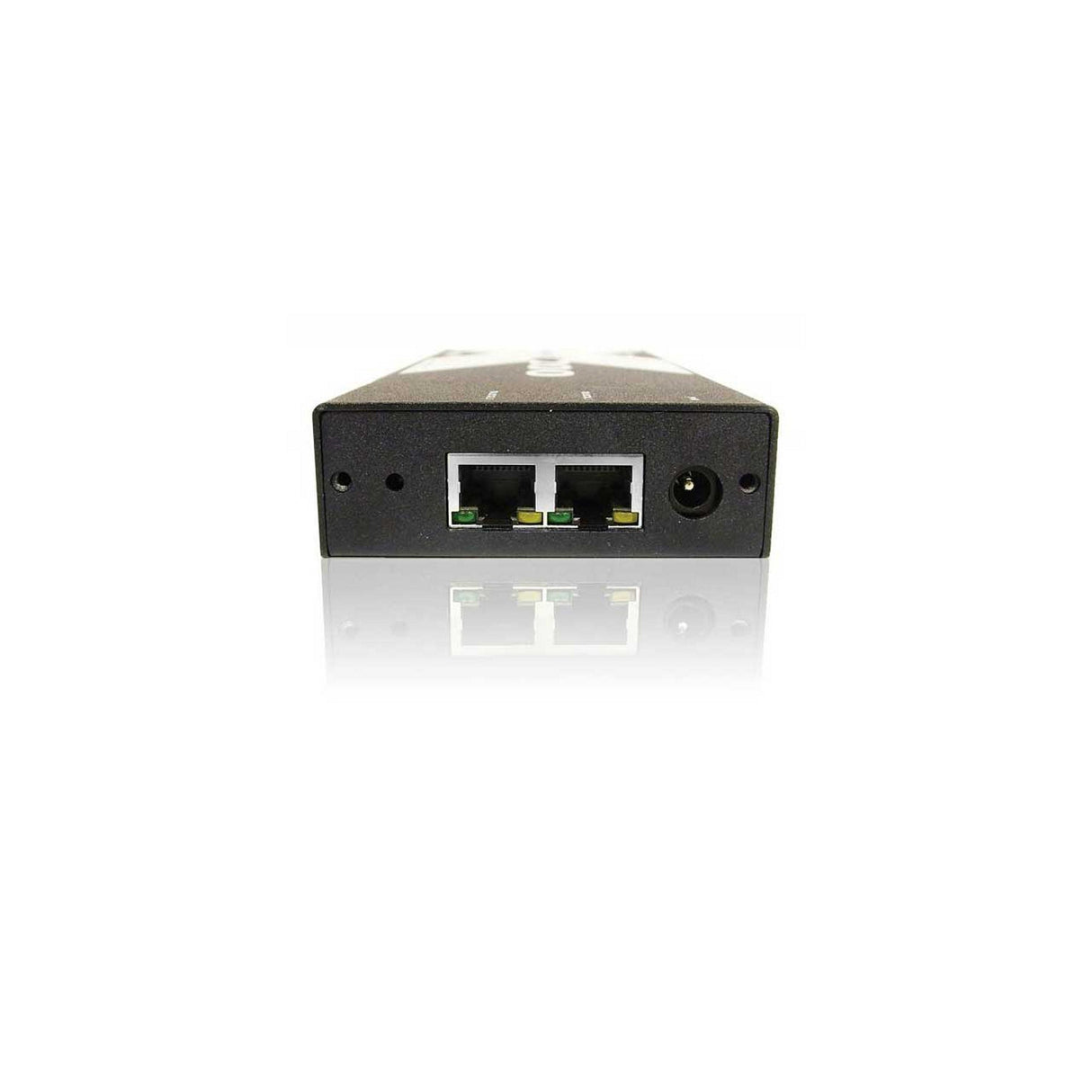

Connectors: Video: HDD-15, Optional audio: 3.5 mm jack, Keyboard/Mouse: USB Type A, CATx: 2 x RJ45 connector, Power: 2.5 mm DC jack
Physical Dimensions: 172 mm x 26 mm x 75 mm, Weight: 430 g
Power Supply: 100 - 240VAC 50/60Hz
Package Contents:
- 1x X200R receiver
- 1x Power adapter with US cord
Warranty: 2 Year Limited
