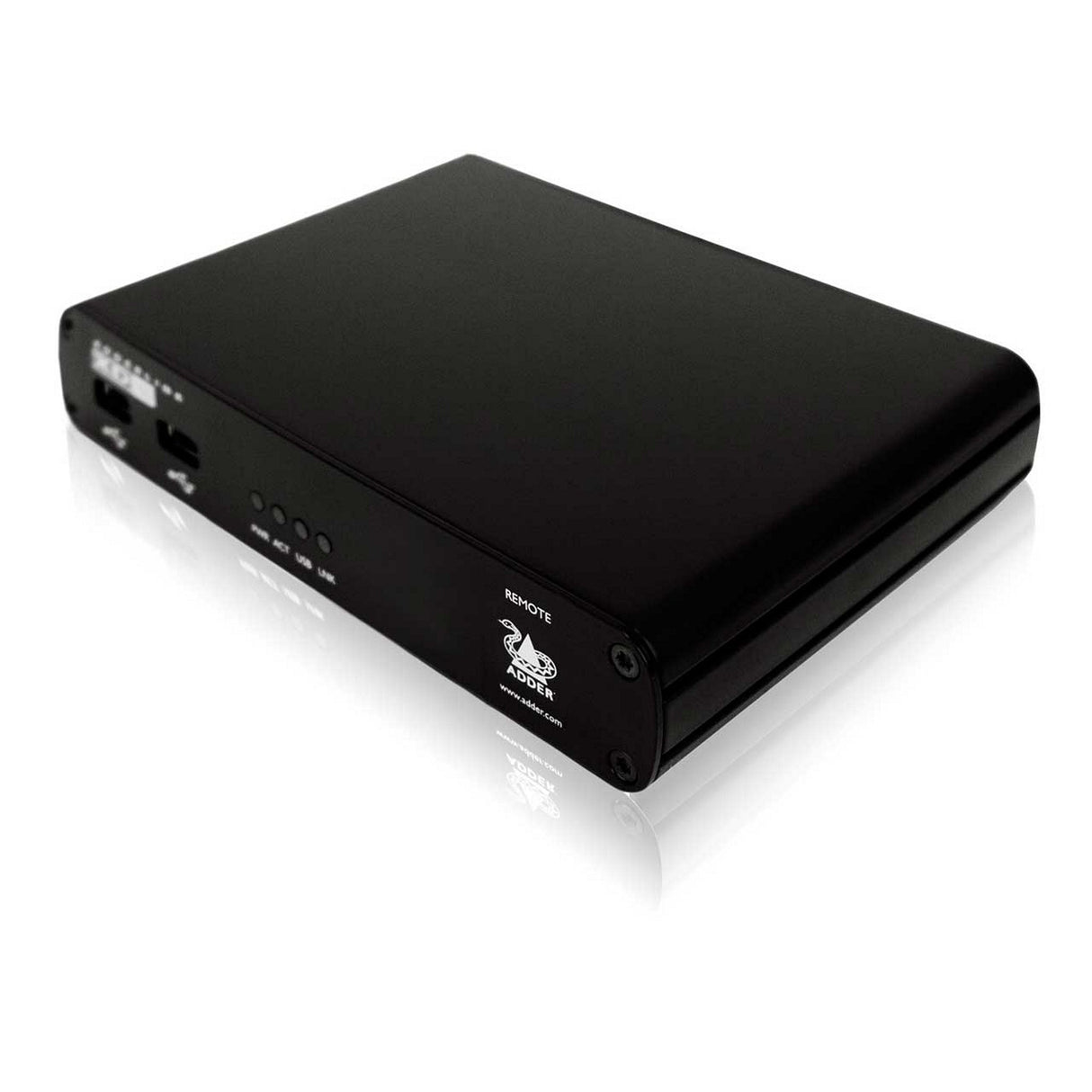

ADDER XD150 4-Port USB 2.0 KVM Extender
ADDERLink XD150
The ADDERLink XD150 is a high-performance KVM (Keyboard, Video, Mouse) extender designed to allow users to place critical hardware in a secure and temperature-controlled environment, away from the workstation, while preserving the original desktop experience. This device supports the extension of high-resolution video, USB 2.0, and audio signals, making it ideal for a wide range of USB devices. With its ability to extend distances of up to 150 meters (492 feet) for a single 1920 x 1080 screen, the XD150 is perfect for applications requiring flexibility in resolution and distance.
Featuring uncompressed video extension, the ADDERLink XD150 ensures that every pixel of every frame is transferred with zero loss and in real-time. The system is easy to install with a plug-and-play setup, requiring no additional drivers or software. Its robust design includes locking power connectors and a space-saving rackmount kit, making it suitable for various professional environments.
Key Features:
- Extension Distances: 150m (492ft) for 1920 x 1080; 100m (330ft) for 1920 x 1200
- Transparent USB 2.0 support for a variety of devices via a built-in 4-port USB hub
- Uncompressed video extension with real-time control
- Single CATx cable for video, USB 2.0, audio, and RS232 signals
- Plug and Play installation
- Locking 3 Pin DC jack with 2 power adaptors included
- CD quality analog audio transfer
- EDID support for optimal monitor compatibility
- Space-saving 19" rackmount kit
Technical Specifications:
Hardware Compatibility: All computers with DVI, USB, and audio.
DVI Interface: Supports resolutions up to 1920 x 1200@60Hz.
USB 2.0: Supports low, full, and hi-speed devices; isochronous devices supported.
Software Compatibility: All known operating systems.
Local Transmitter Connections: DVI A, Audio 3.5mm in, USB type B, RS232 10p10c options port, Micro USB for firmware upgrade.
Remote Receiver Connections: DVI, Audio 3.5mm out, USB type A x 4, RS232 10p10c options port.
Physical Design: Compact metal case, dimensions 169mm x 31mm x 120mm, weight 0.6kg.
Power: 3 Pin Locking DC jack, 100-240VAC 50/60Hz, 0.7A input, 12VDC 18W output.
Operating Temperature: 0 to 40°C / 32 to 104°F.
Approvals: CE, FCC.
Package Contents:
- XD150 local TX and remote RX modules
- 2x Locking power supplies
- 1x Video cable DVI-D to DVI-D
- 1x USB cable 2m (A to B)
Warranty: 2 Year Limited
