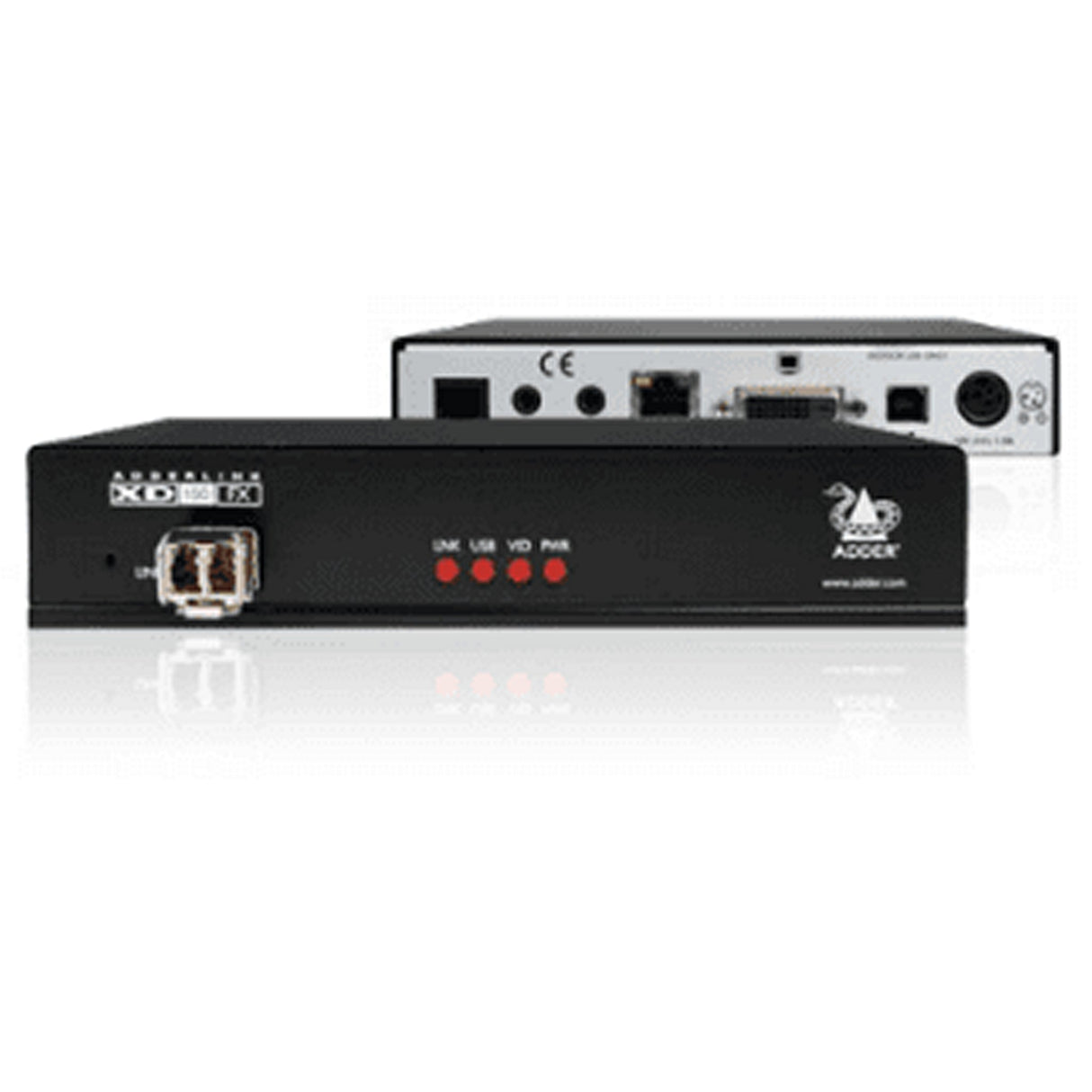

ADDER XD150FX KVM Extender, Multimode

ADDERLink XD150FX-MM

The ADDERLink XD150FX-MM is a high-performance multi-mode duplex fiber KVM (Keyboard, Video, Mouse) extender designed to allow users to position their critical computing hardware in a secure and temperature-controlled environment, away from the workstation. This innovative solution maintains the original user desktop experience while providing exceptional video quality and USB connectivity. With support for high-quality single- or dual-link DVI digital video resolutions up to 2560 x 2048 at 60Hz, the XD150FX-MM ensures that users can enjoy a seamless and responsive interaction with their systems.

One of the standout features of the ADDERLink XD150FX-MM is its impressive extension capabilities. It can extend distances of up to 492 feet (150 meters) for OM2 multimode fiber and up to 1,312 feet (400 meters) for OM4 multimode fiber. For single-mode fiber, it can reach distances of up to 2.5 miles (4 kilometers). Additionally, it includes a transparent 4-port USB 2.0 hub for connecting various peripherals, making it an ideal choice for environments that require flexibility and high performance.

Key Features:

• Supports dual-link DVI resolutions up to 2560 x 1600 @ 60Hz
• Extension distance: 492ft (150m) for OM2, 1,312ft (400m) for OM4 multimode fiber, and 2.5mi (4km) for single-mode fiber
• USB 2.0 support for low, full, and high-speed devices
• Transparent 4-port USB 2.0 hub for mass storage devices
• Bidirectional analog audio with line in/out, microphone, and headphone support
• RS232 with RTS/CTS flow control

Technical Specifications:

Hardware Compatibility: All computers with DVI, USB, and audio.
DVI Interface: Supports dual-link DVI resolutions up to 2560 x 1600 @ 60Hz.
USB 2.0: Supports USB2.0 devices (low, full, and high speed). Isochronous devices are supported.
Transmitter (TX) Connections: DVI, Audio 3.5mm x 2, USB type-B, Options port (6p6c), Ethernet port (8p8c), Peripheral connections.
Receiver (RX) Connections: DVI, Audio 3.5mm (line in and out), Audio 3.5mm (mic in and headphones), USB type-A x 4, Options port (6p6c).

Physical Design: Compact case, robust metal construction, dimensions 169mm/6.65" (w) x 31mm/1.22" (h) x 120mm/4.8" (d), weight 0.6kg/1.3lbs.
Power: 3 Pin Locking DC jack (2 x power adapter included), 100-240VAC 50/60Hz, 0.7A input to power adapter, 12VDC 18W output from power adapter.
Operating Temperature: 0 to 40°C / 32 to 104°F.
Approvals: CE, FCC.

Package Contents:

• ADDERLink XD150FX-MM Transmitter
• ADDERLink XD150FX-MM Receiver
• 2 x Power Adapters
• User Manual
