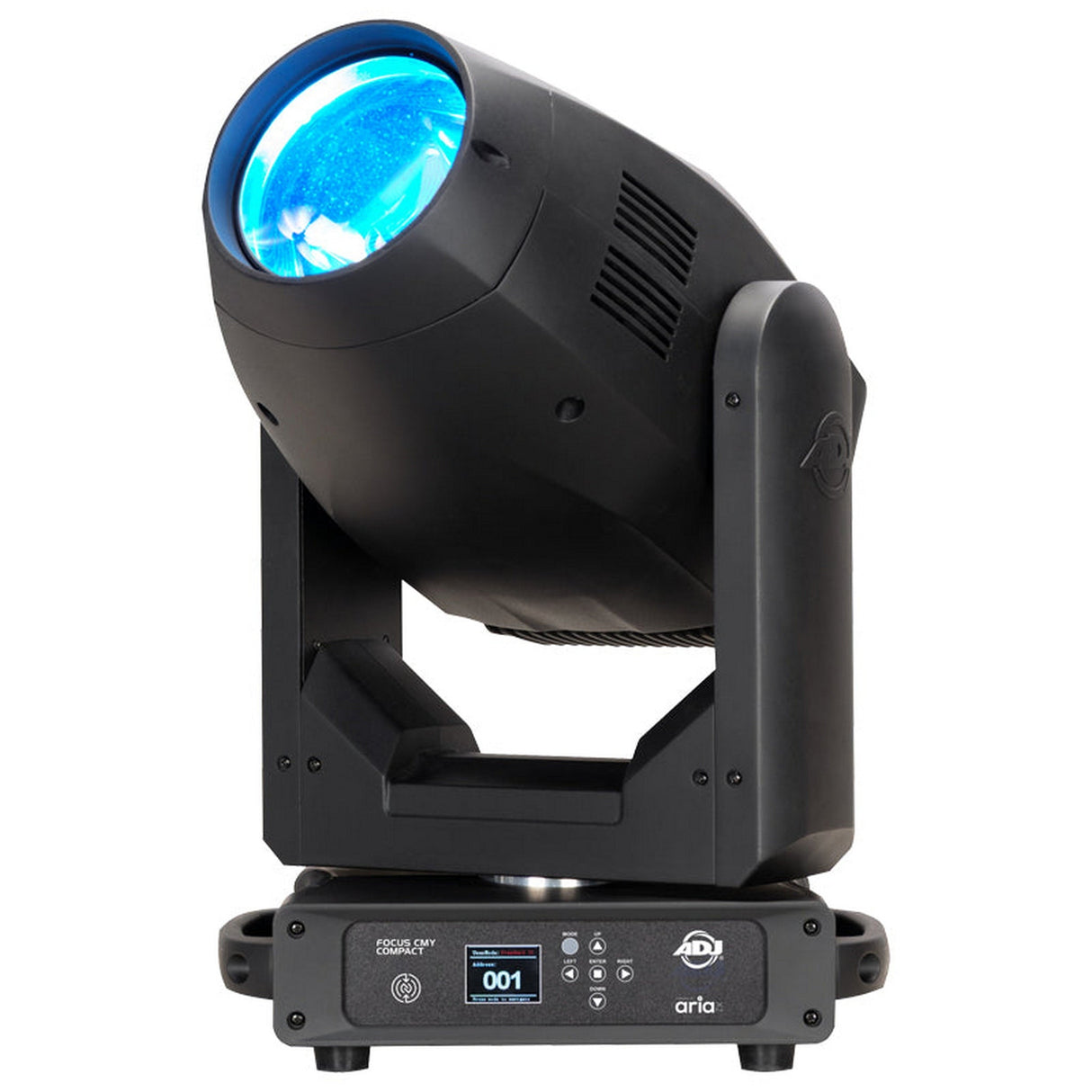

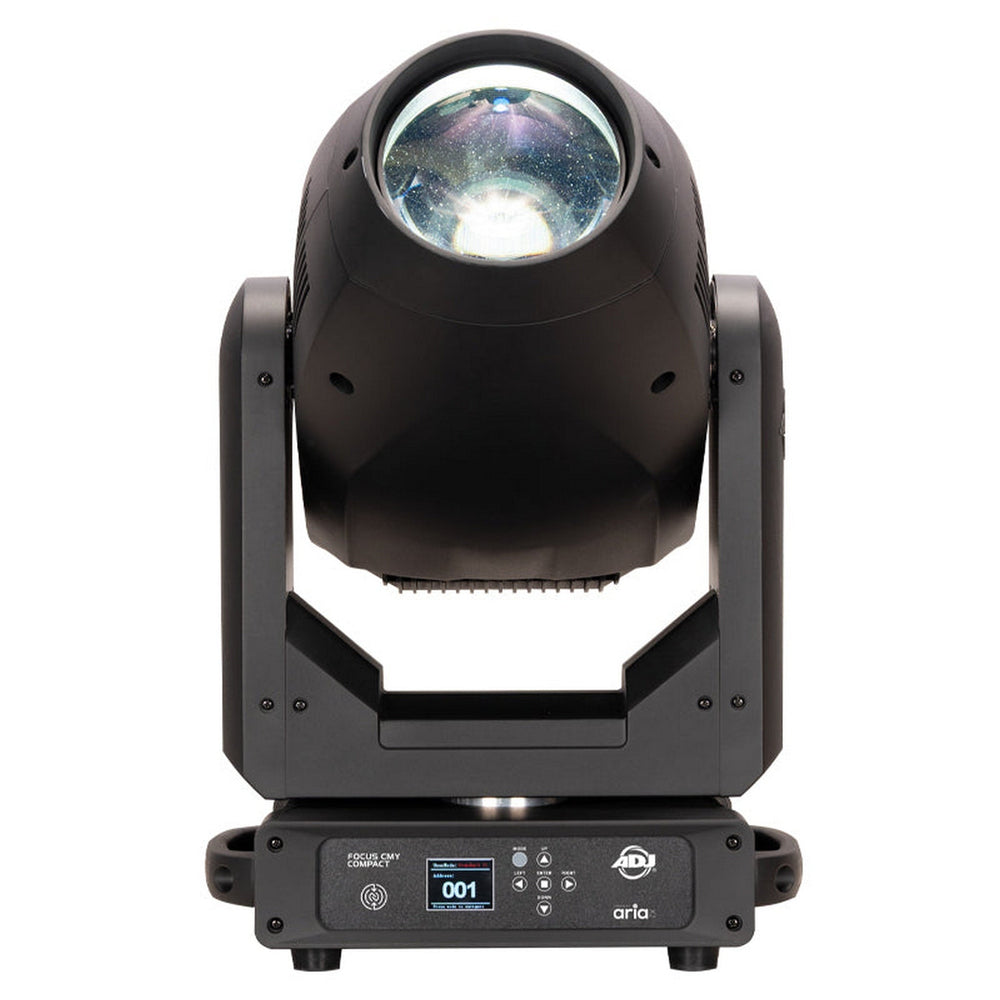

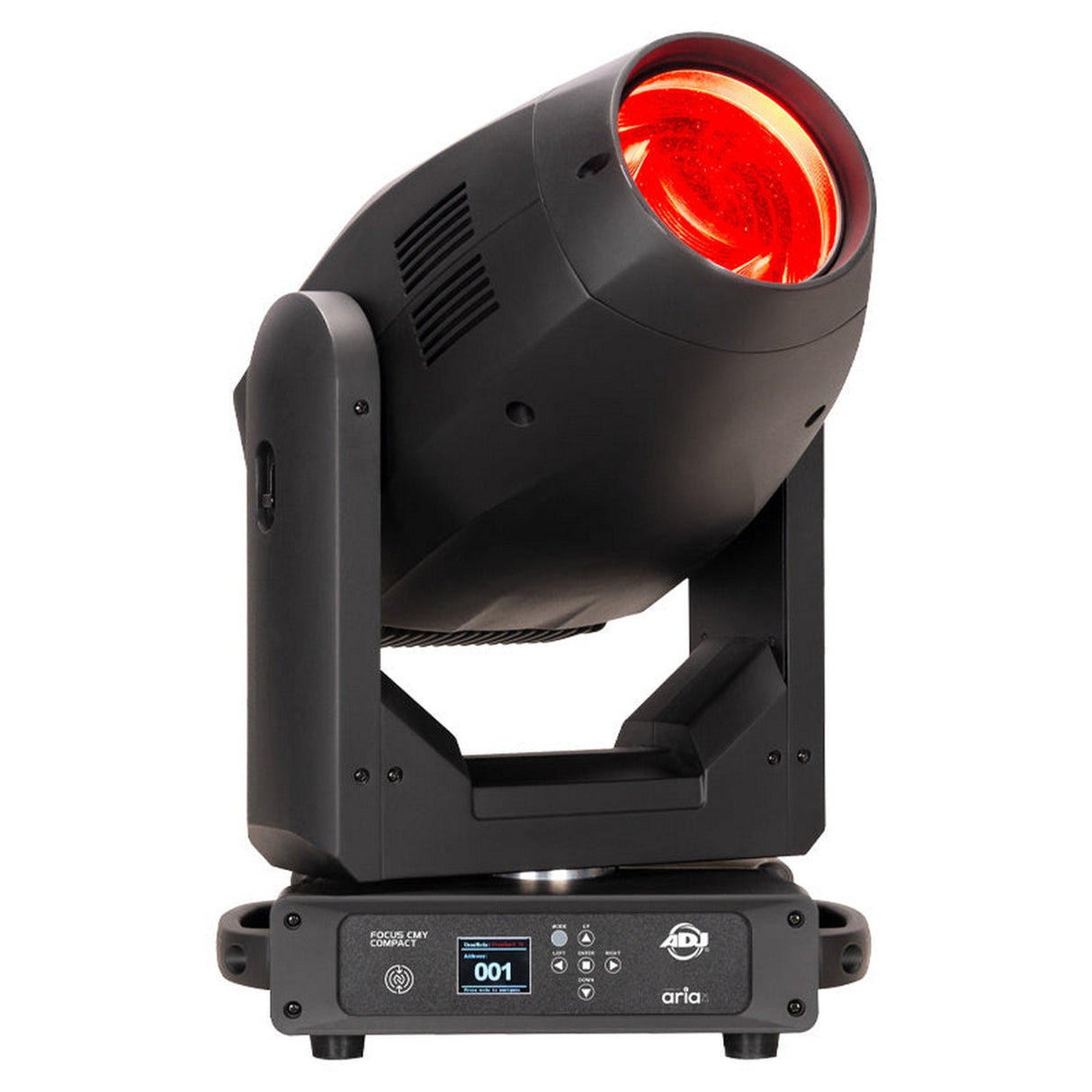

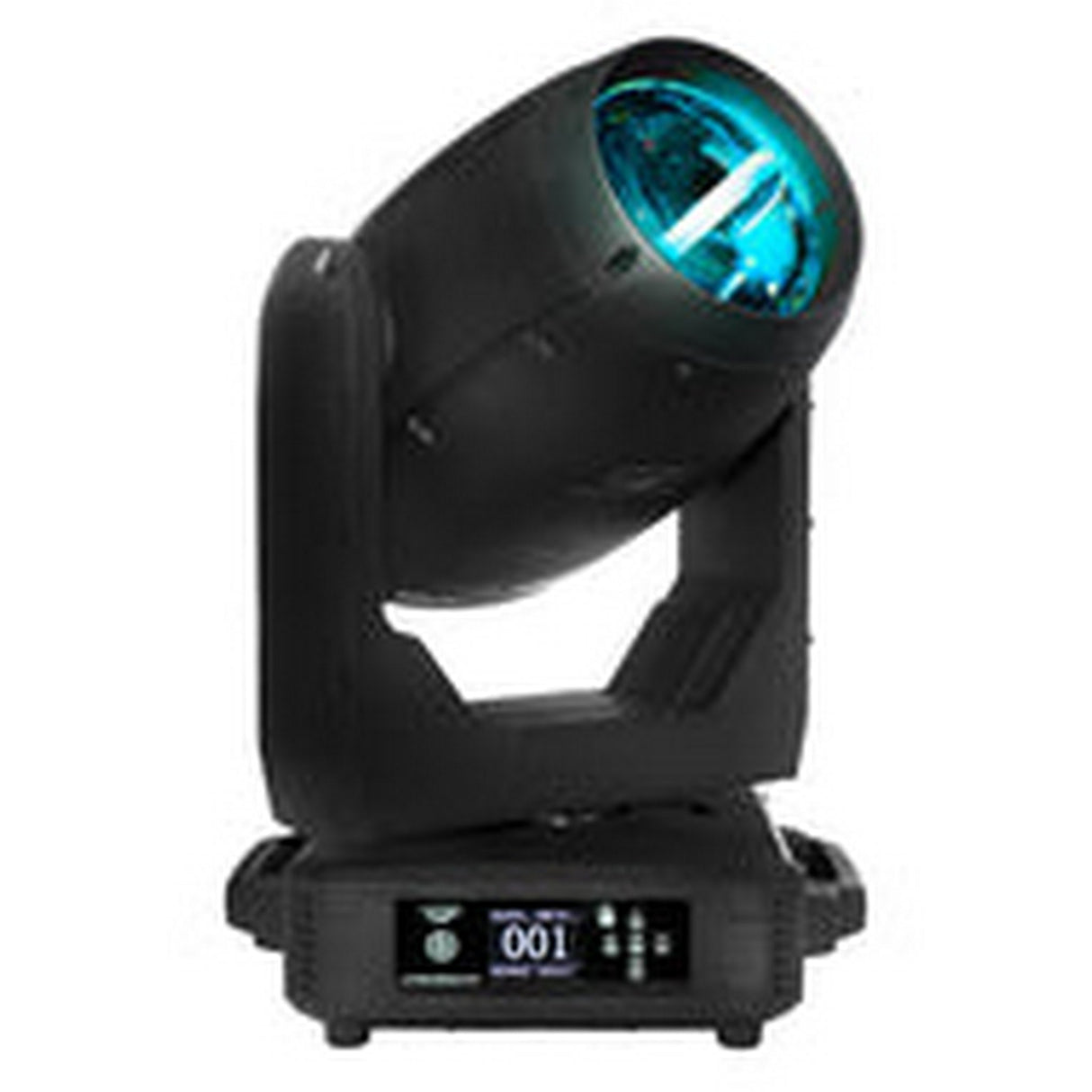

ADJ Focus CMY Compact LED Moving Head

The Focus CMY Compact LED Moving Head is a powerful and versatile automated luminaire that delivers best in class output and flexibility in a compact package. Driven by a 400 watt LED engine, it produces up to 14,500 total lumens, making it suitable for concert stages, theaters, houses of worship and corporate events. With a motorized zoom range from 3 degrees to 52 degrees, it can function interchangeably as a beam, spot or wash, maximizing the creative potential of each fixture.

An extensive suite of beam shaping tools gives lighting designers granular control over looks and textures. The full CMY color mixing system is complemented by variable CTO from 3200K to 8500K and a color wheel with seven dichroic colors, including a High CRI filter for applications requiring accurate color rendering. Two GOBO wheels, dual rotating prisms, two frost filters, motorized focus, electronic dimming and strobe effects enable everything from tight aerial beams to rich textured projections and smooth wash coverage.

Engineered for modern networked control environments, the Focus CMY Compact supports DMX, RDM, Art Net and sACN, and incorporates the Aria X2 wireless management system for cable free DMX and streamlined setup. NFC configuration, a six button touch control panel and a full color 180 degree reversible LCD menu simplify operation both on the ground and in the rig. Weighing under 45 pounds with robust IP20 construction and CE, FCC and ETL pending approvals, this fixture offers a powerful blend of output, reliability and portability for professional lighting systems.

Key Features

• Hybrid beam, spot and wash performance: Motorized zoom from 3 degrees to 52 degrees allows the fixture to serve as a beam, spot or wash.
• High output LED engine: 400 watt LED source delivering up to 14,500 total lumens for bright, punchy projection.
• Advanced color system: Full CMY color mixing, variable CTO from 3200K to 8500K and a seven position color wheel with High CRI filter.
• Extensive gobo and prism options: Two gobo wheels with rotating and static glass gobos plus 6 facet circular and 6 facet linear rotating prisms.
• Flexible control connectivity: Supports DMX, RDM, Art Net, sACN and Aria X2 wireless management for wired or wireless control.
• Professional user interface: NFC system, 6 button touch control panel and full color 180 degree reversible LCD display.
• Compact and lightweight: Under 45 pounds with a small footprint for easy rigging, transport and integration into tight spaces.
• Tour ready power and construction: Auto ranging power supply, IP20 housing and integrated pan and tilt locks for secure deployment.

Technical Specifications

• Light Source: 400 W LED engine
• Color Temperature: 6900 K plus or minus 350 K
• Average LED Life: 20,000 hours (depending on environmental and usage factors)
• Total Output: 14,500 total lumens
• CRI: 64 (80 or 90 with High CRI filter)
• Zoom Range: Motorized zoom from 3 degrees to 52 degrees
• Focus: Motorized focus
• Dimming and Strobe: Electronic dimming and strobe, 1 to 20 Hz
• Prisms: 6 facet circular and 6 facet linear rotating prisms
• Frost Filters: 2 frost filters (light and heavy)
• Color System: Full CMY color mixing with variable CTO from 3200 K to 8500 K
• Color Wheel: Color wheel with 7 dichroic colors including High CRI filter in slot 7
• Gobo Wheels: 2 gobo wheels; wheel 1 with 8 rotating, indexable glass gobos, wheel 2 with 10 static glass gobos
• Control Modes: 3 DMX channel modes (Basic, Standard, Extended)
• Control Protocols: DMX, RDM, Art Net, sACN
• Wireless System: Aria X2 wireless management system
• User Interface: NFC system, 6 button touch control panel, full color 180 degree reversible LCD menu display
• Movement: 8 or 16 bit resolution adjustable movement

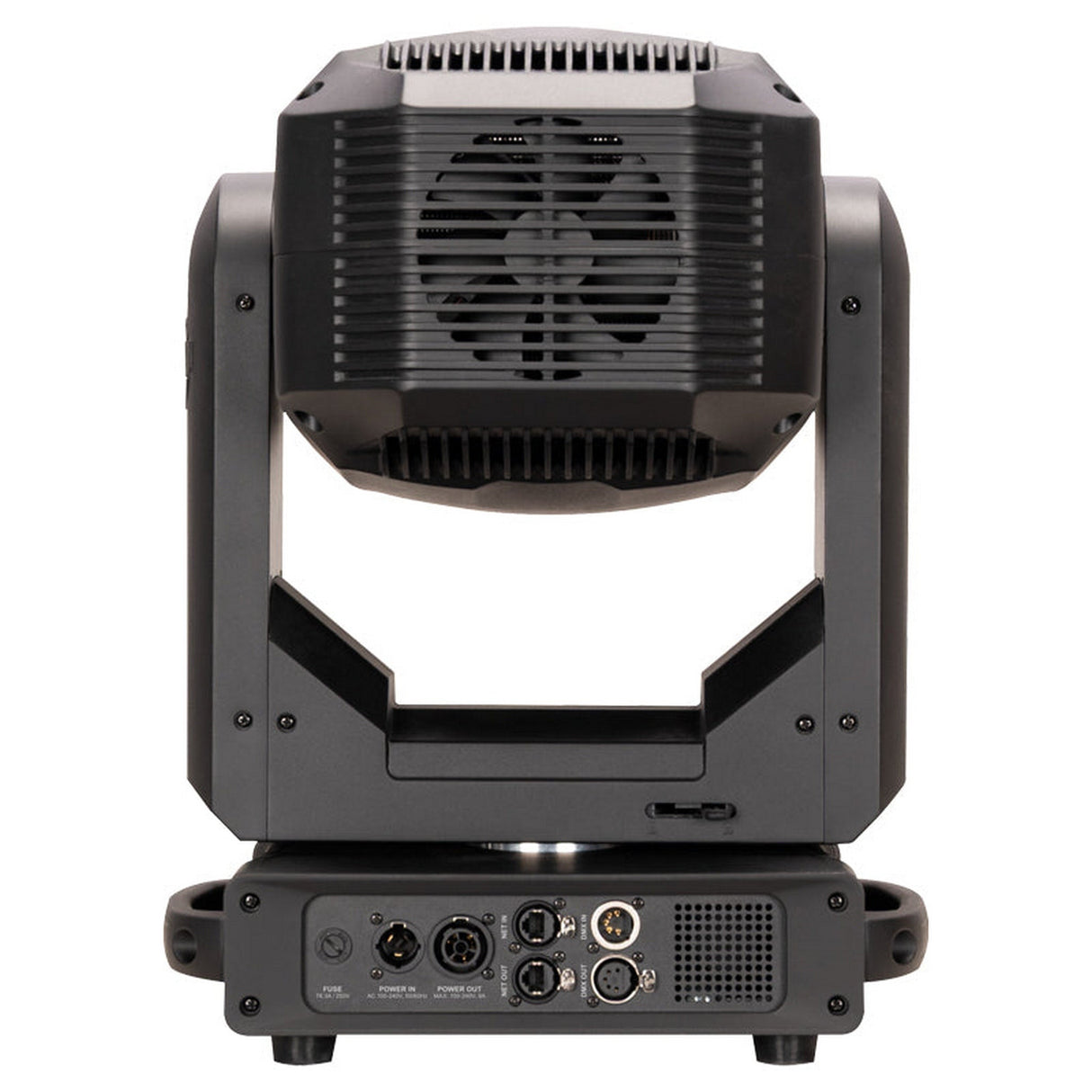

• Network Connections: RJ45 in and thru network ports
• DMX Connections: 3 pin and 5 pin XLR DMX in and out
• Power Connections: IP65 locking power in and out
• Pan Range: 540 or 630 degrees
• Tilt Range: 270 degrees
• Pan and Tilt Locks: Integrated locks for transport and servicing
• Length: 14.2 in (360 mm)
• Width: 9.3 in (234 mm)
• Height: 23.5 in (597 mm)
• Weight: 44.5 lb (20.2 kg)
• AC Power Input: 100 to 240 V, 50/60 Hz
• Max Power Consumption: 450 W at 220 V
• Max Ambient Temperature: minus 13 degrees F to 113 degrees F (minus 25 degrees C to 45 degrees C)
• Approvals and Ratings: CE, FCC, ETL pending, IP20
