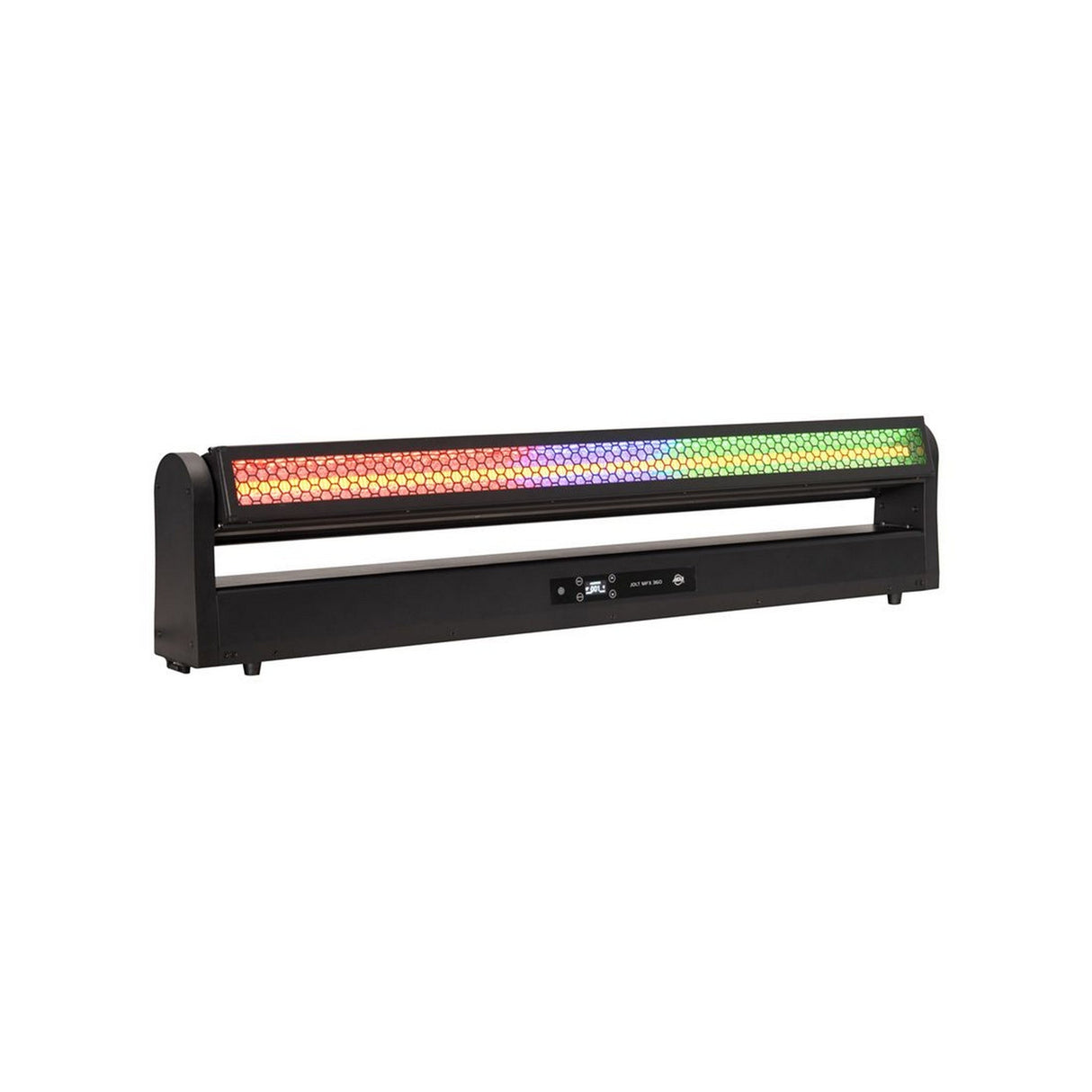

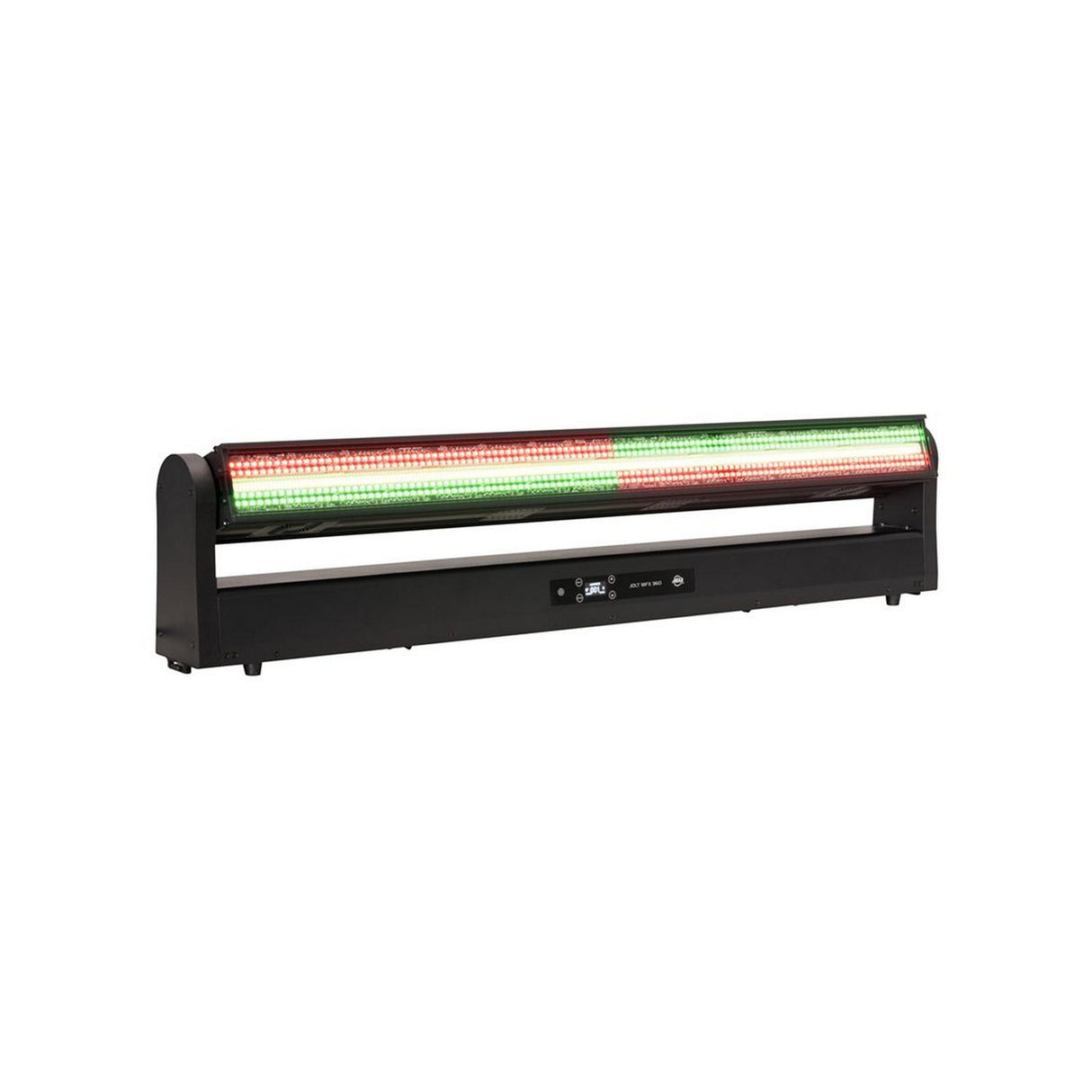

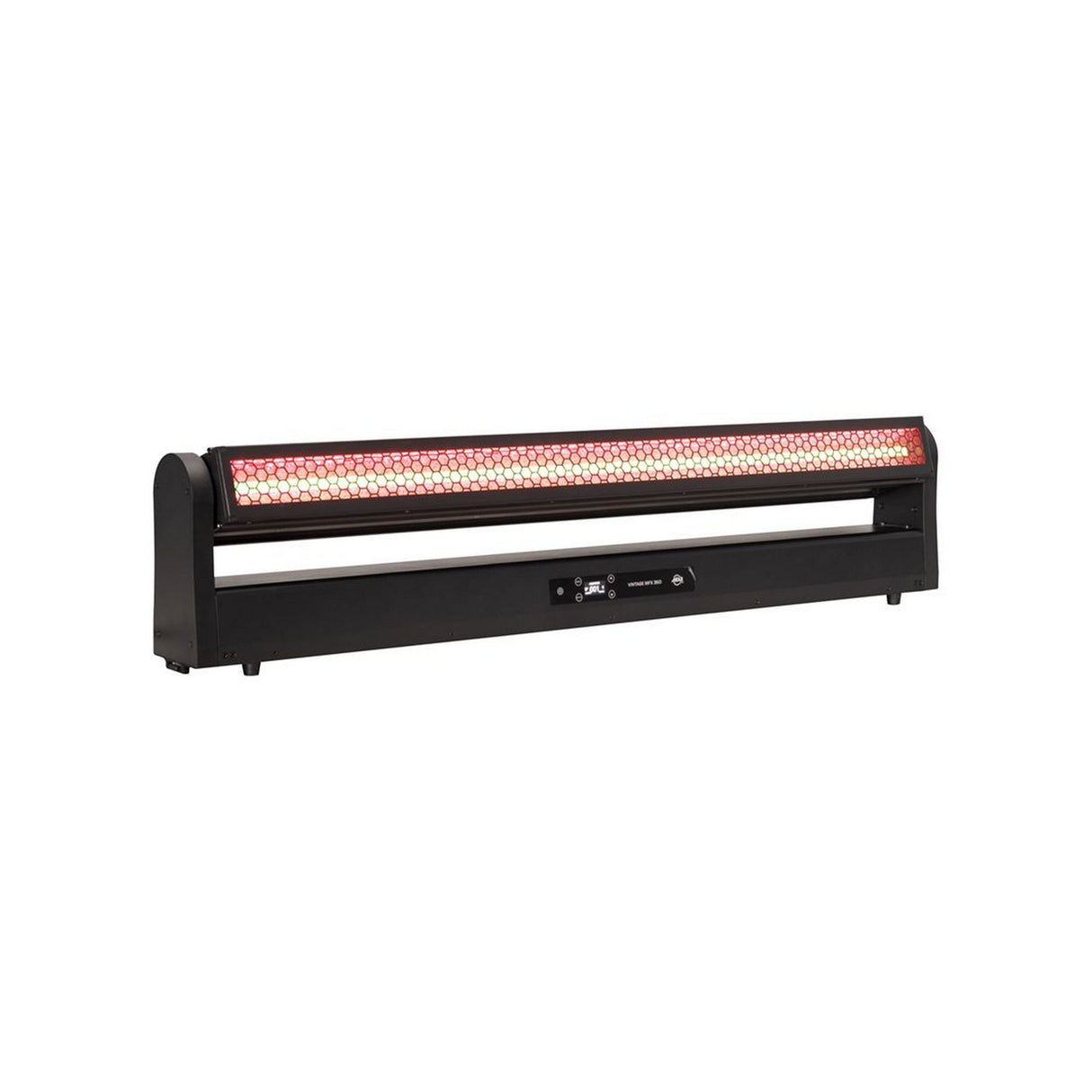

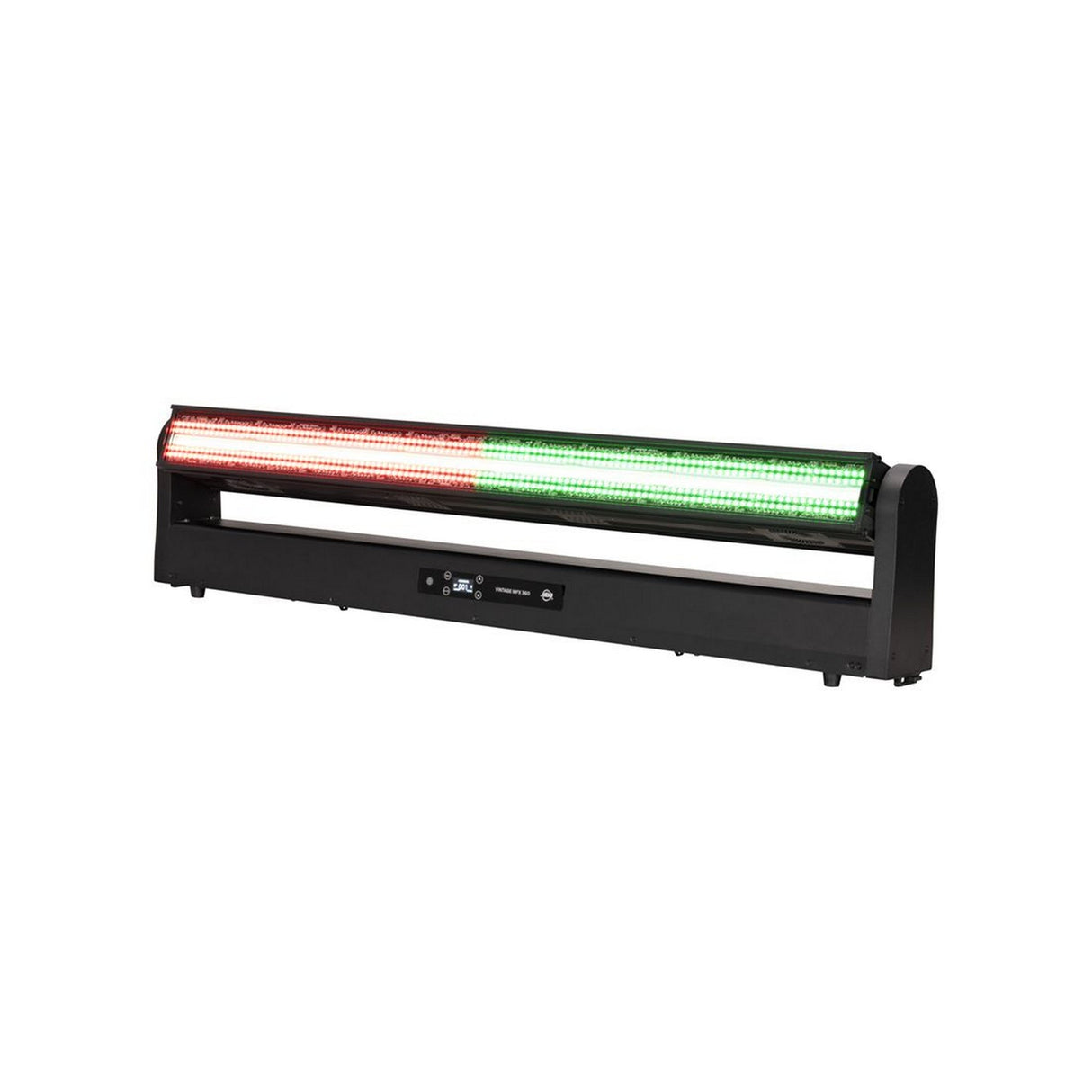

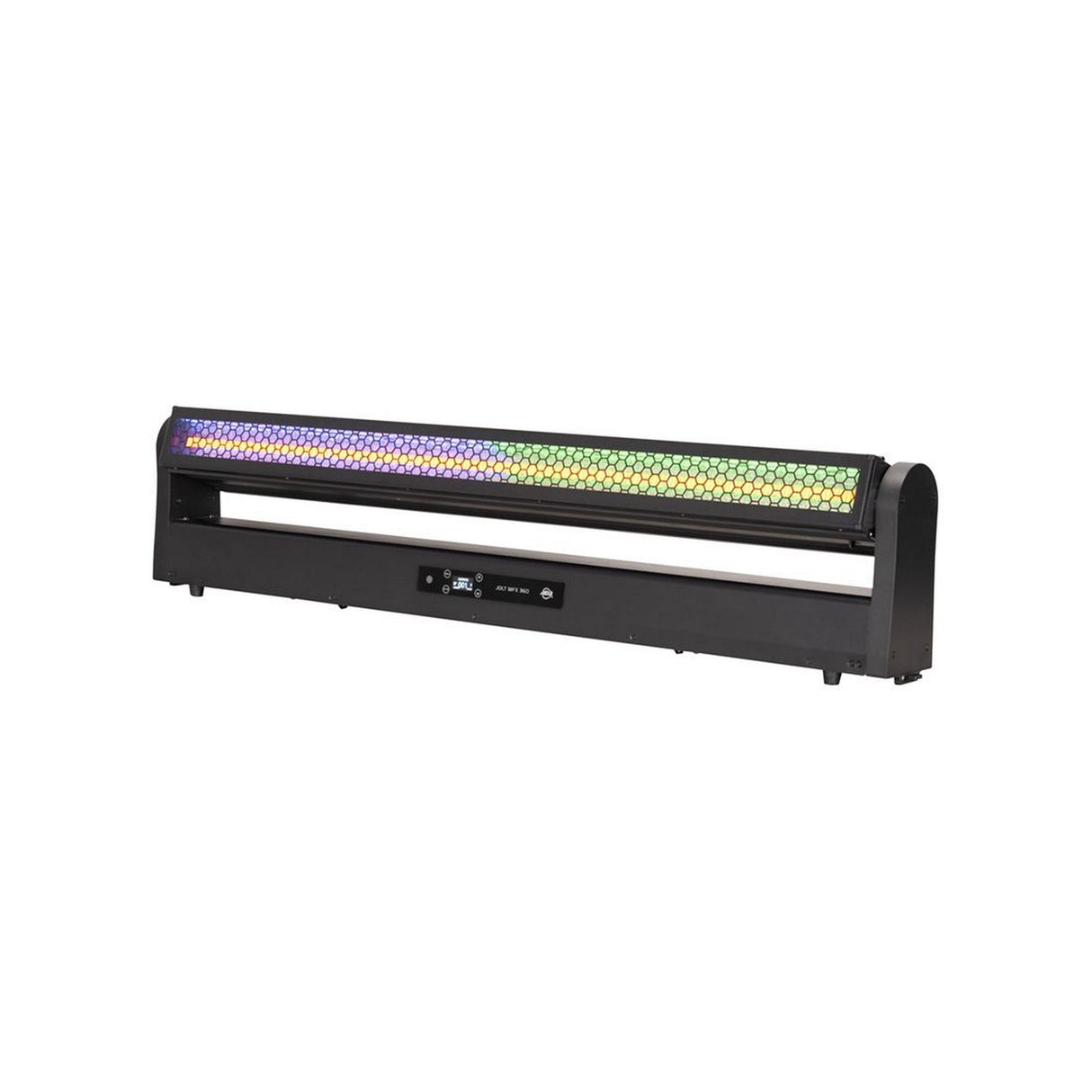

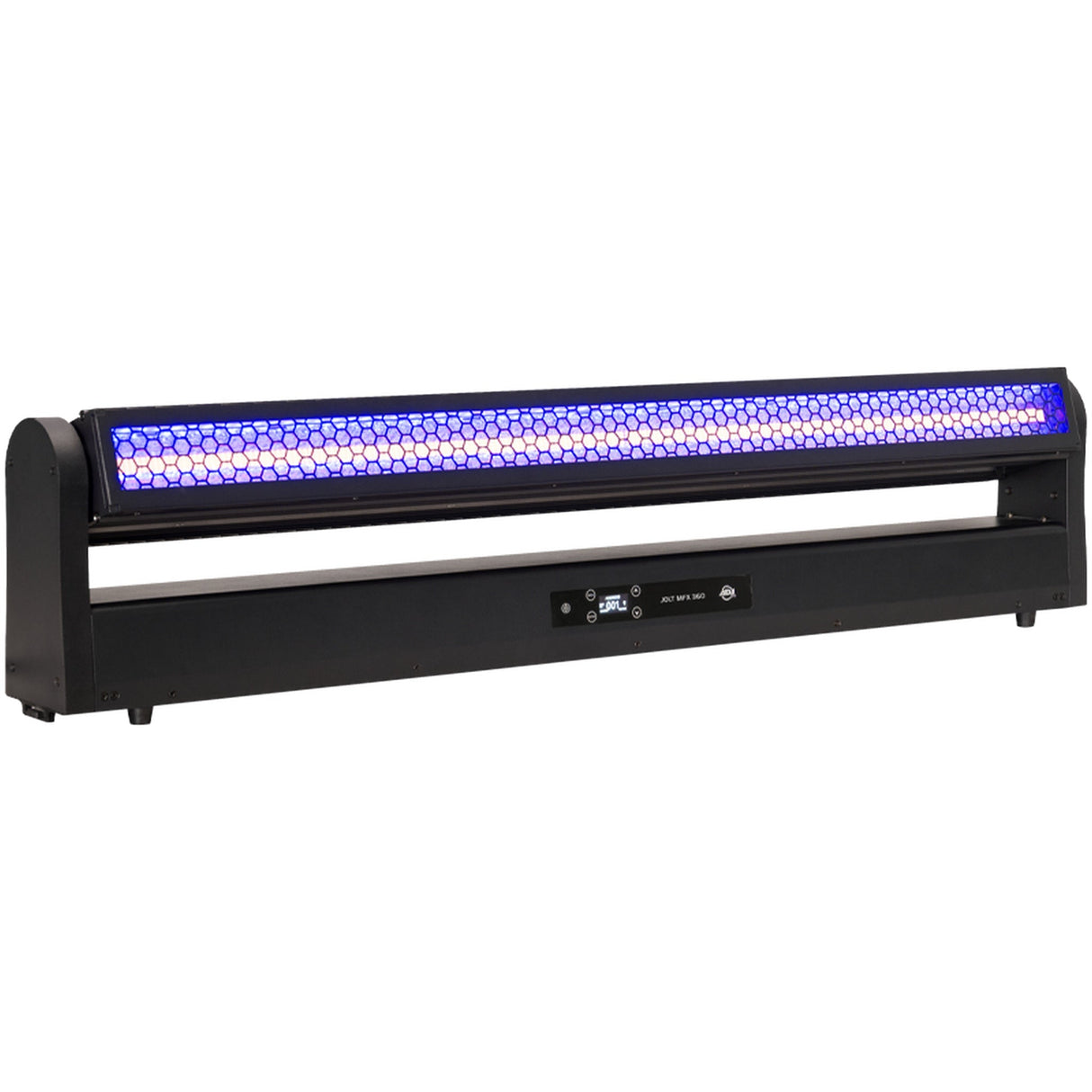

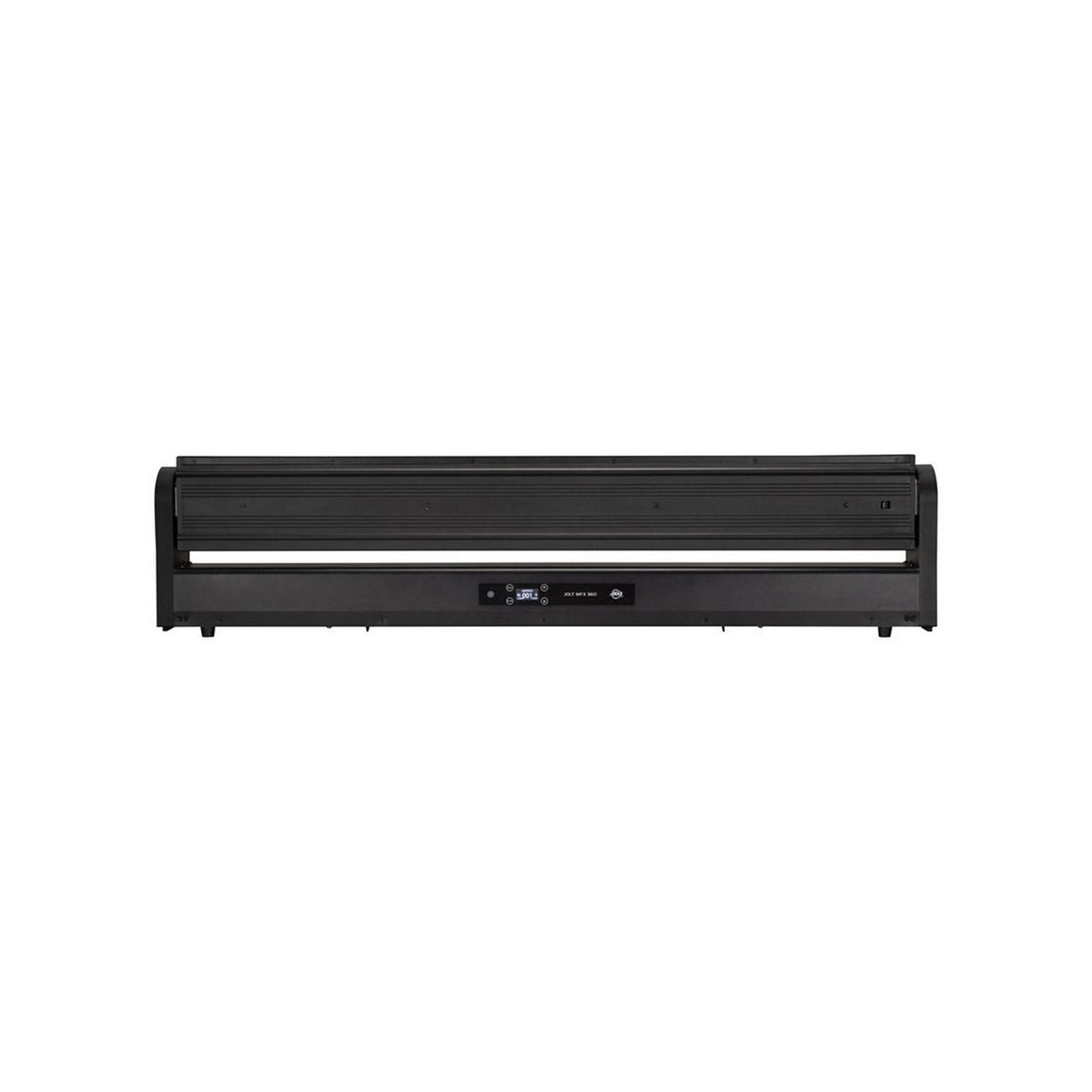

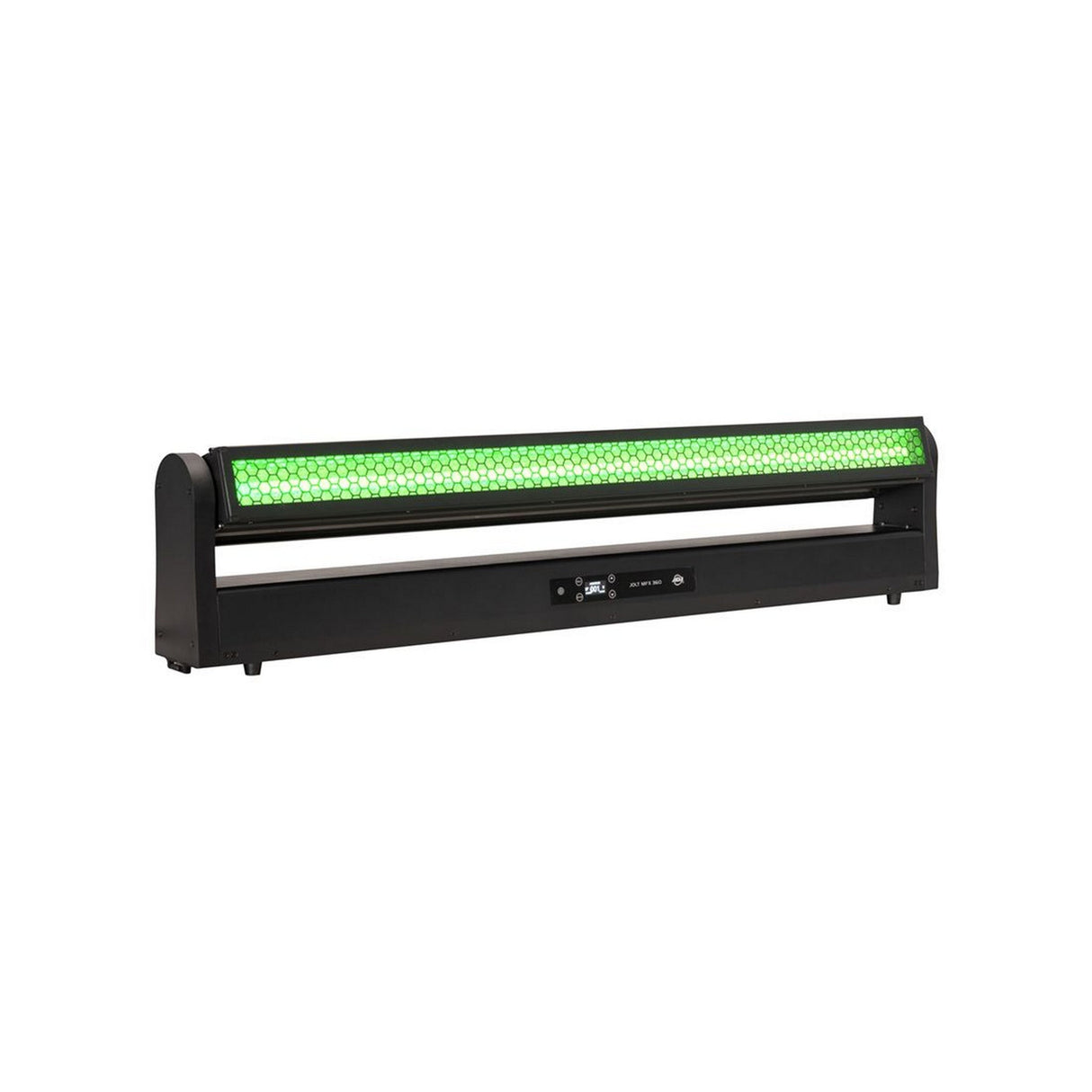

ADJ Jolt MFX 360 Hybrid LED Effects Fixture

The Jolt MFX 360 Hybrid LED Effects Fixture combines two of ADJ’s most iconic visual technologies into one groundbreaking dual sided lighting unit. Designed for maximum versatility, it merges the warm atmospheric glow of the Vintage Bar effect with the intense strobe and RGB wash power of the Jolt Bar. Fast motorized tilt and full 360 degree continuous rotation enable stunning transitions and dynamic movement, unlocking a wide range of creative possibilities for productions, installations and touring rigs.

On the Vintage Bar side, four 100 watt amber COB LEDs deliver classic blinder style output enhanced by a textured reflector illuminated by 140 RGBL SMD LEDs for vibrant background ambience. Flip to the Jolt Bar side and a powerful array of 448 cool white strobe LEDs, surrounded by 448 RGB LEDs, delivers high impact, modern energy. Both sides offer extensive zone control, macro effects and dimming features, while an optional lens slot on the strobe side allows attachment of frost filters for smoother output.

Engineered for professional workflows, the Jolt MFX 360 integrates Aria X2 wireless management, NFC configuration and full network protocol support including DMX, Art Net and sACN with RDM capability. A robust motorized tilt system with locking mechanism, magnetic end caps for precise fixture alignment and rugged IP20 construction make it ideal for demanding staging environments. Whether crafting warm scenic looks or unleashing aggressive strobe effects, this hybrid fixture delivers exceptional versatility from a compact, tour ready design.

Key Features

• Dual sided hybrid design: Vintage Bar warm amber effects on one side and Jolt Bar strobe plus RGB wash effects on the opposite side.
• High output LED engines: Powerful amber COB LEDs, RGBL ambience LEDs, intense cool white strobes and RGB wash arrays.
• Dynamic movement: Fast motorized tilt and full 360 degree continuous rotation for fluid transitions and advanced effects.
• Extensive pixel control: Multiple LED zones across both sides with built in macros and flexible dimming profiles.
• Wireless and network ready: Integrated Aria X2 wireless DMX, NFC setup, and support for DMX, Art Net, sACN and RDM.
• Effect customization: Lens slot for optional frost filters, strobe modes, refresh rate control and detailed dimming curves.

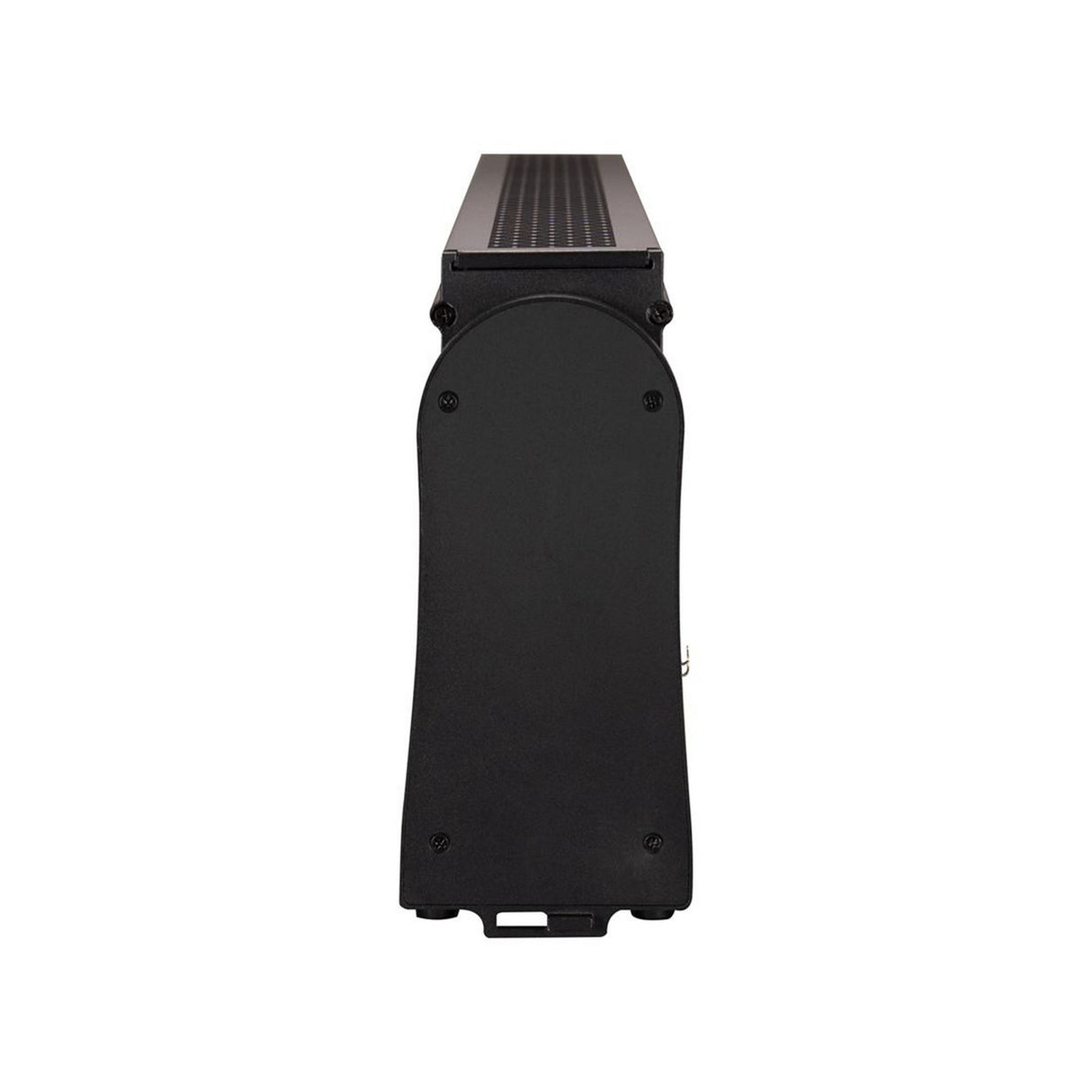

• Tour optimized construction: Tilt lock, magnetic end caps for alignment and rugged housing suitable for professional use.

Technical Specifications

• Vintage Effect LEDs: 4 x 100 W amber COB LEDs, 1800 K, 473 lux, CRI 60, beam angle 120 degrees, field angle 140 degrees
• Vintage Background LEDs: 140 x 0.8 W RGBL SMD LEDs
• Jolt Bar Strobe LEDs: 448 x 1 W cool white SMD LEDs, 6500 K, 585 lux, CRI 73
• Jolt Bar RGB LEDs: 448 x 0.5 W RGB SMD LEDs
• LED Life: 50,000 hour average
• Zones: 4 amber, 20 RGBL, 16 cool white, 32 RGB background zones
• Built In Effects: 128 RGB/RGBL macros, 6 macro programs per LED set with speed and fade control
• Movement: 360 degree continuous tilt, tilt lock included
• Control Protocols: DMX, Art Net, sACN, Aria X2, NFC, RDM
• DMX Modes: 12 modes – 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223 and 229 channels
• Dimming Modes: 6 presets – Standard, Stage, TV, Architectural, Theatre and Stage 2
• Dimming Curves: Linear, Square Law, Inverse Square Law and S Curve
• Strobe: Linear speed, pulse and random, max strobe rate 25 Hz
• Refresh Rate: 900 Hz to 25 kHz
• User Interface: OLED display with 4 touch buttons

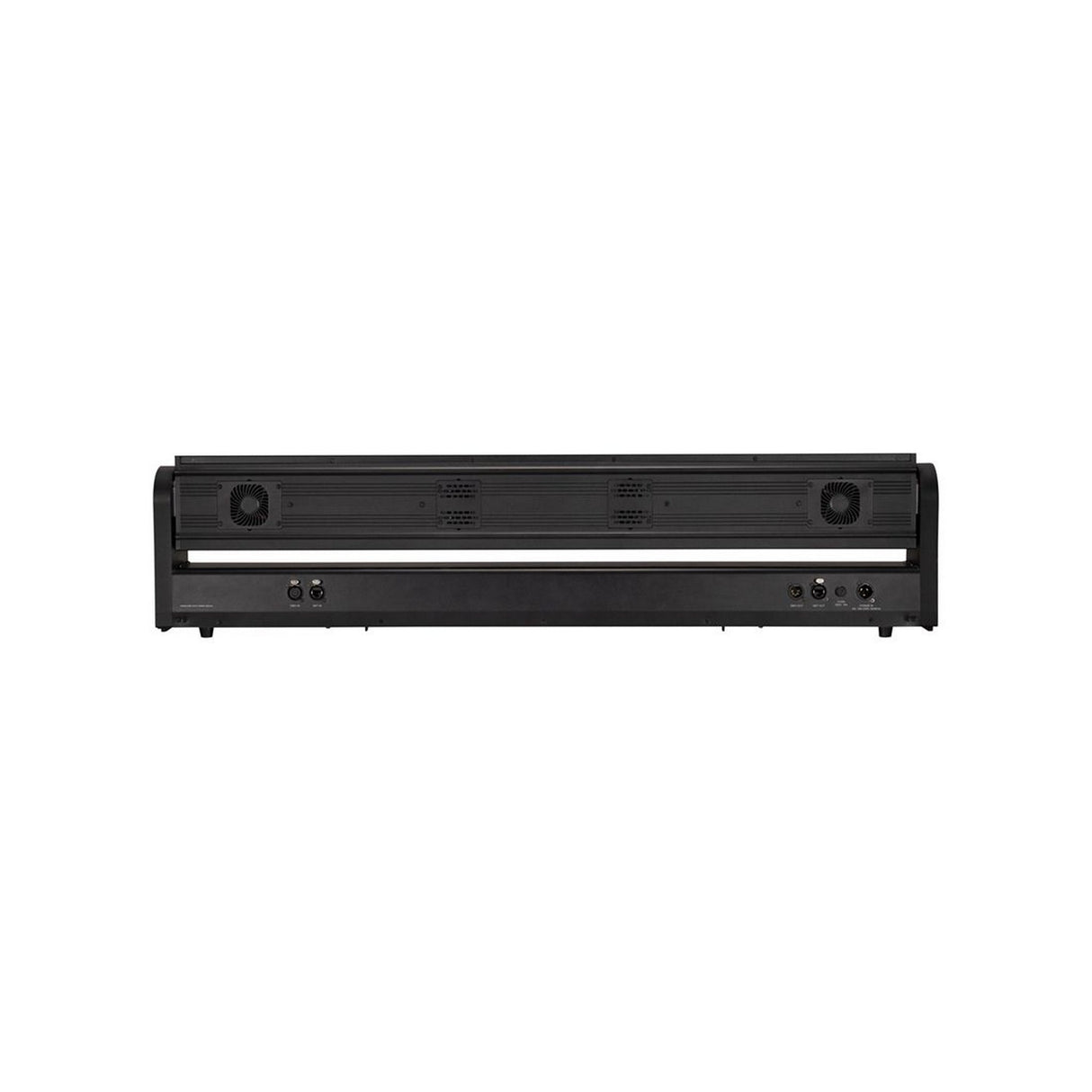

• DMX Connections: Seetronic 5 pin XLR locking in and thru
• Network Connections: Seetronic RJ45 locking in and thru
• Power Connections: IP65 locking power in and thru
• Power Input: 100 to 240 V AC, 50/60 Hz auto sensing
• Max Power Consumption: 780 W, 7.09 A at 110 V or 3.55 A at 220 V
• Max Power Linking: 2 units at 110/120 V or 4 units at 220/240 V
• Fuse: T6.3A/250V glass fuse (5 x 20 mm)
• Length: 42.44 in (1078.2 mm)
• Width: 5.08 in (129.2 mm)
• Height: 11.02 in (280 mm)
• Weight: 40.4 lb (18.3 kg)
• Approvals: CE, cETLus pending, IP20
