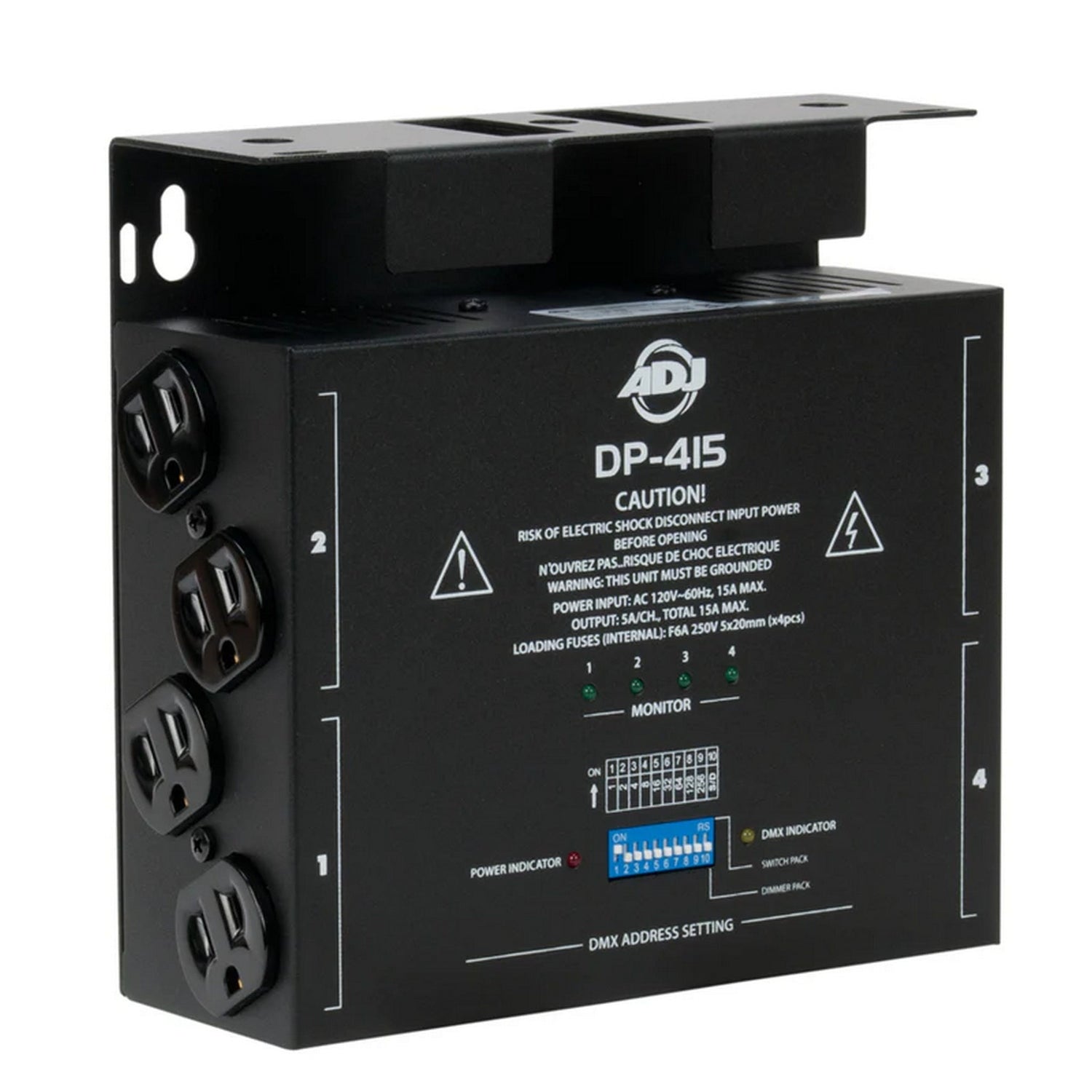

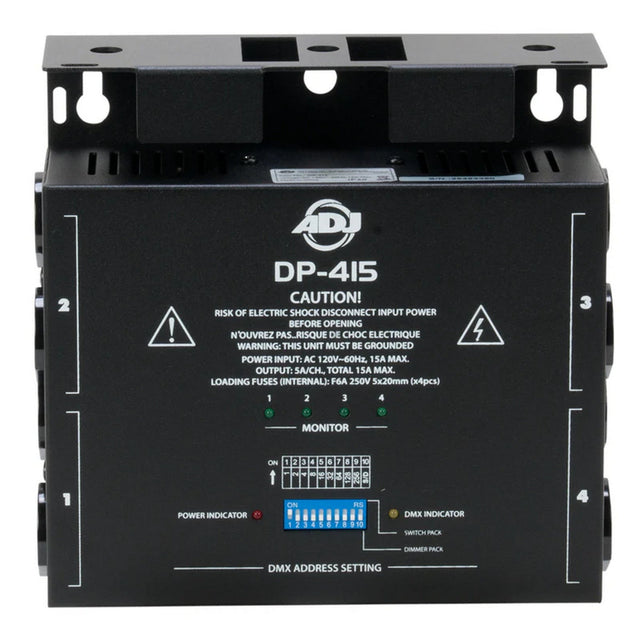

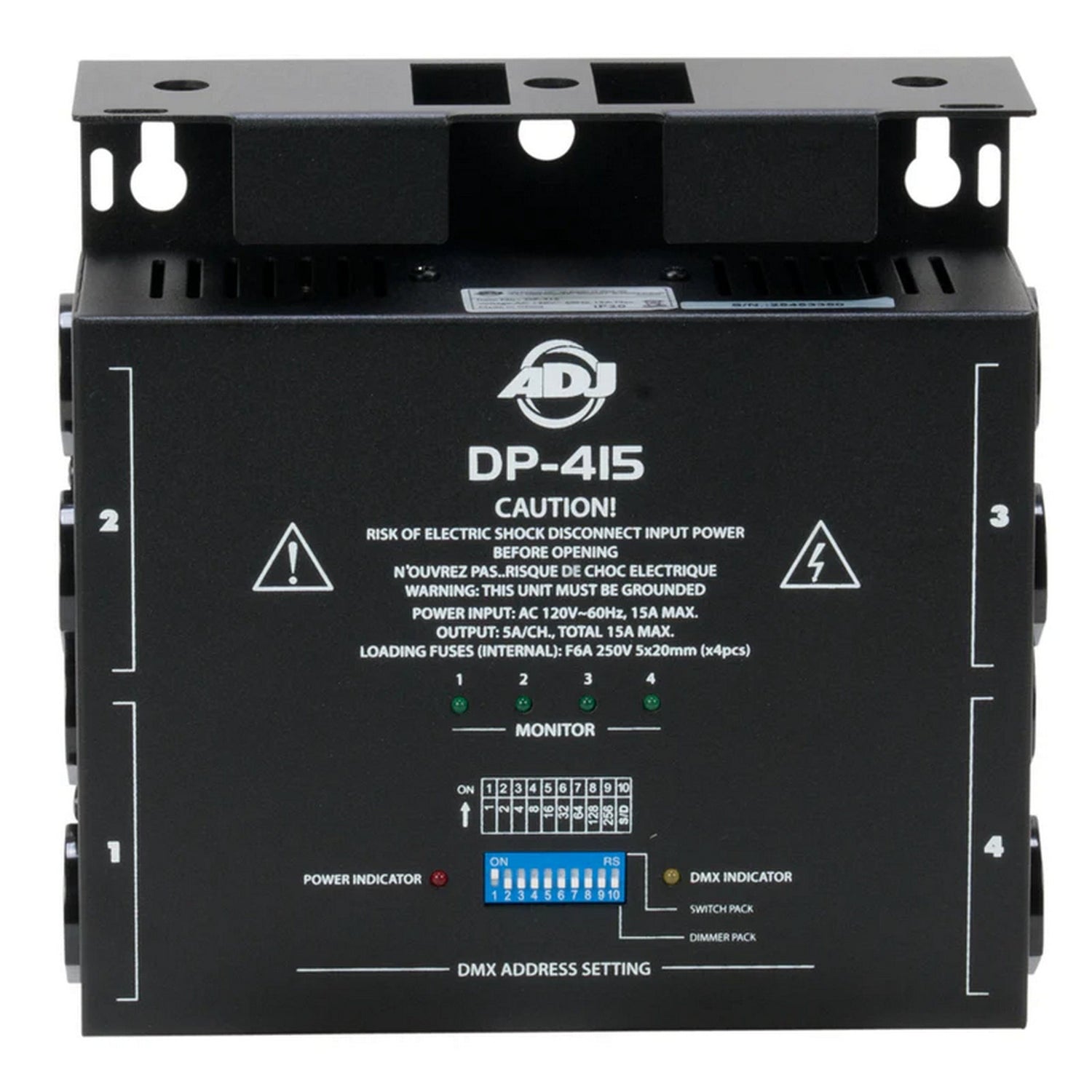

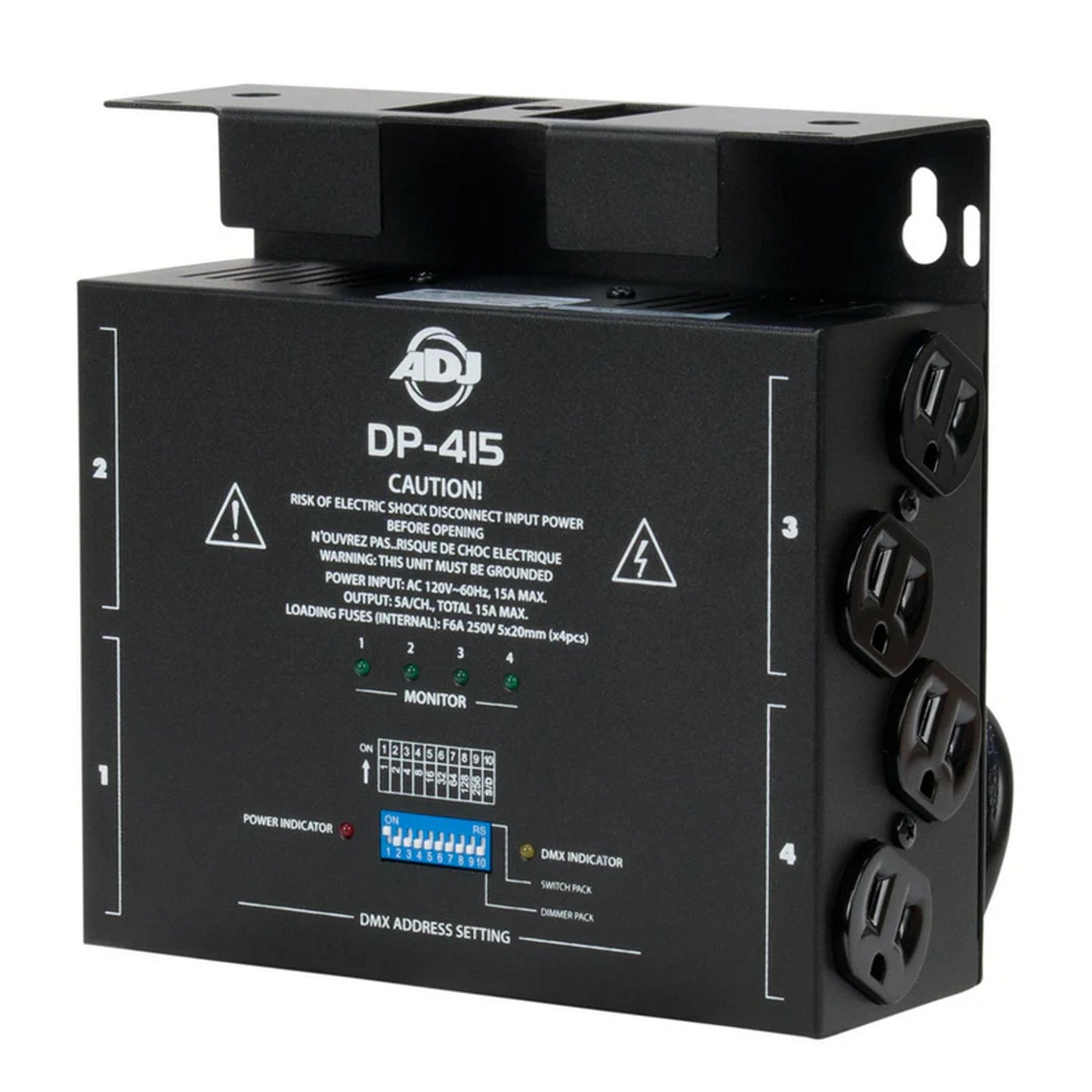

ADJ DP‑415 4‑Channel DMX Dimmer/Switch Pack
The ADJ DP‑415 is a compact, versatile 4‑channel DMX dimmer pack that doubles as a switch pack — ideal for mobile entertainers, DJs, and install applications. With eight 3‑prong Edison sockets (2 per channel), this unit gives you flexible control over up to eight fixtures. Its rugged, compact design integrates reversible hanging brackets for truss or clamp mounting, and LED indicators make for easy status monitoring.
Built for practical performance, the DP‑415 offers both DMX and conventional dimming options with intuitive control. Set DMX patch addressing via dip switches, flip the switch to assign dimmer or switch mode, and monitor DMX signal presence with on‑board LEDs. A standard XLR In/Out ensures seamless DMX integration. Whether you're dimming PAR cans or toggling effect lights, the DP‑415 packs impressive functionality into a small footprint.
Key Features
- 4‑channel DMX dimmer or switch pack
- Eight 3‑prong 15 Amp Edison outputs (2 per channel)
- 10‑position DIP switches for DMX addressing
- On/off main power switch
- LED "On" and DMX signal indicators

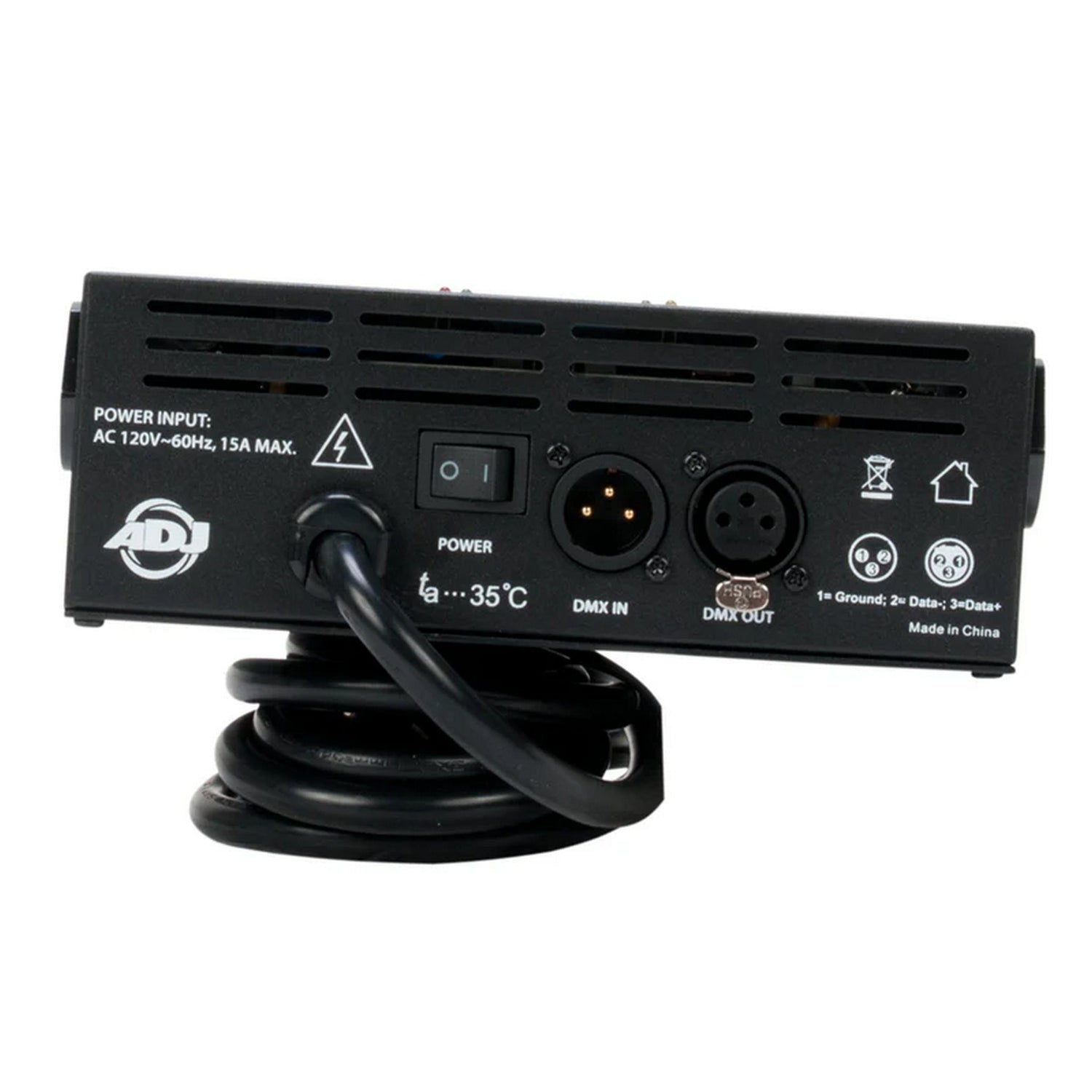

- Standard 3‑pin DMX XLR input/output
- Reversible hanging bracket—truss or clamp mounting
Technical Specifications
- Max Power: 15 A total (5 A per channel)
- Outputs: 8 × 3‑prong Edison sockets
- Control: DMX or hard-switch mode
- Dimensions (L × W × H): 7″ × 7″ × 2.5″ (180 × 177 × 64 mm)
- Weight: 3 lbs (1.2 kg)
- Connectors: 3‑pin DMX In/Out, Edison power outputs
What’s Included in the Box
- ADJ DP‑415 unit (with hanging bracket attached)
- Built‑in reversible bracket for truss or clamp mounting
- Power cord (as integrated or attached)
- User manual (available as PDF download)
