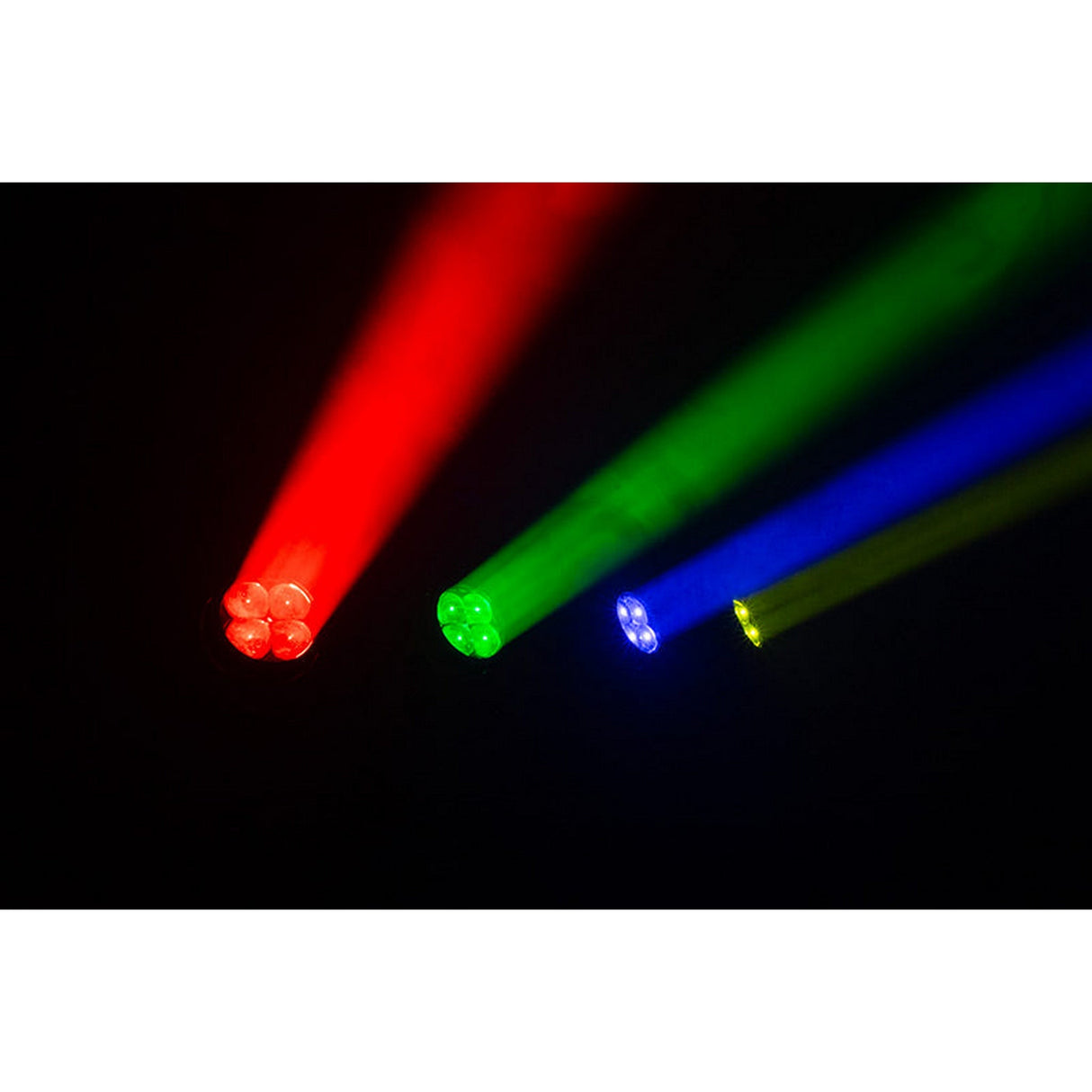

ADJ Vizi Xtreme Beam Wash Moving Head

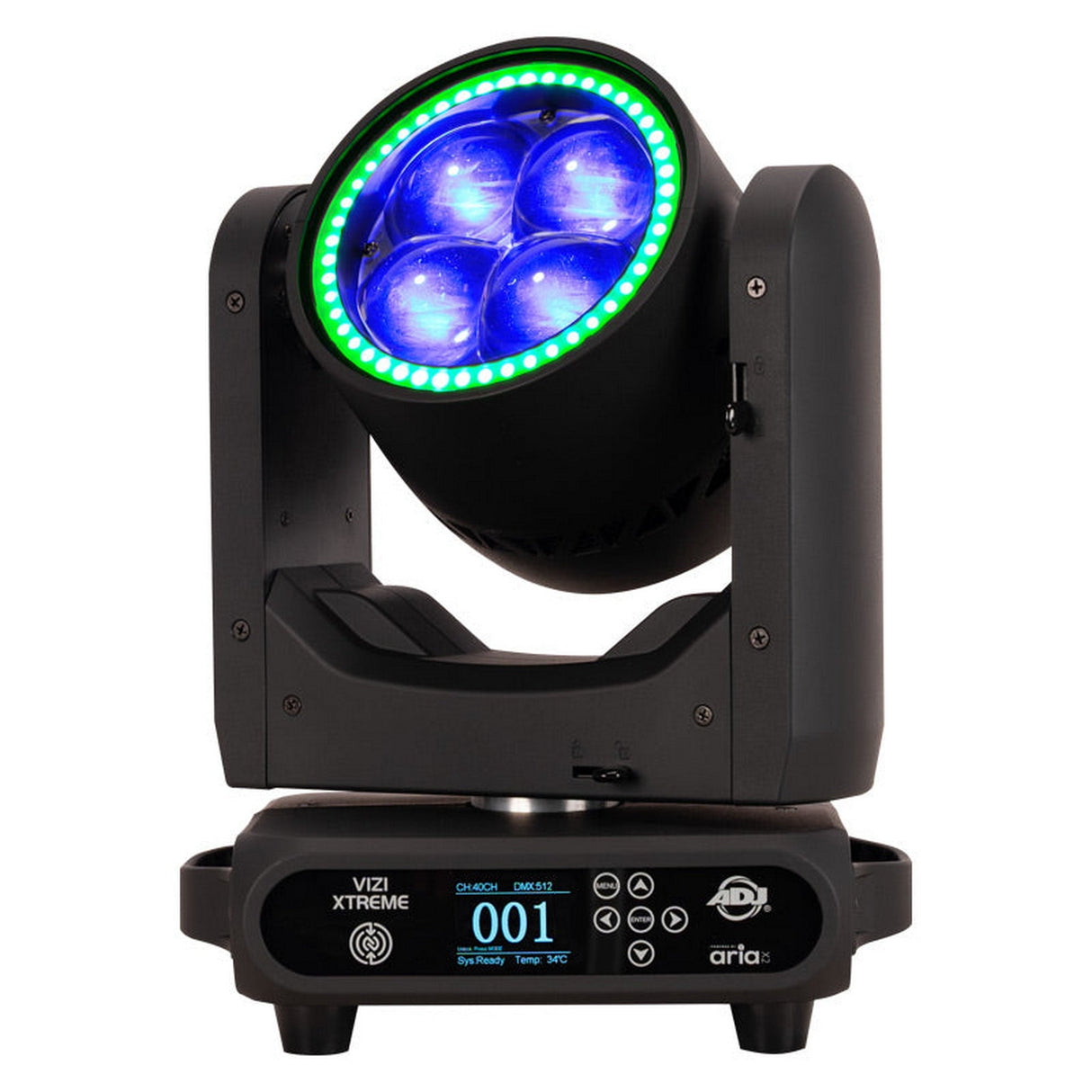

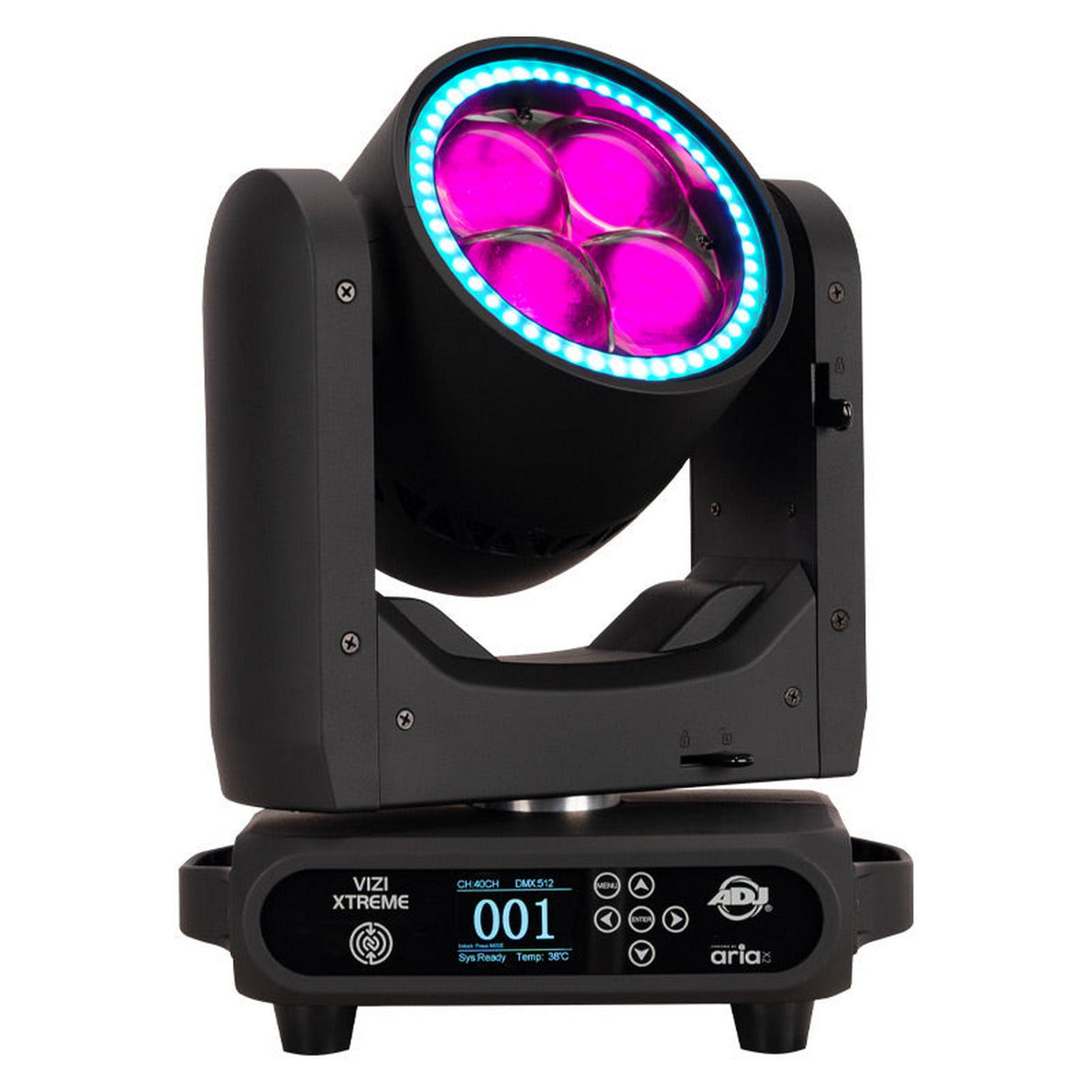

The Vizi Xtreme Beam Wash Moving Head is an extremely compact yet powerful RGBL moving head designed for high speed, high impact lighting applications. Featuring a 240 watt RGBL engine with four primary 60 watt LEDs, it delivers intense beams and rich washes while remaining lightweight and easy to rig. Its combination of fast movement, advanced pixel control, and versatile zoom makes it well suited to concert touring, club installations, broadcast environments, and event production.

At the core of the fixture, four individually controllable 60 watt RGBL LEDs provide bold color mixing with lime enhancement for improved clarity and a wide palette of saturated hues and crisp pastels. Color temperature can be adjusted from approximately 2700 K to 10,000 K for precise white light tuning. Surrounding the primary LEDs, a ring of forty eight 0.5 watt RGBW LEDs is divided into six zones of eight LEDs each, delivering eye catching halo and chase effects that complement the main output. Combined with a motorized zoom range from 3 degrees to 45 degrees, the fixture can shift smoothly from tight aerial beams to wide immersive washes.

The Vizi Xtreme is engineered for professional control and integration. It supports DMX, RDM, sACN, and ArtNet, and includes Aria X2 wireless management for cable free DMX control and remote configuration. An NFC system and a full color 180 degree reversible LCD menu with six button touch control panel provide flexible setup options. Ultra fast three phase motors, optional 360 degree continuous pan and tilt rotation, and an electronic strobe rate from 1 to 10 Hz support dynamic movement driven looks. With its compact size, modest weight, and professional approvals, the Vizi Xtreme offers a powerful beam wash solution for modern lighting systems.

Key Features

• Compact beam wash design: Lightweight RGBL beam wash moving head with small footprint and strong output for dense fixture arrays and portable rigs.
• RGBL primary engine: Four individually controllable 60 watt RGBL LEDs provide saturated color, enhanced lime content, and adjustable white color temperature.
• Halo ring effects: Forty eight 0.5 watt RGBW LEDs arranged into six zones create eye candy ring effects and chase patterns.
• Wide zoom range: Motorized zoom from 3 degrees to 45 degrees supports tight beams, mid range spots, and wide washes from a single fixture.
• High speed movement: Three phase motors with optional 360 degree continuous pan and tilt rotation enable energetic, movement based effects.
• Advanced control connectivity: DMX, RDM, sACN, and ArtNet support along with integrated Aria X2 wireless and NFC configuration.
• Professional user interface: Six button touch control panel and full color 180 degree reversible LCD menu for convenient addressing and setup.

Technical Specifications

• Type: 240 W RGBL beam wash moving head
• Primary Source: 4 x 60 W RGBL LEDs
• Primary Color Temperature: Approximately 2700 K to 10,000 K
• Primary LED Life: 20,000 hour average life (depending on usage and conditions)
• Ring Source: 48 x 0.5 W RGBW LEDs
• Ring LED Life: 20,000 hour average life (depending on usage and conditions)
• Photometric Data: 2,700 lumens, CRI approximately 60
• Color Setup: Primary LEDs with red, green, blue, and lime; ring LEDs with RGBW
• Pixel Control: Individual pixel control for primary RGBL LEDs
• Ring Zones: Six ring zones with eight LEDs per zone
• Zoom Range: Motorized zoom from 3 degrees to 45 degrees
• Strobe: Electronic strobe, approximately 1 Hz to 10 Hz
• DMX Channel Modes: Five modes (Basic 28, Standard 40, Extended 73, Standard CMY 54, Extended CMY 63)
• Control Protocols: DMX, RDM, sACN, ArtNet
• Wireless System: Built in Aria X2 wireless management system
• NFC: NFC system for configuration
• User Interface: Six button touch control panel with full color 180 degree reversible LCD menu display
• Movement Resolution: 8 bit or 16 bit adjustable movement
• Pan Range: 540 degrees or 360 degree continuous pan rotation option
• Tilt Range: 270 degrees or 360 degree continuous tilt rotation option
• Pan and Tilt Locks: Mechanical locks provided
• Motors: Three phase motors for pan and tilt

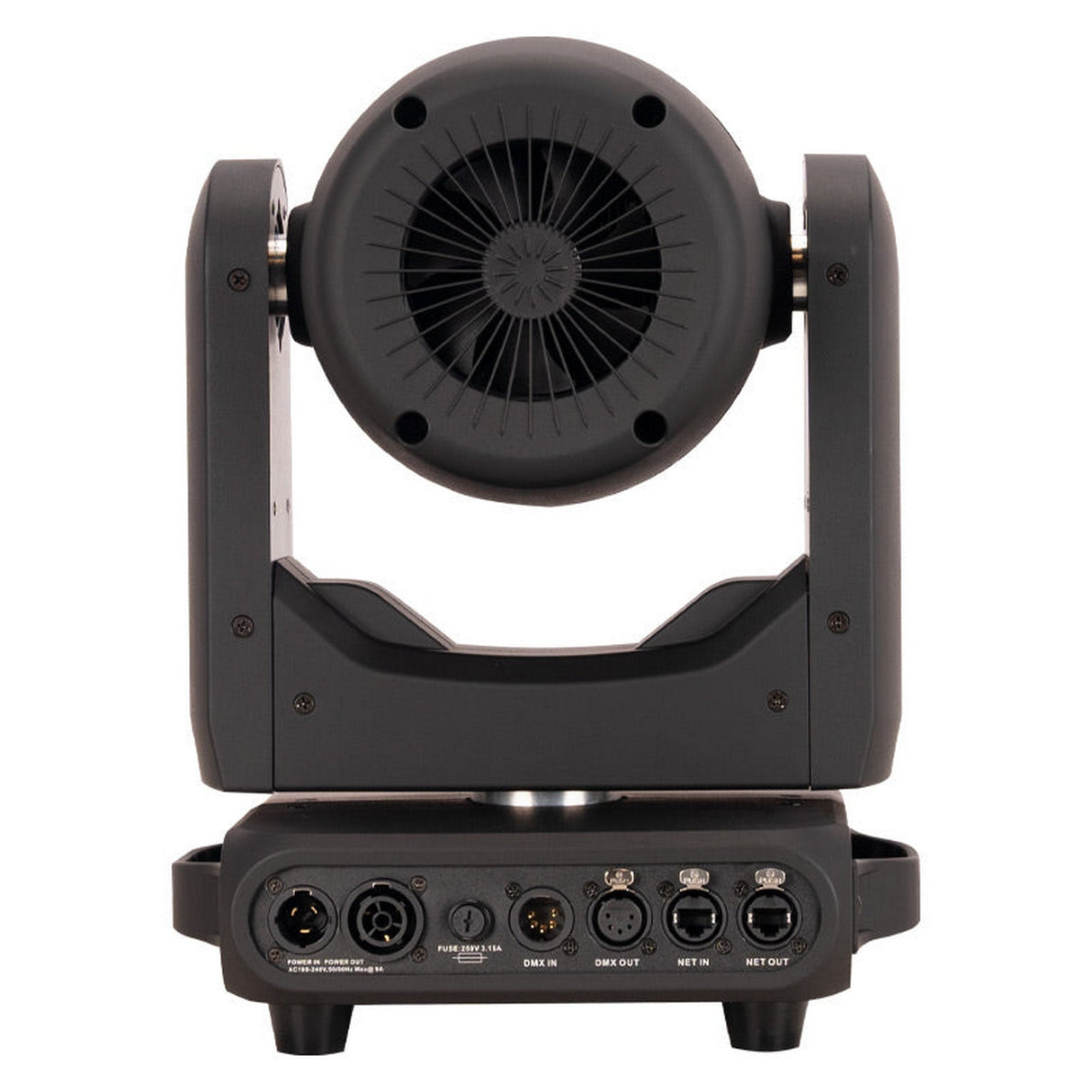

• DMX Connections: IP20 rated 5 pin XLR DMX in and out
• Network Connections: IP20 rated RJ45 in and out
• Power Connections: IP65 locking power in and out
• Length: 10.9 in (276 mm)
• Width: 7.87 in (200 mm)
• Height: 14.34 in (364.2 mm)
• Weight: 15.4 lb (7 kg)
• AC Power: 100 to 240 V, 50 or 60 Hz
• Max Power Consumption: 316 W
• Power Linking: Up to 5 units at 120 V and up to 10 units at 230 V
• Ambient Temperature Range: minus 13 degrees F to 113 degrees F (minus 25 degrees C to 45 degrees C)
• Thermal Data: BTU approximately 0.64; BTU per hour approximately 2301.75
• Approvals and Ratings: CE, FCC, cETLus pending, IP20
