American DJ 3D VISION Hexagonal LED Panel 3D Visual Effects

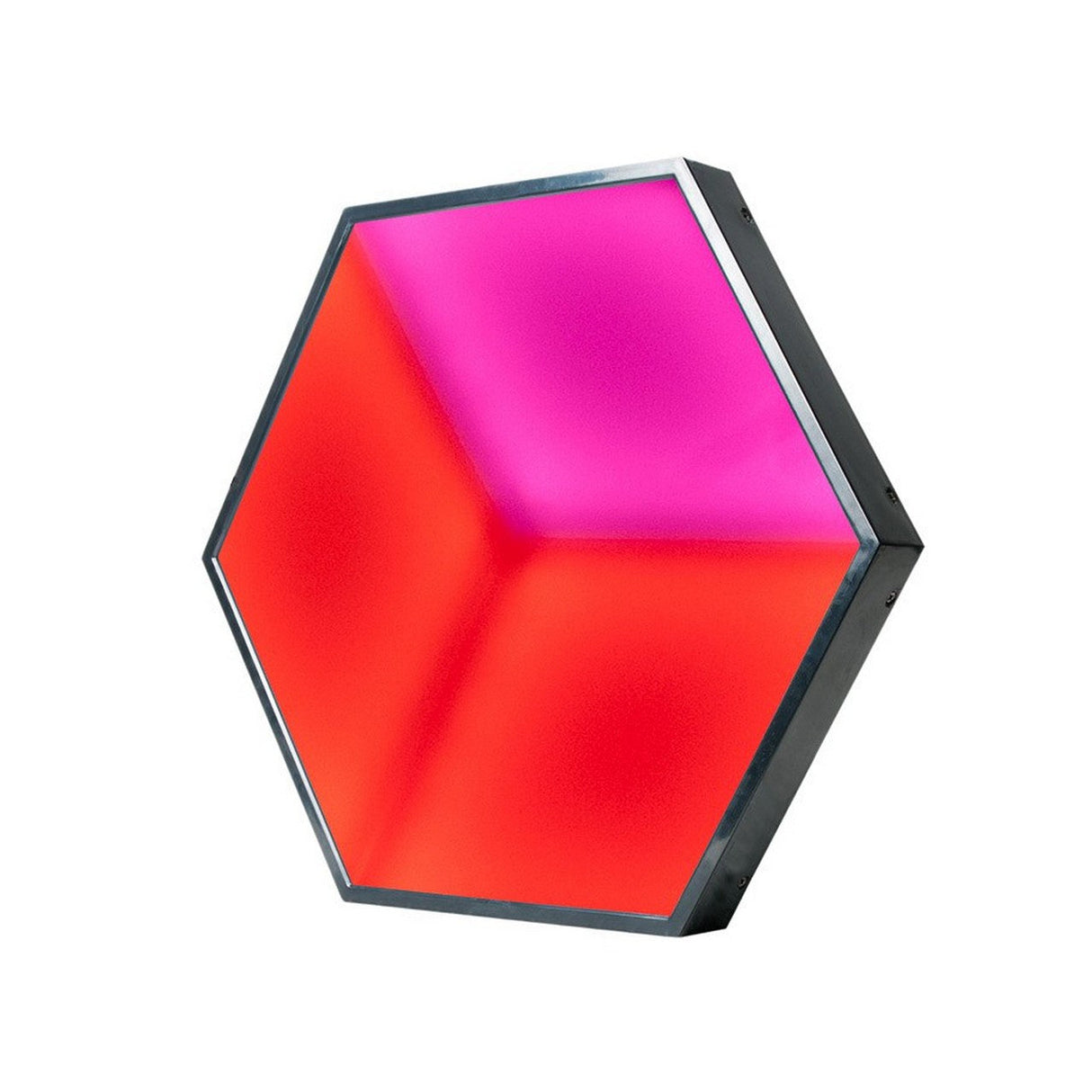

The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers.
Hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. Controllable via DMX and ArtNet. Can also be used with EZ Kling interface for KlingNet, LED Master control. Link multiple panels together via powerCon input/output with RJ45 ports for data linking. Panels lock together with an easy to use quick release panel lock (one-panel lock included per panel). Rigging bars are also available for dead hang installation (m10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe).
Key Features
- 3D LED Effect panel. Use in multiples to create a dynamic
- Modular connecting system allows you to create different configurations
- Quick lock rigging system allows you to assemble and disassemble quickly
- 10mm thread on rear for standard Pro Clamp, truss mount
- Control Protocol: DMX and ARTNET
- Data Connections: Ethercon, Input, and Output
Technical Specifications
Product Size:
15.8 x 15.8 x 2.7 (400 x 400 x 68mm)
LED Quantity, per unit:
72pcs.
LED Type:
5050 SMD, 3in 1
Power Connections:
Powercon, Input, and Output
Max Power Consumption:
13W
Input Voltage:
100-265VAC
Net Weight:
6 lbs. (2.74kg)
Face Material:
Frosted Whtie Acrylic
Viewing Angle:
180-degrees
Working Temperature:
-4 to 140 F (-20 to +60 C)
Working Lifespan:
>50,000 Hours
