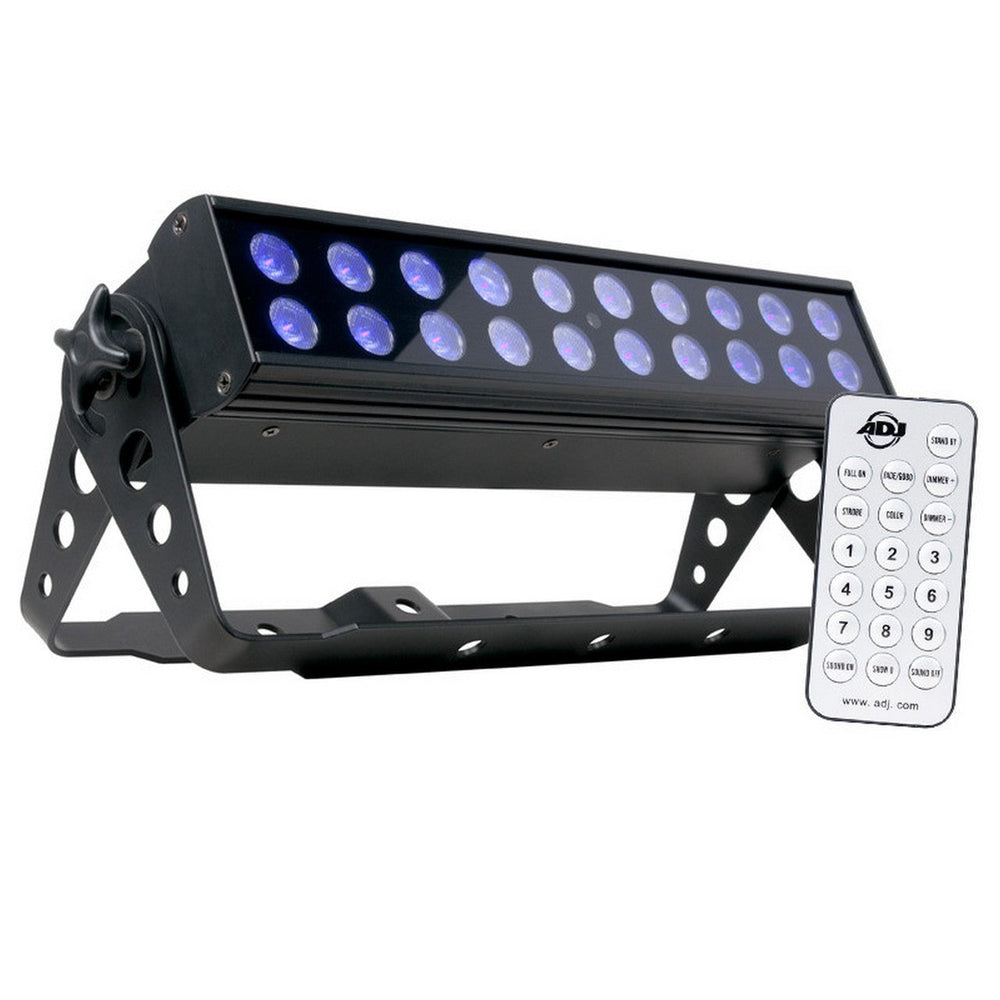

American DJ UV LED BAR 20 IR High Output Ultraviolet LED Blacklight
The UV LED BAR20 IR is a high output ultraviolet LED backlight that comes with the UC IR wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W. The beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LE 20 IR is a nearly maintenance free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.
Key Features
- Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs
- Includes UC IR wireless remote control (control On/Off and strobe speed)
- Great for performance stages, theatrical productions and special effects installations - requires almost no maintenance - long life LED, low heat output, low power consumption & no moving parts
- Long Life LEDs (50,000 hrs.)
- Low power consumption, low heat
Technical Specifications
4 Operational Modes
Sound Active, DMX-512, Master/Slave or Manual
3 DMX Channel Modes
1/2/3
UV strobe effect
Electronic Dimming
0 - 100%
Flicker Free
Refresh Rate
1KHz
Beam angle
10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
Linkable via 3-pin XLR cable
3-button LED DMX display on rear panel
powerCON In/Out to daisy chain power (10 fixtures @ 120V; 20 fixtures at 230V)
Scissor yoke allows fixture to be hung or set on the ground
Airstream IR APP compatible with iOS device
Power Draw
30W
On/Off switch on rear panel
Wavelength
390-410 nanometers
Multi-voltage Operation
AC 100-240V, 47/63Hz
Dimensions (LxWxH)
13.25” x 2.5” x 7”/ 334x61x175mm
Weight
6 lbs. /2.45 kgs.
