PAR Z100 5K 100W COB Cool White LED DMX Par Light
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Description

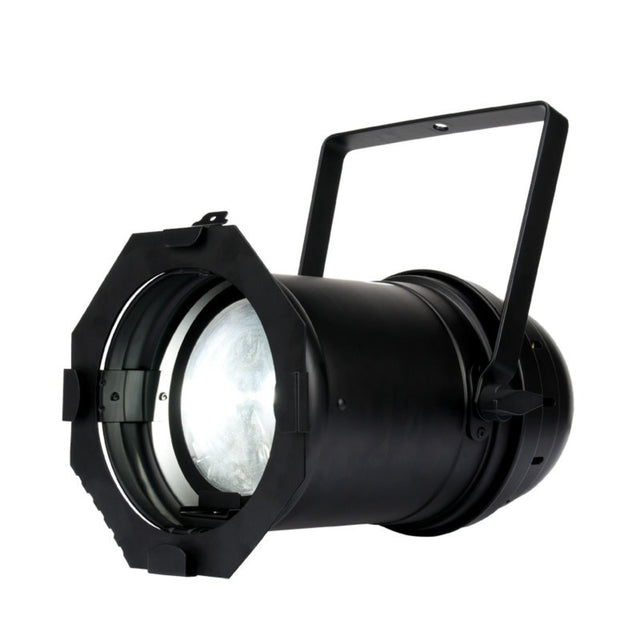

PAR Z100 5K 100W COB Cool White LED DMX Par Light
The PAR Z100 5K is a high-output, cool white (5700K) COB LED par fixture built for clean, consistent illumination in stage, studio, and event environments. With a 100W COB engine, a high CRI of 90, and flicker-free operation, it’s well-suited for applications where accurate color rendering and stable on-camera performance matter.
A standout advantage of the PAR Z100 5K is its manually adjustable beam angle, allowing you to shape coverage for tight punch or broader washes without changing fixtures. DMX-512 control with RDM support, a rear-panel DMX menu, and professional connectivity (5-pin DMX plus locking power in/out) make it a practical choice for permanent installs and mobile rigs that demand dependable control and streamlined cabling.
Key Features
- 100W Cool White COB LED (5700K): Produces bright, focused output with a clean daylight-balanced look for stage, broadcast, and corporate production.
- Manually Adjustable Beam Angle: Select 9°, 15°, 20°, 25°, or 30° using the adjustable latch to tailor punch and spread to your throw distance.
- High CRI Performance: CRI 90 supports natural-looking skin tones and accurate color reproduction in professional lighting setups.
- Flicker-Free Operation: Designed to minimize flicker for video capture and camera-critical environments; PWM frequency 1200Hz.
- DMX-512 Control with RDM: Control via DMX-512 with RDM (Remote Device Management) support for compatible systems.
- Simple On-Fixture Setup: Rear 4-button DMX menu display enables quick addressing and configuration.
- Smooth Electronic Dimming: 0–100% dimming with five dimming curves for refined fades and cueing.
- Strobe Capability: Strobe effect up to 25Hz for dynamic looks and accents.
- Professional Power & Data Connectivity: 5-pin DMX in/out, wired digital communication network support, and locking power in/out for secure operation.
- Multi-Voltage, Touring-Friendly Power: AC 100–240V, 50/60Hz with daisy-chain capability for efficient deployment.
Technical Specifications
- Light Source: 100W COB cool white LED (5700K)
- Rated LED Life: 50,000 hours
- CRI: 90
- Beam Angles: 9°, 15°, 20°, 25°, 30° (manual adjustment)
- PWM Frequency: 1200Hz
- Illuminance (LUX): 7874 (9°); 4900 (15°); 2467 (20°); 1397 (25°); 896 (30°)
- Control Protocol: DMX-512
- DMX Channels: 2
- RDM: Yes (Remote Device Management)
- DMX Connections: 5-pin DMX In/Out
- Power Connections: Locking Power In/Out
- Power Consumption (Full On): 115W, 0.964A @ 120V/60Hz; 112W, 0.5A @ 220V/50Hz
- Operating Voltage: AC 100–240V, 50/60Hz
- Daisy Chain Capacity: 15 fixtures (120V); 25 fixtures (230V)
- Dimensions (L x W x H): 19.33 in x 10.82 in x 8.75 in
- Weight: 8 lb
- Certifications: cETLus Approved (Control #4000358)
