AFP MC2 3G/HD BNC Male to ST Fiber Optic Tx/Rx Kit, US Power Supplies
AFP MC2 3G/HD BNC Male to ST Fiber Optic Tx/Rx Kit, US Power Supplies
MC2 Video Media Converter modules extended distance over single-mode fiber for high speed serial digital video links for multi-protocol 3G/HD/SD/DVB/ASI video applications with data transfer rates up to 2.97Gbps
Key Features
- SMPTE 424M Compliant ( up to 2.97Gbps)
- SMPTE 297M Optical Interface Compliant
- SMPTE 292M Compliant (Up to 1.485Gbps)
- SMPTE 259M/297M/305M Compatible (Up to 540 Mbps)
- DVB/ASI Compatible
- MADI Compatible if on 75 Ohm BNC (125 Mbps)
- ATSC/SMPTE 310M Compatible (19.4 to 38.8 Mbps)
- Error Free Uncompressed SDI Pathological Pattern
Technical Specifications
Operation
Power Supply Sold Separately or Included in Kit models
RoHS-6 Compliant
Rugged Construction
Transmits embedded audio already embedded in 3GSDI,
HD-SDI or SD-SDI signals
Easy to Understand OLED Displays Simple, Real Time
Operating Parameters and Diagnostics
Status LED
75ohm BNC Plug or Receptacle Electrical Interface
Line Equalizer on TX
Cable Driver on RX
ST Physical Contact Optical Connector (Optional SC)
+4.5 to 24 VDC Operating Input Voltage Range
TX Power Dissipation: 1.75 W
RX Power Dissipation: 1.4 W
0oC to +70oC Operating Case Temperature

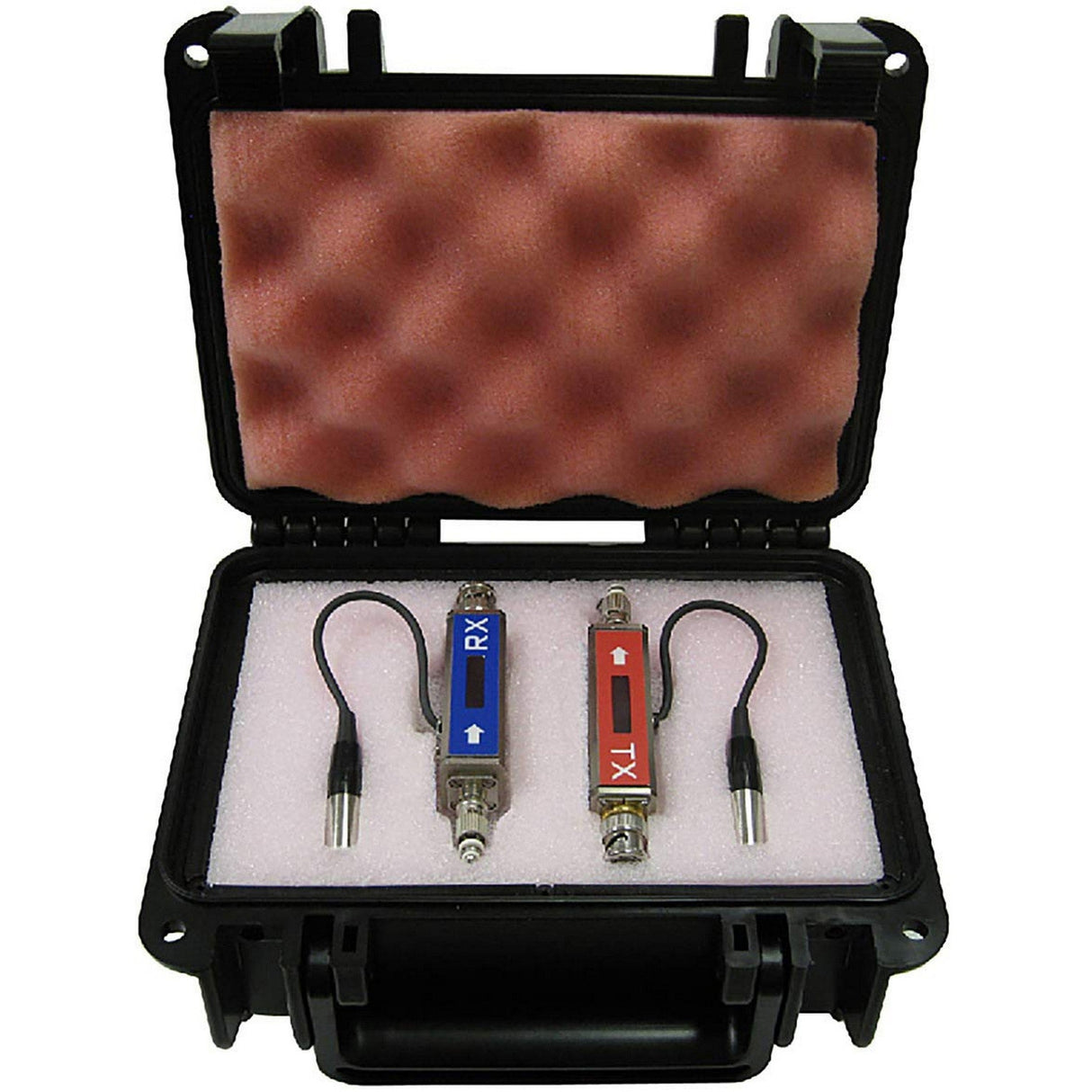

Item Includes
MC2 Transmitter with Male BNC
MC2 Receiver with Male BNC
2 US Power Supplies
Black Plastic Case
