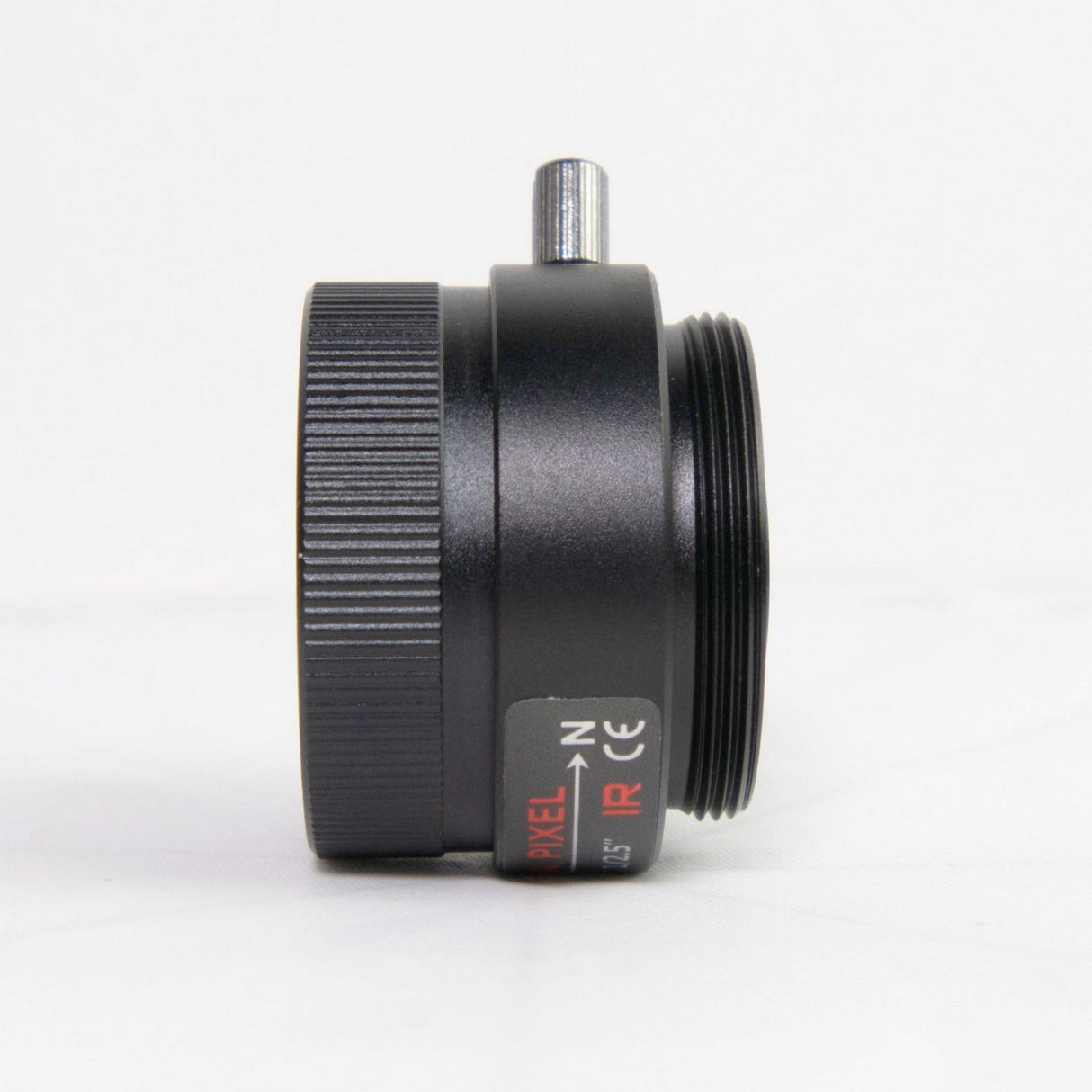

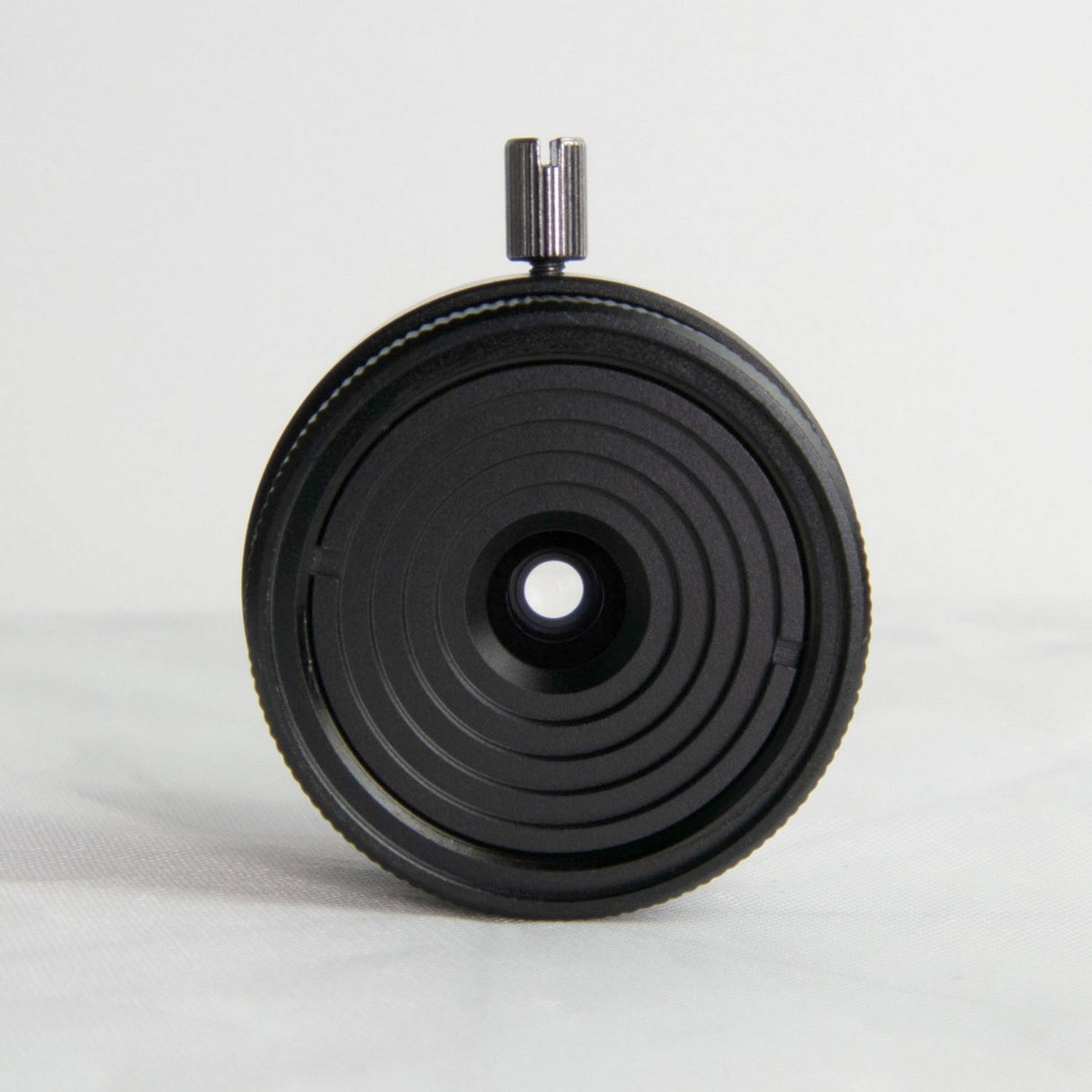

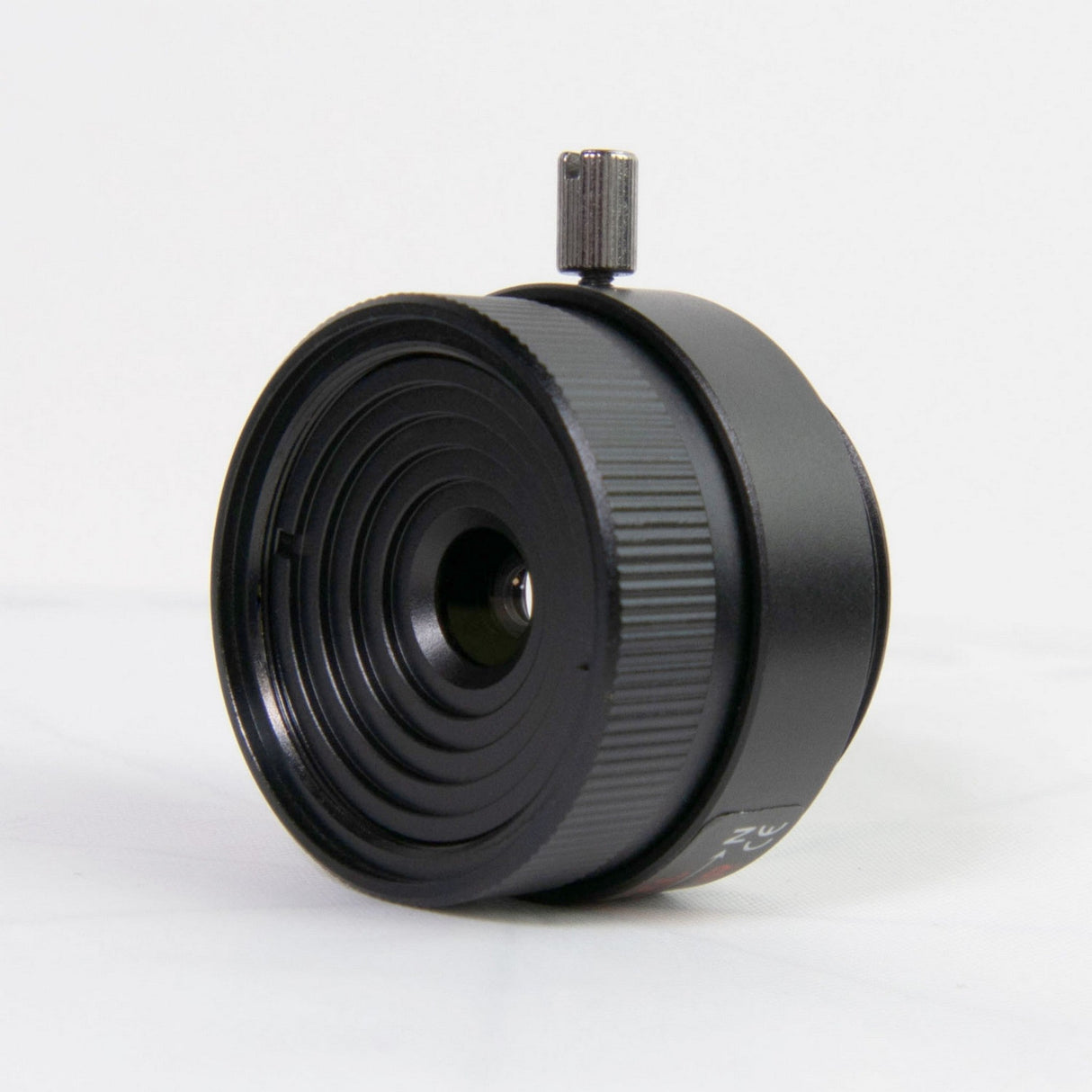

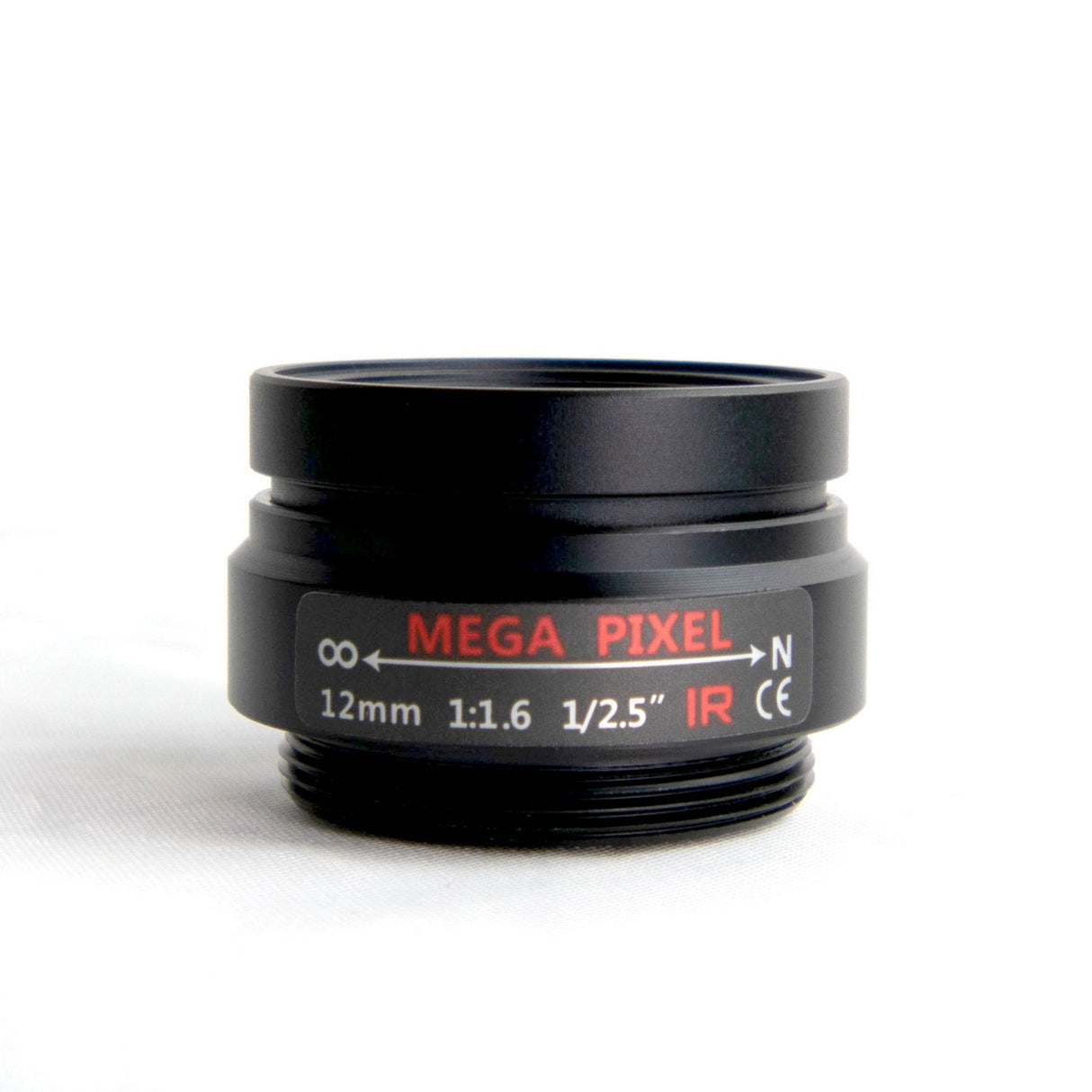

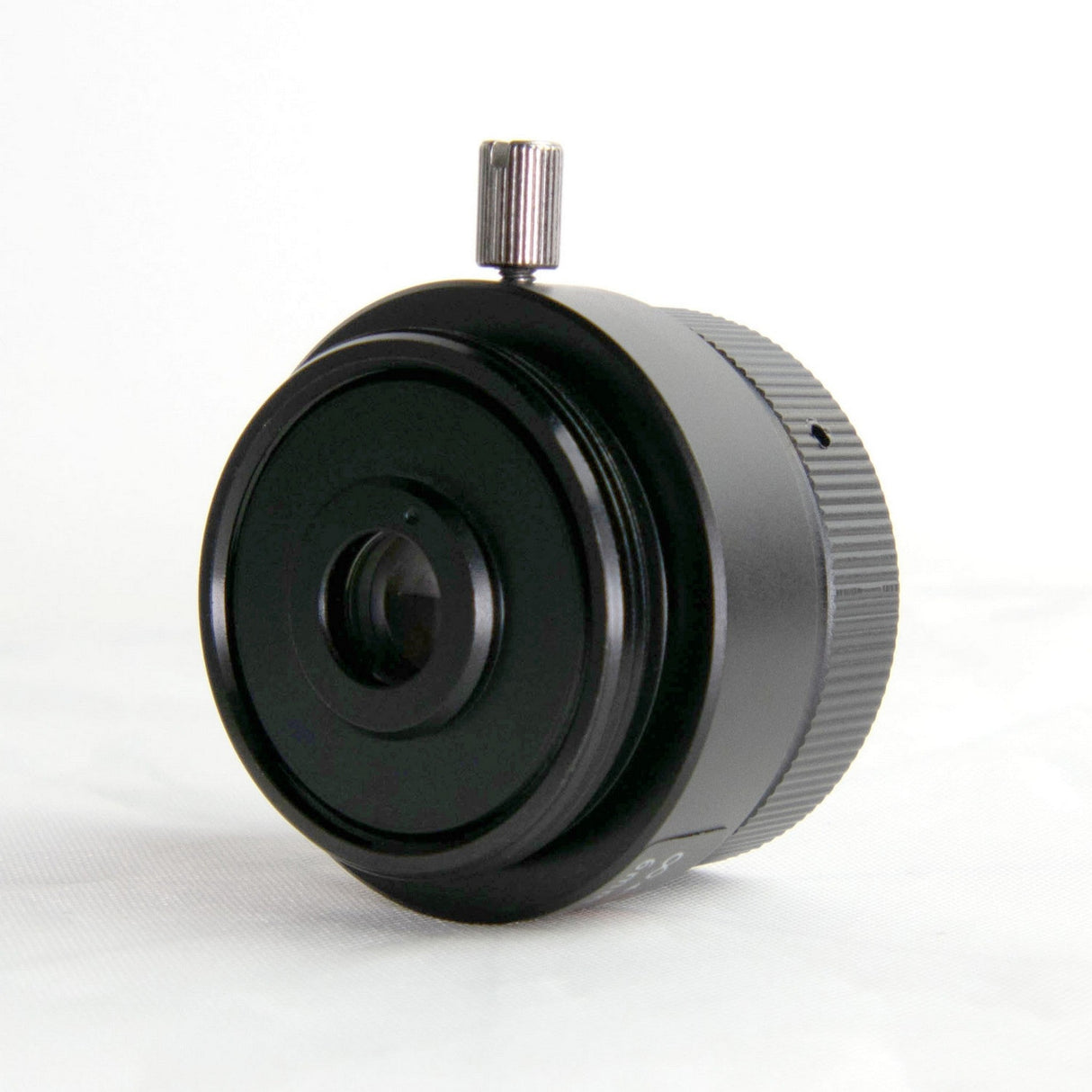

AIDA CS-12.0F CS Mount 12mm Fixed Focal Megapixel Lens
AIDA CS-12.0F CS Mount 12mm Fixed Focal Megapixel Lens
Aida CS-12.0F CS Mount 12mm Fixed Focal Megapixel Lens
The CS-Mount 12mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging GEN Series cameras with 1/3 Progressive CMOS sensors.
Key Features
- Optimized and tuned with GEN Series Cameras
- Compatible with 1.3 to 5MP Cameras
- CS-Mount
- 1/2.5 Optical Format
- Fixed Iris Range
Technical Specifications
Optical
Focal Length
12mm
F-Stop
F1.6
Focus Operation
Manual
Iris Operation
Fixed
FOV (Horizontal)
1/2.5 : 30.8
1/2.8 : 27
1/3.2 : 15.4
Image Format
Max. 1/2.5 Sensor
TV Distortion
1.5% with 1/2.5 Sensor
Physical
Mount Type
CS
Operation Temp
-4F - 140F
Dimension
-30m x 20.7mm / -1.18 x 0.81
Weight
27g / 0.06Lbs
