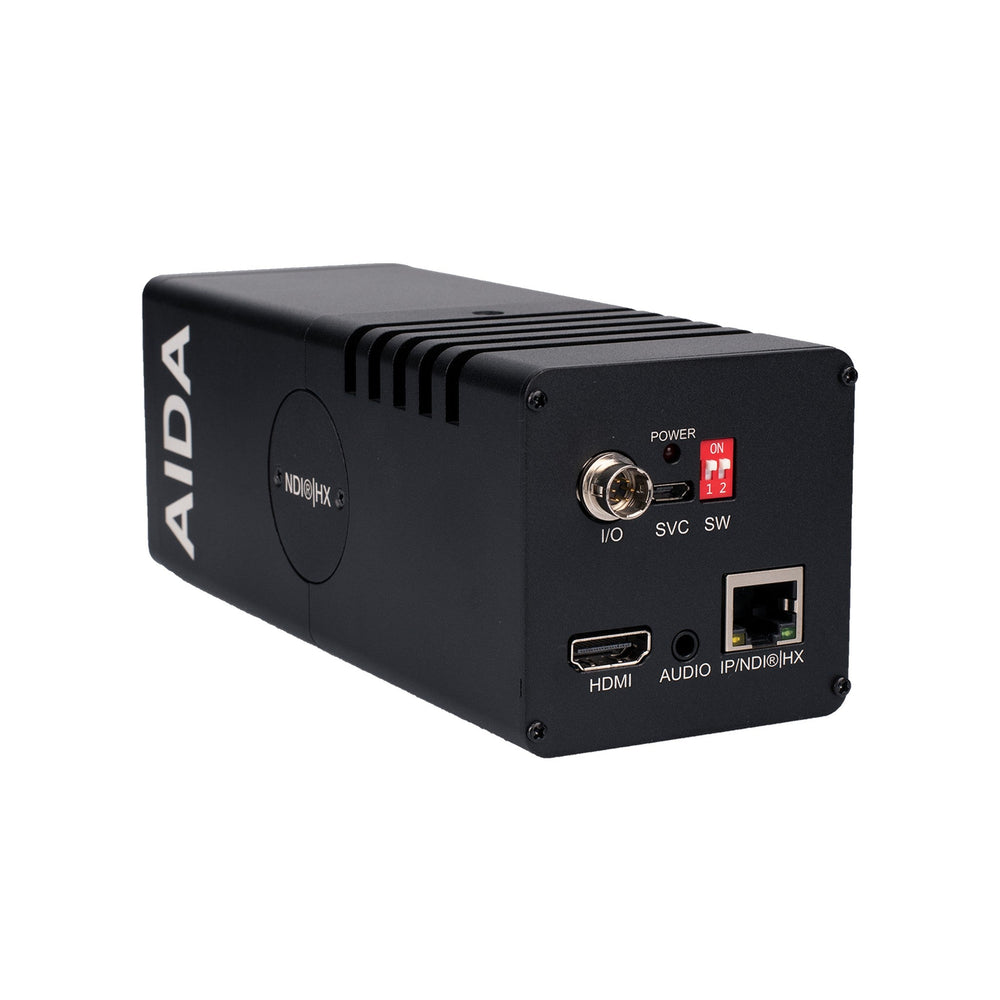

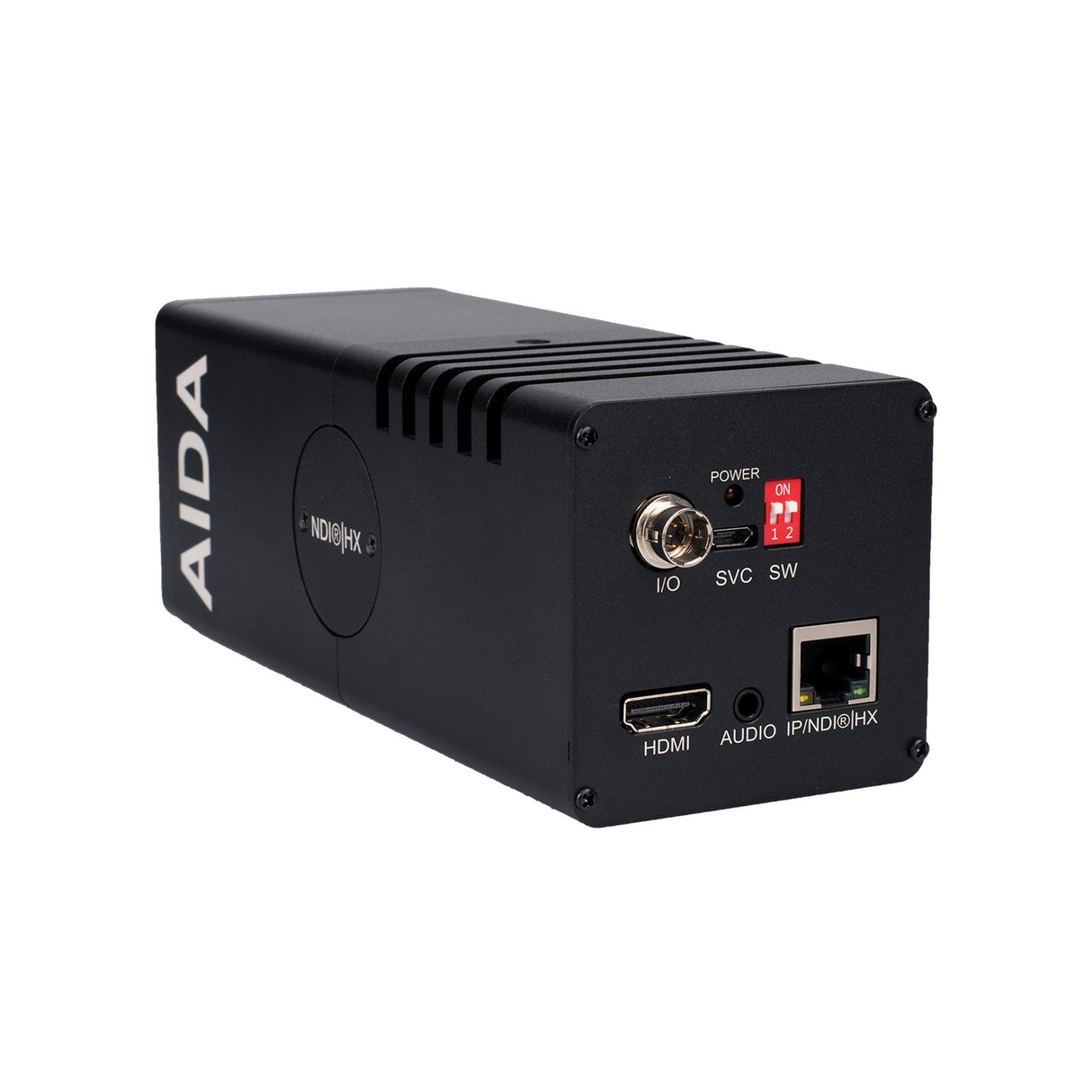

AIDA Full HD NDI|HX/IP/SRT/HDMI PoE 20X Zoom POV Camera

The ultimate POV NDI HX one man army.

When it comes to streaming workhorses, the HD-NDI-X20 does it all. From streaming HDMI and NDI|HX, to relaying visually inspiring FHD quality with 20x optical zoom, it’s no wonder why the HD-NDI-X20is a juggernaut in the streaming world.

The HD-NDI-X20 gets the best of both worlds in AIDA’s POV and PTZ world with its POV camera form-factor and Full-HD 20x optical zoom. It outputs crisp 1080p60 video over HDMI, NDI|HX, and IP.

Key Features

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI|HX Video.
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• 20x optical zoom for FHD shots over distances of up to 140 ft.
• OSD Breakout cable provides power or control of zoom over serial RS485 communication.
• Flawlessly relays multi-channel embedded audio via NDI|HX.
• Perfectly suited for beginning and existing NDI setups.
• PoE Compatible to ease cable runs with 1 ethernet cable.

Technical Specifications

VIDEO
Image Sensor
1/2.8” Progressive CMOS
Effective Pixels
Horizontal: 1920, Vertical: 1080
Pixel Size
2.9 μm (H) x 2.9 μm (V)
Resolution
1080p, 1080i, 720p
Resolution Rate
1080 60p/59.94/50p/30p/29.97p/25p
24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
HDMI, IP (NDI|HX/SRT/RTMP/RTSP)
Color Space
4:2:2 (YCbCr) 10bit
Min Illumination
0.2Lux (day), 0.1Lux (Night)
OPTICS
Lens
20X HD Optical Zoom, F1.5 ~ F3.0
Field of View
61Æ WIDE, 3.4Æ TELE’d
STANDARD
IP Protocol
UDP|IP, RTSP|RTMP, SRT, NDI|HX
AUDIO
IP Protocol
3.5 TRS Stereo Audio Port
Sample Rate
16/24/32 Bits
PHYSICAL
Camera Control Protocol
VISCA Over IP
Control
OSD Button, Web UI or Controller
Operation Temp
32ÆF - 104ÆF
Dimension
171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in)
Weight
800g / 1.76lbs (with default WP cap)
Power
12VDC (+9 - +15VDC) (PoE+ 24Watts)
