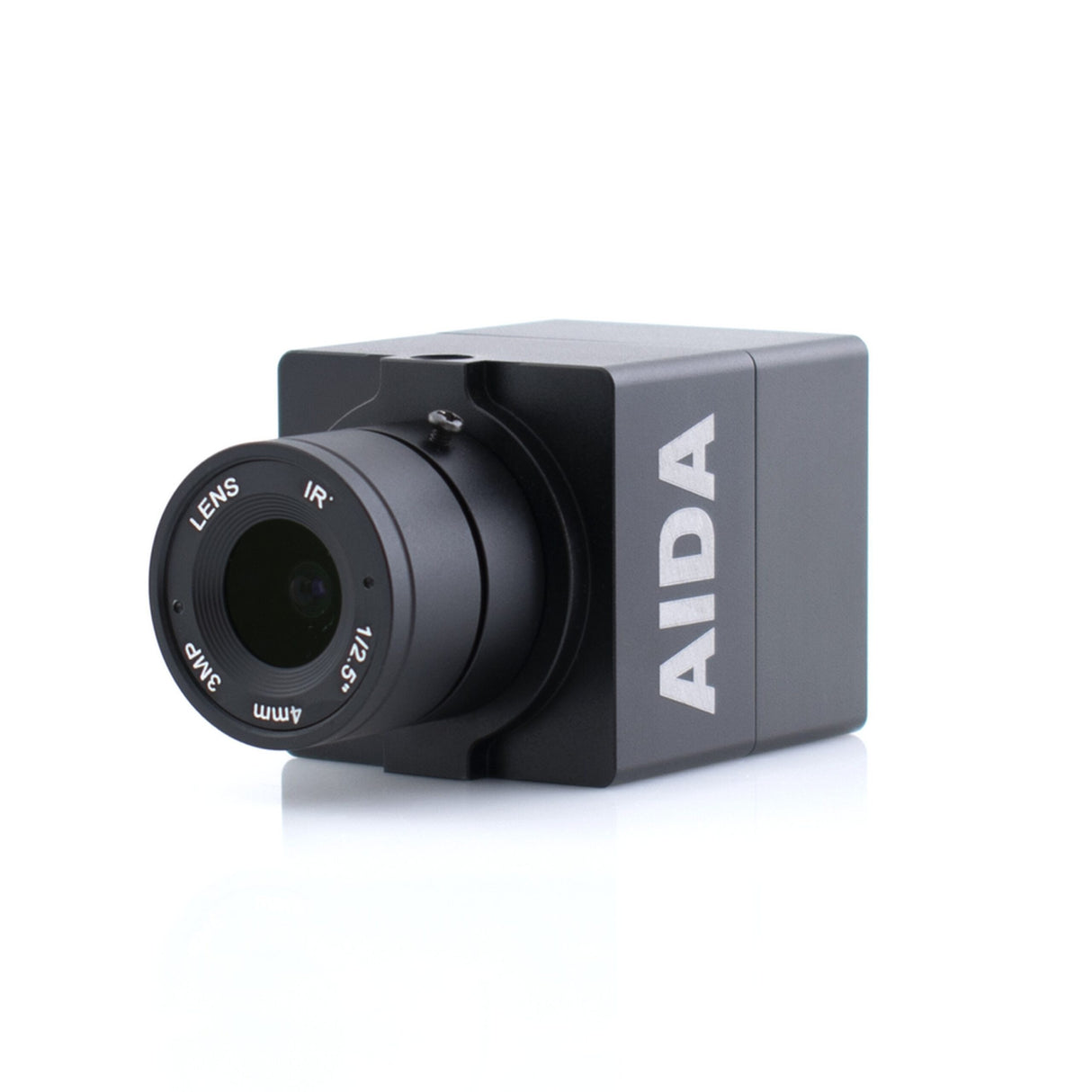

AIDA HD-100A Imaging Full HD HDMI Camera with TRS Stereo Audio Input
The HD-100A is a cost-friendly Full-HD Broadcast Camera designed for any level of production. Packed with a 1/3” progressive CMOS image sensor and interchangeable lens, the HD-100A provides clear, crisp HD video suitable for any existing workflow. The HD-100A offers versatile Full-HD resolutions including drop-frames, adjustable video settings, and a small rugged form factor, making it perfect anywhere you need it to be.
Key Features
- Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions
- Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
- HDMI seamless video performance
- Black Level Set-up provides the better color transition from digital to analog
- Auto White Balance and shutter speed provides the optimized performance in a variety of situations
- Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses
- Built-in OSD controls for customizable image settings
- Versatile, compact, and rugged design
- With TRS Stereo Audio Input for embedded audio over HDMI
Technical Specifications
Video
Image Sensor
1/3 inch Progressive CMOS
Sensor Size
Diagonal 7.2mm
Effective Pixels
Horizontal: 1920, Vertical: 1080
Pixel Size
2.75 m x 2.75 m
Resolution
1080p & 1080i: 1920 x 1080
720p & 720i: 1280 x 720
Resolution/Rate
1080 60p/59.94p/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
HDMI 1.3a
Color Space
4:2:2 (YCbCr) 10bit
Min. Illumination
0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance
Auto & Manual (9,000 K - 11,000 K)
Lens
C/CS Mount (Default 4mm HD Lens)
Audio
Input
3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate
16/24/32 Bits
Physical
Camera Control
RS-485 VISCA, OSD Button
Operation Temp
32 F - 104 F
Dimension
39mm x 39mm x 50.50mm / 1.53” x 1.53” x 1.99” (With default 4mm Lens)
Weight
180g / 0.39lbs (With default 4mm Lens)
Power
6W at 12VDC (+9 - +15VDC)
