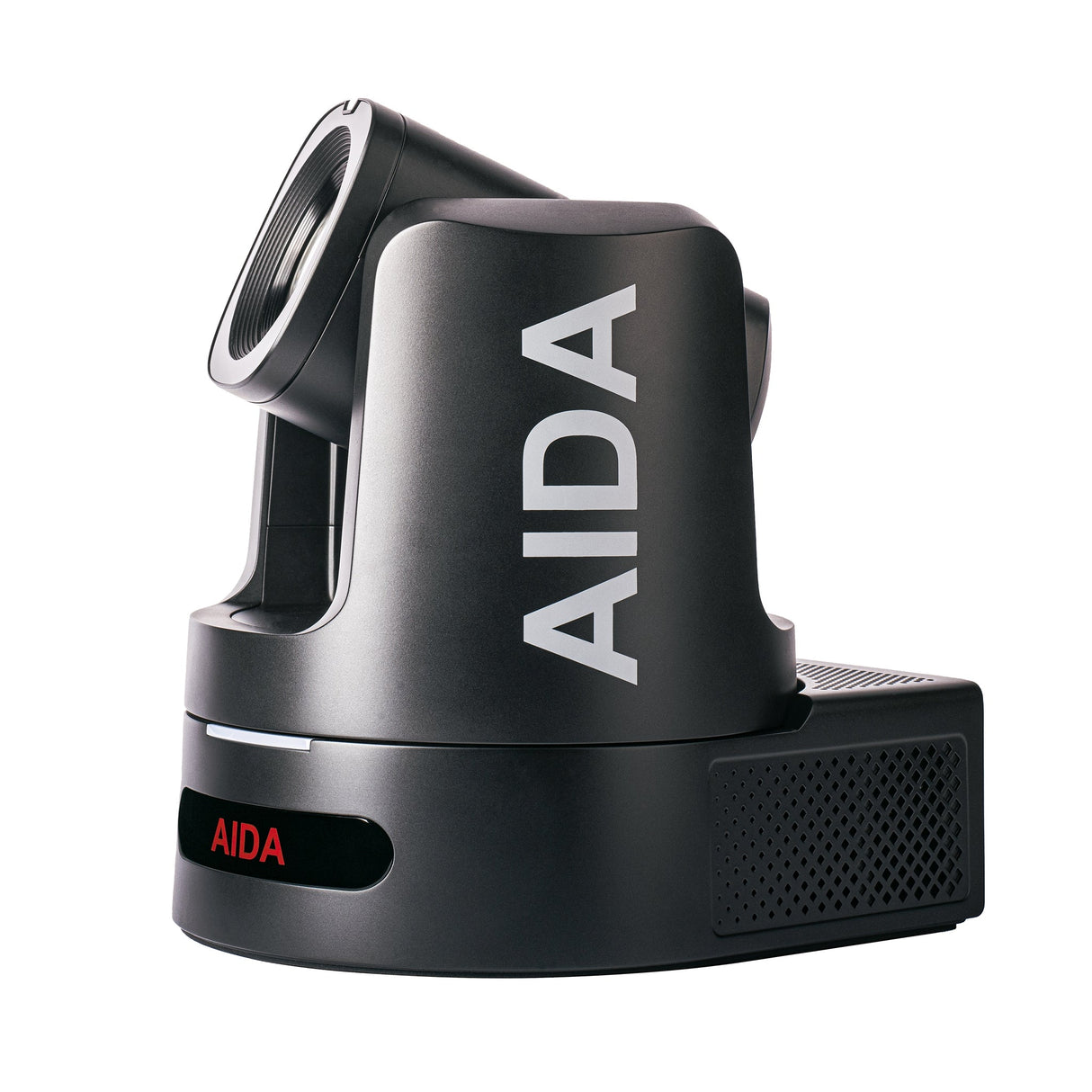

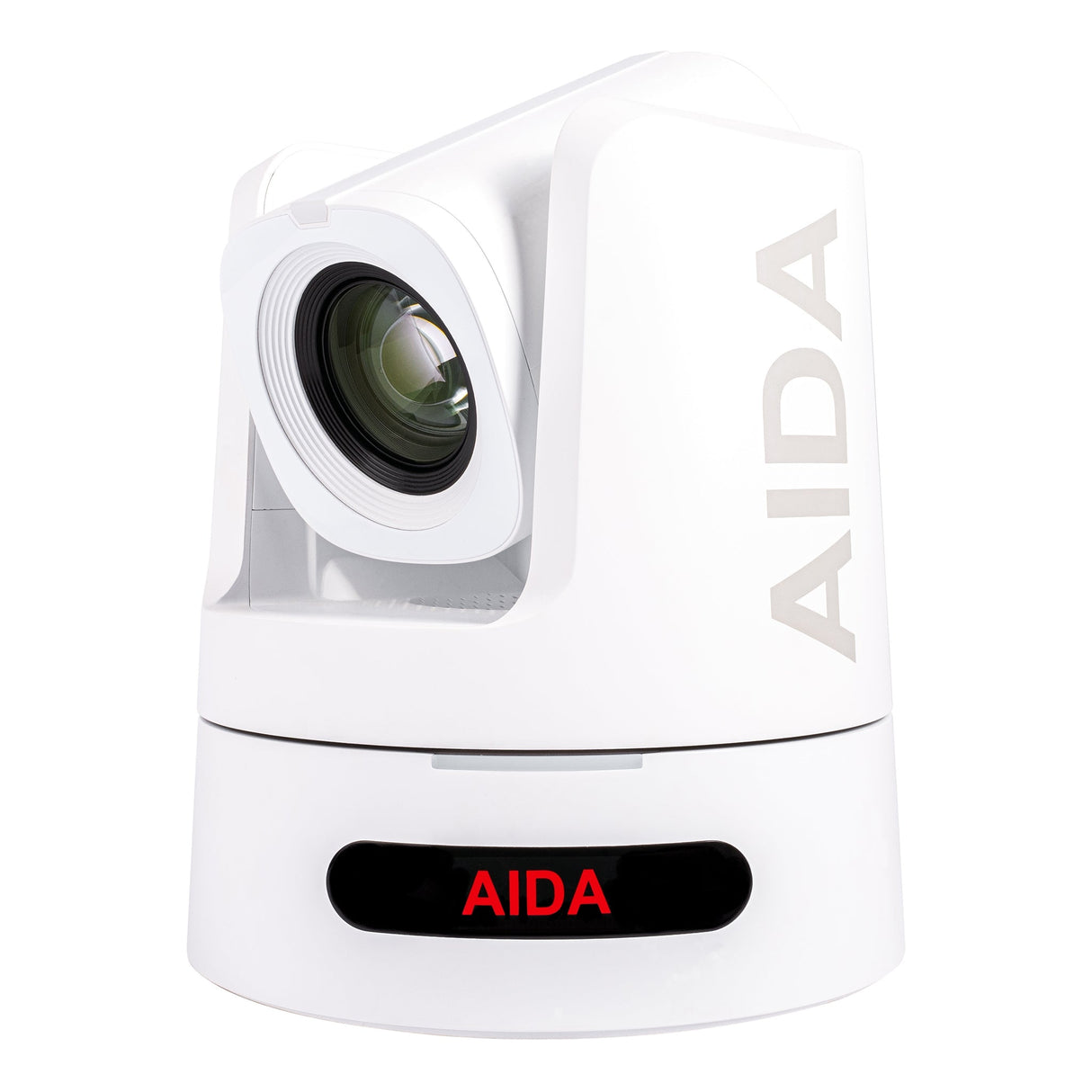

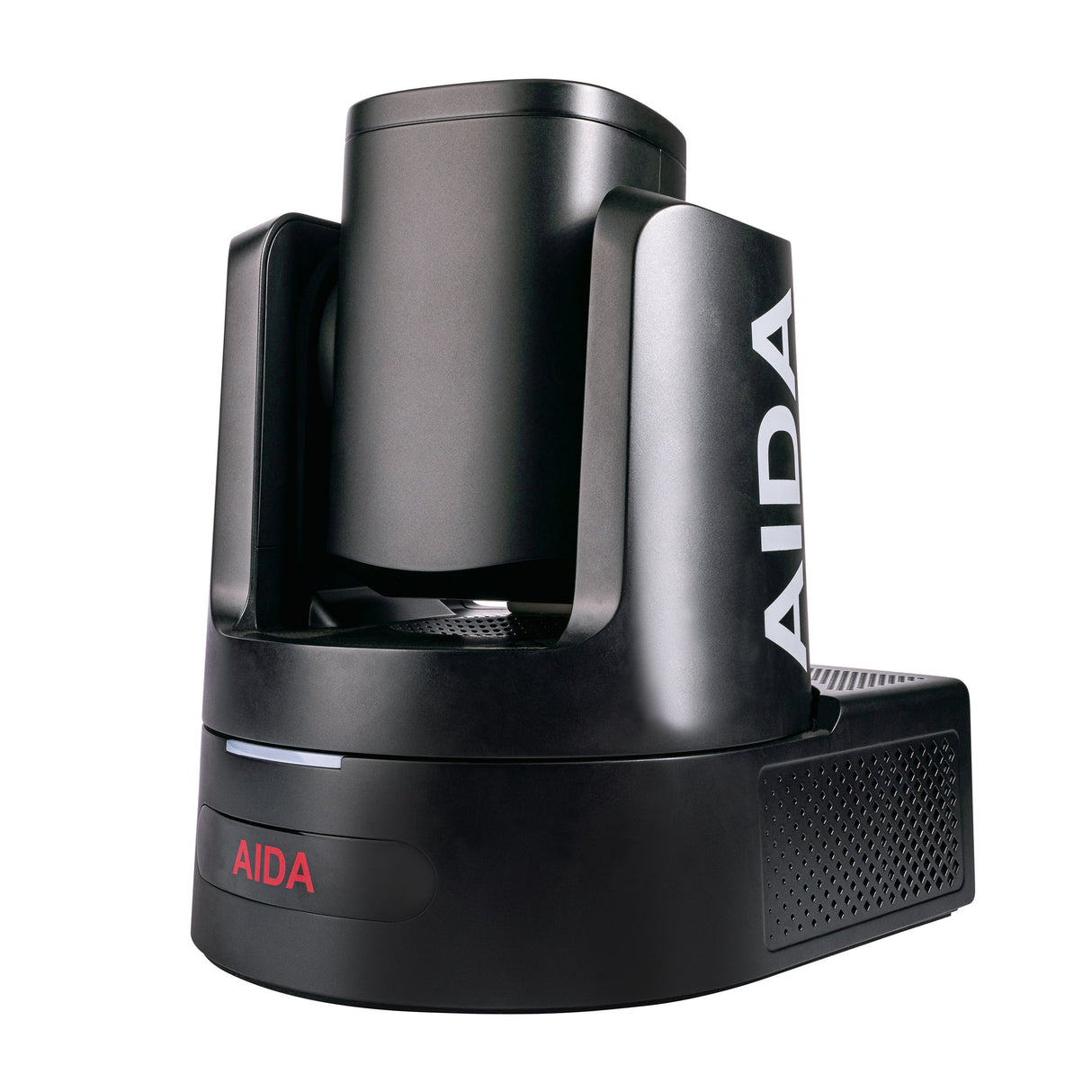

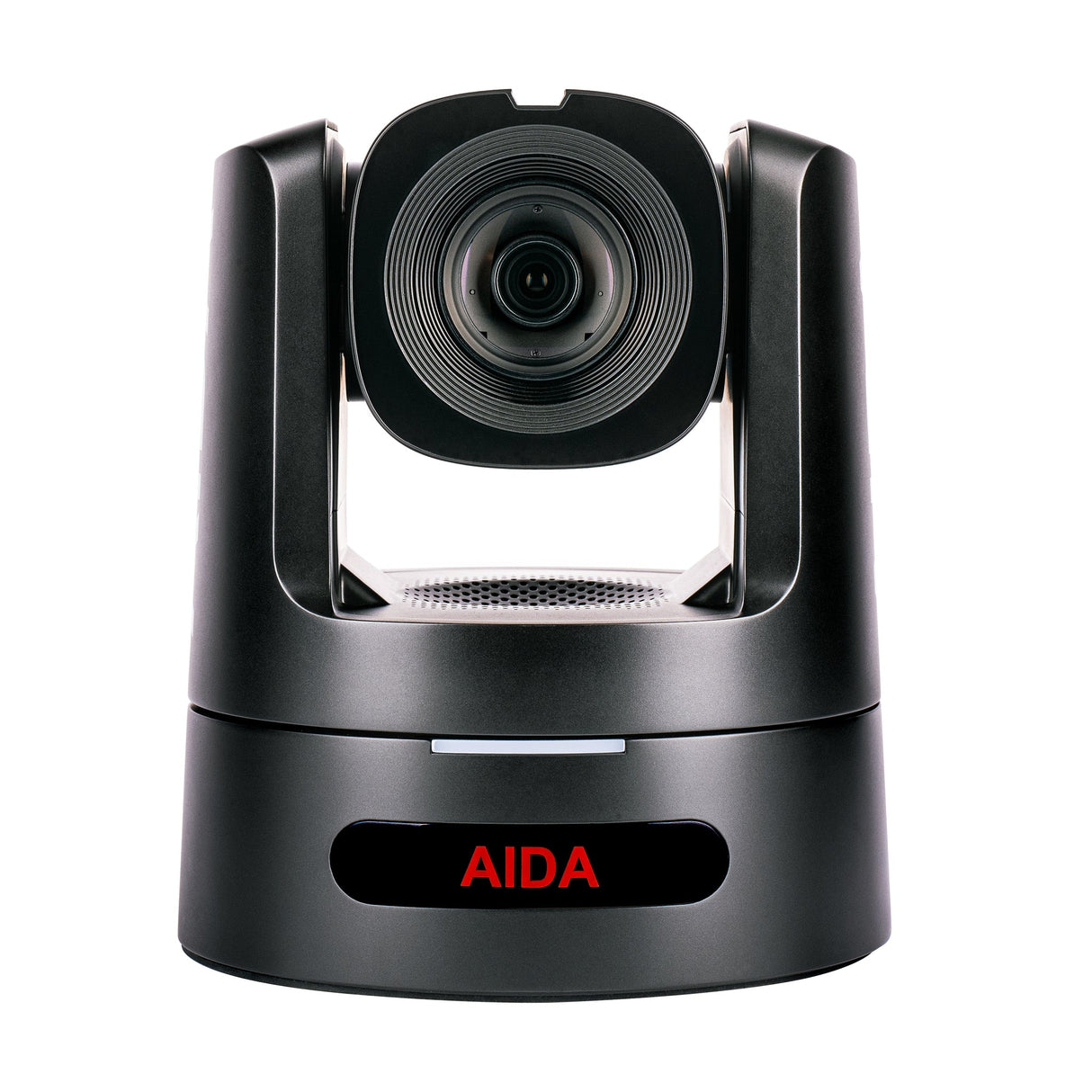

AIDA PTZ4K12G-FNDI-X30 30x Broadcast/Conference 4K NDI 3G-SDI PTZ Camera

The AIDA PTZ4K12G-FNDI-X30 is a powerful, high-quality 4K Ultra HD PTZ camera designed to meet the needs of professional productions. It offers impressive clarity and detail in video capture, thanks to its 1/1.8-inch Sony CMOS sensor and 12G-SDI output. With up to 4K resolution at 60fps, this camera ensures smooth and natural-looking video, making it ideal for live streaming, broadcasting, and event production. The 30x optical zoom lets you get closer to the action without compromising image quality, while the simultaneous HDMI, 12G-SDI, and IP outputs give you flexibility in your workflows.

This PTZ camera also features NDI|HX capability, providing low-latency video transmission over your network for seamless integration into NDI workflows. The wide 60° horizontal field of view ensures you can capture wide areas, and with precise pan, tilt, and zoom controls, the camera delivers professional-grade performance in both small and large environments. Its compact form factor and PoE++ capability simplify installation, making it a versatile solution for houses of worship, sports, conferences, and more.

Key Features:

• 1/1.8-inch Sony CMOS sensor for ultra-clear image quality
• Supports up to 4K resolution at 60fps
• 12G-SDI, HDMI, USB, and IP streaming outputs for versatile connectivity
• 30x optical zoom with smooth PTZ control
• NDI|HX for low-latency video over network
• Wide 60° horizontal field of view
• Compact design with PoE++ for simplified installation

Technical Specifications:

Video
Image Sensor: 1/1.8” Progressive Sony CMOS
S/N Ratio: ≥50dB
Resolution: 2160p, 1080p, 1080i, 720p
Resolution Rate: See following page for full rate per output

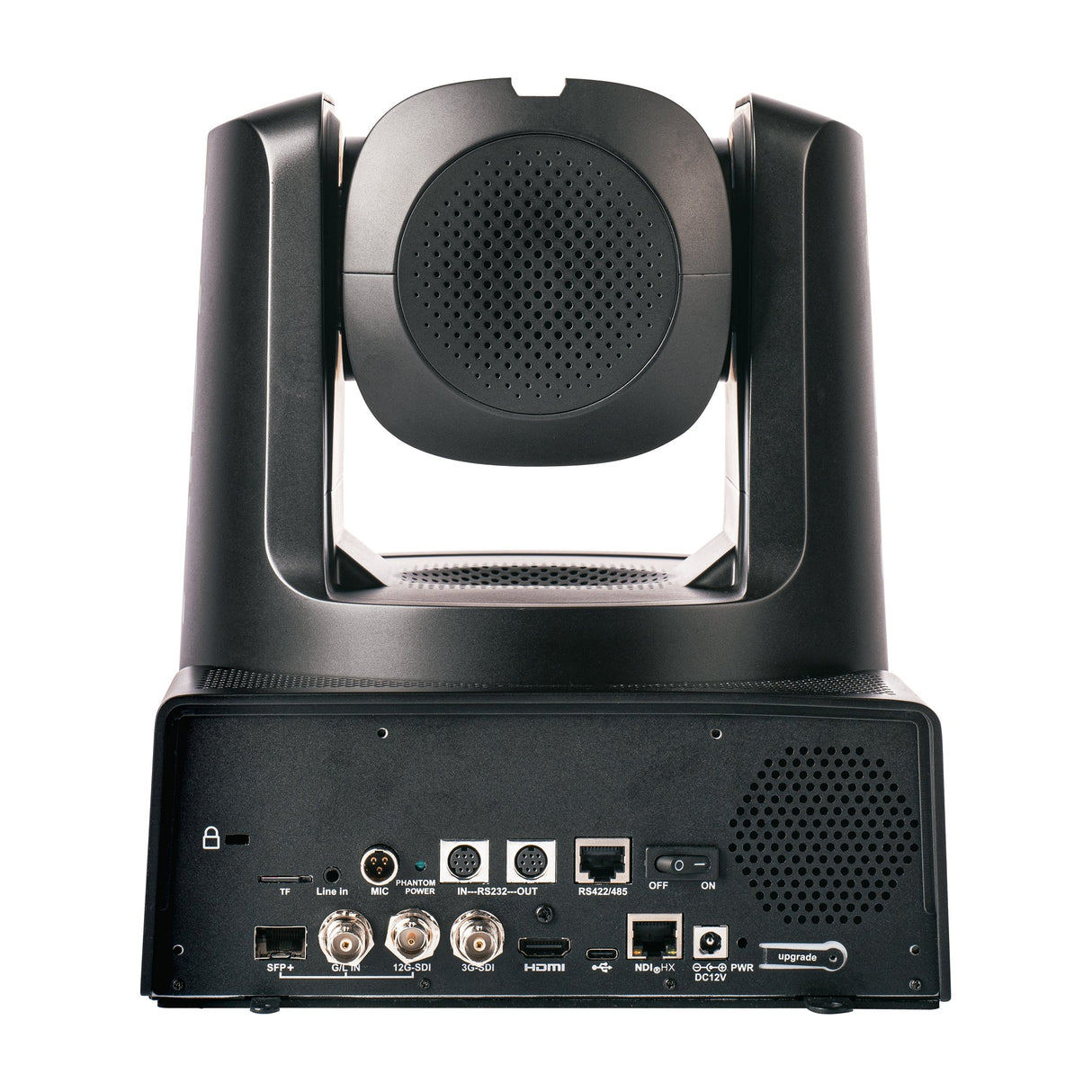

Outputs: 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot, RJ45 (NDI®, IP, SRT)
Min Illumination: 0.5Lux (50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/AT/Push/Indoor/Outdoor/Color Temp
Pan Rotation Angle: -170° ~ +170°
Tilt Rotation Angle: -90° ~ +90°
Pan Rotation Speed: 0.1° ~ 80°
Tilt Rotation Speed: 0.1° ~ 60°

Camera Streaming Modes
ROI Priority: Prioritizes 12G-SDI/HDMI/USB outputs
NDI® High Bandwidth Mode: Prioritizes HB NDI / NDI HX(3) to run simultaneously

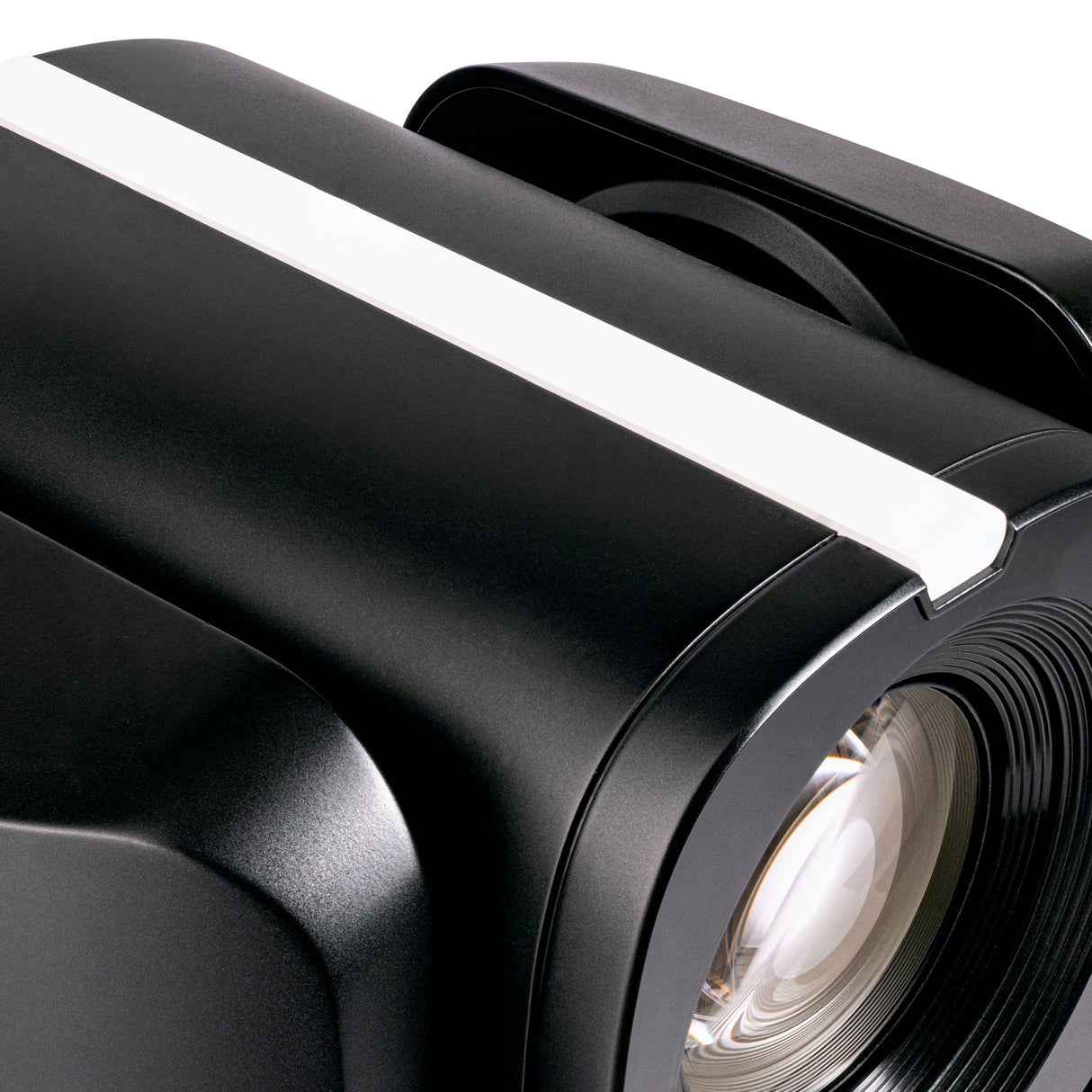

Lens Module
Module: 30X UHD Optical Zoom
Lens: f=6.91mm ~ 214.64mm
F-stop: F1.35 ~ F4.6
H-FOV: 60° (wide) ~ 2° (tele)
Min. Focus Distance: 5ft (tele/wide)

Standard
IP Protocols: UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT/RTSP/RTMP/NDI®/HTTP
Audio Input: 3.5 mm line level input, Mini-XLR with 48V phantom power

Physical
Camera Control Protocol: VISCA Over IP, VISCA, ONVIF, NDI®
Operating Temperature: 32°F - 104°F
Dimension: 266.7mm x 228mm x 305mm (10.5” x 9” x 12”)
Weight: 4.59 kg / 10.12 lbs
Power: 12VDC (+9 - +15VDC), PoE++ Standard (802.3bt)
