AIDA UHD-100A Imaging Micro UHD HDMI EFP Camera with TRS Stereo Audio Input
AIDA UHD-100A Imaging Micro UHD HDMI EFP Camera with TRS Stereo Aud...
Free Shipping
AIDA UHD-100A Imaging Micro UHD HDMI EFP Camera with TRS Stereo Audio Input
The UHD-100A is the world’s most cost effective 4K POV camera solution. With its 4K UHD Progressive Scan CMOS sensor and Digital Image Processor, the UHD-100A produces detailed videos that are sharp and true to color, while also being able to utilize Dynamic Range, Adaptive White Balance, and motion-compensated temporal noise reduction filter for reduced noise even under low light conditions. The UHD-100A features a compact and rugged form factor with interchangeable lens capabilities, making it highly versatile for various video applications.
Key Features
- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction
- Superb motion-compensated temporal noise reduction filter for motion video without blurring
- OSD control breakout cable with power input and RS-485 for remote communication
- Interchangeable lens design compatible with CS and C mount lenses
- Perfectly suited for broadcast, pro audio/video, and security
- Versatile, compact, and rugged design
- With TRS Stereo Audio Input for embedded audio over HDMI
Technical Specifications
Video
Image Sensor
1/2.5" Progressive CMOS
Sensor Size
Diagonal 7.20mm
Effective Pixels
Horizontal: 3840, Vertical: 2160
Pixel Size
1.62 m (H) x 1.62 m (V)
Resolution
2160 30p/29.97p/25p/24p
1080 60p/59.94p/50p/30p/
29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p
Output
HDMI 1.4
Color Space
4:2:2 (YCbCr) 10bit
Function
White Balance
AWB / AE / AF
Exposure
Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other
WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens

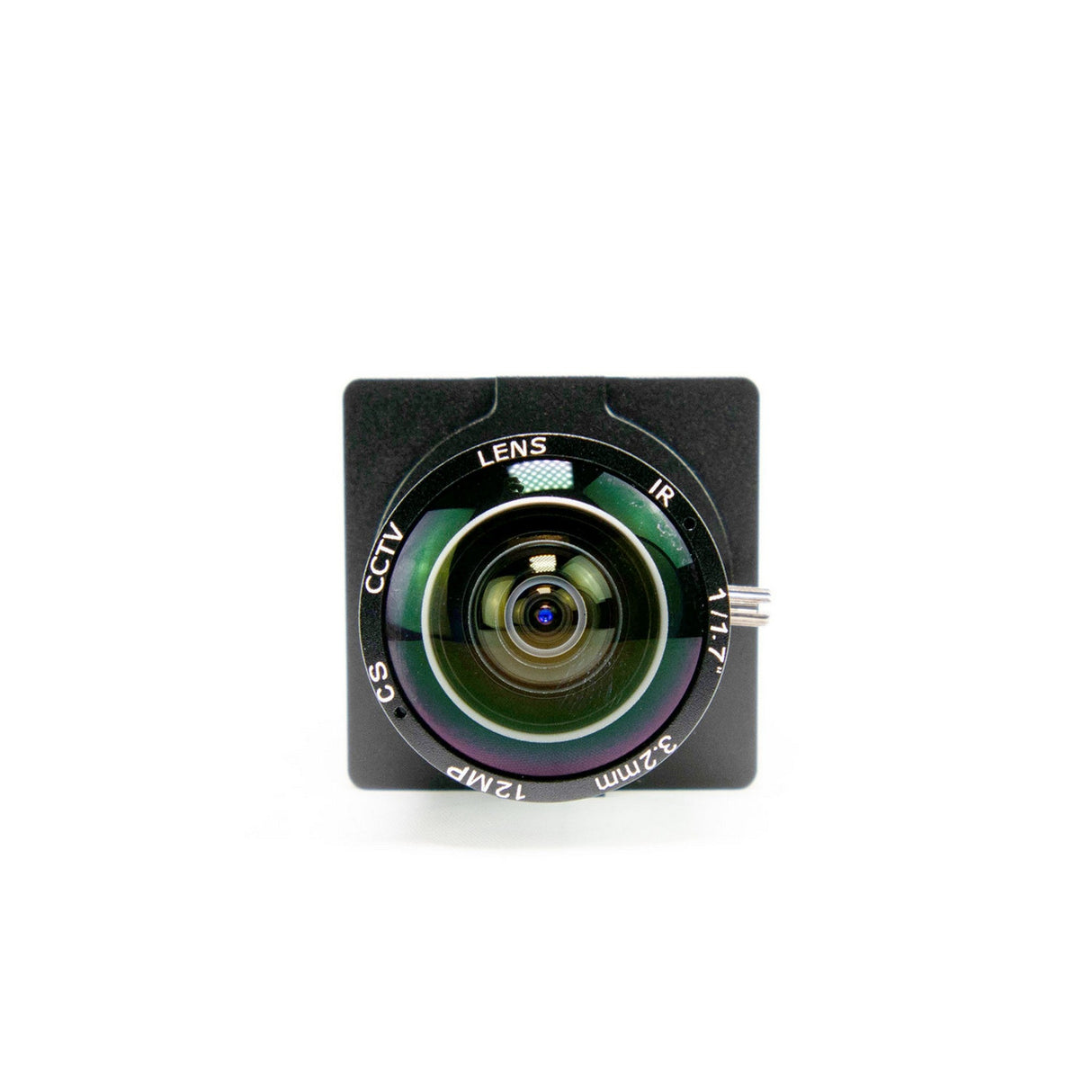

C/CS Mount (Default UHD 3.2mm Lens)
Audio
Input
3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate
16/24/32 Bits
Physical
Camera Control
RS-485
OSD Button
Operation Temp
32F - 104F
Dimension
39mm x 39mm x 50.50mm / 1.53" x 1.53" x 1.99"
Weight
140g / 0.30lbs
Power
12VDC (+9 - +15VDC)
