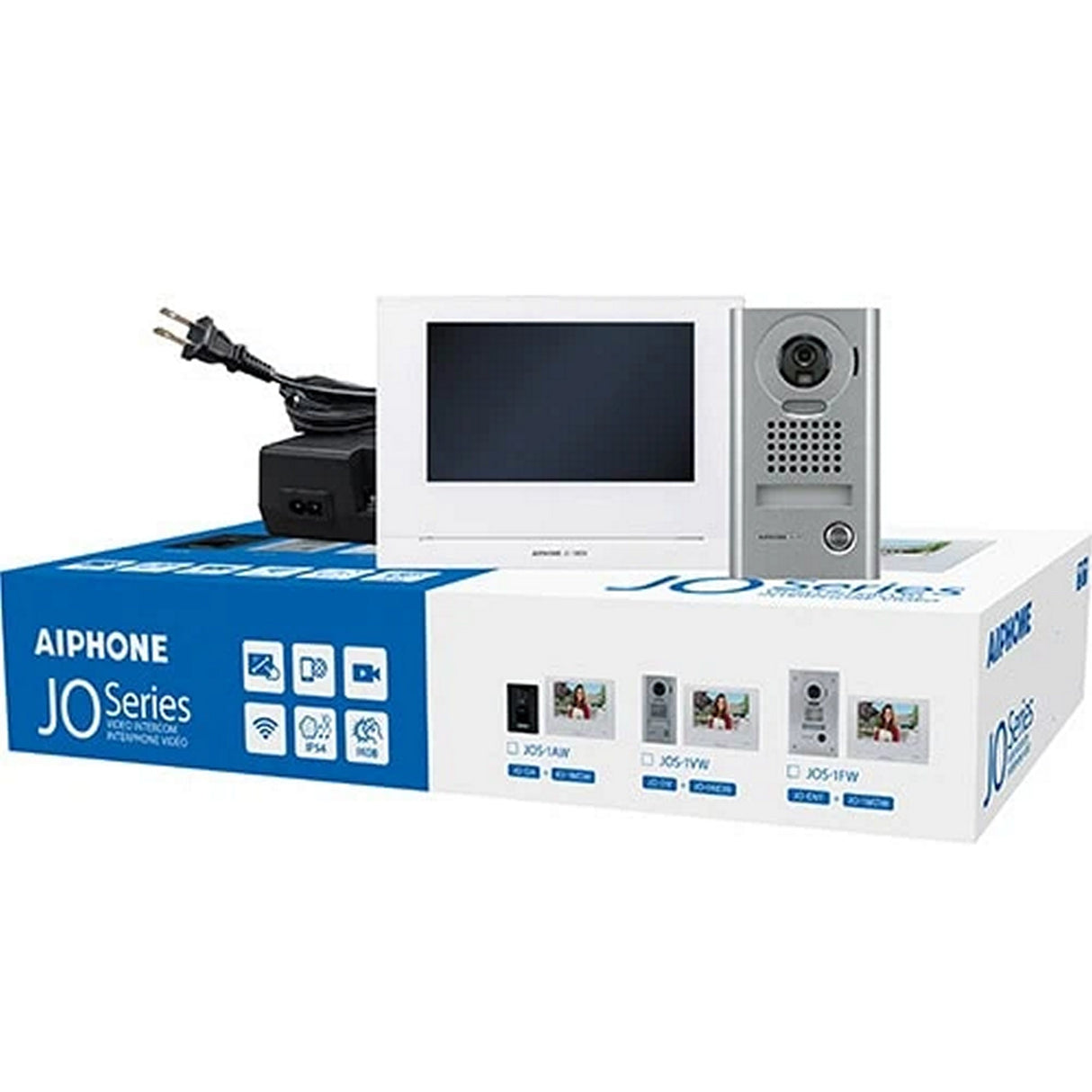

Aiphone JOS-1VW JO Series Mobile-Ready Box Set with Surface-Mount Door Station
The All-Inclusive JO Series: Your Ultimate Entry Security Solution
Introducing the JO Series, the perfect solution for your entry security needs. Our boxed set includes all the equipment you need, plus innovative app-enabled features that take security and convenience to the next level.
Our zinc die-cast video doorbell calls the on-site monitor as well as up to eight smartphones or tablets. Once you answer the call, you can see and speak to your visitor. Unlock the door with ease using the touchscreen monitor or the slider button on the app.
Our unique hardwired monitor ensures calls can be answered, even if the internet is down or slow. While on the go, our mobile app allows you to stay connected. The built-in memory can be manually activated to record video from the doorbell or set to automatically record all calls. View recorded calls on both the monitor and the app by expanding storage using the MicroSD card slot.
At Aiphone, we are dedicated to providing quality products and unparalleled customer support. Trust us to deliver on our promise of quality and satisfaction.
Choose Aiphone for the ultimate entry security solution. Choose the JO Series for security and convenience in one package.
Key Features
- Complete set for an app-enabled video intercom system
- Easily answer and unlock your door from the on-site monitor or mobile device
- Connect up to 8 smartphones or tablets per system
- On-site monitor ensures calls are answered or recorded
- Calls can be stored without any additional fees using onboard memory
- Increase call storage by adding a MicroSD card to the on-site monitor
- Access recorded calls from the on-site master or mobile app
- Clear and detailed caller display with a large 7ā touchscreen
- Vandal-resistant surface mount video door intercom faceplate made of die-cast zinc
- Automatic activation of white LED lights for clear visibility at night
- Enhance security by replacing standard doorbells and communicate with visitors
Technical Specifications
Inside Monitor
Model: JO-1MDW
Video Display
7ā TFT Touchscreen
Mounting
Surface wall mount or desk mount with MCW-S stand
Internal Call Recording
10 calls max. @ 10 seconds/call
Memory Expansion
micro SDHC card slot, 32GB max.
Call Recording with max memory
1,000 calls max. @ 10 seconds/call
Door Release
N/O dry contact, 24V AC/DC, 500mA
Communication style
Handsfree or PTT
Wireless Frequency
2.4 GHz
Wireless Protocol
802.11b, 802.11g, and 802.11n (Wireless B/G/N)
Model: Intercom App Type B
Max per system
8 devices
Door Release
In app slider activates contacts at JO-1MDW
Available at
Apple App Store or Google Play

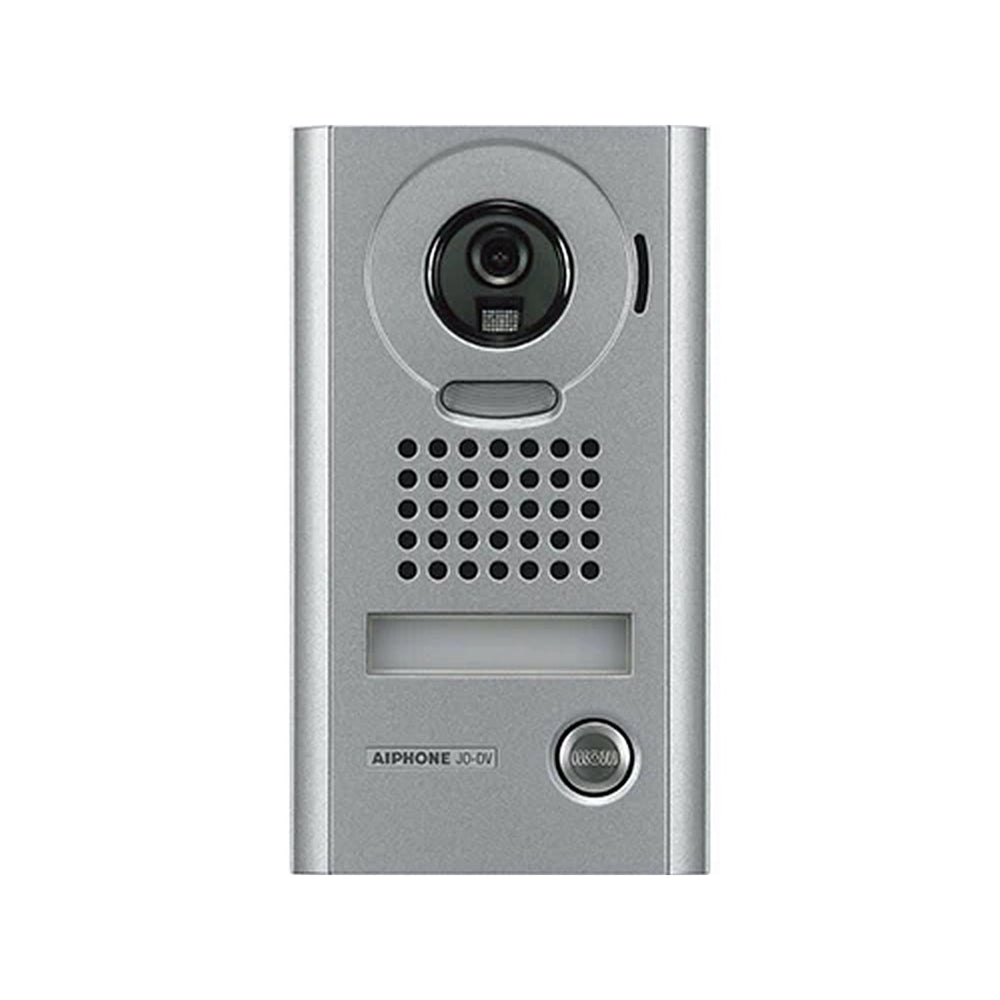

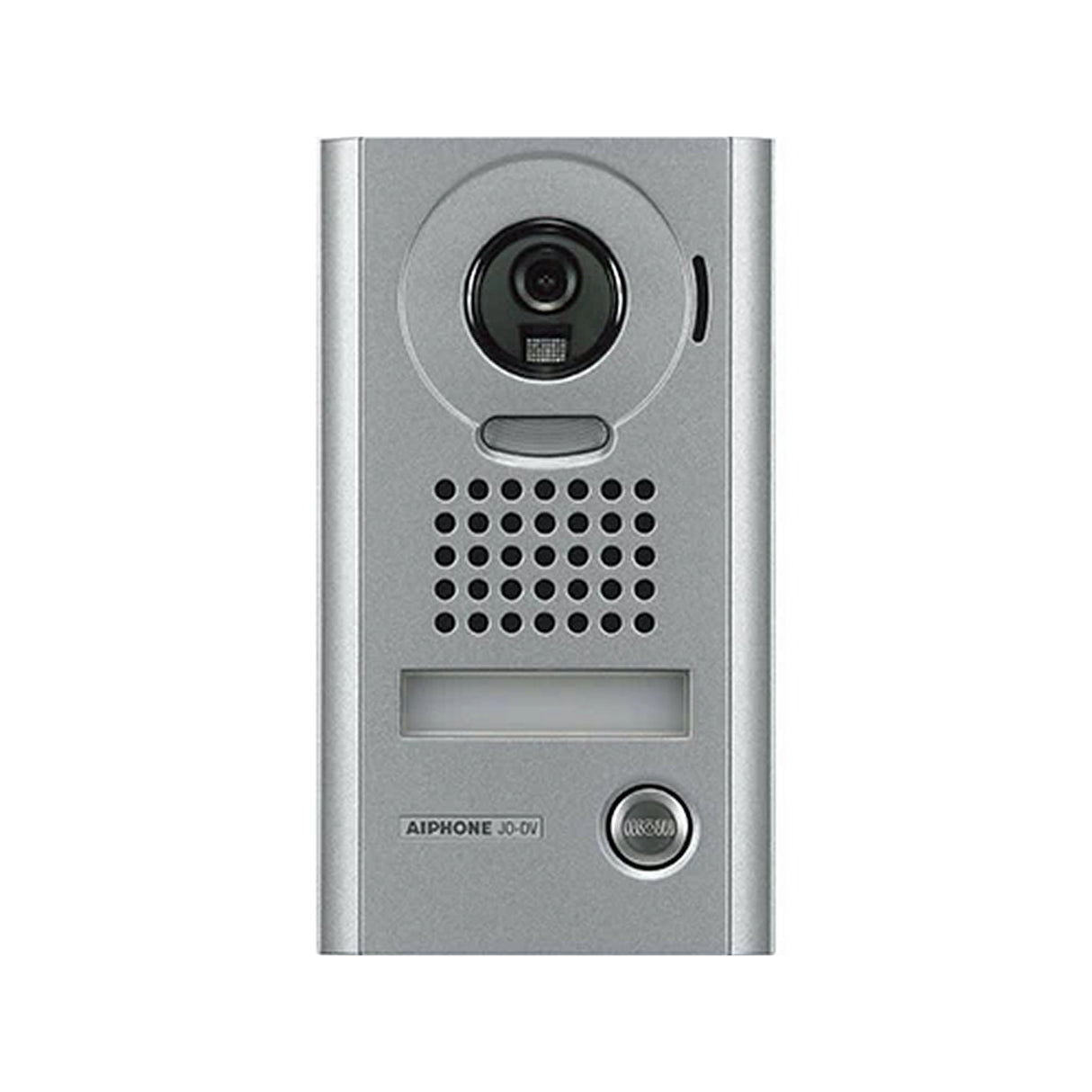

Video Door Station
Model: JO-DV
Power Source
Supplied by inside monitor
Camera
1/4-inch color CMOS
Mounting
Surface wall mount using a 1 gang electrical box
Faceplate Material
Zinc die cast
Enclosure Rating
IP54
Impact Rating
IK08
Communication style
Handsfree
Operational Temperature
-40 Degrees ~140 Degrees F (-40 Degrees ~ 60 Degrees C)
Wiring to master: 2-cond., low cap, solid, non-shielded
Max. Wire distance: 165' (22AWG) 330' (18AWG)

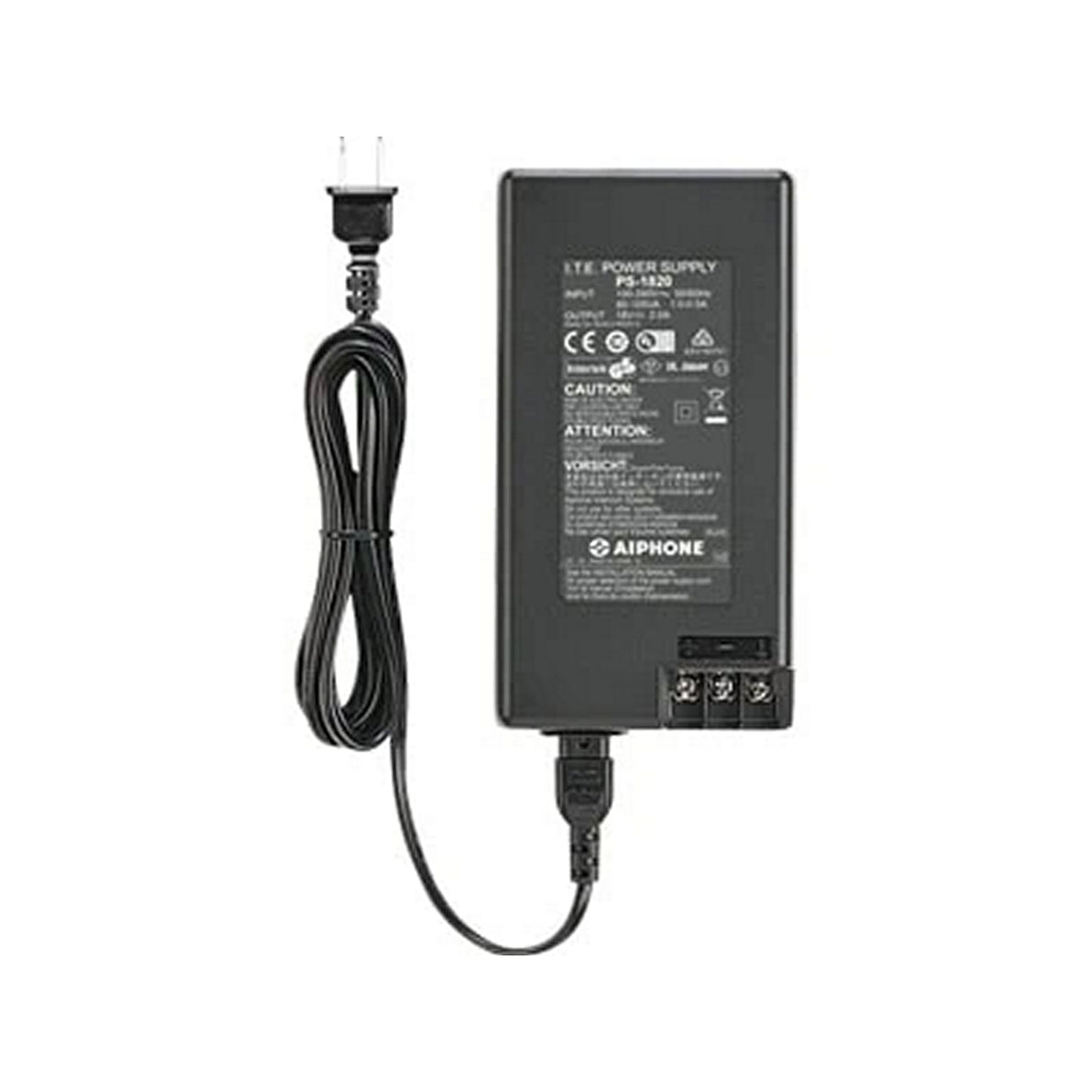

Power Supply
Model: PS-1820UL
Power Source: AC 100~240V 50/60Hz
Power Output: DC 18V 2A
