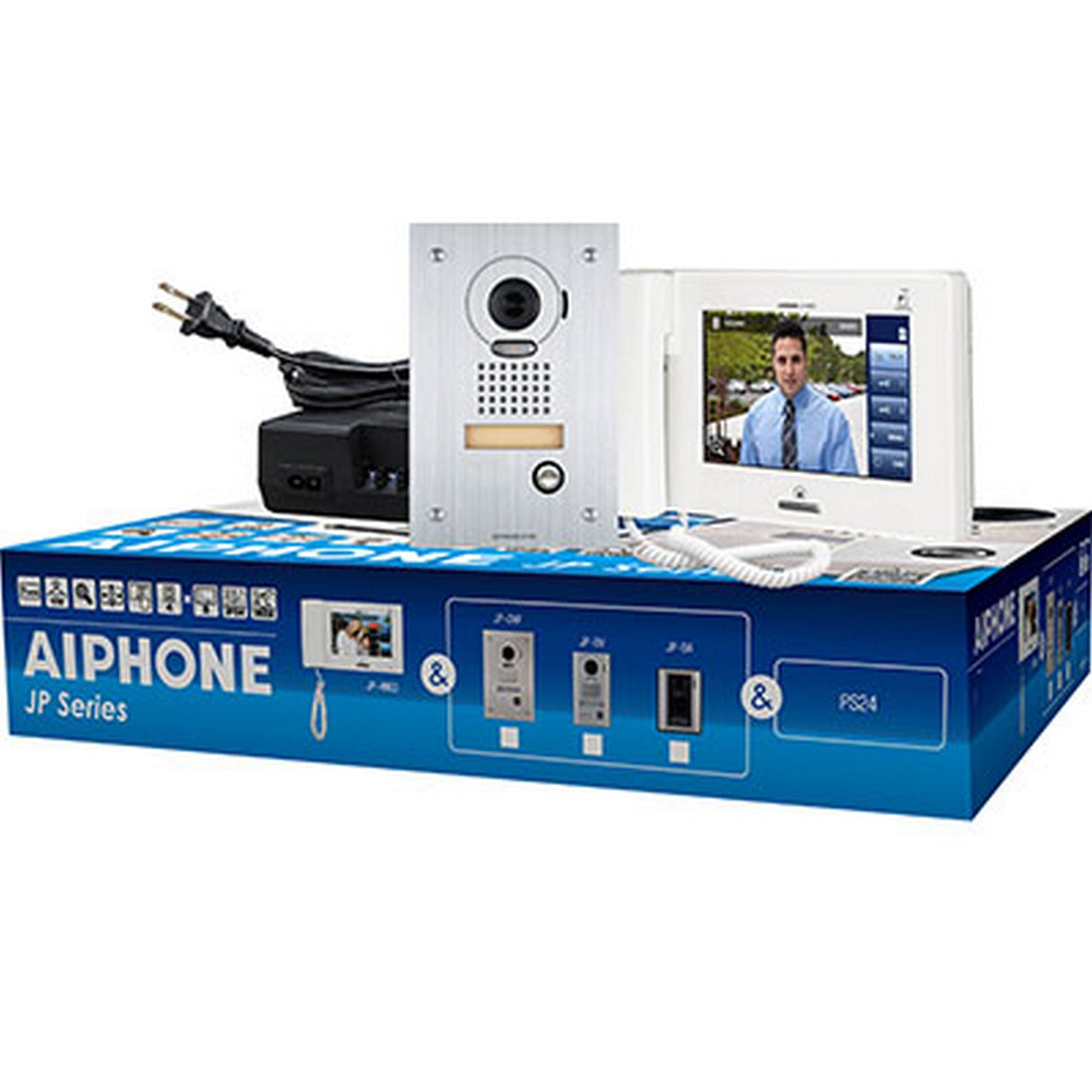

Aiphone JPS-4AEDF Flush Video Intercom Set with 7-Inch Touchscreen

Aiphone JPS-4AEDF Flush Video Intercom Set with 7-Inch Touchscreen

The Aiphone JPS-4AEDF flush video intercom set is a premium box set comprising a 7-inch touchscreen master station, a flush-mount vandal-resistant video door station, and a 24V DC power supply. Designed for secure, polished installations, the set supports both hands-free (auto-voice actuation) and handset full-duplex communication, making it ideal for residential or commercial entry systems where aesthetics and performance both matter.

The door station features a 1/4-inch CMOS camera with wide viewing angles (approx. 100° vertical × 170° horizontal) and digital pan, tilt, and zoom to reduce blind spots. The master station includes built-in picture memory, supports up to 20 calls internally, and can expand via SD/SDHC cards. Two door-release contacts are provided, along with wiring flexibility using standard 2-conductor Aiphone wire, supporting distances up to 330 ft between door station and master station.

With hardened stainless steel construction for the door station and flush mounting, this set maintains both durability and a low-profile finish. It’s especially well suited for gated entries, multi-unit housing, office lobbies, or any entrance where both security and polished design are priorities.

Key Features

• Full box set: includes master station (JP-4MED), flush-mount door station (JP-DVF), and PS-2420UL power supply
• 7-inch touchscreen master station with both hands-free and handset communication modes
• 1/4-inch CMOS camera at door station with approx. 100° vertical × 170° horizontal viewing, and digital pan/tilt/zoom
• Vandal-resistant stainless steel construction and flush-mount installation
• Built-in memory: up to 20 calls stored internally; SD/SDHC support for up to 1,000 calls
• Two normally-open door-release contacts; also an output for secondary device control
• Wiring via standard 2-conductor, non-shielded Aiphone #871802 wire; up to 330 ft between door station and master station

Technical Specifications

• Brand: Aiphone
• Model: JPS-4AEDF Flush Video Intercom Set
• Included Components: JP-4MED master station; JP-DVF flush-mount video door station; PS-2420UL 24V DC power supply
• Communication Mode: Hands-free (VOX) auto-voice actuation; handset full-duplex simultaneous
• Camera Type: 1/4-inch CMOS; Viewing Angle: ≈100° vertical × 170° horizontal with digital pan, tilt & zoom
• Power Source: 24V DC class II
• Door Release Contacts: Two N/O dry contacts provided; rated up to 500 mA at 24V AC/DC
• Wiring Specs: 2-conductor, solid, non-shielded Aiphone #871802 between door station and master; power supply to master wiring ≈16 ft (22AWG) / 33 ft (18AWG)
• Max Wiring Distance (Door Station to Master): ~330 ft

What’s in the Box

• 1x Aiphone JP-4MED Master Station 7-inch Touchscreen
• 1x Aiphone JP-DVF Flush-Mount Video Door Station (Stainless Steel, Vandal-Resistant)
• 1x Aiphone PS-2420UL 24V DC Power Supply
