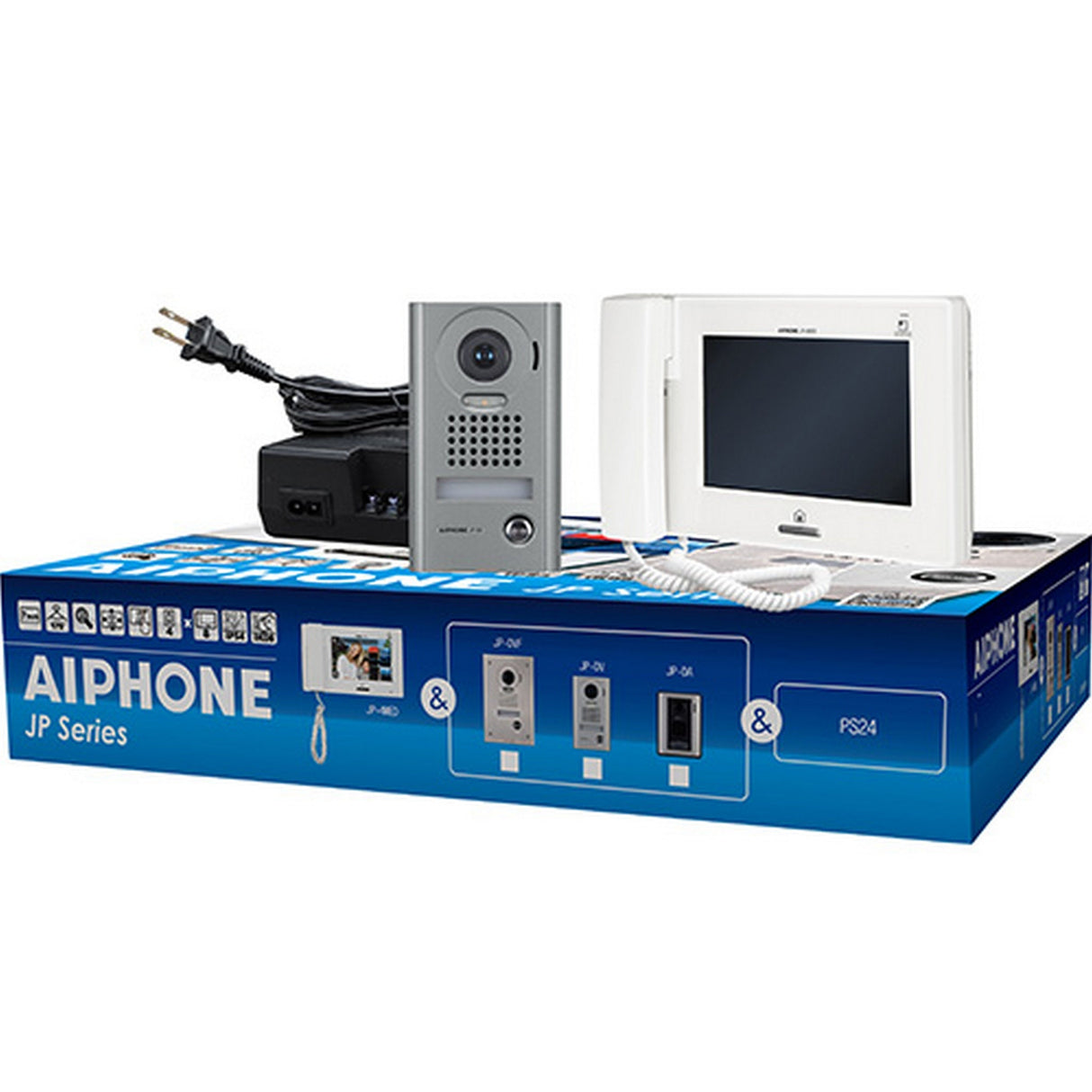

Aiphone JPS-4AEDV 7-Inch Vandal Resistant Video Intercom Set

Aiphone JPS-4AEDV 7-inch Vandal Resistant Video Intercom Set

The Aiphone JPS-4AEDV is a complete 3-piece JP Series video intercom kit that includes a 7-inch touchscreen answering station, a surface mount vandal-resistant video door station, and a 24V DC power supply. Designed for high-traffic or exposed environments, it combines durable hardware with advanced video communication capability.

This set features a JP-4MED master station with a color 7-inch touchscreen LCD, supporting both hands-free (VOX) and handset (duplex) communication modes. The JP-DV door station delivers a wide-angle camera with digital pan, tilt, and zoom. It is built with a zinc die-cast, vandal-resistant faceplate and protected camera lens for outdoor durability.

Perfect for locations requiring rugged reliability and clear visitor identification—such as schools, multifamily units, gated entries, or service entrances—this system supports multiple door stations and internal extensions. It includes the PS-2420UL power supply to ensure stable 24V DC power to all components.

Key Features

• Complete boxed set: JP-4MED answering station, JP-DV video door station, PS-2420UL power supply
• 7-inch touchscreen master with both hands-free (VOX) and handset full-duplex communication
• Vandal-resistant JP-DV door station with wide angled PTZ camera, rugged faceplate
• Digital pan, tilt, and zoom at door station for adjustable view
• Support for up to 4 door stations and up to 8 inside stations in the system
• Picture memory: supports internal memory and SD/SDHC card storage
• Robust wiring distances: Door station to master up to 330 ft with proper wire gauge
• Durability: Weather- and vandal-resistant design, surface mount installation

Technical Specifications

• Included Components: JP-4MED 7-inch Touchscreen Master Station; JP-DV Surface Mount Vandal-Resistant Door Station; PS-2420UL 24V DC Power Supply
• Communication Modes: Hands-free (VOX) and handset (full-duplex)
• Camera Type: 1/4-inch CMOS, color
• Viewing Angle: Wide, approx. 100 vertical × 170 horizontal with digital pan, tilt and zoom
• Wire Type: Door station to master uses 2 conductor, mid-capacity solid, non-shielded wire
• Distance: Door station to master up to 330 ft (18 AWG) or 165 ft (22 AWG)
• Power Source: PS-2420UL 24V DC power supply included
• Durability: Weather-resistant and vandal-resistant surface mount door station with zinc die-cast faceplate

What’s in the Box

• 1x Aiphone JP-4MED 7-inch Touchscreen Master Station
• 1x Aiphone JP-DV Surface Mount Vandal-Resistant Video Door Station
• 1x Aiphone PS-2420UL 24V DC Power Supply
