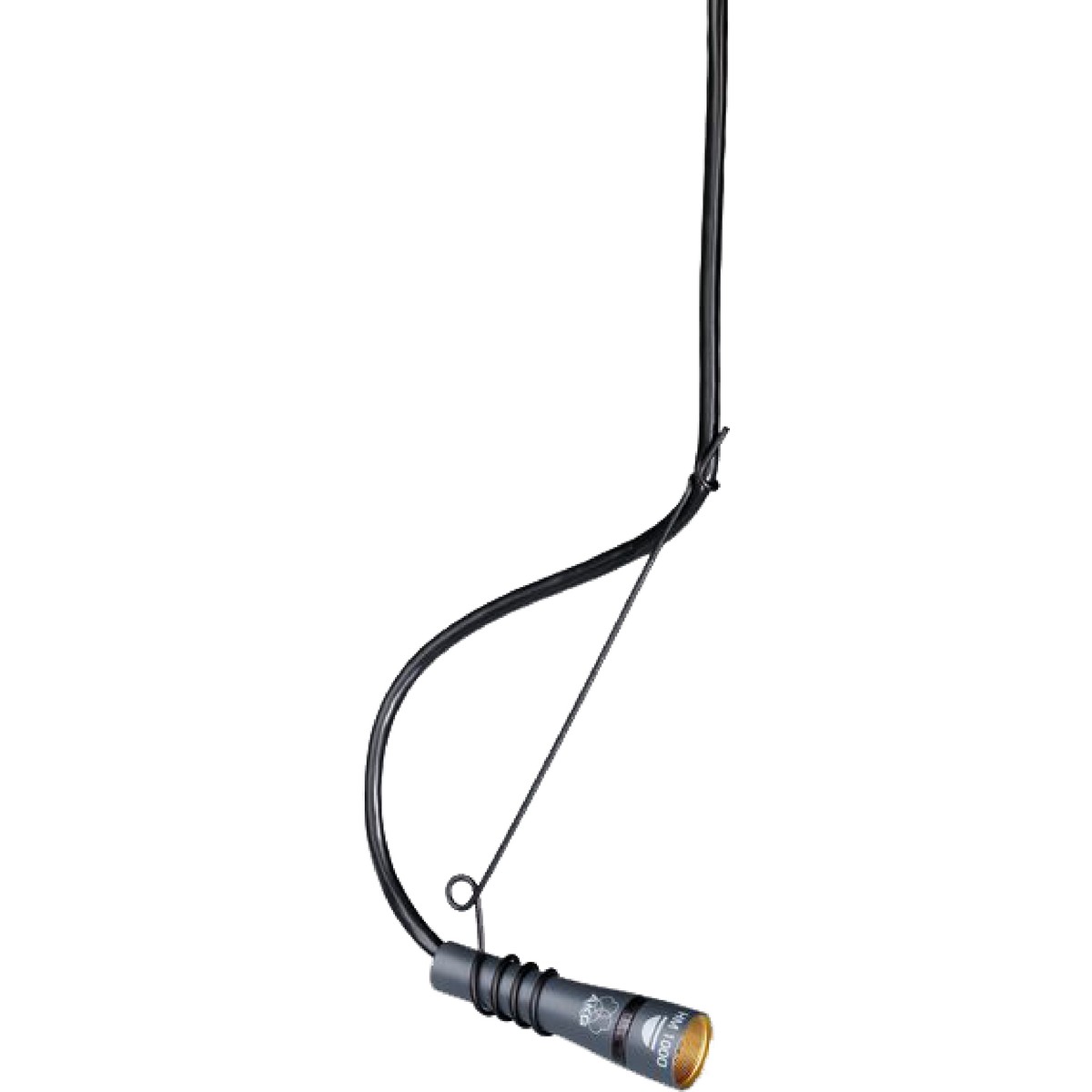

AKG HM1000 Microphone Hanging Module

The HM1000 is used to fly microphones from the ceiling to pick up music or speech in houses of worship and conference rooms and on theater stages. The HM1000 provides a 10m (33ft) cable, specially treated to reduce twisting, even if the environment temperature varies. A spring steel hanging clamp for precise microphone alignment keeps the microphone securely in position. A switchable LED ring helps the sound engineer in monitoring system function during the soundcheck.

The hanging module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.

Key Features

• Mounting module for hanging microphones for unobtrusive pickup in difficult places
• Twist-free 10m cable included to fix and secure the designated mic position
• Highly reliable contacts for capsule modules prevent contact problems and ensure extra-long life
• Special mounting accessories included for quick and hassle-free installation
• Integrated LED ring indicator for full control of the installation status

Technical Specifications

Bass Cut Filter
250 Hz
Recommended Load Impedance
2000 Ohms

Voltage
9 to 52 V
Current
2 mA

Type
Balanced XLR
Gender
Male
Contacts
3-pin

Finish
matte dark gray

Height
50 mm
Diameter
13.5 mm
Net Weight
400 g
