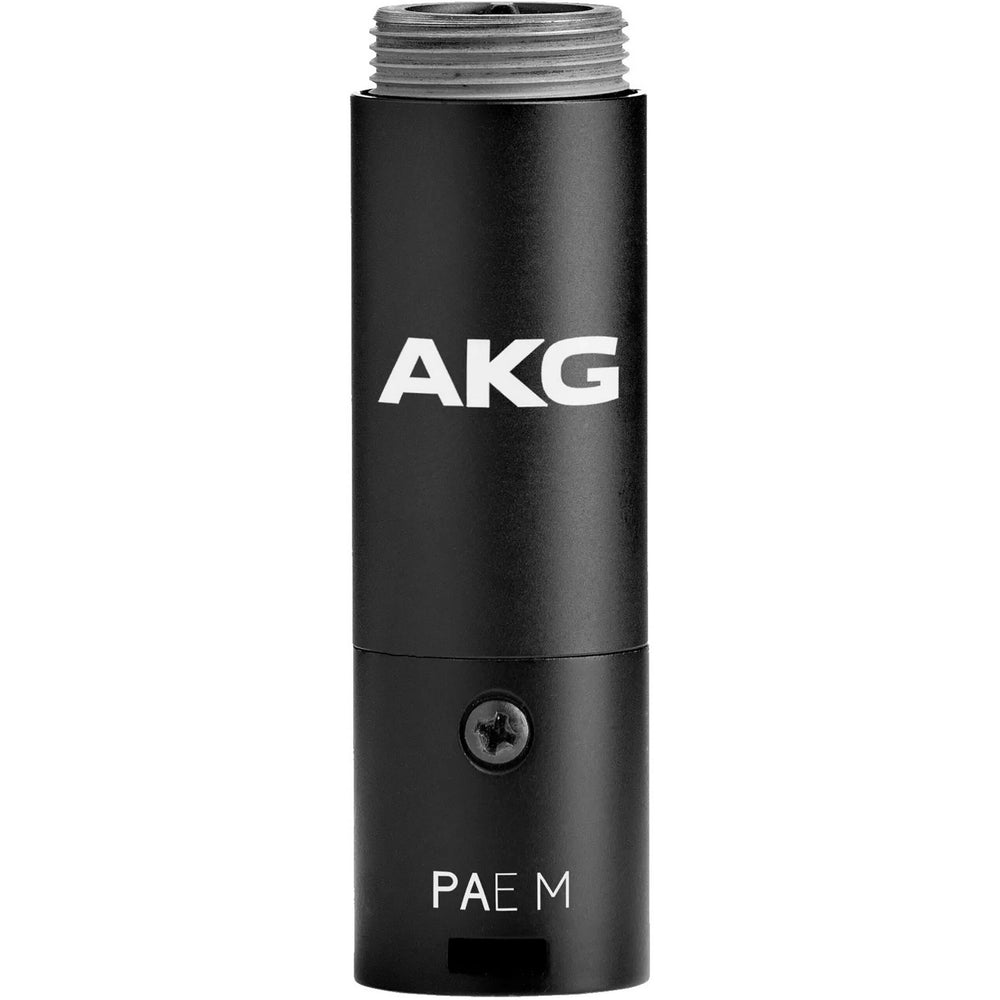

AKG PAE M DAM+ Series Reference Phantom Power Module
AKG PAE M DAM+ Series Reference Phantom Power Module
AKG PAE M DAM+ Series Reference Phantom Power Module
The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Key Features
- Feeds all DAM+ Series capsules
- RFi Shield technology
- Accepts 9-52V input
- Switchable bass roll off
- Highly reliable contacts to mounting modules
Technical Specifications
Audio frequency bandwidth
20 - 20000 Hz
Bass cut filter
150 Hz
Electrical impedance
< 600 Ohms
Recommended load impedance
> 2000 Ohms
Powering Interface
Voltage
9 to 52 V
Current
3.5 mA
Dimensions
Height
65.5 mm (2.58 in)
Diameter
19.1 mm (0.75 in)
Net Weight
43 g (1.51 oz)
Audio Output
Type
Balanced XLR
Gender
Male
Contacts
3-pin
