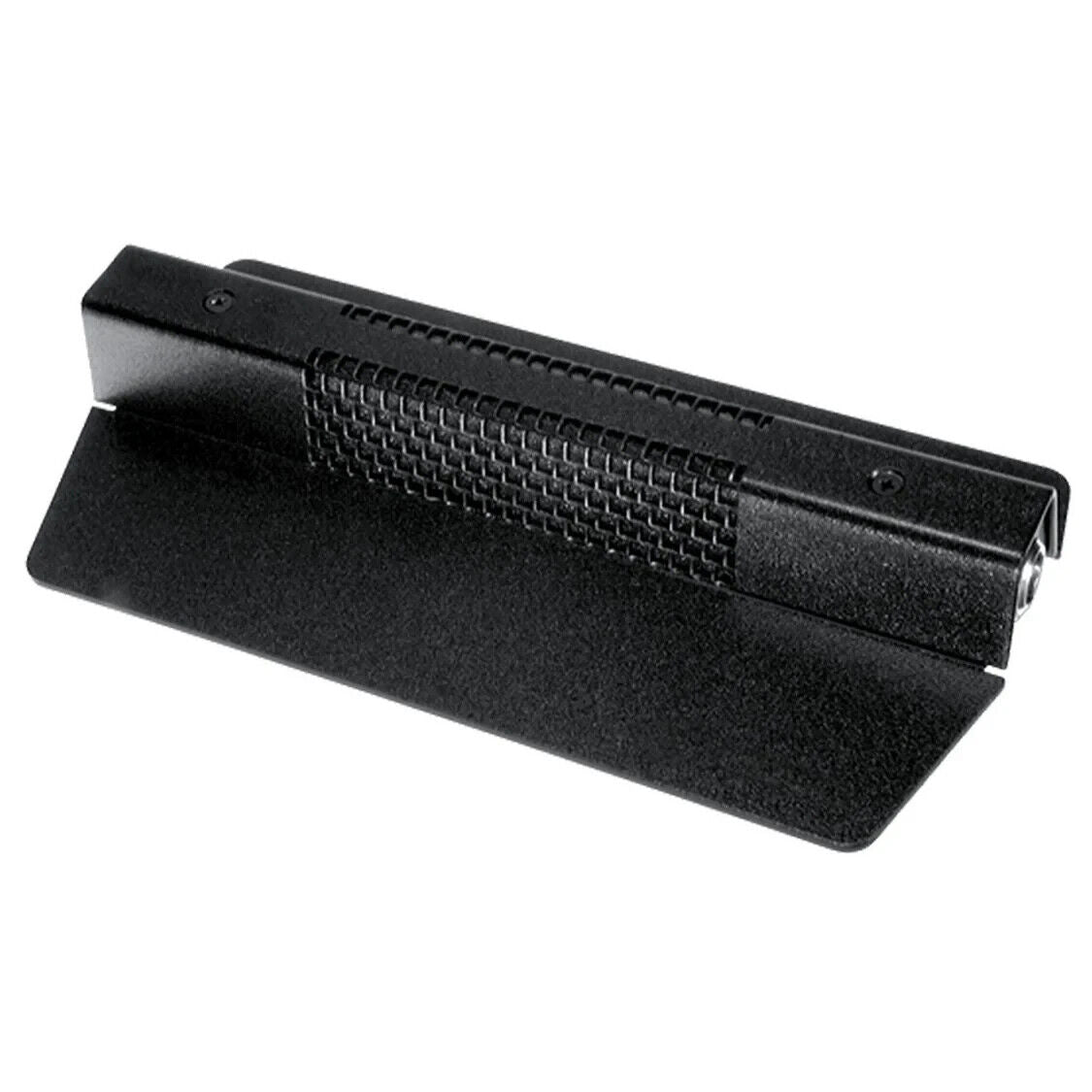

AKG PCC160 Professional Boundary Layer Microphone
The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It´s capable of wIt'standing up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
PCC (Phase Coherent Cardioid) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.
Technical Specifications
Audio frequency bandwidth
50 - 18000 Hz
Equivalent noise level
22 dB-A
Sensitivity
22 mV/Pa
Signal to Noise
72 dB-A
Recommended load impedance
2000 Ohms
Length
170 mm
Width
80 mm
Height
20 mm
Finish
black
Audio Output
Switchcraft TA3F
Contacts
3-pin
Voltage
12 to 48 V
Application
Conferencing
