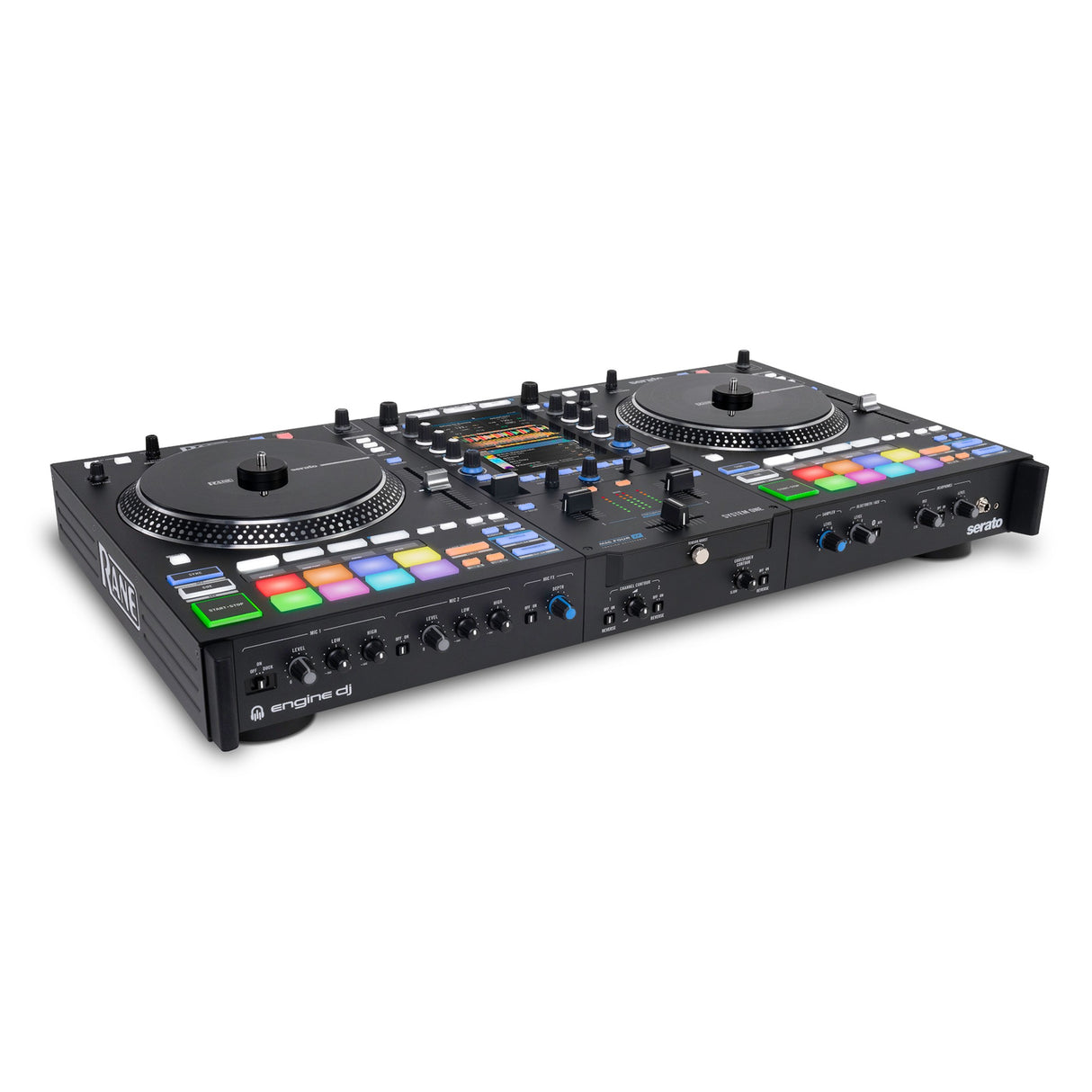

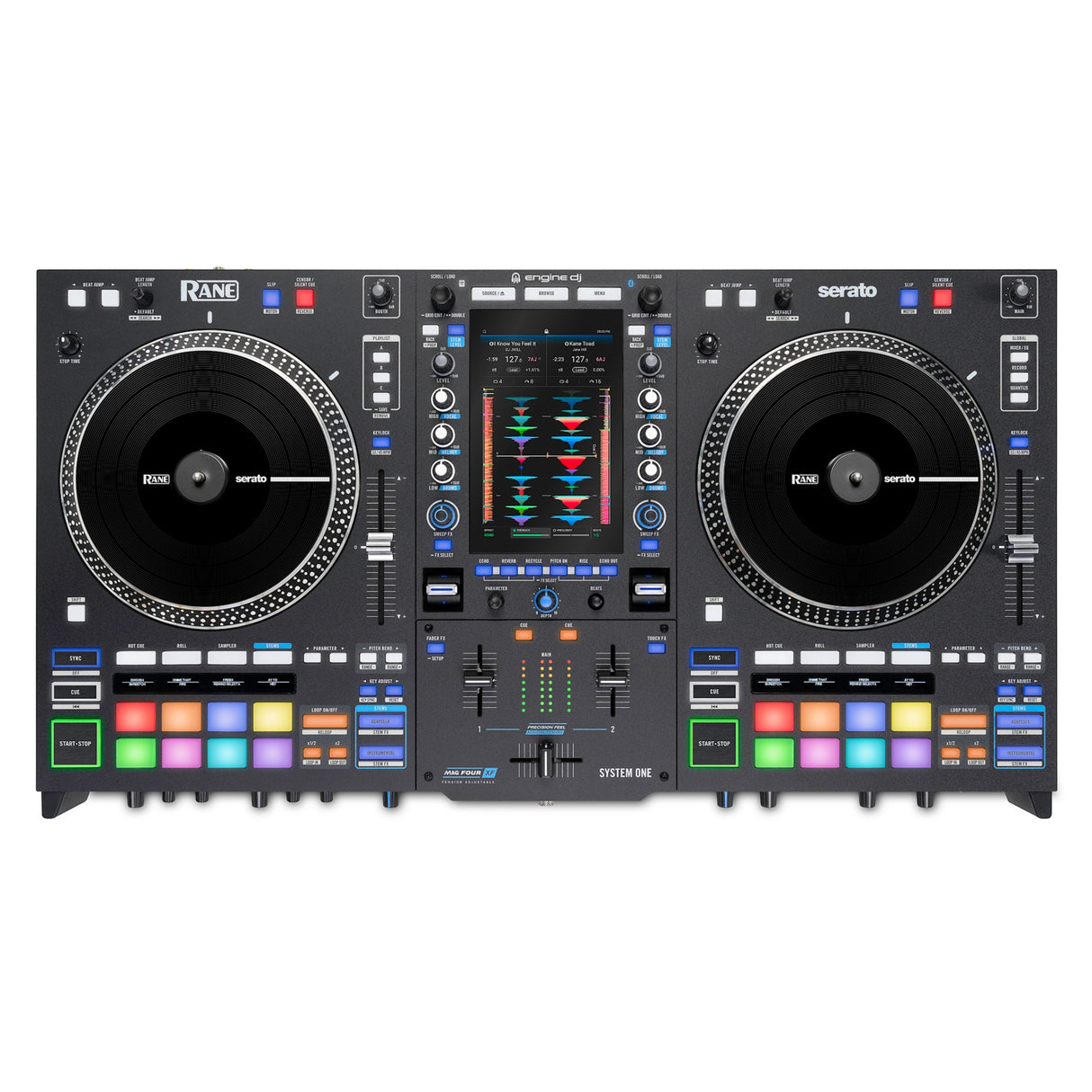

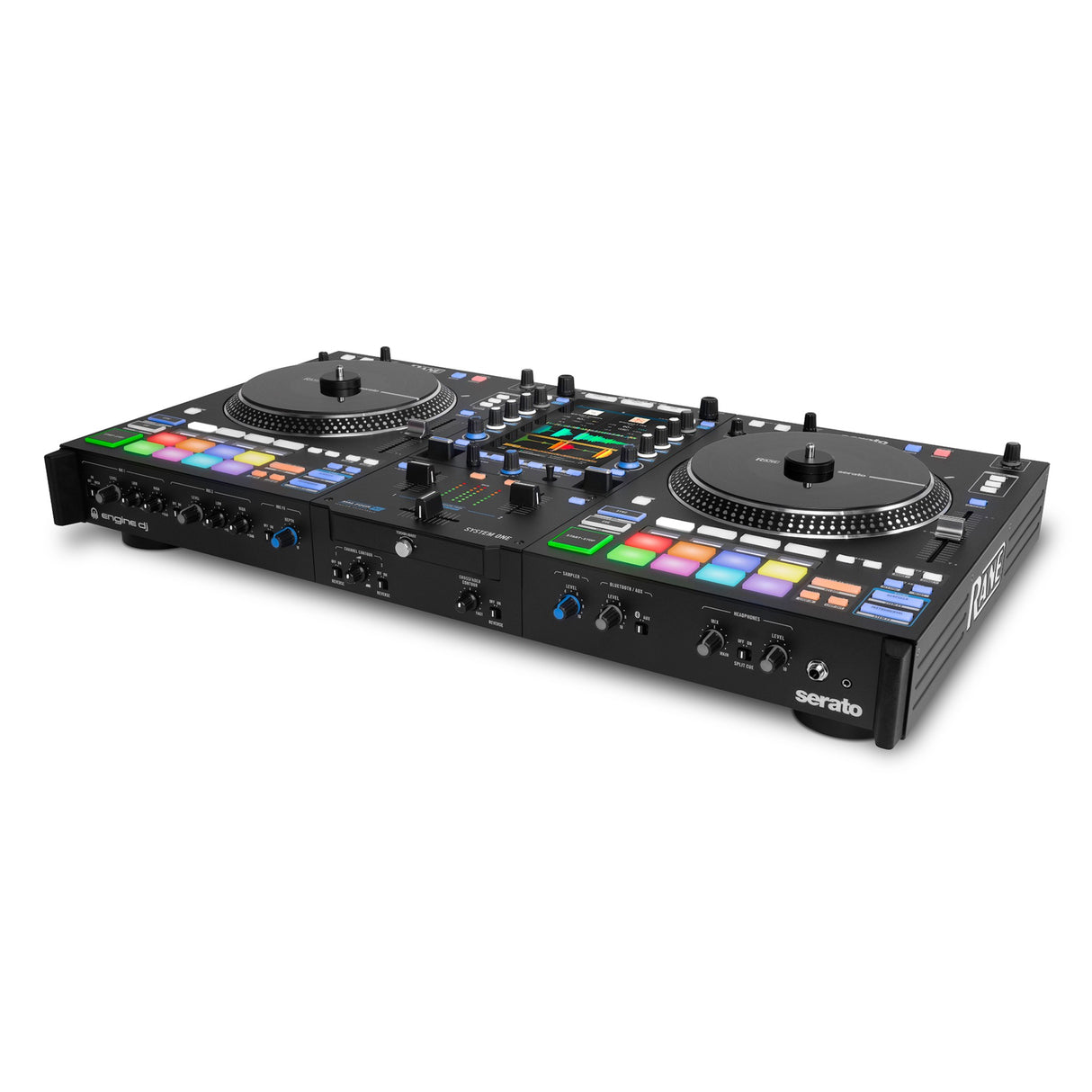

Rane SYSTEM ONE All-In-One Standalone DJ Controller

Rane SYSTEM ONE All-In-One Standalone DJ Controller for Engine DJ & Serato

The Rane SYSTEM ONE is a flagship all-in-one DJ controller built for performers who want a standalone workflow without giving up pro-level control. Powered by inMusic Engine DJ and featuring native Serato DJ Pro compatibility (activation included), SYSTEM ONE is designed to handle modern sets with responsive tactile mixing, deep performance tools, and streamlined track management from multiple sources.

Two 7.2-inch motorized platters deliver a high-torque, turntable-style feel with per-deck customization for stop time and selectable 33/45 rpm modes. A portrait-oriented 7-inch OLED touchscreen provides vivid waveform display and track visibility, while Precision Feel faders, RGB-backlit performance pads, and an integrated FX suite make it easy to shape transitions, drops, and live routines with confidence.

For DJs who rely on streaming, built-in Wi-Fi expands your library beyond local storage. With broad connectivity for audio, computer integration, and lighting control, SYSTEM ONE supports flexible setups—from club rigs and mobile events to hybrid audio/visual performances—while maintaining focused control over Main and Booth outputs.

Key Features Of The Rane SYSTEMONE Standalone DJ System

• All-in-one standalone performance: Engine DJ-powered system built for versatile, next-gen DJ workflows with pro tactile control.
• 7.2-inch motorized platters: High-torque platters with deep customization for stop time and selectable 33/45 rpm modes.
• 7-inch portrait OLED touchscreen: Full-color waveform display with essential track information for fast decisions mid-set.
• 16 RGB-backlit performance pads: Supports Sampler, Hot Cue, Stems, one-shot, Roll, and more, with real-time pad status display.
• Built-in Wi-Fi streaming support: Integrates Apple Music, Amazon Music, TIDAL, Beatport, and more into your set building and playback.
• Flexible playlist management: Combine tracks from multiple streaming and storage sources into a single playlist for seamless set flow.
• User-assignable Playlist Bank: Instant access to 3 essential playlists at any time during performance.
• Explosive FX suite: Touch FX, Fader FX, and Sweep FX with dedicated controls, FX paddles, tempo sync, and effect parameters.
• Expanded media & storage options: Includes 3 USB-A ports, SD card reader, USB-C computer connection, and internal hard drive.
• Mag Four XF crossfader & Precision Feel faders: Adjustable tension, curvature, behavior, speed, and reverse controls to personalize your mix.
• Detailed EQ control: Per-channel 3-band EQ plus software 8-band EQ for Main and Booth outputs.
• Multimode Aux In: Selectable RCA or Bluetooth input for added sources.
• Dual combo mic inputs: Two mic inputs with 2-band EQ, anti-feedback design, Echo/Reverb FX, and optional Ducking.
• Focused monitoring tools: Split/Cue mixing and individual level control for Sampler, Bluetooth/Aux, and each mic channel.
• Lighting & smart control ready: Smart Home, DMX, and SoundSwitch compatibility (requires external DMX hardware; not included) for audiovisual sync.

Technical Specifications

• Digital Audio Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
• Digital Signal Processing: 32-bit Floating Point, Double Precision
• Main Output (XLR, RCA stereo pair):
  DAC: 24-bit
  Dynamic Range: 117 dB
  Output Type: Balanced XLR
  Max Output Level (XLR): 8 Vrms
  Max Output Level (RCA): 4 Vrms
  Frequency Response: 20 Hz–20 kHz: +0, -1 dB
  THD+N: 0.002% @ 1 kHz, 4 Vrms
  Channel Separation: >80 dB
  Input Gain Trim Range: Off to +12 dB
  Output Level Range: Off to 0 dB
• Booth Output (1/4” [6.35 mm] TRS):
  DAC: 24-bit
  Dynamic Range: 117 dB
  Output Type: Balanced TRS
  Max Output Level: 8 Vrms
  Frequency Response: 20 Hz–20 kHz: +0, -1 dB
  THD+N: 0.002% @ 1 kHz, 4 Vrms
  Channel Separation: >80 dB
  Input Gain Trim Range: Off to +12 dB
  Output Level Range: Off to 0 dB
• Headphone Output (1/4” [6.35 mm] and 1/8” [3.5 mm] TRS):
  DAC: 24-bit
  Dynamic Range: 117 dB
  Output Type: Stereo TRS (1/8” and 1/4” jacks)
  Cue Features: Cue / Split Cue
  Max Output Level (No Load): 4 Vrms
  Max Power Output @ 50 Ω: 150 mW
  Frequency Response: 20 Hz–20 kHz: +0, -1 dB
  THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
  THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%
  Channel Separation: >80 dB
  Level Control Range: Off to 0 dB
• Inputs (Combo XLR/1/4” [6.35 mm] TRS):
  ADC: 24-bit, 115 dB DR
  Input Type: Balanced XLR/TRS combo
  Max Input Level: 110 mV
  Analog Gain: 25 dB
  Max System Gain: 60 dB
  Frequency Response @ 20 Hz: -2.5 dB
  Frequency Response @ 20 kHz: -5 dB
  THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)
  DR (A-weighted), Gain = 25 dB: 102 dB
  DR (A-weighted), Gain = 60 dB: 72 dB
  IRN (A-weighted), Gain = 60 dB: -132 dB
  IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB
• Auxiliary Input (RCA stereo pair):
  ADC: 24-bit, 115 dB DR (A-weighted)
  Input Type: Unbalanced RCA
  Max Input Level: 4 Vrms
  Frequency Response: 20 Hz–20 kHz: +0, -1 dB
  THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz)
  Gain Range: Off to +12 dB
  DR (A-weighted), Unity Gain: 108 dB
  Crosstalk: ≤ -90 dB
• Performance Pads: 16 total, on/off multi-color back-lit (8 per deck)
• Faders:
  Channel Faders: 2 Precision Feel tension-adjustable with contour and reverse
  Crossfader: 1 Mag Four tension-adjustable with contour and reverse
• Displays:
  Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface
  Pad Displays: (8) 128 x 32 monochrome OLEDs
• CPU:
  Processor: 8-Core ARM Processor CPU
  RAM: 4 GB
• Wi-Fi & Bluetooth:
  Wi-Fi: 2.4GHz/5GHz, 802.11a/b/g/n/ac (Wi-Fi 5)
  Bluetooth: v5.4
• Supported Media:
  File Systems: exFAT (recommended), FAT32
  Playable Formats: AAC/M4A, AIF/AIFF (44.1–192 kHz, 16–32-bit), ALAC, FLAC, MP3 (32–320 kbps), MP4, Ogg Vorbis, WAV (44.1–192 kHz, 16–32-bit)
• Streaming Services: Onboard (subscription required): Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL
• Lighting: Onboard Smart Lighting: Philips Hue, Nanoleaf; Supported DMX: SoundSwitch DMX Micro, SoundSwitch Control One
• Power: Internal with locking IEC; Input Voltage: 100–240 VAC; Frequency: 50/60 Hz; Power Consumption: 150 W
• General:
  Dimensions (W x D x H): 29.00" x 15.87" x 5.70" (73.66 x 40.30 x 14.47 cm)
  Weight: 29.4 lbs (13.33 kg)

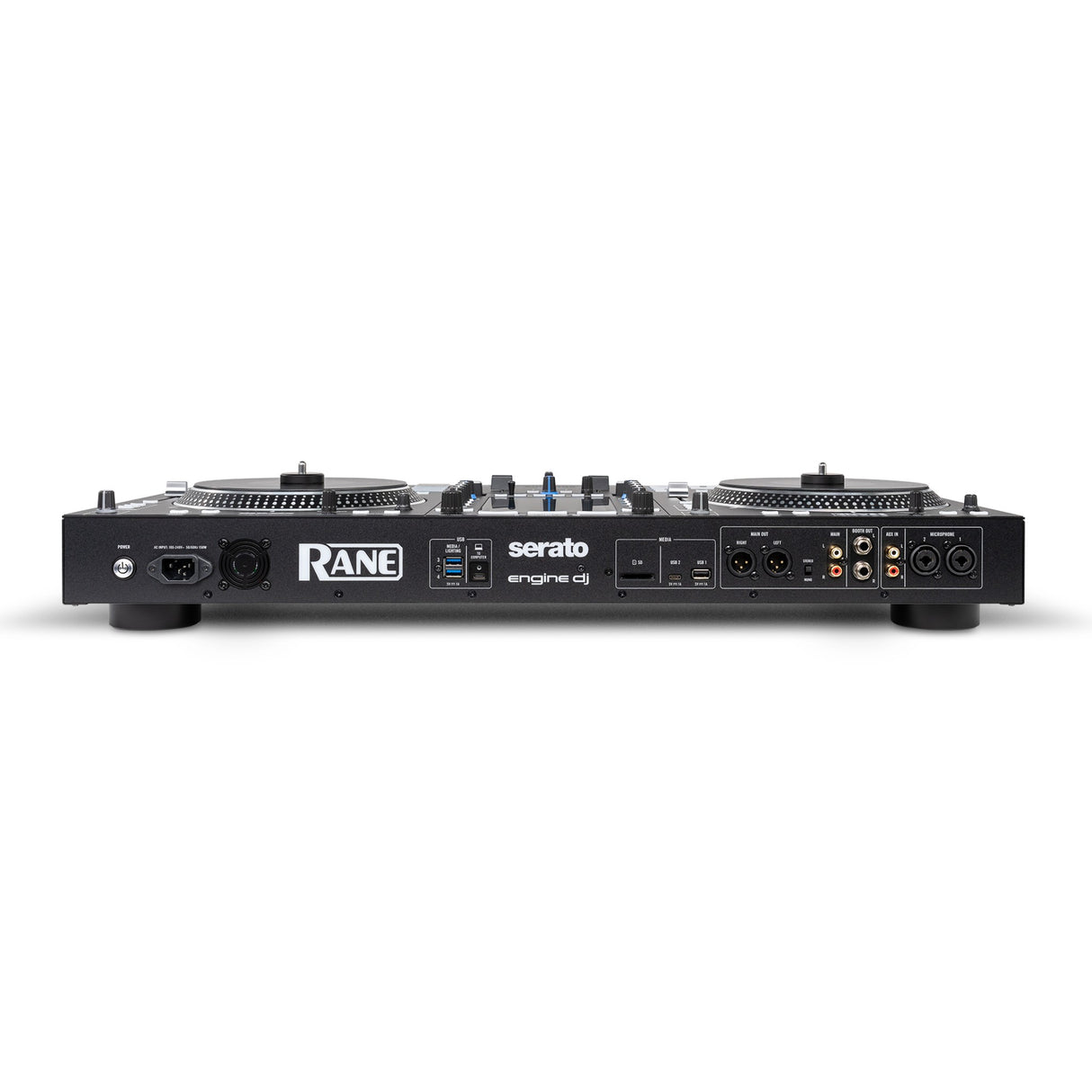

• Connections:
  Inputs - Microphones: Mic 1 & Mic 2: XLR + 1/4” Combo Jacks; Aux: Stereo Pair (RCA)
  Outputs - Main: (2) XLR, Stereo Pair (RCA); Booth: (2) 1/4” TRS Jacks; Headphones: 1/4” Stereo Jack, 3.5-mm Stereo Mini-Jack
  Media Inputs - USB: 3 x Type-A (USB 2.0/3.0), 1 x Type-C (USB 3.0 to computer); SD Media: SD, SDHC, SDXC; Internal HD: SATA 3.0
