Description

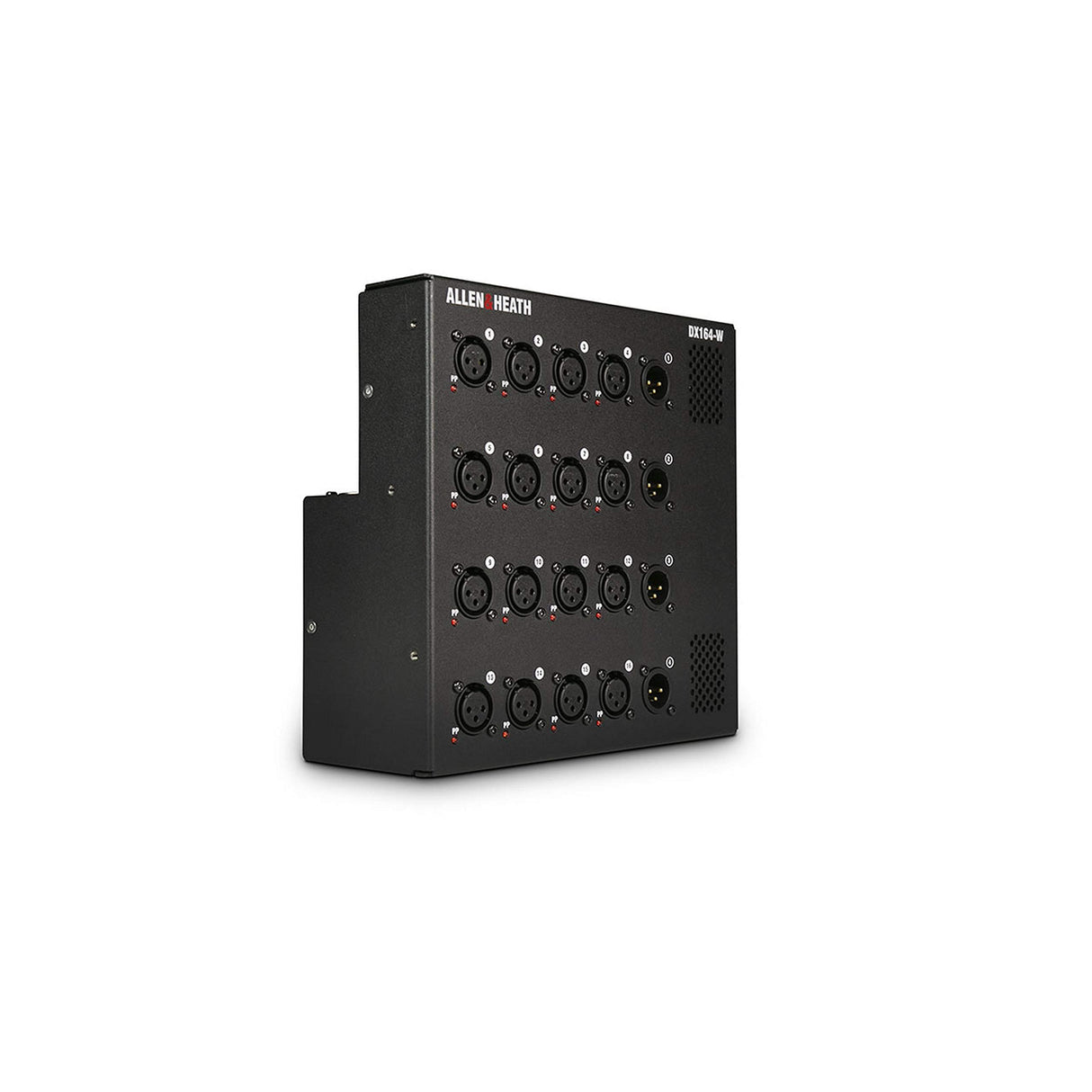

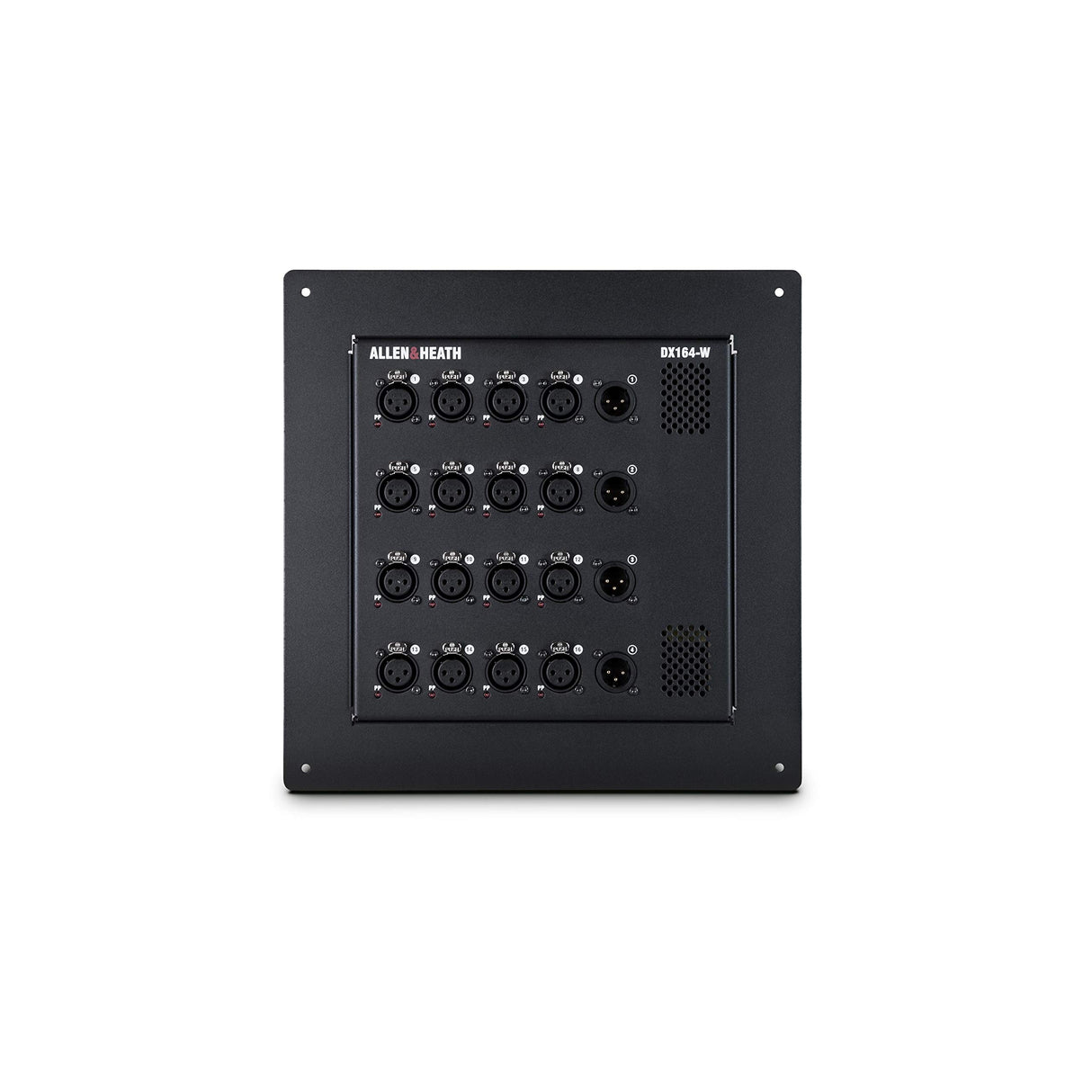

Allen & Heath DX164-W 16 XLR Input/4 XLR Output Wall Mount DX Expander
The Allen & Heath DX164-W is a versatile wall mountable expander that significantly enhances the remote I/O capabilities of your dLive, Avantis, or SQ mixer, as well as the AHM-64 audio matrix processor. Designed for both fixed and flexible installations, this unit offers an impressive array of features to optimize your professional audio setup. Boasting 16 high-quality mic preamps with independent Phantom Power LED indicators and 4 balanced XLR line outputs, the DX164-W ensures pristine audio quality and reliable performance for all your sound reinforcement needs.
Ideal for venues such as theaters, auditoriums, and houses of worship, the DX164-W can be installed in a stage “Dip Trap” or wall-mounted, seamlessly integrating into your existing infrastructure. Its rugged design includes locking EtherCon ports and allows for daisy chaining or redundant audio connections, providing robust and flexible networking options. With its 96kHz converters and multiple power options, including AC and DC power redundancy, the DX164-W is built to meet the demands of any professional audio environment.
Key Features
- Designed for Wall Mount or Dip Trap installation
- 16 balanced Mic Preamps on XLR
- Phantom Power LED per Input
- 4 balanced XLR Line Outs
- Locking EtherCon ports
- Daisy chain or redundant audio connection
- Can fit in a standard NEMA box (custom brackets required)
- Compatible with ACE Backstage 174SLBK stage pocket system
- 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
- DC power can be used as redundant power supply
- 96kHz converters
Specifications
- 16 XLR Inputs with mic preamps
- 4 XLR Line Outputs
- Phantom Power indicators per input
- EtherCon ports for networking
- Supports standard NEMA box installation
- Power options: 100-230V AC, 12V DC
- 96kHz converter sampling rate
Package Contents
- Allen & Heath DX164-W Expander
- Installation guide
- Power cable(s)
- Mounting brackets (if applicable)
