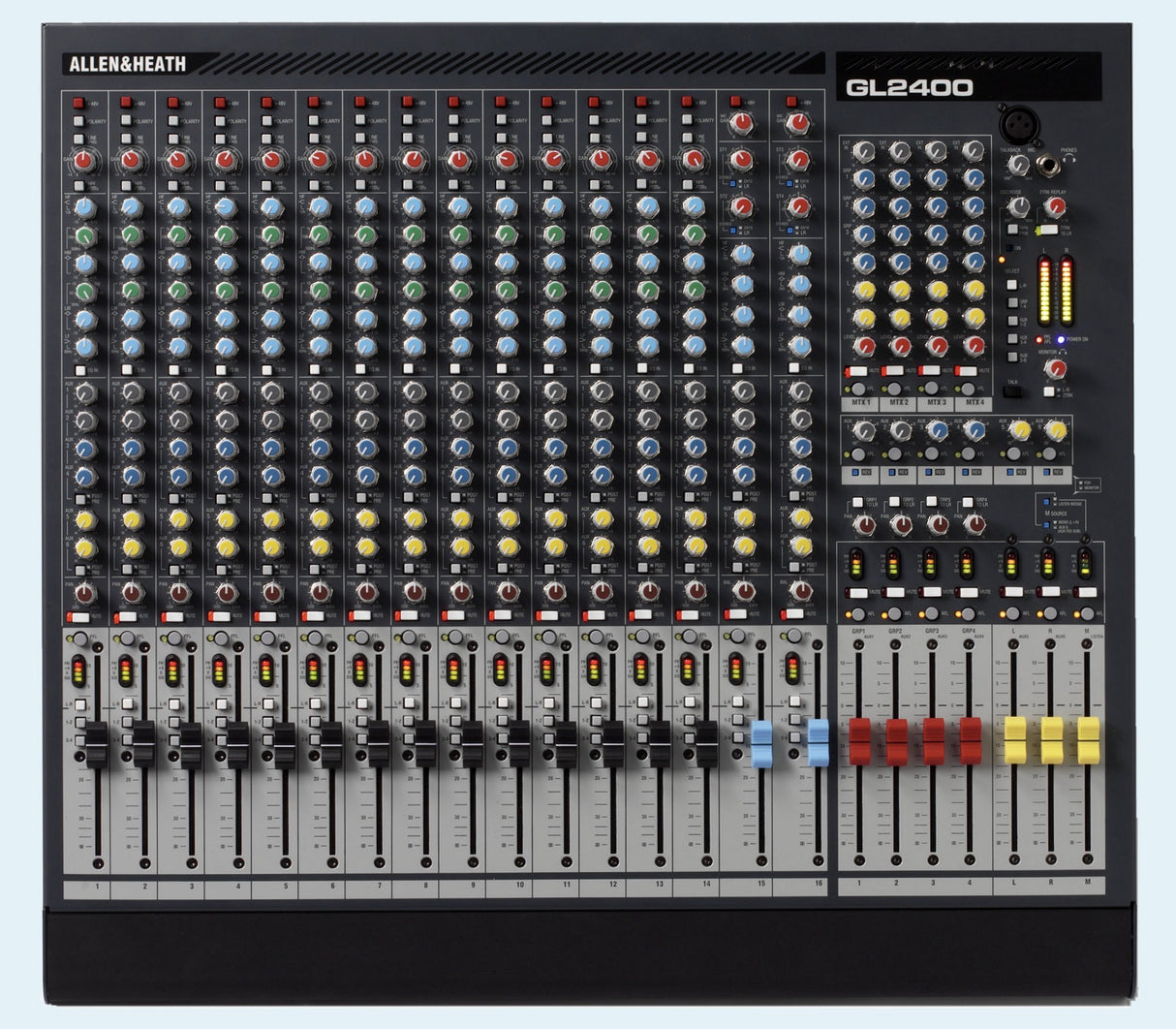

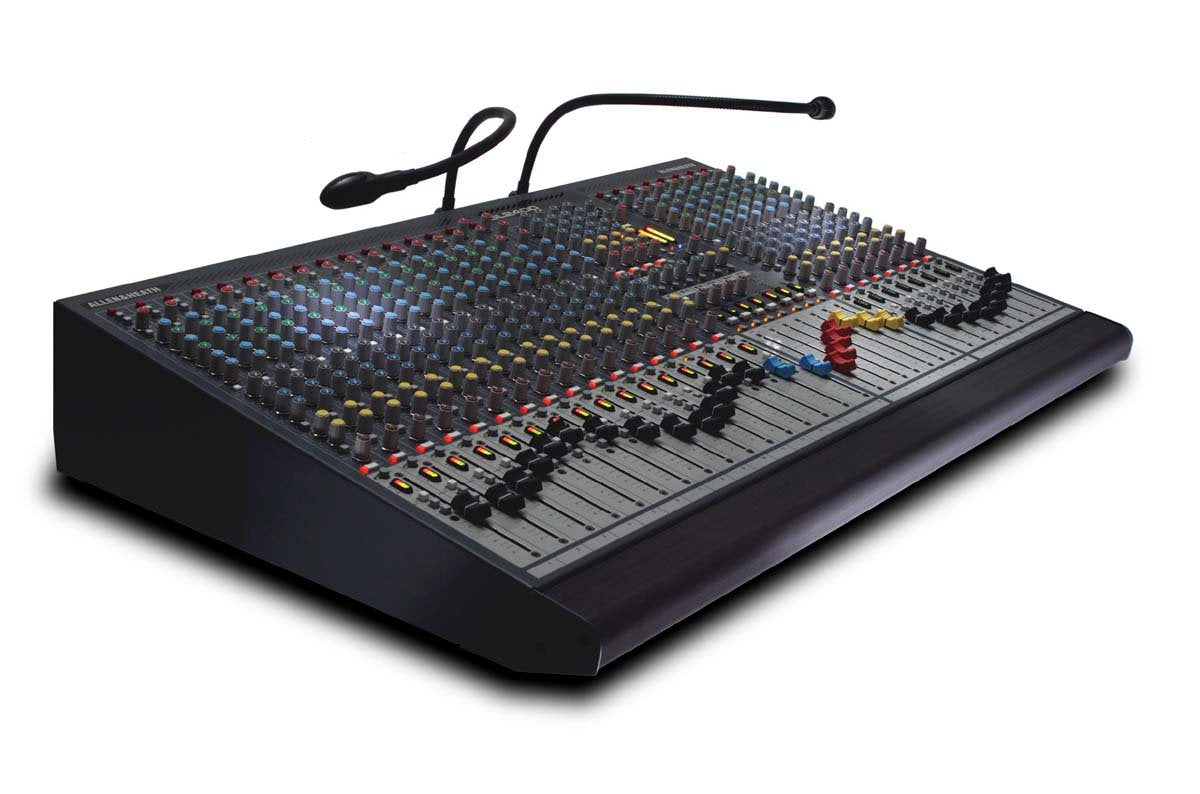

Allen & Heath GL2400-16 16 Channel Dual-Function Live Sound Mixer
The Allen & Heath GL2400-16 is a cutting-edge, dual-function live sound mixer that is renowned for its versatility and compact design. Perfect for both front-of-house (FoH) and monitor mixing, this 16-channel mixer is packed with advanced features that cater to modern engineering techniques. Whether you are a professional sound engineer or a live performer, the GL2400-16 offers a robust and reliable solution for all your live sound needs.
Designed with meticulous attention to detail, the GL2400-16 boasts a unique combination of functionality and compactness, making it an industry standard in venues and hire stockists across the globe. This mixer is equipped with LR and Mono sum outputs, 4 audio groups, and 6 auxiliary sends, each with per-channel pre/post fader switching. With its 7x4 matrix, this mixer delivers exceptional flexibility, allowing you to achieve the perfect sound balance even in the most challenging environments.
From its dedicated channel, master, and stereo monitor meters to its robust build featuring metal jacks and gold-plated XLRs, every aspect of the GL2400-16 has been engineered to provide a seamless and professional mixing experience. The mixer also includes individual phantom power, polarity switching, and ultra-low noise mix head amp design, making it a reliable choice for any live sound application.
Key Features
- 16 channel frame
- LR and M main outputs
- 4 Audio groups with pan control
- 6 Auxiliary sends with per-channel pre/post fader switching
- 2 stereo channels, each with mic and dual stereo line inputs
- 7x4 Matrix
- Proper dual functionality for FoH and/or Monitor mixing
- M can be configured as LR sum, Wedge, or Aux-Fed Sub or C master
- Recording capable with channel direct outputs
Specifications
- Matrix external inputs with level trims and common input capability
- Stereo channel line inputs can be independently routed to LR
- Stereo channel mic input breakpoints for cross patching into matrix
- Responsive 4 band, 2 sweep EQ
- 100Hz channel high pass filters
- Individual phantom power and polarity switching
- Dedicated channel, master and stereo monitor meters
- Internal jumper plugs for pre/post-EQ aux, direct out and other options
- Mutes, meters and AFL on all fader masters
- Assignable talkback
- 1kHz oscillator and pink noise generator
- 2-track monitoring and replay to LR
- Headphones and local monitor outputs
- Electronically balanced XLR outputs with +26dBu drive capability
- Preamp 74dB range with +34dBu input capability for mic or line
- Ultra low noise mix head amp design
- Internal power supply with socket for MPS12 backup supply (16ch to 32ch models)
- 100mm dust protected faders
- Metal jacks, gold-plated XLRs, sealed pots and switches
- Individual circuit card assembly with nutted pots
Package Contents
- Allen & Heath GL2400-16 16 Channel Dual-Function Live Sound Mixer
- Power Supply
- User Manual
