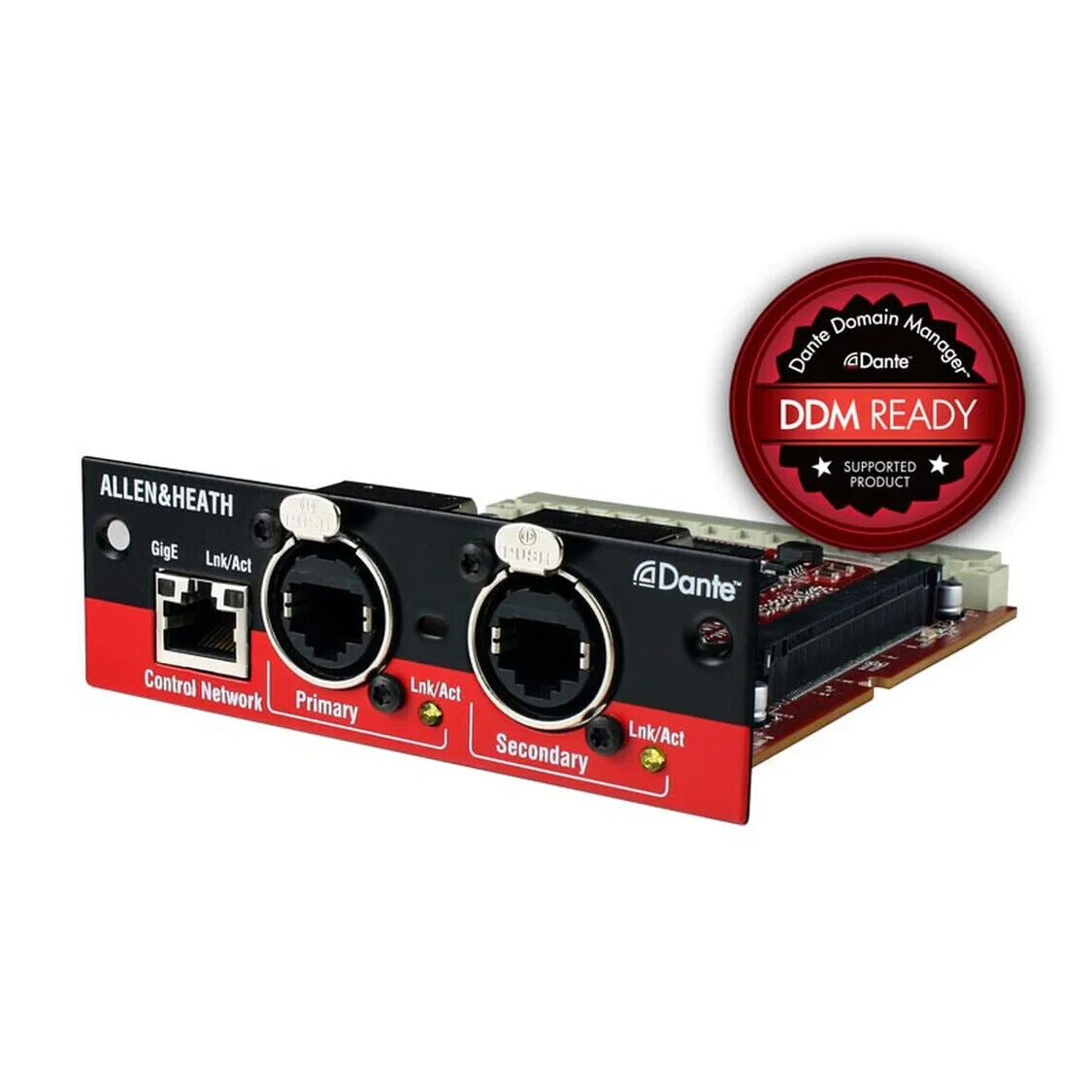

Allen & Heath M-DANTE 64 x 64 Dante Card

The Allen & Heath M-DANTE 64 x 64 Dante Card revolutionizes the live sound industry with its high-performance audio capabilities, flexible routing options, and economical direct-to-computer recording. Developed by Audinate, Dante is an Ethernet-compliant audio networking technology that meets the ever-growing demands for superior sound quality and versatile audio distribution. Integrated with CAT5 cable and standard networking components, the M-DANTE Card allows you to transmit multiple streams of audio along with control data with sub-millisecond latency, ensuring an exceptional audio experience.

This card is one of the multiple digital audio networking options available for dLive, GLD, and iLive systems, facilitating integrations with other setups, digital microphone splitting, multi-track recording, and system expansion. Offering 64 channels of bi-directional audio at 48kHz, the M-DANTE Card can be installed in any dLive I/O Port when paired with the M-DL-ADAPT interface. It is also compatible with the I/O Port in GLD mixers, Port B in iLive fixed-format MixRacks, and Port A/B in modular MixRacks and surfaces, provided they have the new RAB-2 standard.

Key Features

• 64-channel bi-directional audio plus control over CAT5
• Uses standard, off-the-shelf computer networking equipment
• Self-discovery and auto-configuration of IP addresses
• Easy to add, name, remove, and rearrange devices
• Wide range of Dante-enabled equipment available
• Secondary port for redundant network option
• Control port to bridge dLive or other networks over Dante
• Sample accurate playback synchronization
• Very low latency
• Gigabit ports
• Direct connection to computers for multi-track recording
• Dante Virtual Soundcard software replaces expensive hardware
• Dante Controller software available for setting up the network

Specifications

• Channels: 64 bi-directional
• Audio Sample Rate: 48kHz
• Compatibility: dLive, GLD, iLive
• Networking: CAT5 cable
• Latency: Sub-millisecond
• Ports: Gigabit, Secondary for redundancy, Control
• Software: Dante Virtual Soundcard, Dante Controller

Package Contents

• 1 x Allen & Heath M-DANTE 64 x 64 Dante Card
• User Manual
• Quick Start Guide
• Warranty Information
