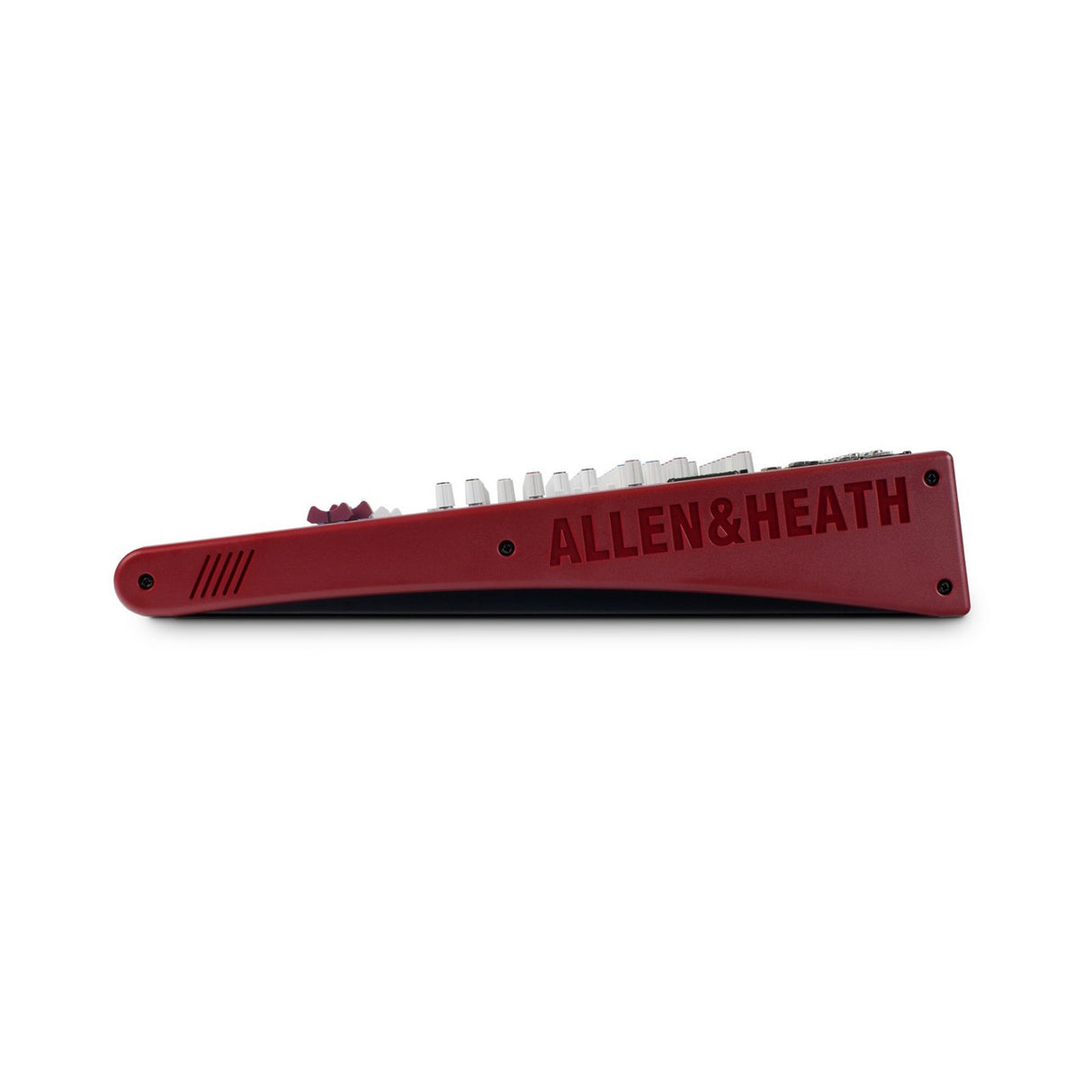

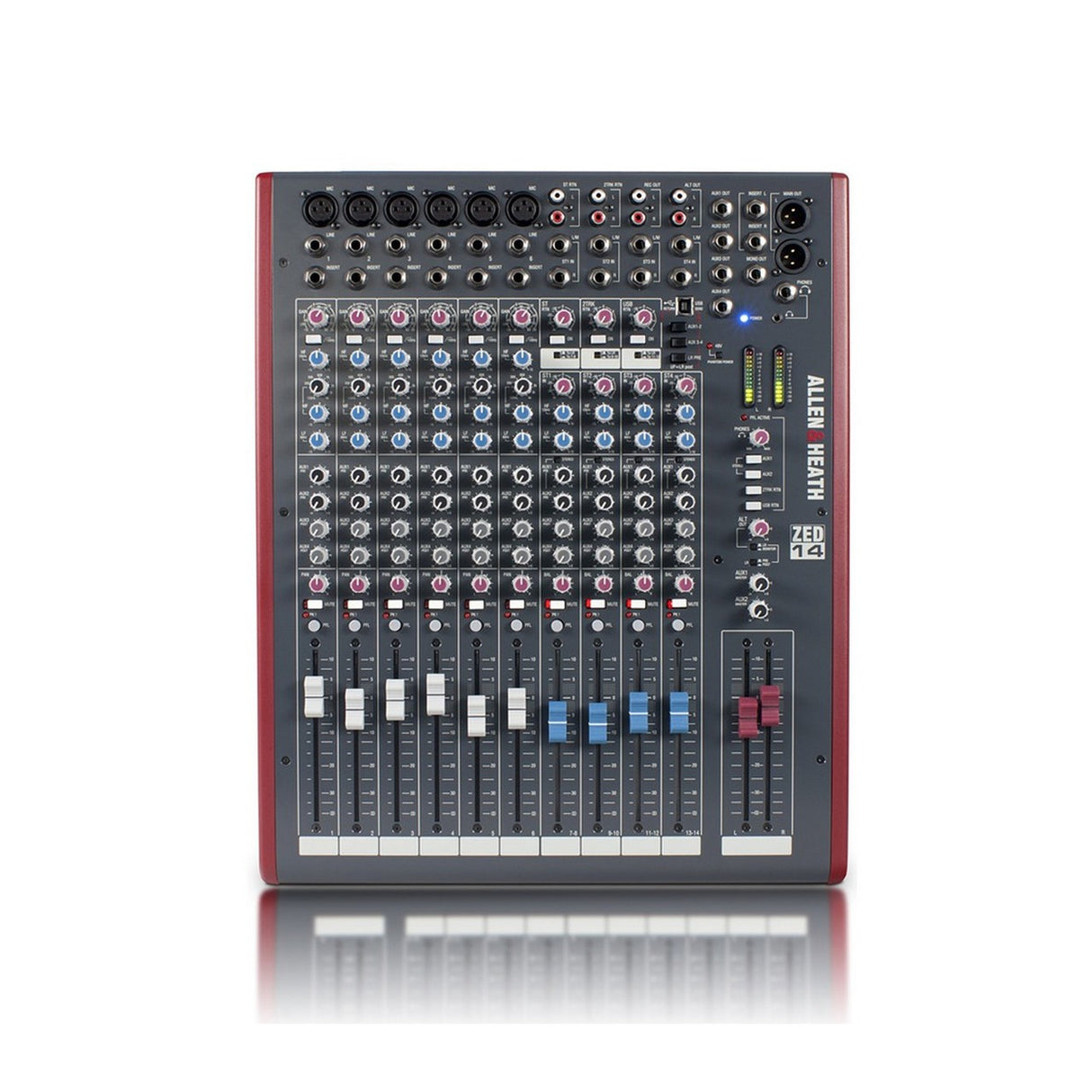

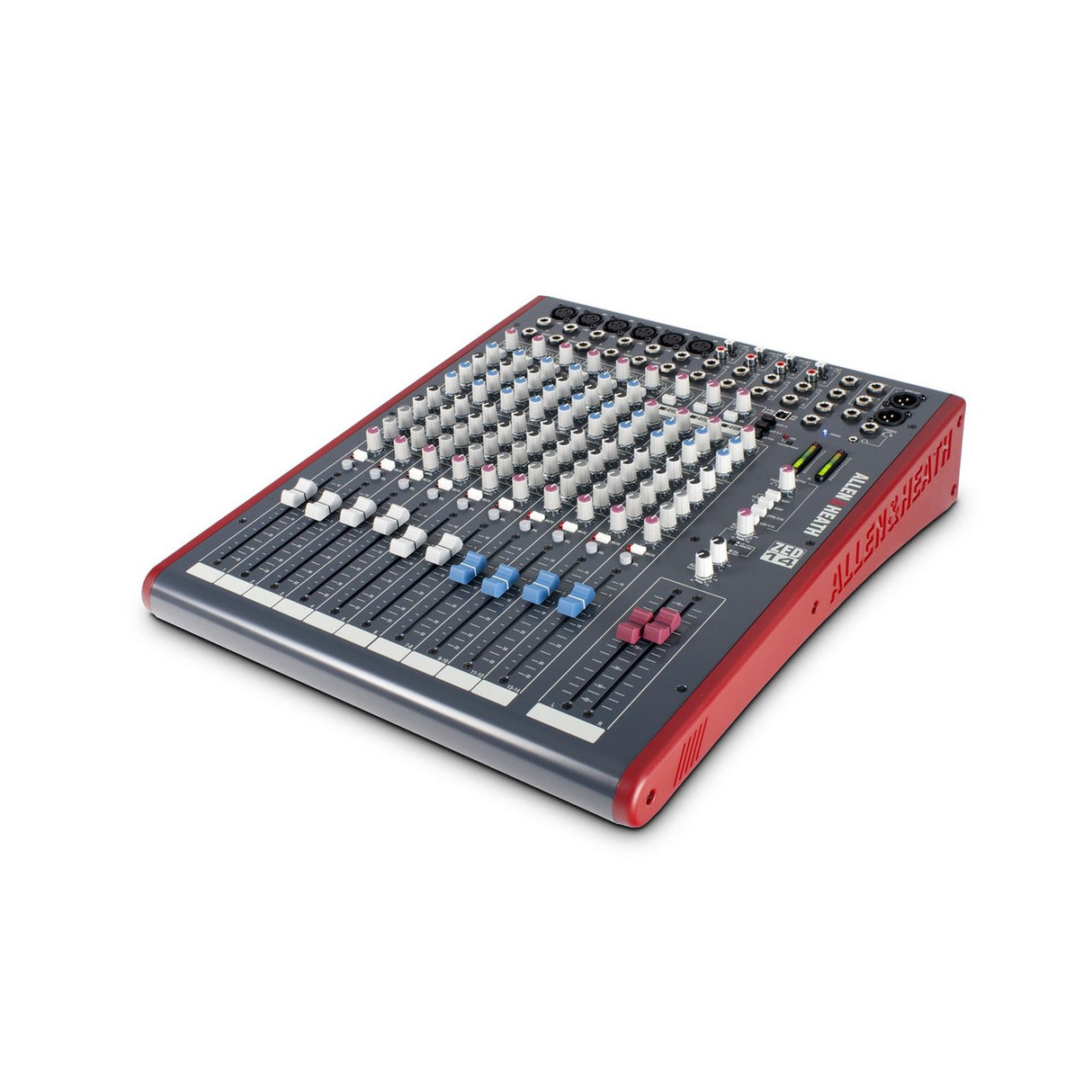

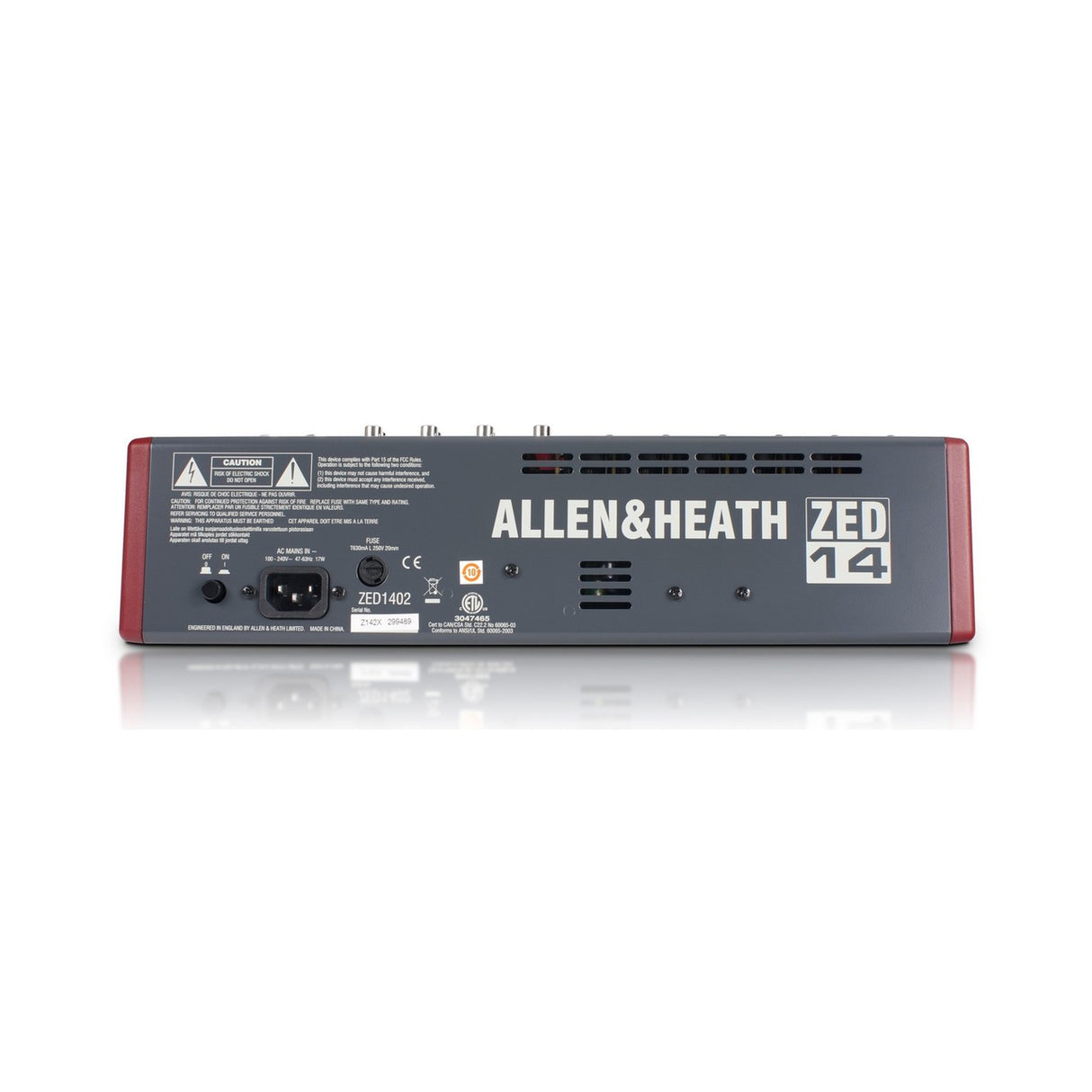

Allen & Heath ZED-14 Compact Portable 6 Mono Channel Neutrik XLR Mic 1/4 Inch Mixer

Allen & Heath ZED-14 | Compact Portable 6 Mono Channel Neutrik XLR Mic 1/4 Inch Mixer

The Allen & Heath ZED-14 is a versatile, entry-level mixer that is perfect for small bands, solo performers, and a wide range of AV applications. With its compact size, extensive feature set, and superior build quality, the ZED-14 stands out as one of the best mixers in its class. This mixer features 6 mono channels, each equipped with Neutrik mic XLR and 1/4 inch jacks, providing high-quality connections and robust performance. Additionally, the ZED-14 includes 4 stereo inputs with EQ, delivering exceptional sound control and flexibility.

Designed for both beginners and professionals, the ZED-14 offers an intuitive layout with 157 controls on its front panel, making it easy to manage your mix. Whether you're performing live on stage, recording in the studio, or creating a mix at home, this mixer delivers consistently excellent sound quality. To further enhance your music production capabilities, the ZED-14 comes bundled with Cakewalk's SONAR X1 LE software, giving you access to a high-spec digital audio workstation.

Built to withstand the demands of live performances and studio sessions, the Allen & Heath ZED-14 boasts a rugged construction that ensures long-lasting durability. Its innovative feature set and flexible audio routing options make it a favorite among musicians and audio engineers alike. Experience the perfect blend of practicality, performance, and professional-grade sound with the Allen & Heath ZED-14 mixer.

Key Features

• 6 mono channels
• Neutrik mic XLR and 1/4 inch jacks
• Channel insert capabilities
• Super wide gain DuoPre mic line input
• 3 band EQ with MusiQ
• 4 auxiliary sends
• Illuminated mute and PFL & peak warning indicator
• 100mm ALPS faders
• 4 stereo channels with 2-band EQ
• Stereo returns and playback
• All inputs with level control
• 12 bar meters for precise level monitoring
• Configurable USB stereo audio in/out
• Includes Cakewalk SONAR LE software
• Rack ears available for easy installation

Specifications

• Operating Levels - Mono channel (XLR) Input: +6 to -63dBu for nominal (+17dBu max)
• Mono channel Line Input (Jack socket): +10 to -26dBu (+30dBu max)
• Insert point (TRS Jack socket): 0dBu nominal +21dBu max
• Stereo Input (Jack sockets): 0dBu nominal (control = Off to +10dB)
• Stereo input (phono sockets): 0dBu nominal (control = Off to +10dB)
• Output Levels - L, R & Mono Outputs (L&R XLR, Mono Jack): 0dBu nominal. +21dBu max
• Aux Outputs (Jack sockets): 0dBu nominal. +21dBu max
• Alt Outputs (phono sockets): 0dBu nominal. +21dBu max
• Rec Outputs (phono sockets): 0dBu nominal. +21dBu max
• Frequency Response - Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
• Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
• Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
• THD+n - Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
• Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
• Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.003%
• Analogue Headroom from nominal (0Vu): 21dB
• USB in & out headroom from nominal (0Vu): 14dB
• USB Audio CODEC - USB 1.1 compliant 16bit
• Sample Rate: 32, 44.1, or 48kHz
• Noise - Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-14: -88dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-18: -86dBu
• Mix L/R out, L/R faders = 0, 22-22kHz ZED-24: -84dBu
• Dimensions - Width: 15.2 Inches, Height: 3.7 Inches, Length: 18.3 Inches
• Unpacked Weight: 14.3 lb
• Packed Weight: 23.1 lb

Package Contents

• Allen & Heath ZED-14 Mixer
• USB Cable
• Power Supply
• User Manual
• Cakewalk SONAR X1 LE Software License
