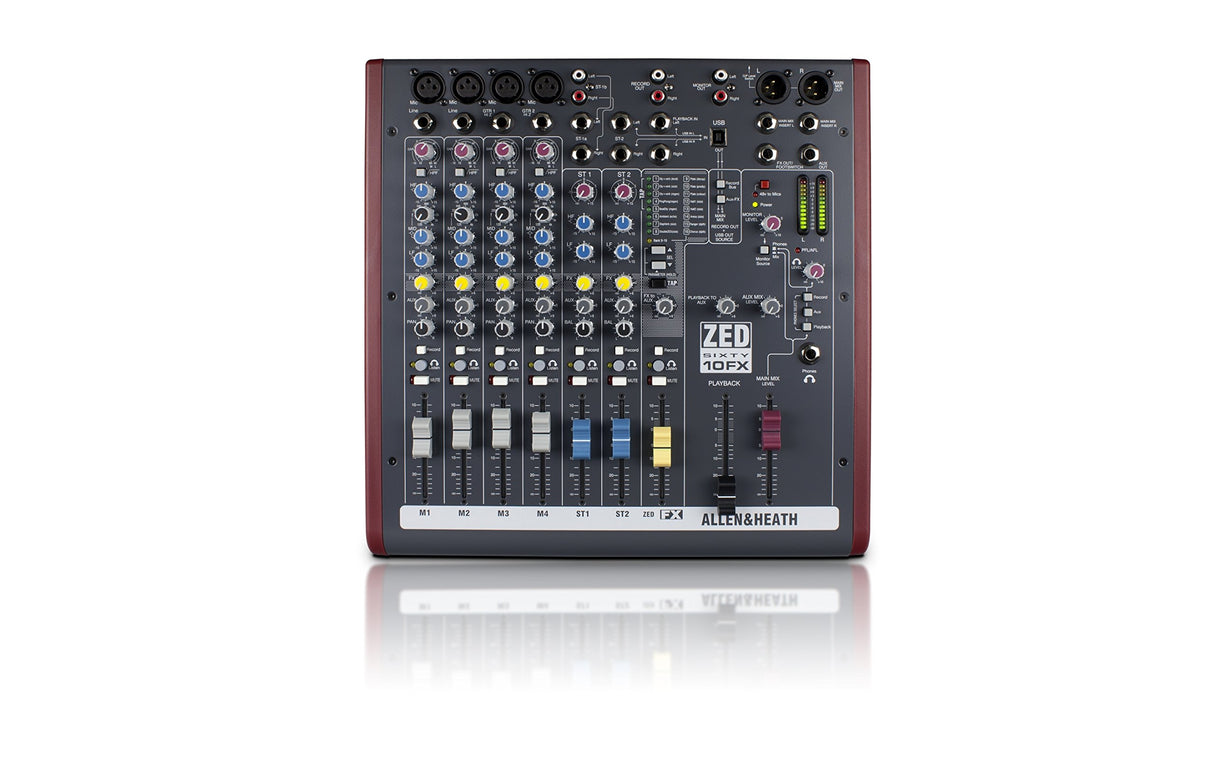

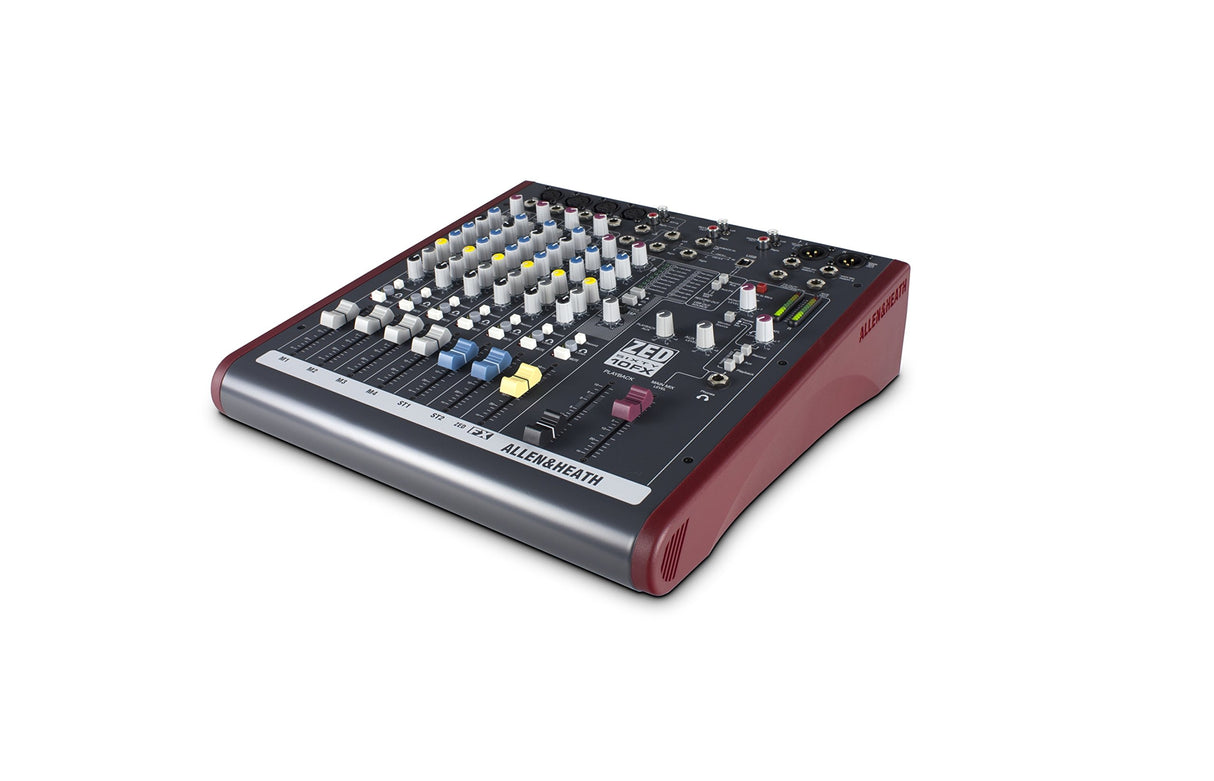

Allen & Heath ZED-60/10FX Portable 4 Mic Line 2 Stereo Input 60 mm Faders FX Mixer

Live or in the studio, ZED60-10FX is an ultra-portable mixer for solo artists and small bands.

Based on our top selling ZED-10FX, the new ZED60-10FX adds premium quality 60mm faders for that intuitive, tactile mixing experience.

This mixer is a guitarists dream. Two of the 4 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.

ZED60-10FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

Most important of all, ZED60-10FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.

Key Features

• 4 mic/line inputs, 2 with Class A FET high impedance
• 60mm professional quality faders
• Responsive 3-band, swept mid EQ with MusiQ
• Configurable USB stereo audio in/out
• 1 pre-fade Aux send
• 1 FX send
• 2 stereo inputs
• Separate 2-track record outputs
• 16 Internal Effects
• XLR main stereo outputs with inserts
• Comprehensive monitoring
• 48V microphone phantom power
• DI level switching with Gain Boost
• Neutrik XLRs and 1/4 inch jacks

Technical Specifications

Operating Levels
Input
Mono channel (XLR) Input:
-10 to -60dBu for nominal (+11dBu in max)
Mono channel Line Input (Jack socket):
+10 to -40dBu (+31dBu maximum)
Stereo Input (Jack or phono sockets):
0dBu nominal (control = Off to +15dB)
Frequency Response
Mic in to Mix L/R Out, 30dB gain:
+0.5/-1dB 10Hz to 30kHz.
Line in to Mix L/R out 0dB gain:
+0.5/-1dB 10Hz to 25kHz
Stereo in to Mix L/R out:
+0.5/-1dB 10Hz to 30kHz
THD+n
Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out:
0.002%
Mic in to Mix L/R Out, 30dB gain 1kHz:
0.01%
Line in to Mix L/R out 0dB gain 0dBu 1kHz:
0.003%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz:
0.002%
Gtr Input to Mix L/R Out, 0dBu, Boost OUT:
0.015%
Gtr Input to Mix L/R Out, 0dBu, Boost IN:
2% Second Harmonic
Headroom
Analogue Headroom from nominal (0Vu):
21dB
USB in & out headroom from nominal (0Vu):
14dB
Noise
Mic Pre EIN @ max gain 150R input Z 22-22kHz:
-127dBu
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:
-96dBu (10FX)
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:
-93dBu (14FX)
USB Audio CODEC (Coder/Decoder)
USB Audio In/Out:
USB 1.1 compliant 16bit.
Sample Rate:
32, 44.1, or 48kHz
Width:
13.2 Inches
Height:
3.7 Inches
Length:
13.6 Inches
Unpacked Weight:
8.4 lb
Packed Weight:
9.7 lb
