Altronix NETWAYSP4TCW57 4-Port Outdoor Hardened PoE Switch with Battery Charger NEMA 4/4X

Altronix NETWAYSP4TCW57 4-Port Outdoor Hardened PoE Switch with Battery Charger NEMA 4/4X

The Altronix NETWAYSP4TCW57 is a rugged outdoor hardened PoE switch designed for extreme environments. This unit supports the latest high-powered IP devices with four 802.3bt ports delivering up to 90W per port (360W total), along with two gigabit SFP ports for reliable long-distance fiber links.

This switch includes an integrated rapid battery charger which enables extended run times via compatible battery backup. With a NEMA 4/4X, IP66-11 rated enclosure and embedded LINQ technology, it allows remote monitoring, control, and diagnostics. It’s built for deployment in remote, outdoor, or harsh conditions.

Ideal for powering cameras, illuminators, access points, and other heavy duty PoE devices, the NETWAYSP4TCW57 offers performance, resilience, and versatility in one hardened box.

Key Features

• Four (4) 802.3bt PoE ports providing up to 90W per port, 360W total output
• Two (2) 1 Gb SFP fiber ports for long-distance data transmission
• Integrated rapid battery charger for backup power support
• Embedded LINQ technology for remote monitoring, diagnostics, and control
• NEMA 4/4X / IP66-11 rated outdoor enclosure for harsh environmental protection
• Supports single-mode and multi-mode fiber on SFPs for flexible uplink options

Technical Specifications

• Total PoE Power Budget: 360W
• PoE Port Standard: 802.3bt (each port up to 90W)
• Uplink Ports: 2 × 1 Gb SFP
• Enclosure Rating: NEMA 4/4X, IP66-11

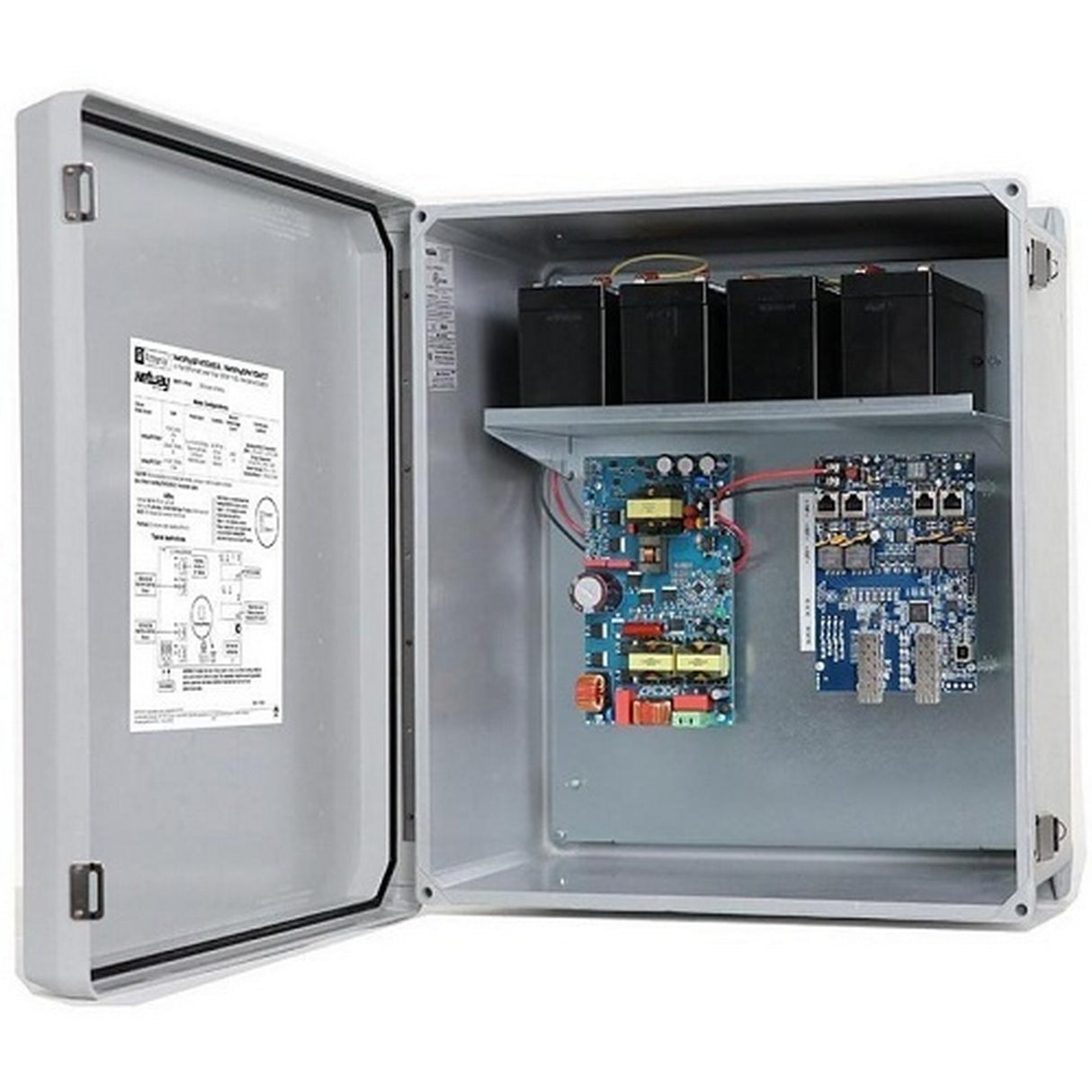

• Battery Support: Accommodates up to four (4) 12VDC 12Ah batteries in the enclosure
• Input Voltage: 277VAC
• Product Weight: 20.6 lb
• Shipping Weight: 24.3 lb
