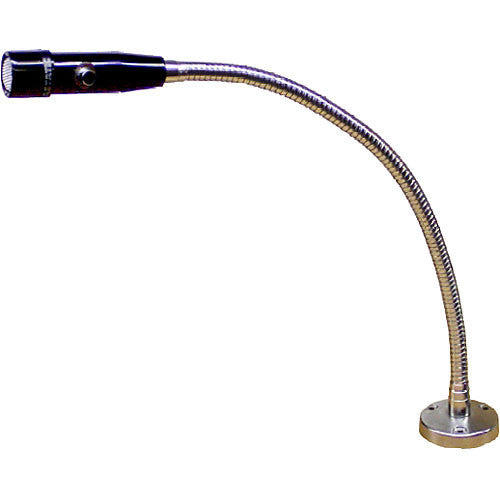

CAD Audio AMC105SNO-19 19 Inch Gooseneck Dynamic Microphone 1 DPDT Push-To-Talk, Chrome
Authorized Dealer
Free Shipping
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
CAD Audio AMC105SNO-19 19 Inch Gooseneck Dynamic Microphone 1 DPDT Push-To-Talk, Chrome
For fixed paging applications such as fast-food restaurants, supermarkets, gas stations, busing and transportation, commercial facilities and dispatch. omnidirectional for “forgiving” pick-up of users that may not be “focused on” or “committed to” the mic. Long lasting push-to-talk switch with external contact closure. Dual zone available as the AMC105-2-19 featuring two DPDT sealed micro switches with color coded buttons for easy identification, permits paging in two areas, and an all-call feature is obtained by depressing both buttons simultaneously. 19” heavy-duty chrome plated gooseneck and 2 3 /4 ” flange included. 6’ cable terminates with stripped and tinned ends.
Key Features
- Omnidirectional Dynamic Heavy-Duty
- Microphone with Push-to-Talk Switch;
- AMC105SNO-19: Single Zone 19” Heavy-Duty Gooseneck and Flange
Technical Specifications
Polar Pattern
Omnidirectional
Frequency Response
150Hz-10KHz
Sensitivity
-56 dBV (1.6 mV) @ 1 Pa
Impedance
550 ohms
Installation / Use Cases
- Use as a fixed paging microphone for fast-food restaurants, supermarkets, gas stations, busing and transportation, commercial facilities, and dispatch applications.
- Suitable for single-zone paging workflows that need a 19-inch heavy-duty gooseneck microphone.
- Use the omnidirectional pickup pattern for forgiving voice pickup when users are not perfectly focused on the microphone.
- Use the push-to-talk switch for controlled paging operation.
- Use the DPDT switch with external contact closure for compatible paging and communication systems.
- Use the chrome-plated gooseneck and included flange for fixed installation.
- Use the 6-foot cable with stripped and tinned ends for installation wiring.
- Suitable for systems that need 150 Hz - 10 kHz frequency response and 550-ohm impedance.
Package Contents
- CAD Audio AMC105SNO-19 19 Inch Gooseneck Dynamic Microphone with DPDT Push-To-Talk, Chrome
- 19-inch Heavy-Duty Gooseneck
- 2 3/4-inch Flange
- 6-foot Cable with Stripped and Tinned Ends
Frequently Asked Questions
What is the CAD Audio AMC105SNO-19 used for?
It is used for fixed paging applications in fast-food restaurants, supermarkets, gas stations, transportation areas, commercial facilities, and dispatch stations.
What pickup pattern does it use?
It uses an omnidirectional pickup pattern.
Does it have a push-to-talk switch?
Yes. It includes a long-lasting push-to-talk switch with external contact closure.
Is this the single-zone version?
Yes. The AMC105SNO-19 is the single-zone version.
How long is the gooseneck?
The gooseneck is 19 inches long.
What is the frequency response?
The frequency response is 150 Hz to 10 kHz.
What is the impedance?
The impedance is 550 ohms.
What comes with the AMC105SNO-19?
The package includes the microphone, 19-inch heavy-duty gooseneck, 2 3/4-inch flange, and 6-foot cable with stripped and tinned ends.
